Junction Block Body Control Module-JB - 26 Way

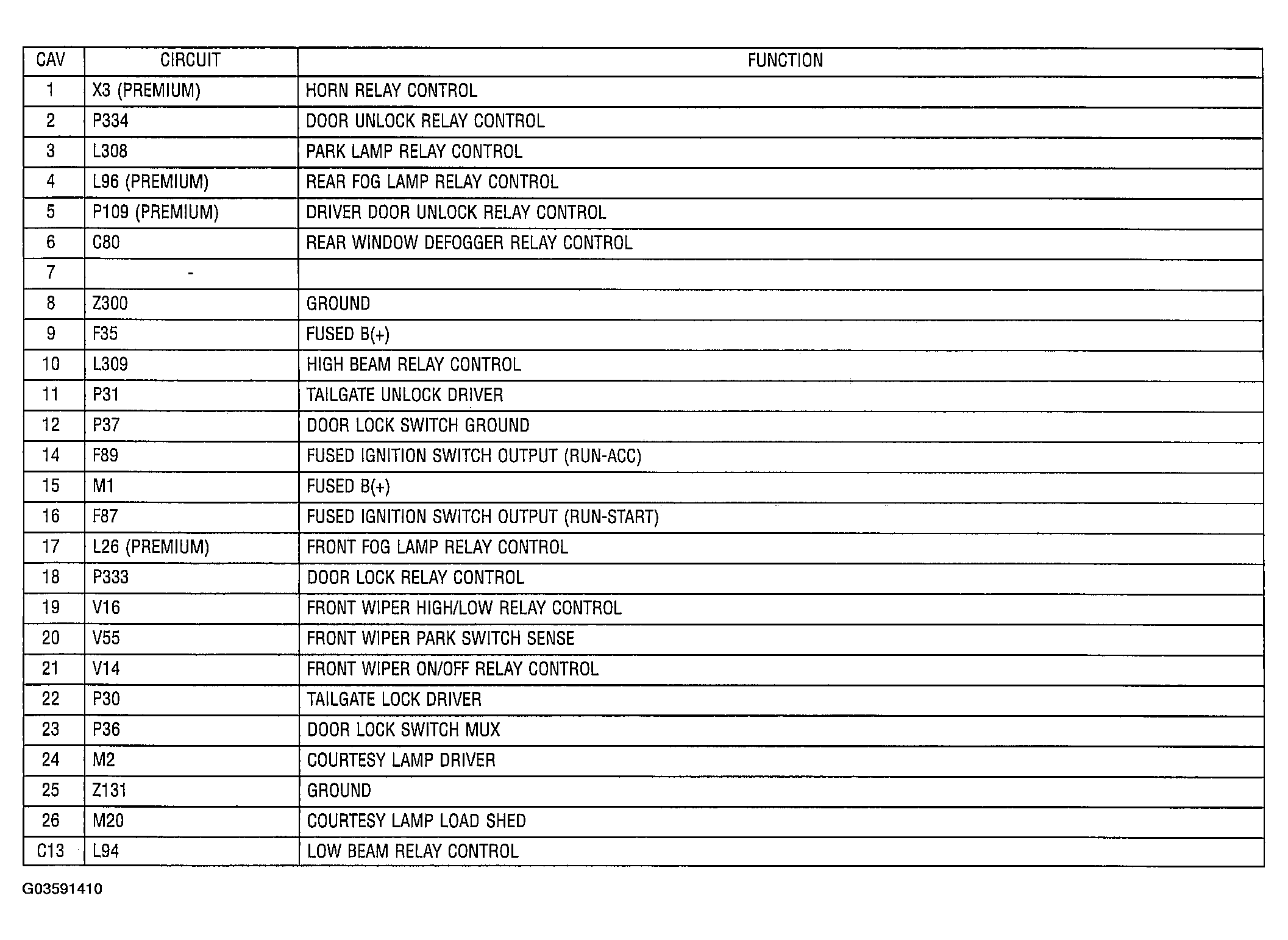

Fig 1: Identifying Junction Block Body Control Module-JB - 26 Way Connector Pinout
G03591410Courtesy of DAIMLERCHRYSLER CORP.
