Occupant Classification Module -18 Way

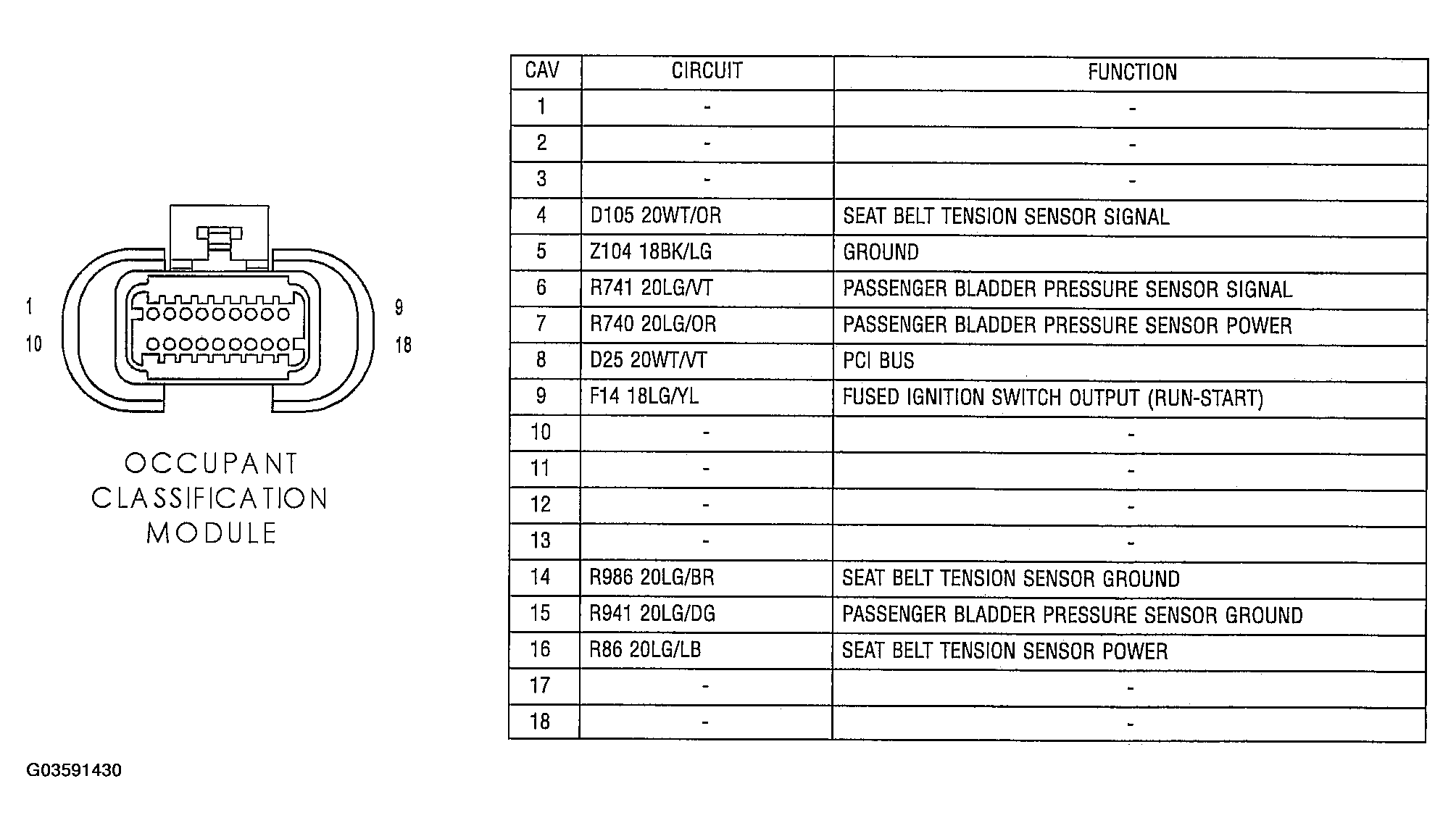

Fig 1: Identifying Occupant Classification Module -18 Way Connector Pinout
G03591430Courtesy of DAIMLERCHRYSLER CORP.
