Inter-Module And DRB Communication

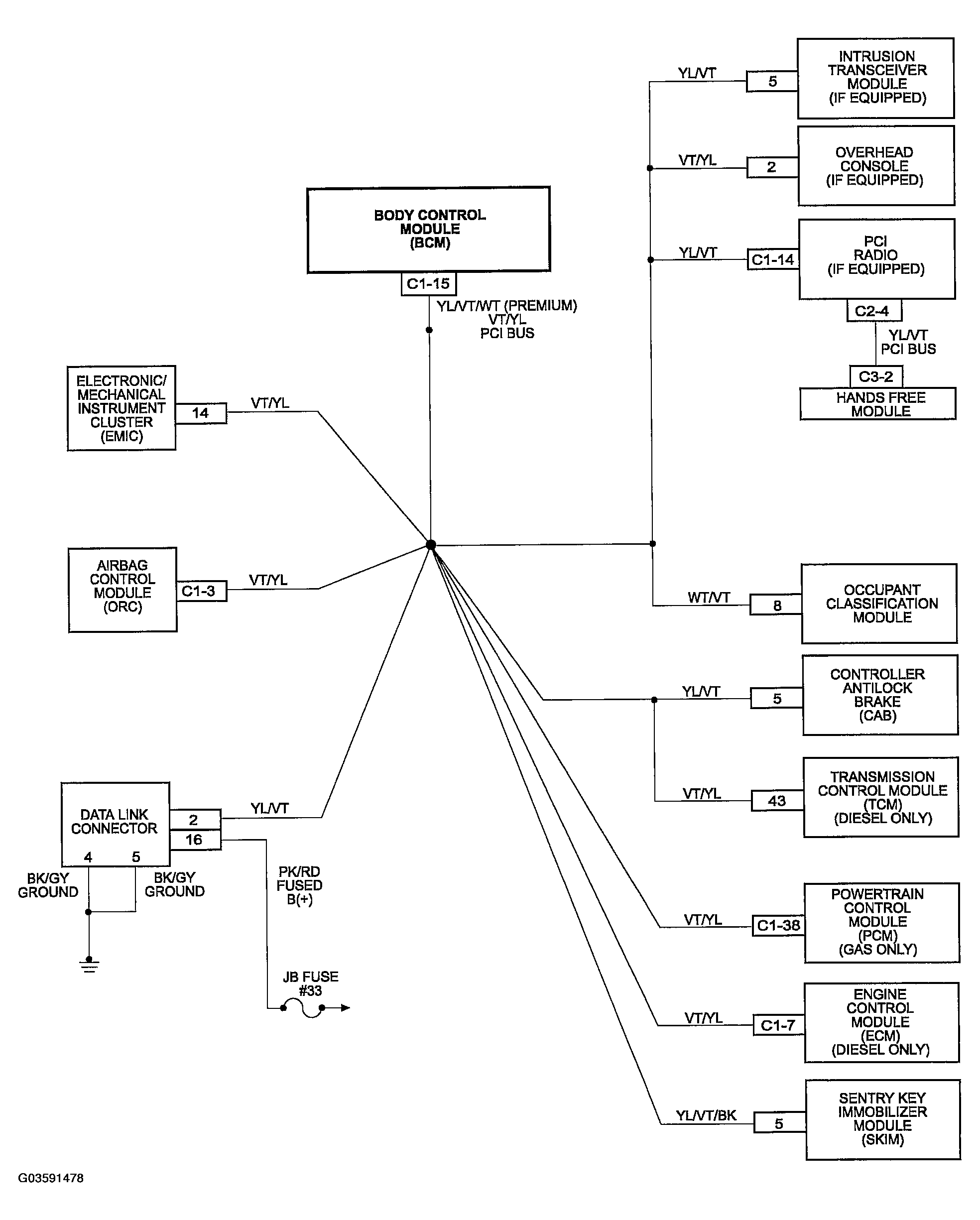

Fig 1: Inter-Module And DRB Communication Schematic Diagrams
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
