Hands Free Module

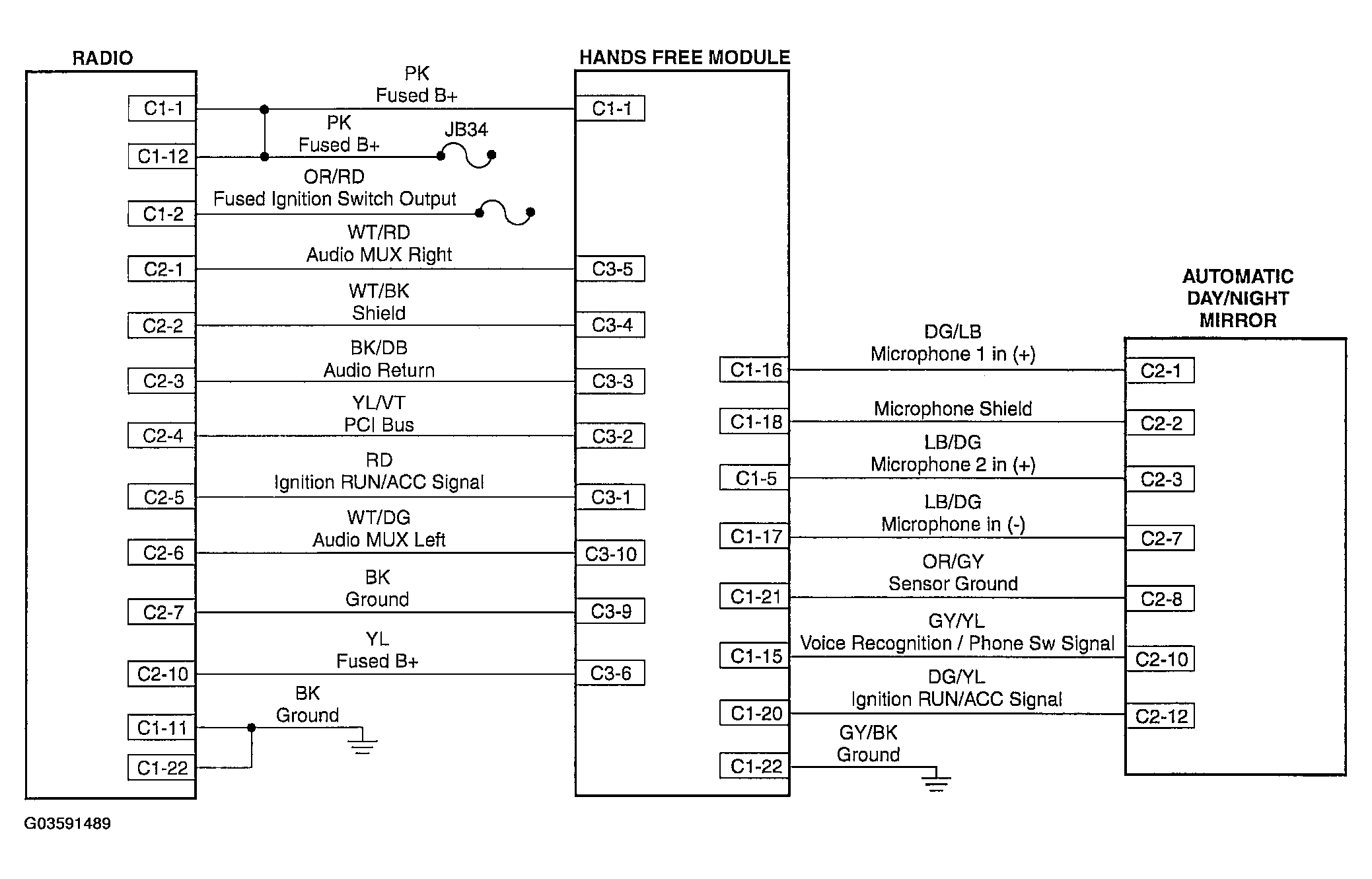

Fig 1: Hands Free Module Schematic Diagrams
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
