| A/C Compressor Mounting Bolts |
20 (27) |
| Camshaft Non - Oiled Sprocket Bolt |
90 (122) |
| Connecting Rod Cap Bolts |
| Step 1 |
20 (27) |
| Step 2 |
Tighten 90 Degrees |
| Counterbalance Shaft Retaining Bolt |
21 (28) |
| Crankshaft Damper Bolt |
129 (175) |

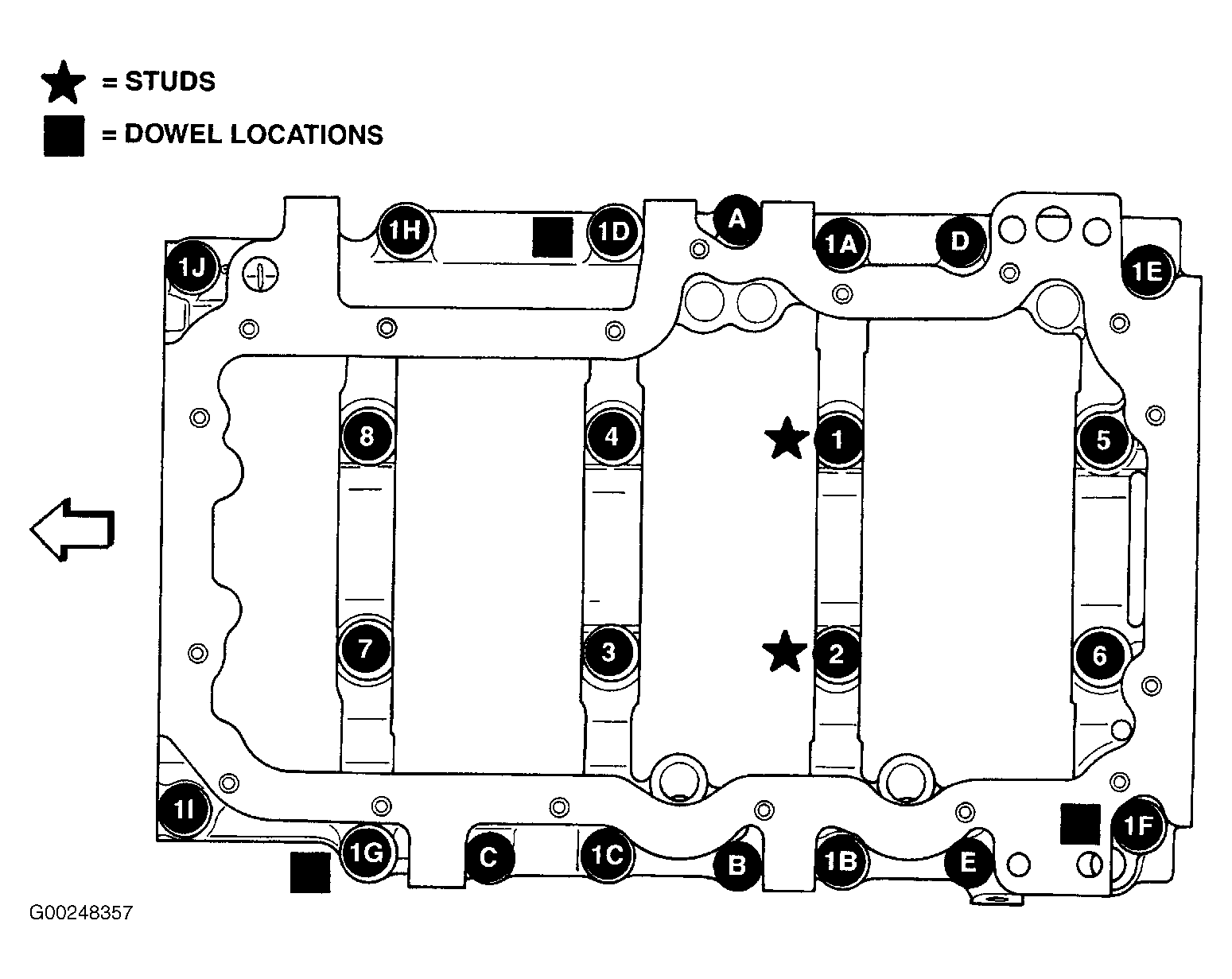

| Crankshaft Main Bearing Cap/Bedplate Bolt/Stud |
| Step 1 (Bolts 1D, 1G, 1F) |
Hand Tighten Until Bedplate Seats |
| Step 2 (Bolts 1A-1J) |
40 (54) |
| Step 3 (Bolts 1-8) |
6 (7) |
| Step 4 (Bolts 1-8) |
Additional 90 Degrees |
| Step 5 (Bolts A-E) |
20 (27) |

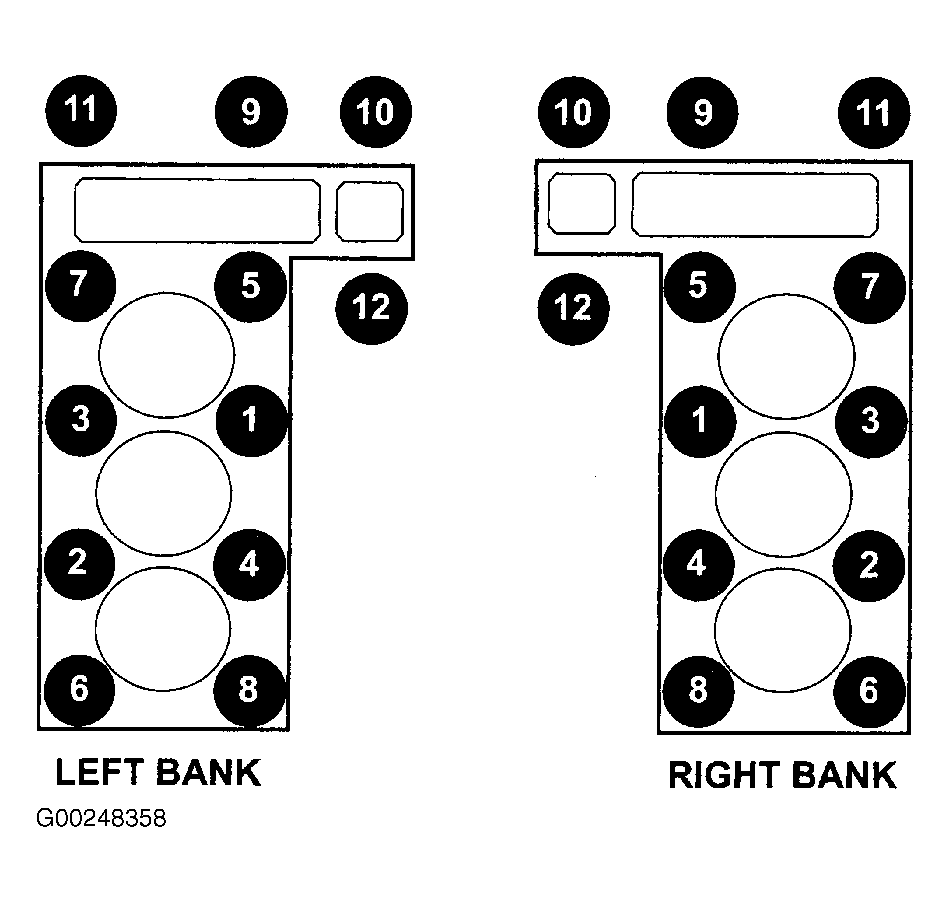

| Cylinder Head Bolt |
Step 1 (Bolts 1-8)
|
20 (27) |
| Repeat Step 1 Without Loosening Bolts |
20 (27) |
| Step 2 (Bolts 9-12) |
10 (14) |
| Step 3 |
| Bolts (1-8) |
Tighten 90 Degrees |
| Repeat Bolts (1-8) |
Another 90 Degrees |
| Bolts (9-12) |
19 (26) |
| Engine Mount Bolts (Front) |
45 (61) |
| Engine Mount Bolts (Rear) |
| Support Bracket to Transmission |
34 (46) |
| Cushion To Support Bracket |
55 (75) |
| Crossmember To Sill Bolts |
30 (41) |
| Exhaust Manifold Bolts |
18 (25) |
| Exhaust Manifold Heat Shield Bolts |
N/A |
| Flexplate Bolts |
70 (95) |
| Generator Mounting Bolt |
| M8 |
21 (28) |
| M10 |
40 (54) |
| Hydraulic Tensioner Bolts |
21 (28) |
| Oil Drain Plug |
25 (34) |

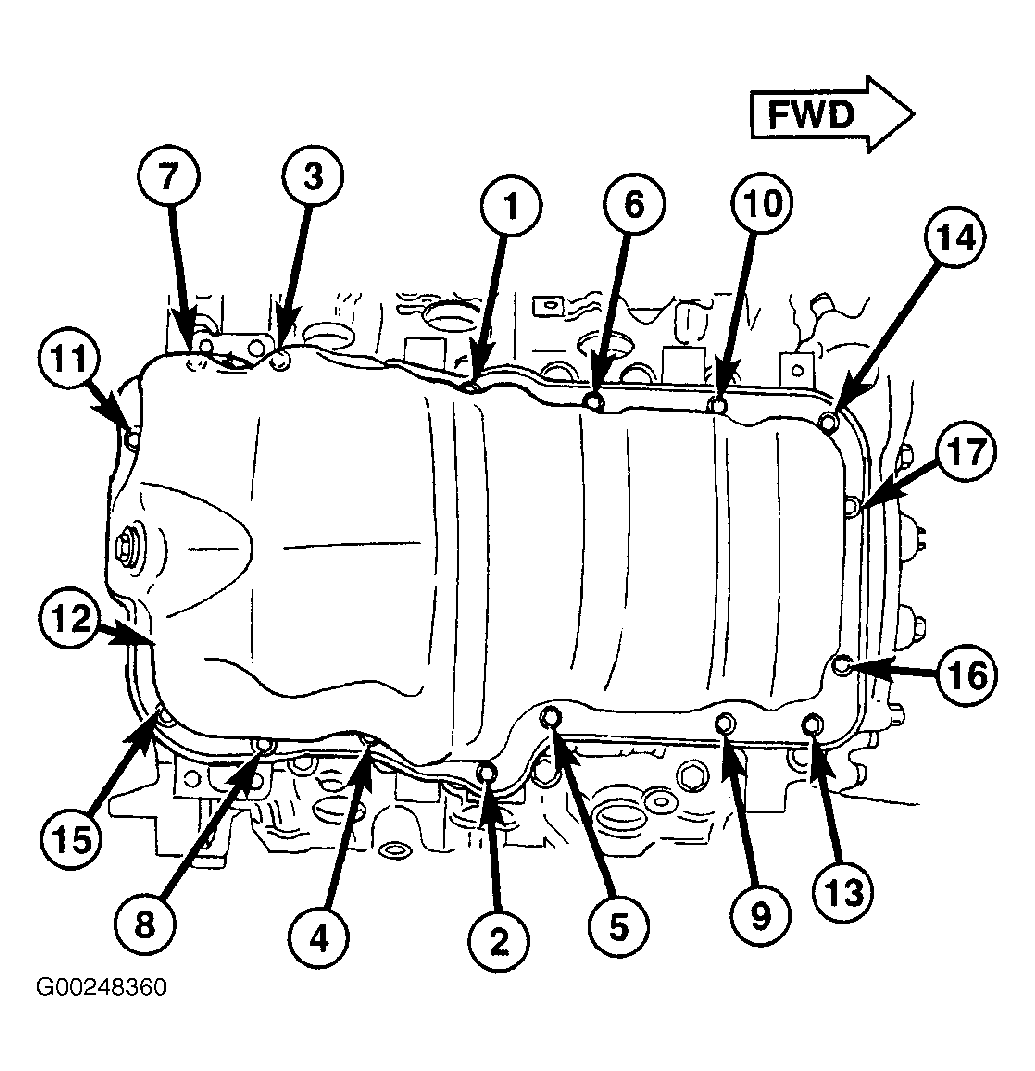

| Oil Pan Bolts |
11 (15) |
| Oil Pickup Tube Bolt & Nut |
21 (28) |
| Oil Pump/Primary Timing Chain Tensioner Bolt |
21 (28) |
| Power Steering Pump |
| Bracket To Pump Bolt |
21 (28) |
| Bracket To Engine Bolt |
35 (47) |
| Pump Flow Control Valve Fitting |
55 (75) |
| Pressure Line Fitting |
21 (28) |
| Spark Plug |
20 (27) |
| Starter Bolts |
40 (54) |

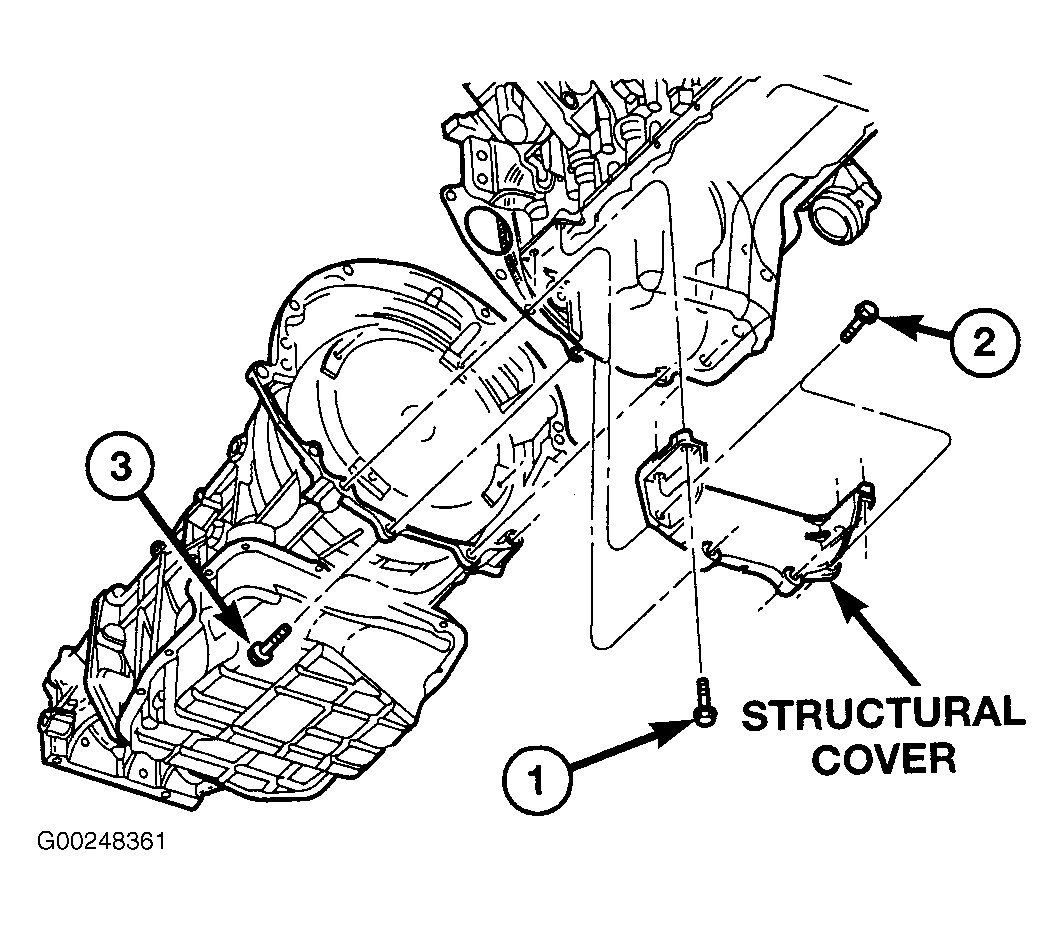

| Structural Cover Bolts |
| Step 1 |
Loosely Install 3 Bolts |
| Step 2 |
40 (54) |

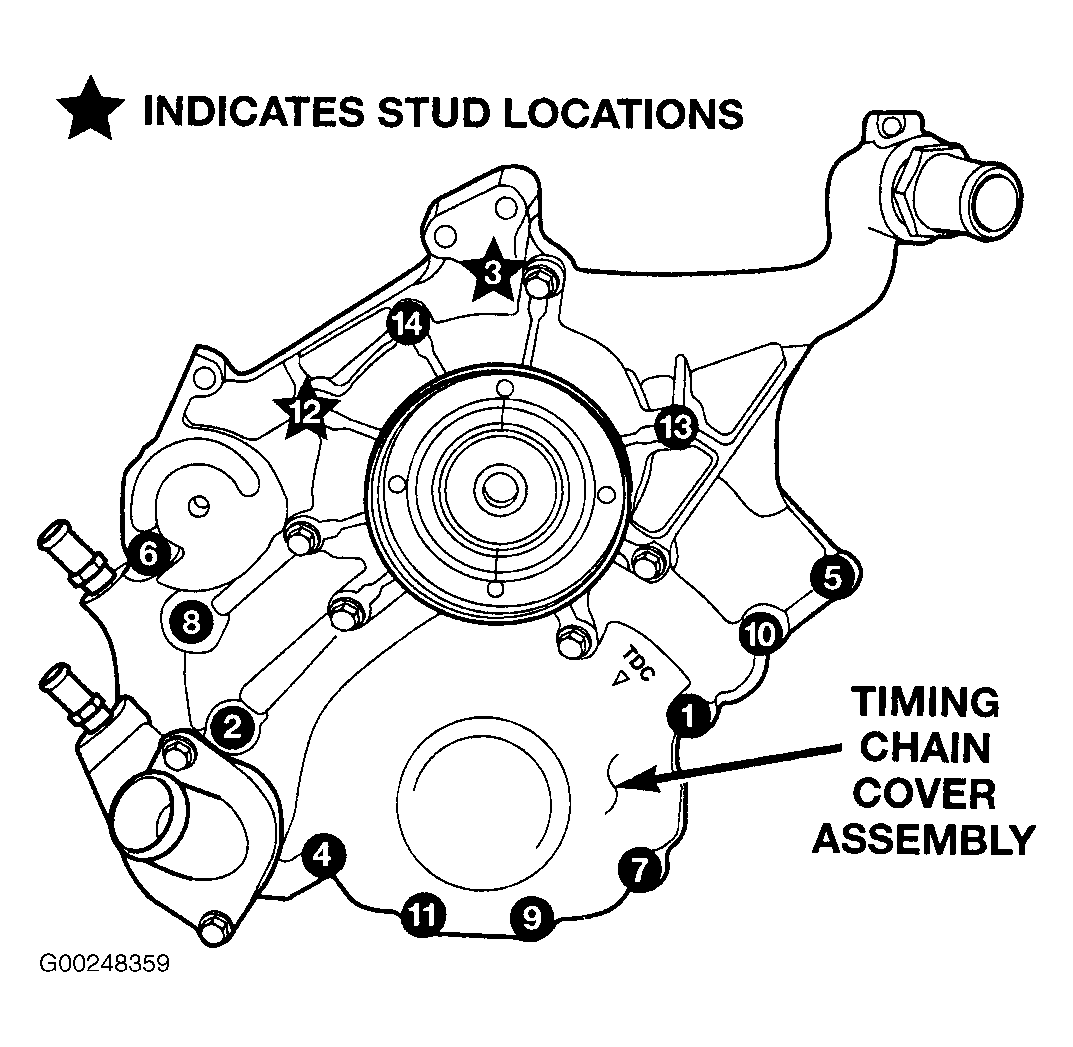

| Timing Chain Cover Bolts |
43 (58) |
| Timing Chain Idler Sprocket Bolt |
25 (34) |
| Timing Chain Guide Bolts |
21 (28) |
| Timing Chain Primary Tensioner Bolts |
21 (28) |
| Timing Chain Tensioner Arm Bolt |
21 (28) |
| Vibration Damper Bolt |
129 (175) |
| Water Pump Bolts |
43 (58) |
| INCH Lbs. (N.m) |

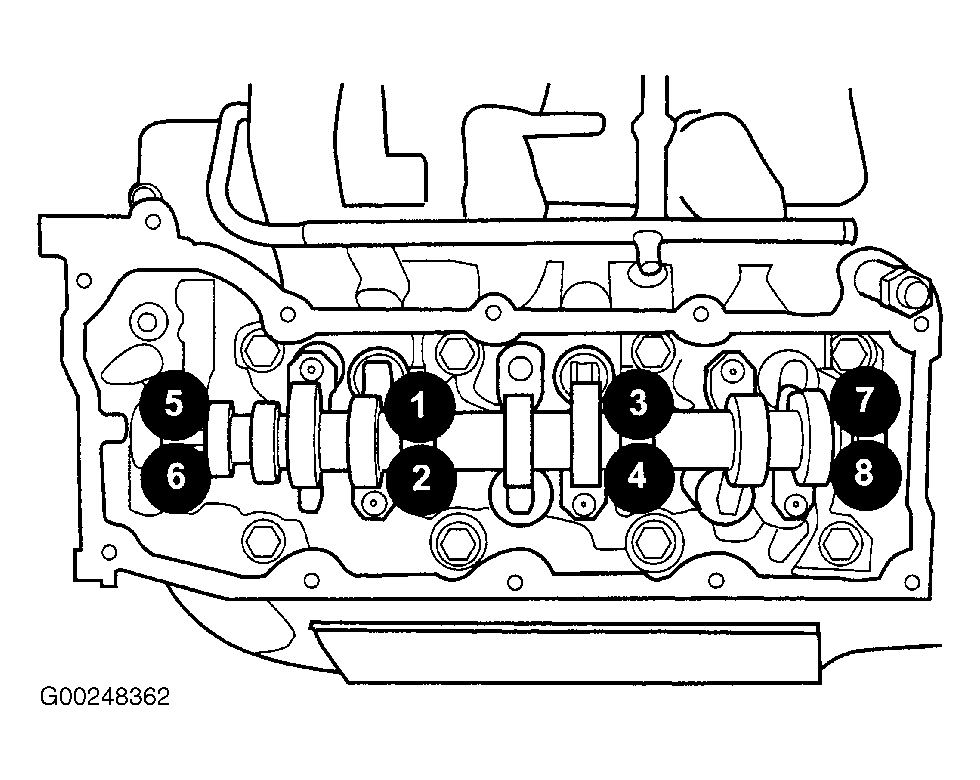

| Camshaft Bearing Cap Bolt |
97 (11) |
| Cylinder Head Cover Bolts |
106 (12) |
| Exhaust Manifold Heat Shield Nuts |
| Step 1 |
71 (8) |
| Step 2 |
Loosen 45 Degrees |
| Intake Manifold Bolt/Stud |
106 (12) |
| Oil Fill Tube Bolts |
106 (12) |
| Oil Pump Cover Bolts |
106 (12) |
| Thermostat Housing Bolts |
106 (12) |
| Throttle Body Bolt |
106 (12) |
| Valve Cover Bolt |
106 (12) |
