Controller Anti-Lock Brake: Removal

WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the negative battery cable from the battery.
Pull up on the CAB harness connector release (Fig 1 ) and remove connector.

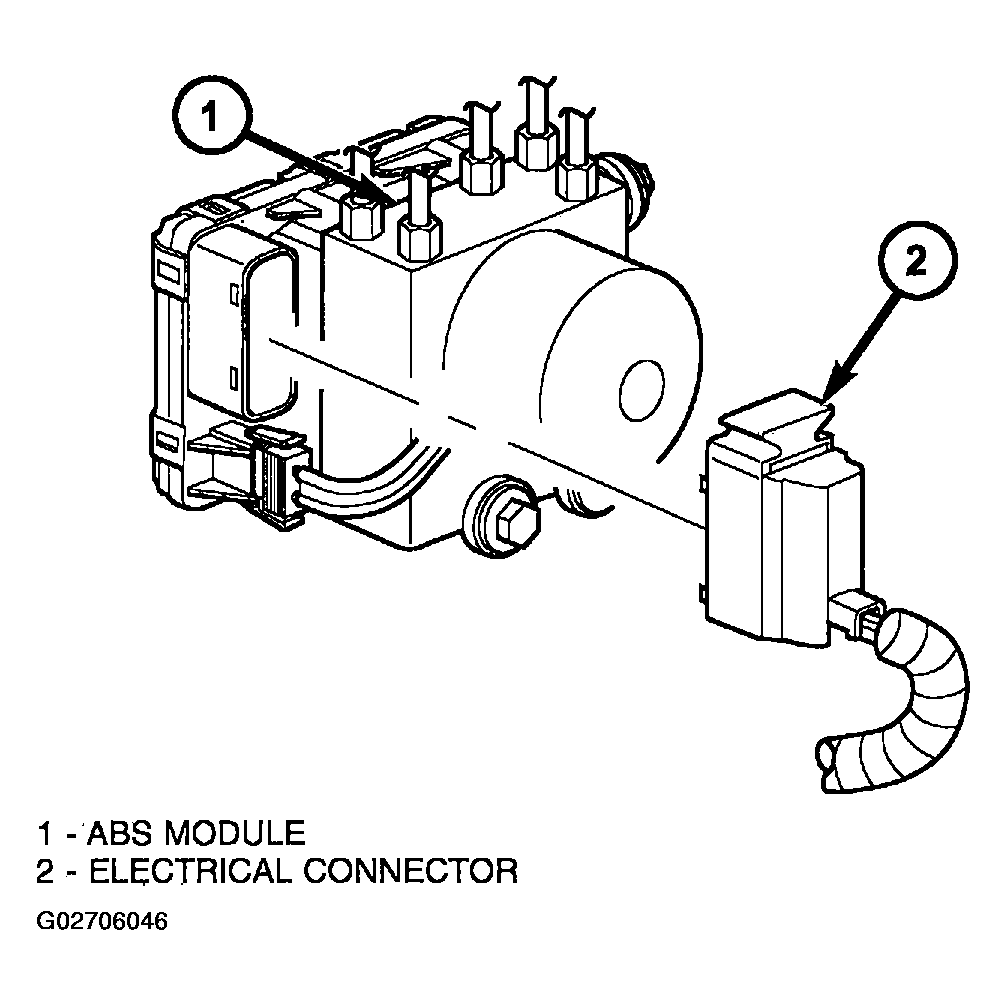

Fig 1: Locating ABS Module And Electrical Connector
Courtesy of DAIMLERCHRYSLER CORP.
Remove the pump connector from the CAB.
Remove the CAB mounting bolts (Fig 2 ).

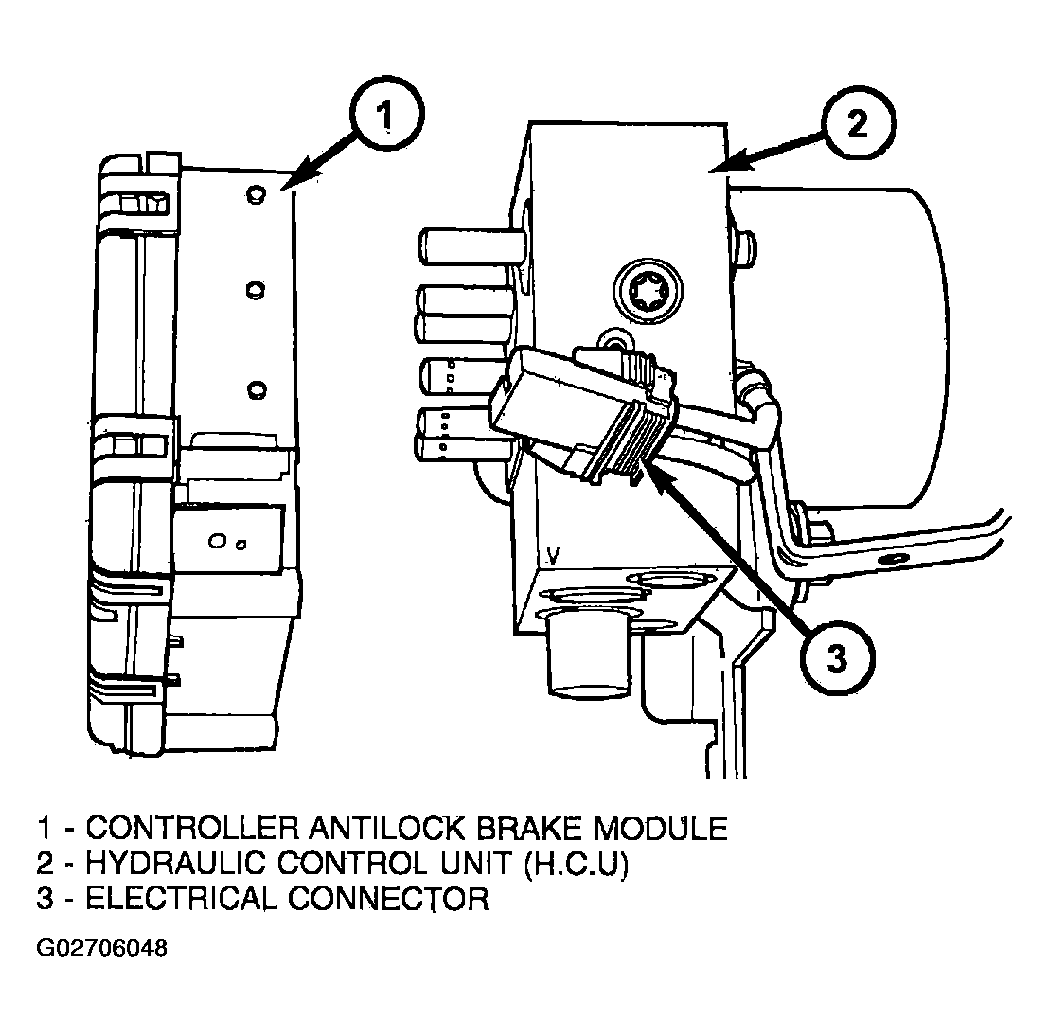

Fig 2: Removing HCU/CAB Mounting Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Remove the CAB from the HCU (Fig 3 ).

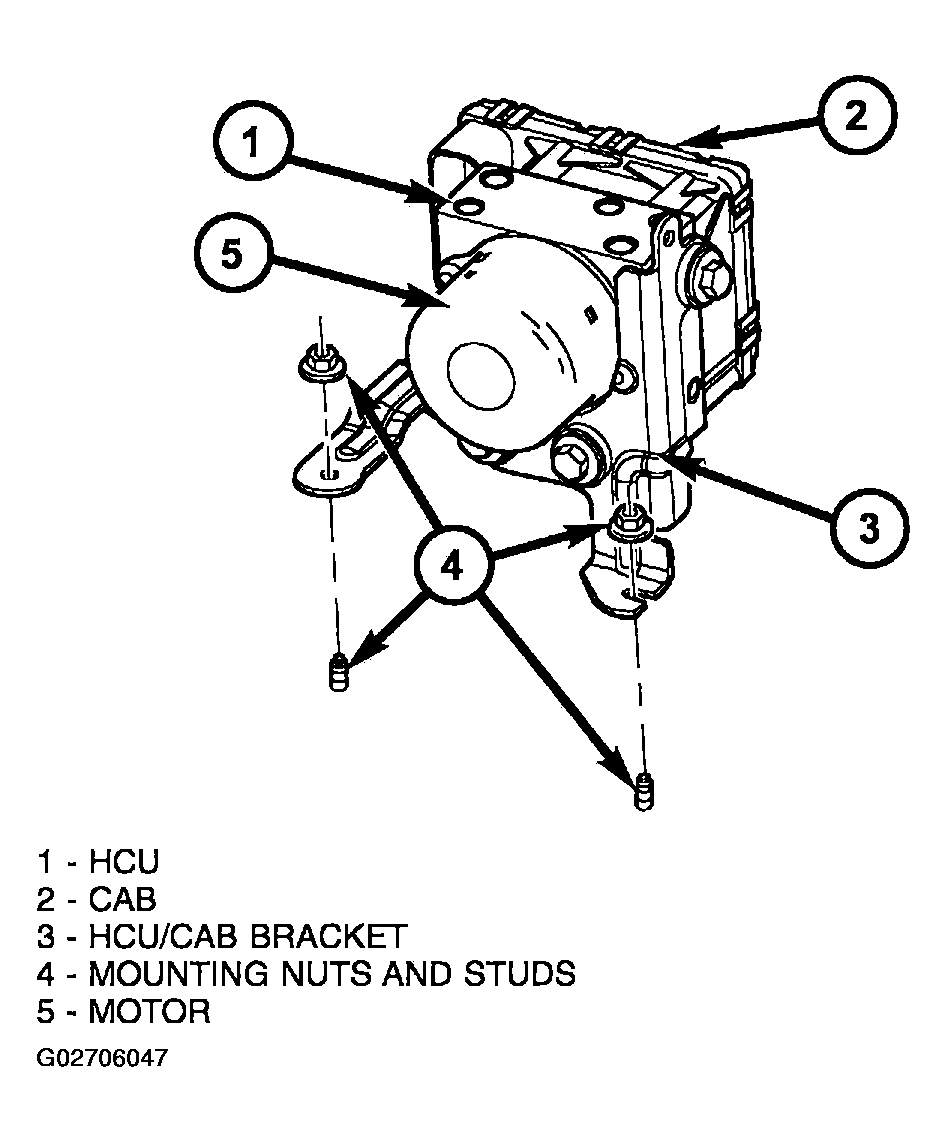

Fig 3: Removing/Installing CAB At HCU
Courtesy of DAIMLERCHRYSLER CORP.
