Adjustable Pedals Module: Installation

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the module on the mounting pins in the vehicle.
  2. Reconnect the electrical connector.

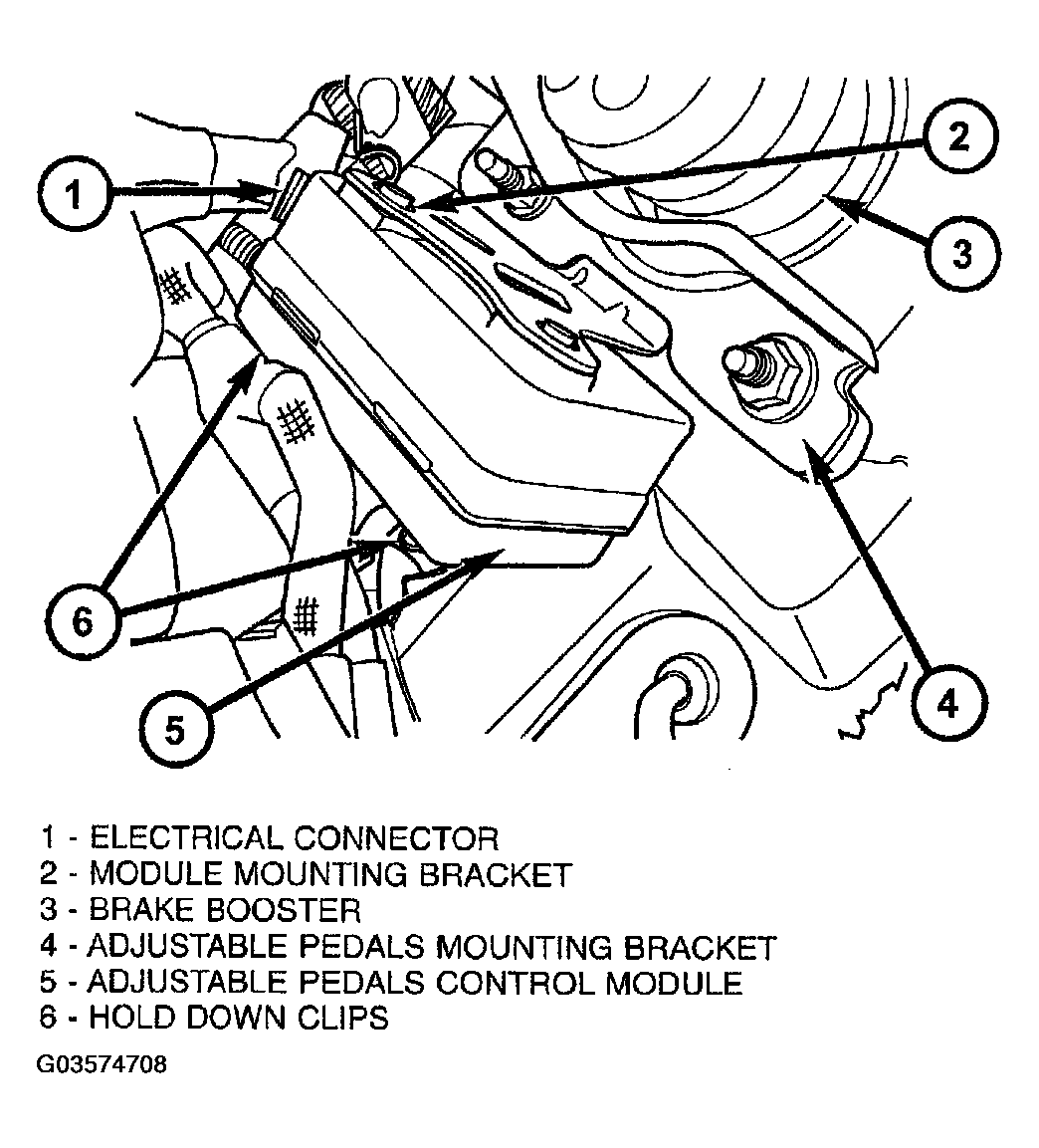

  3. Install the two mounting clips for the module (Figure ).
  4. Install the adjustable pedal motor. (Refer to ADJUSTABLE PEDALS ).
  5. Install the steering column opening cover (Refer to STEERING COLUMN OPENING COVER ).
  6. Install the cluster bezel (Refer to CLUSTER BEZEL ).
  7. Reconnect the negative battery cable.
