Memory Heated Seat/Mirror Module: Removal

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Remove the driver side front bucket seat from the power seat track unit. Refer to SEAT TRACK ADJUSTER .
Lift the heated seat module off of the power seat track and disconnect the power seat wire harness connectors (Fig 1 ).

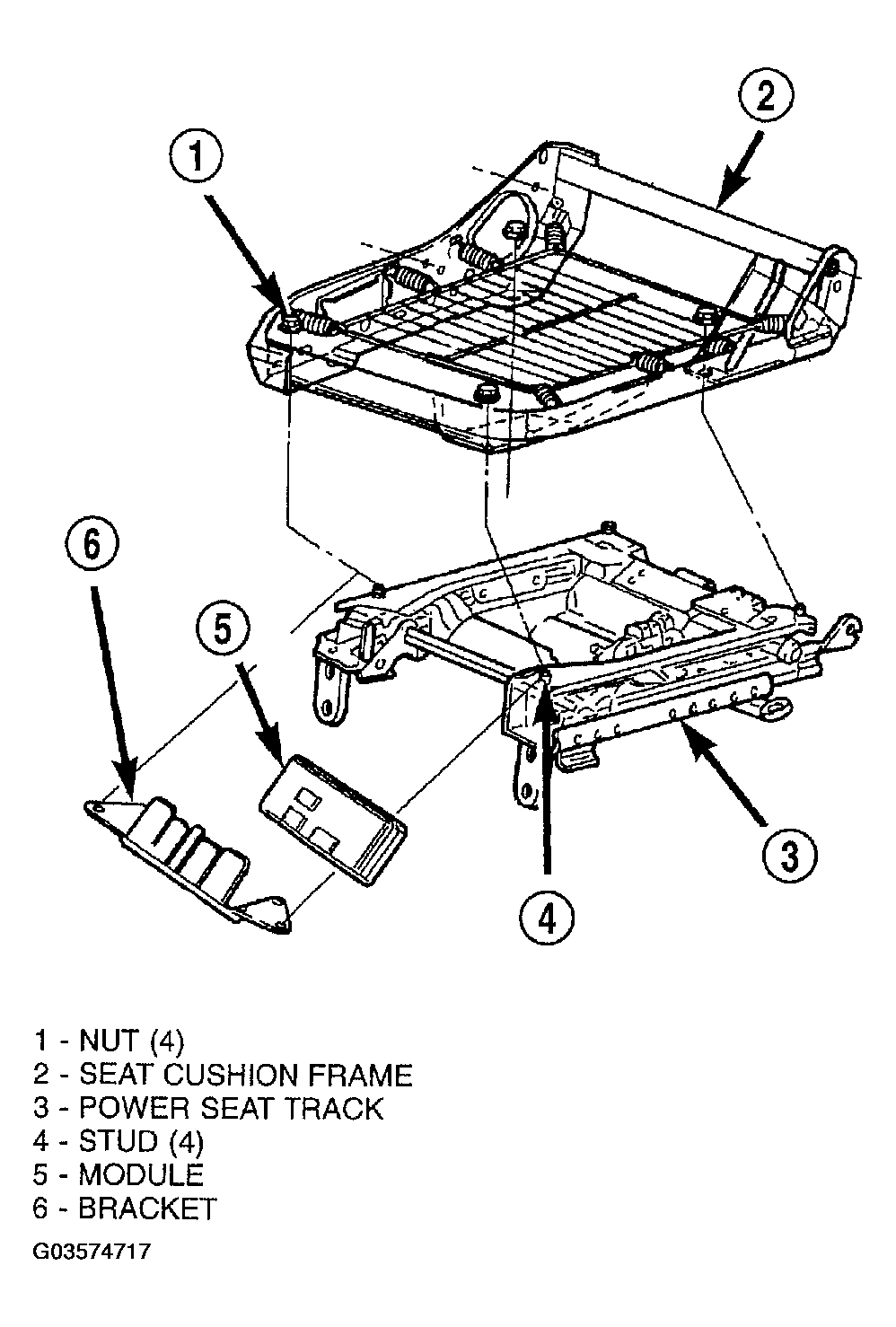

Fig 1: Heated Seat Module Remove/Install
Courtesy of DAIMLERCHRYSLER CORP.
Remove the module from the bracket.
