Window Switch: Removal: Rear

  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick, gently pry the switch from the console.

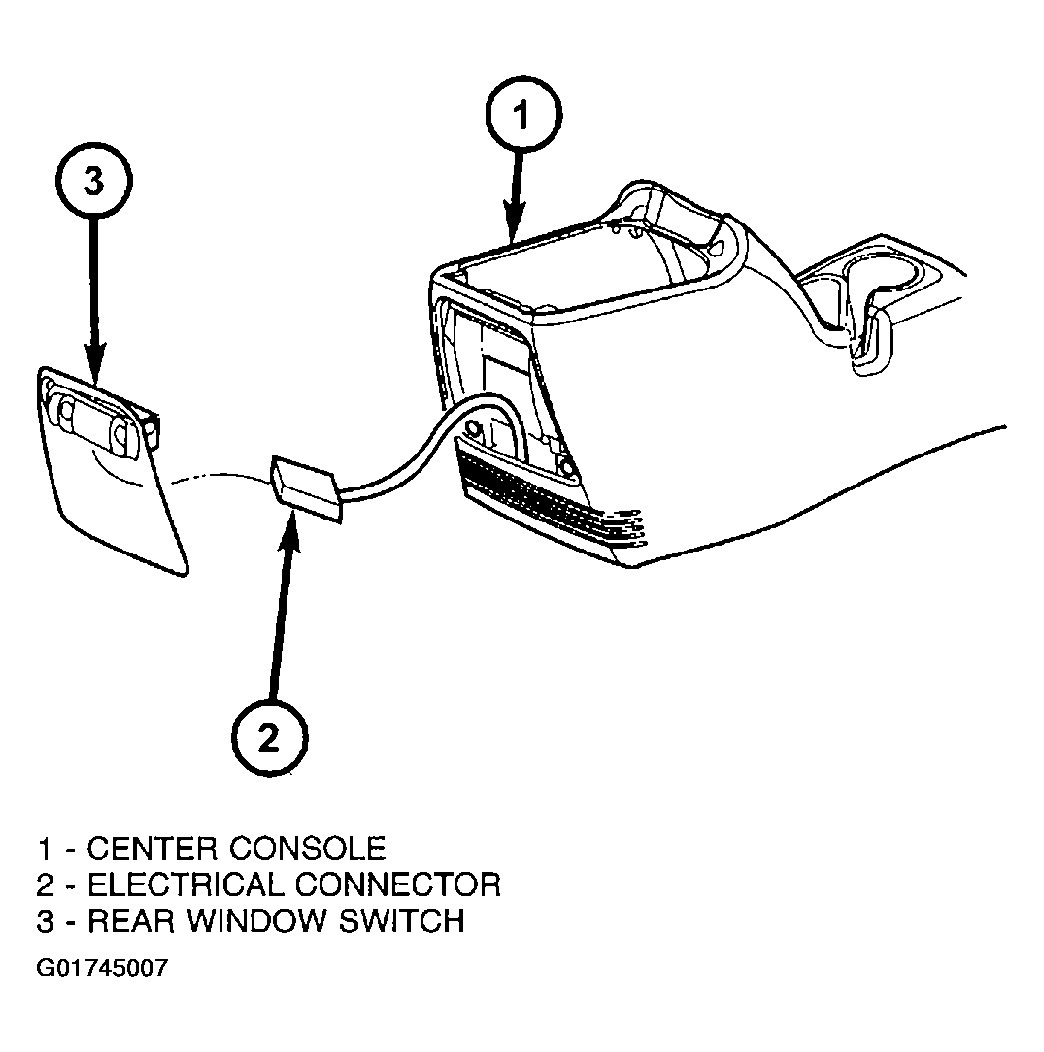

    Fig 1: Removing Rear Window Switch
    G01745007Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect electrical harness connector.
