Schematic Diagrams

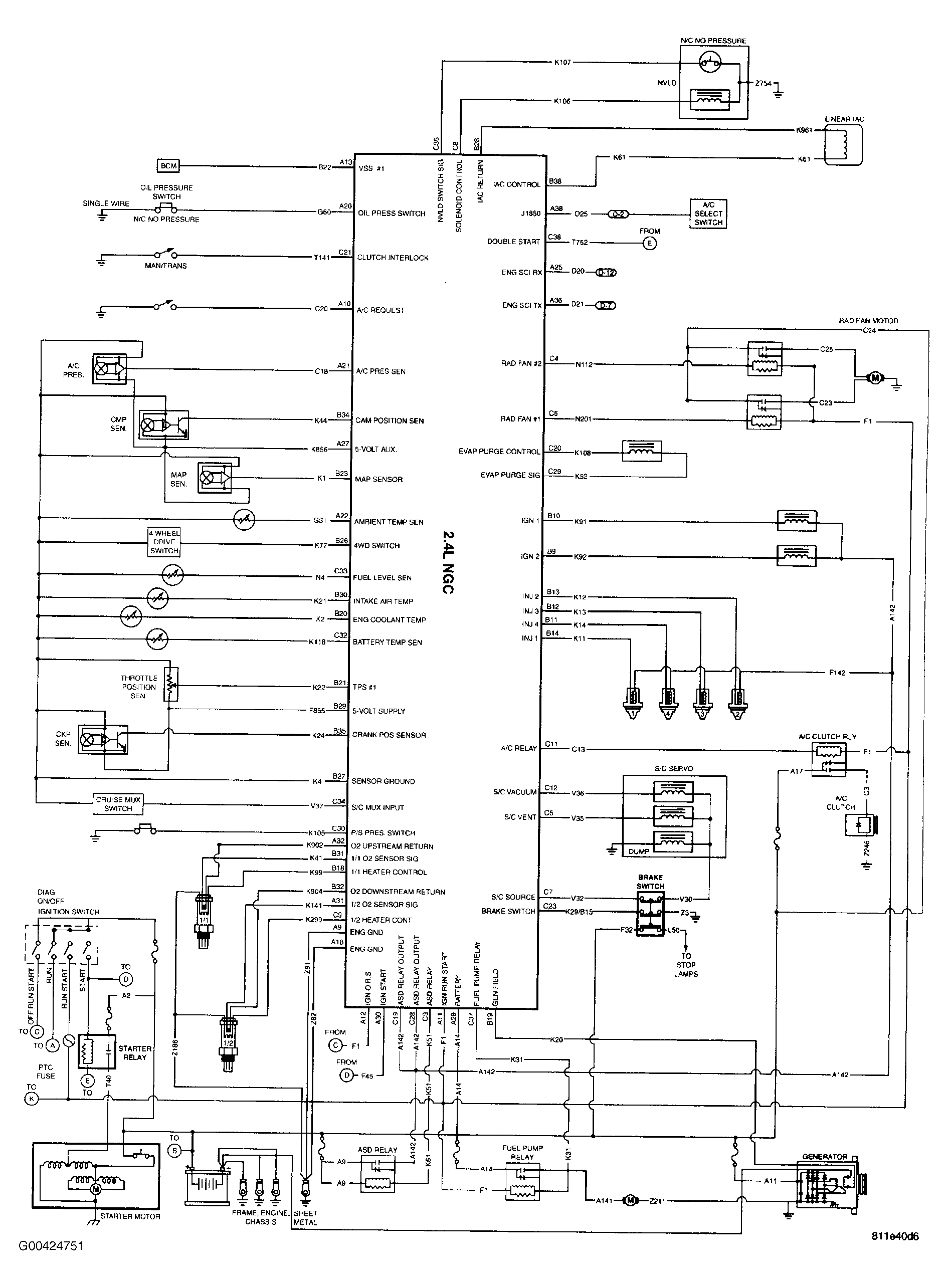

Fig 1: Schematic Diagram (2.4L NGC)
G00424751Courtesy of CHRYSLER CORP.

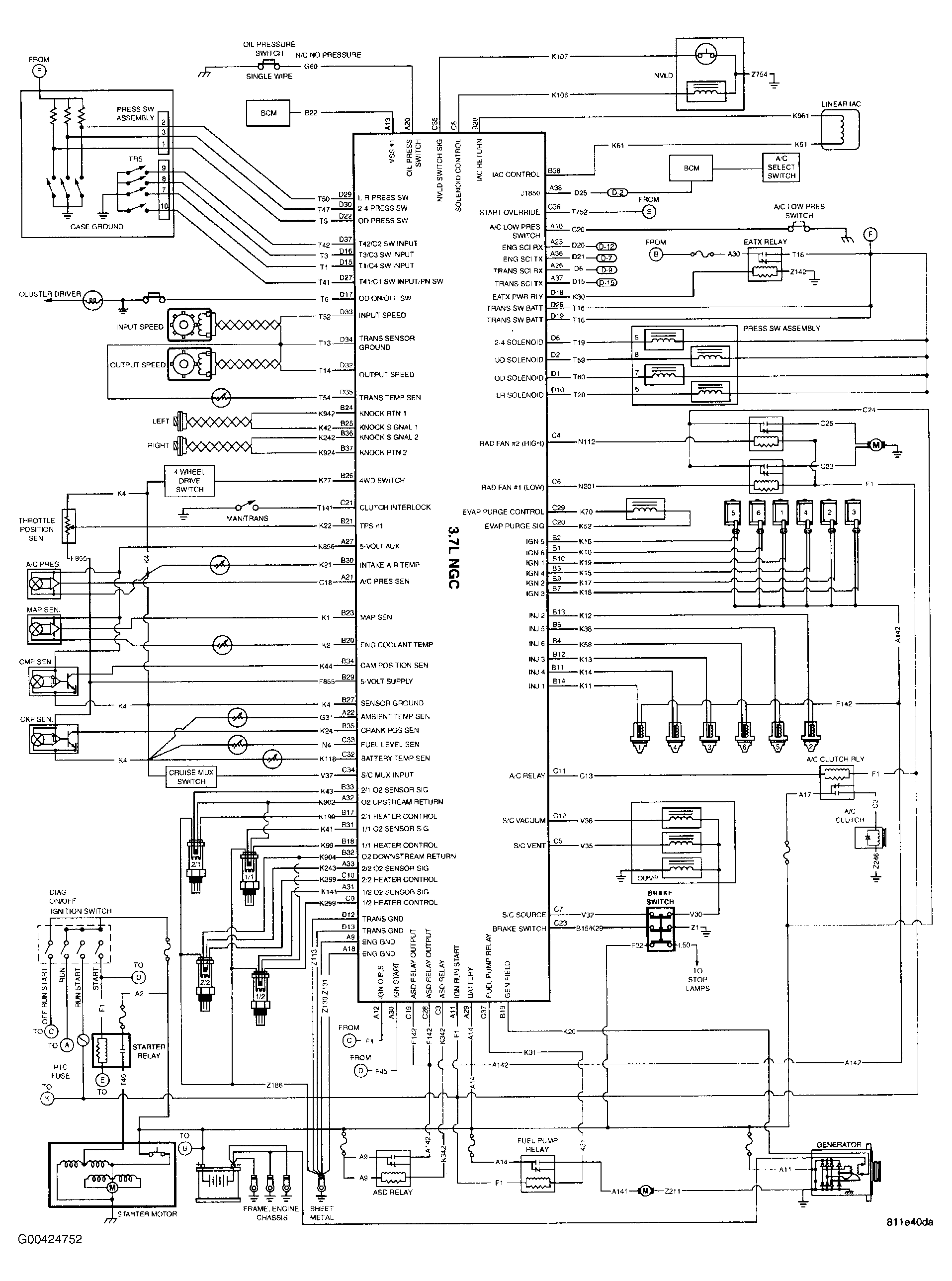

Fig 2: Schematic Diagram (3.7L NGC)
G00424752Courtesy of CHRYSLER CORP.

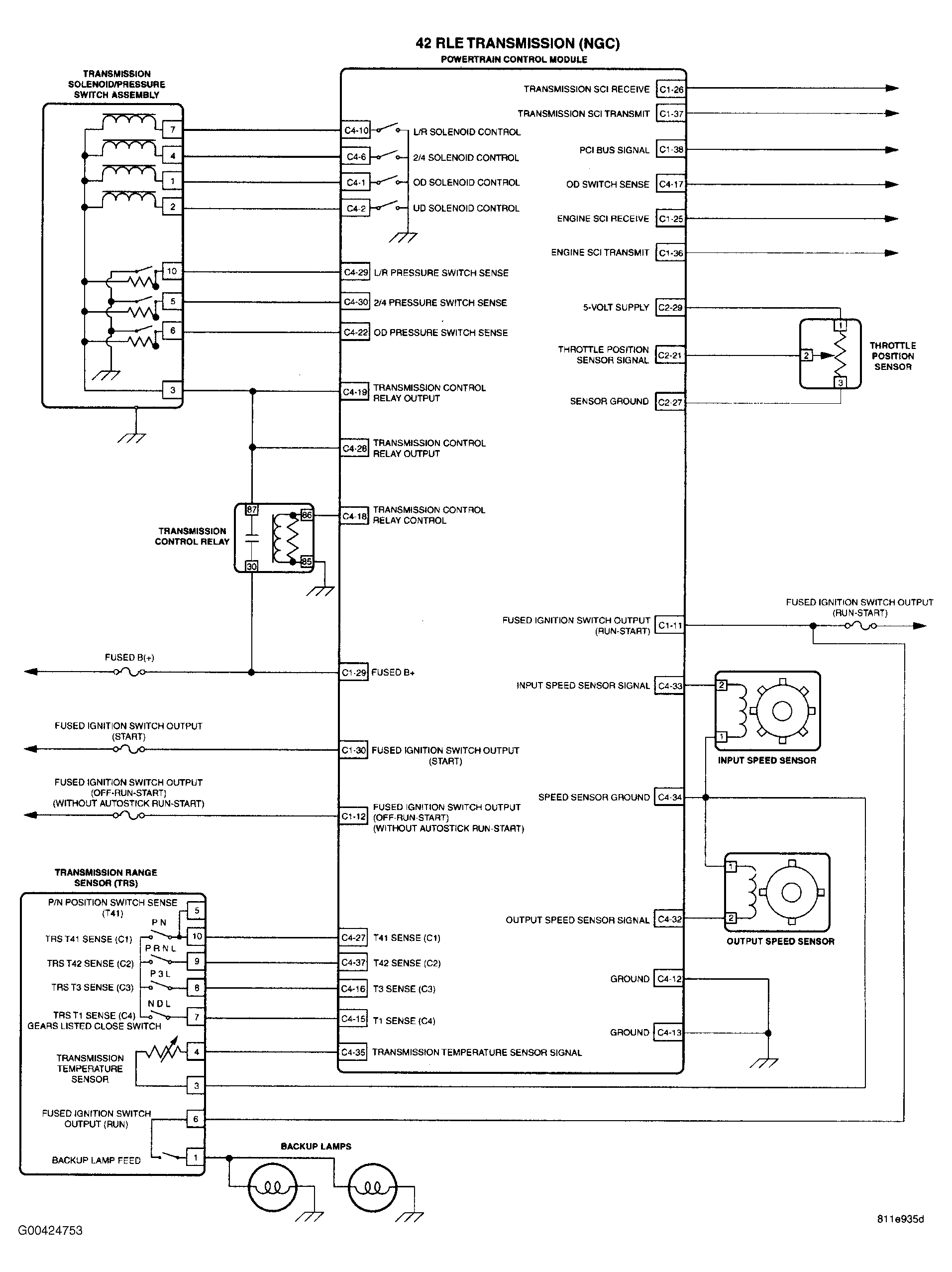

Fig 3: Schematic Diagram (42RLE)
G00424753Courtesy of CHRYSLER CORP.
