Engine Specifications

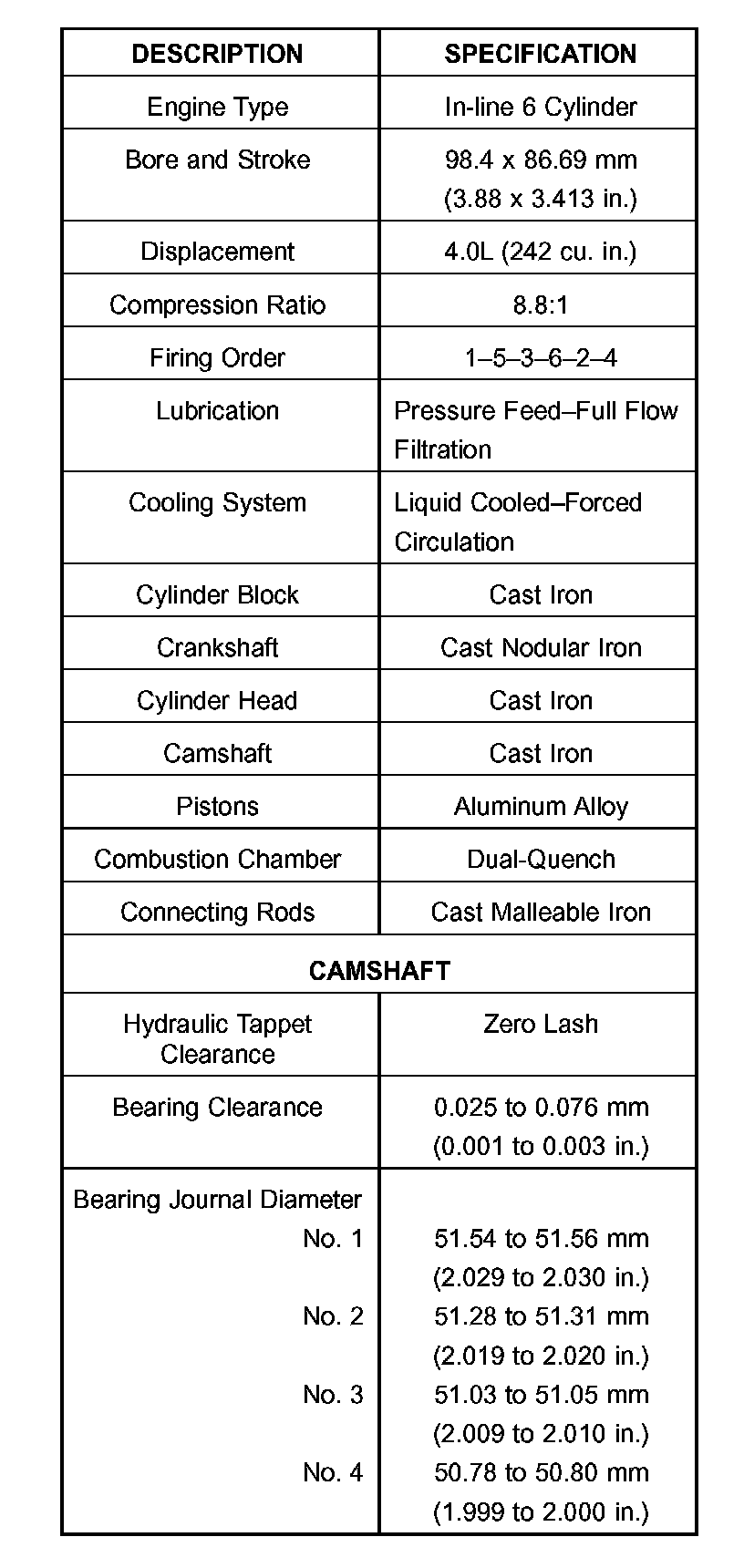

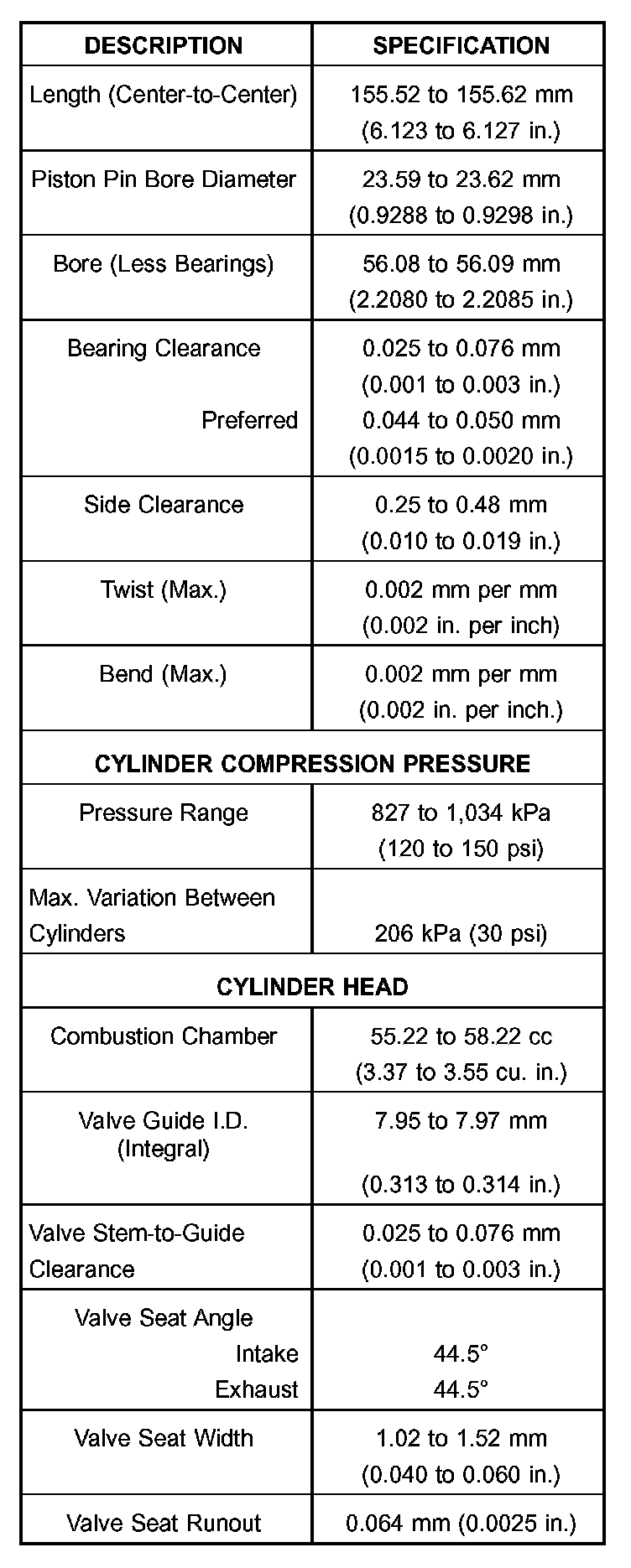

Engine General Specifications Part 1 of 7

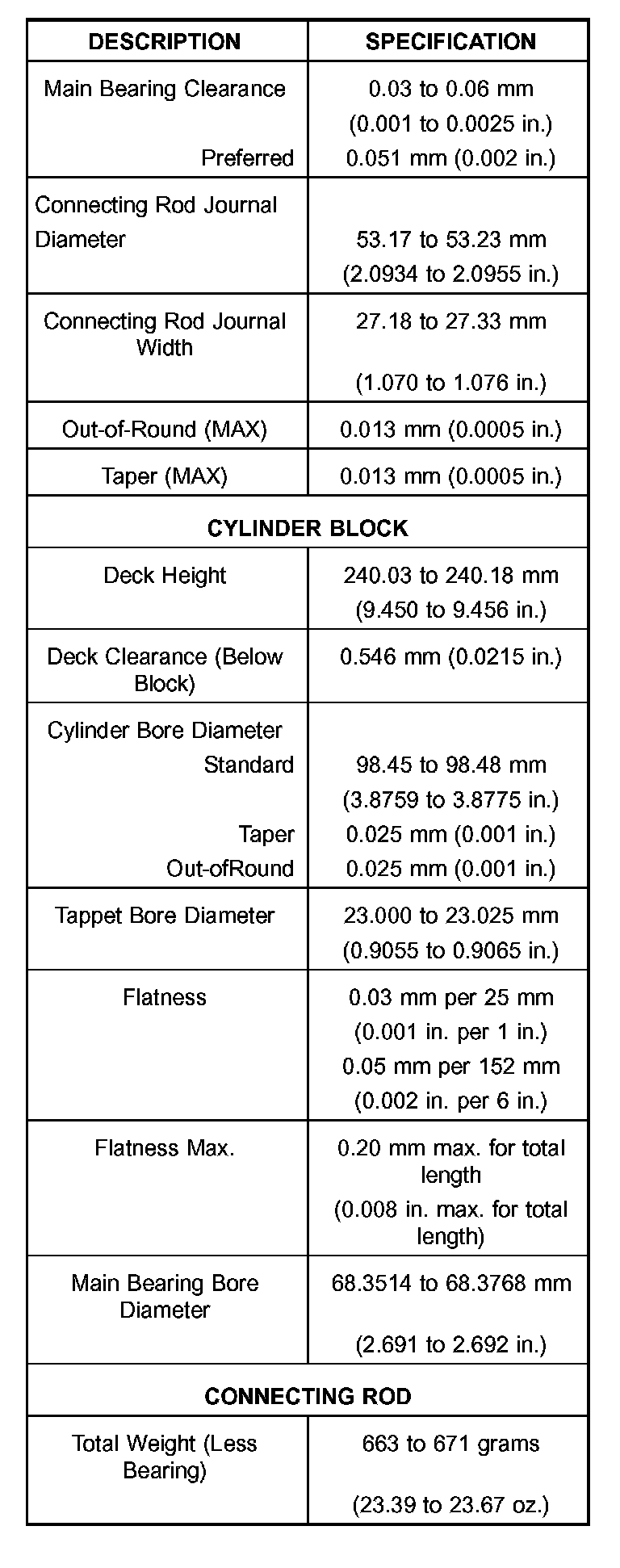

Engine General Specifications Part 2 of 7

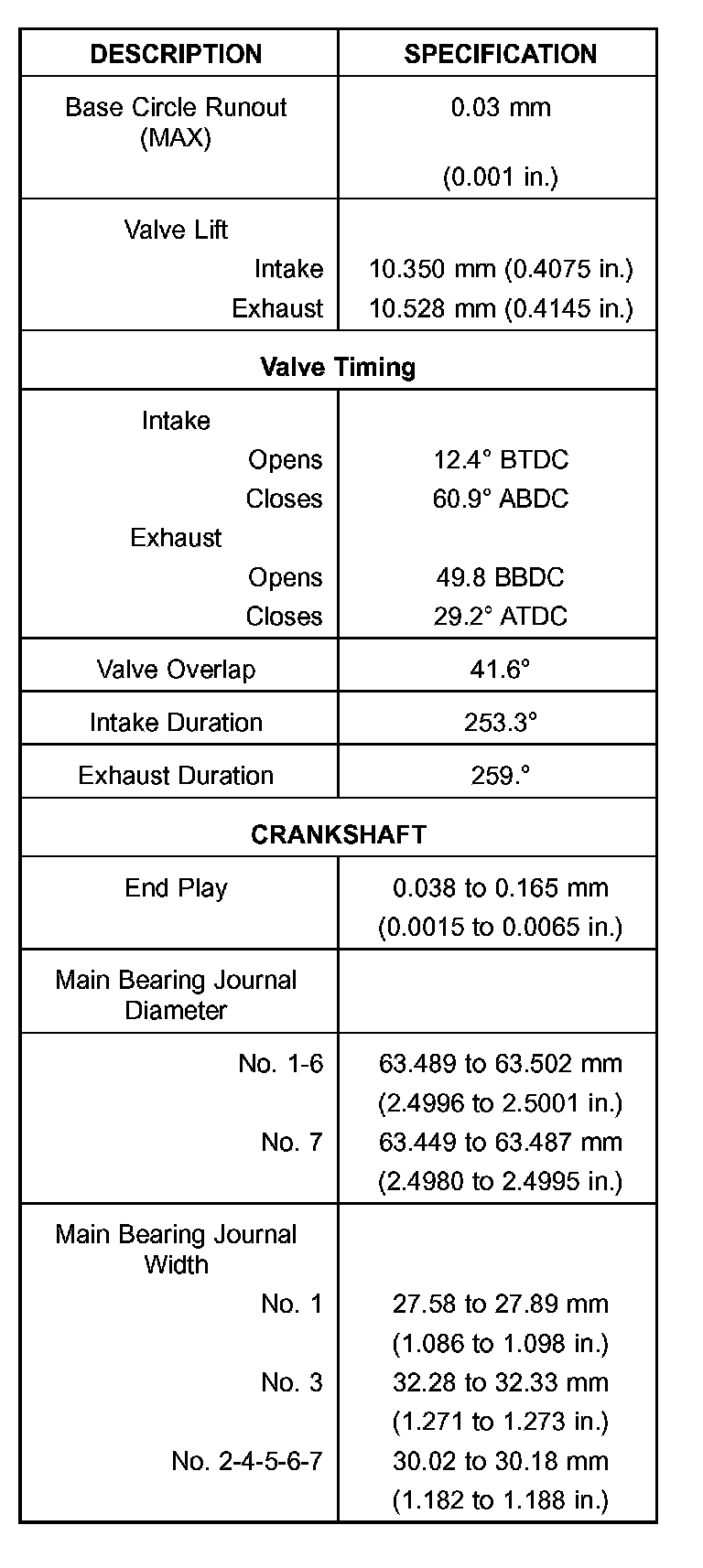

Engine General Specifications Part 3 of 7

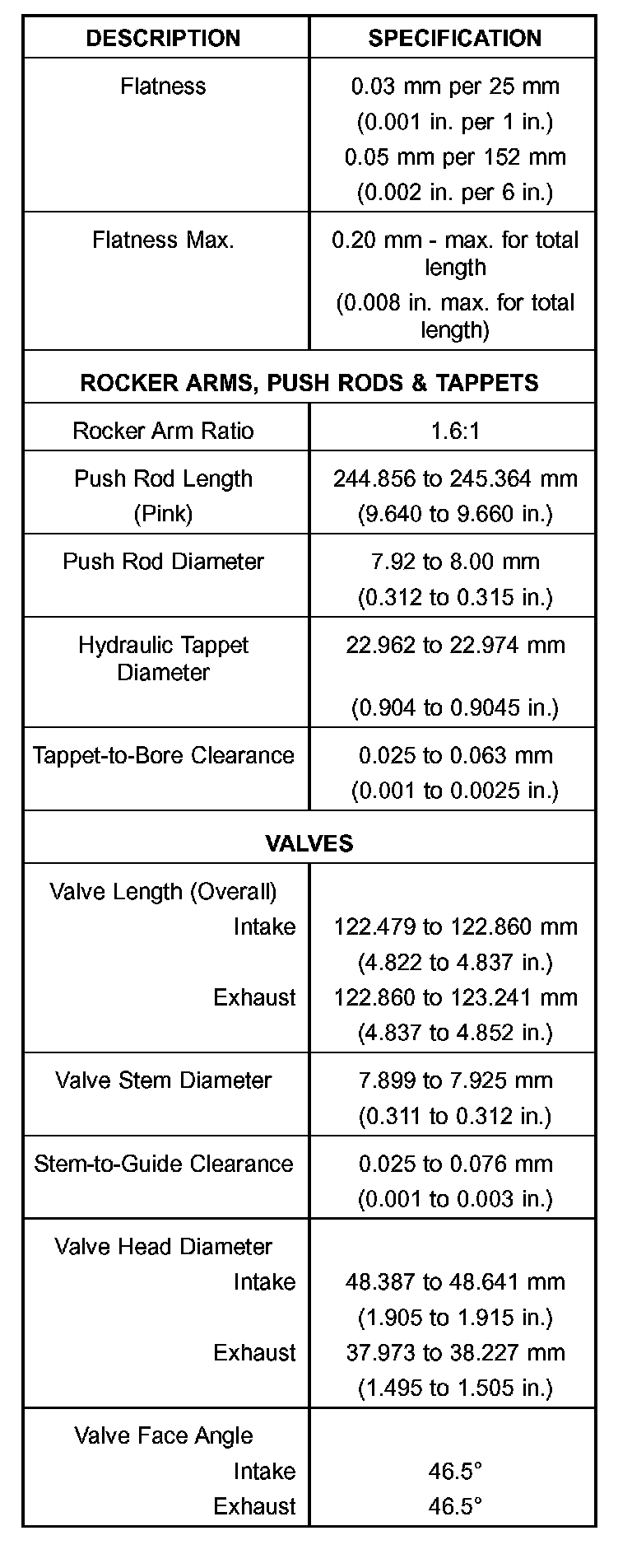

Engine General Specifications Part 4 of 7

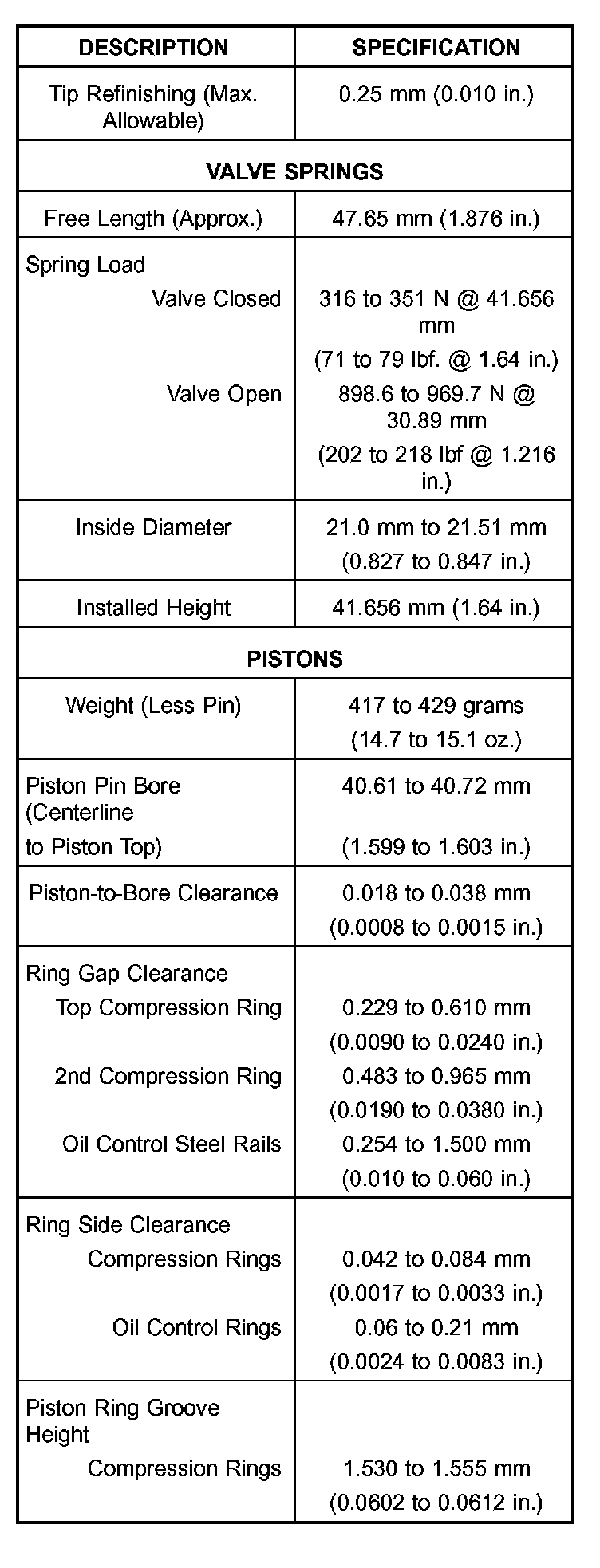

Engine General Specifications Part 5 of 7

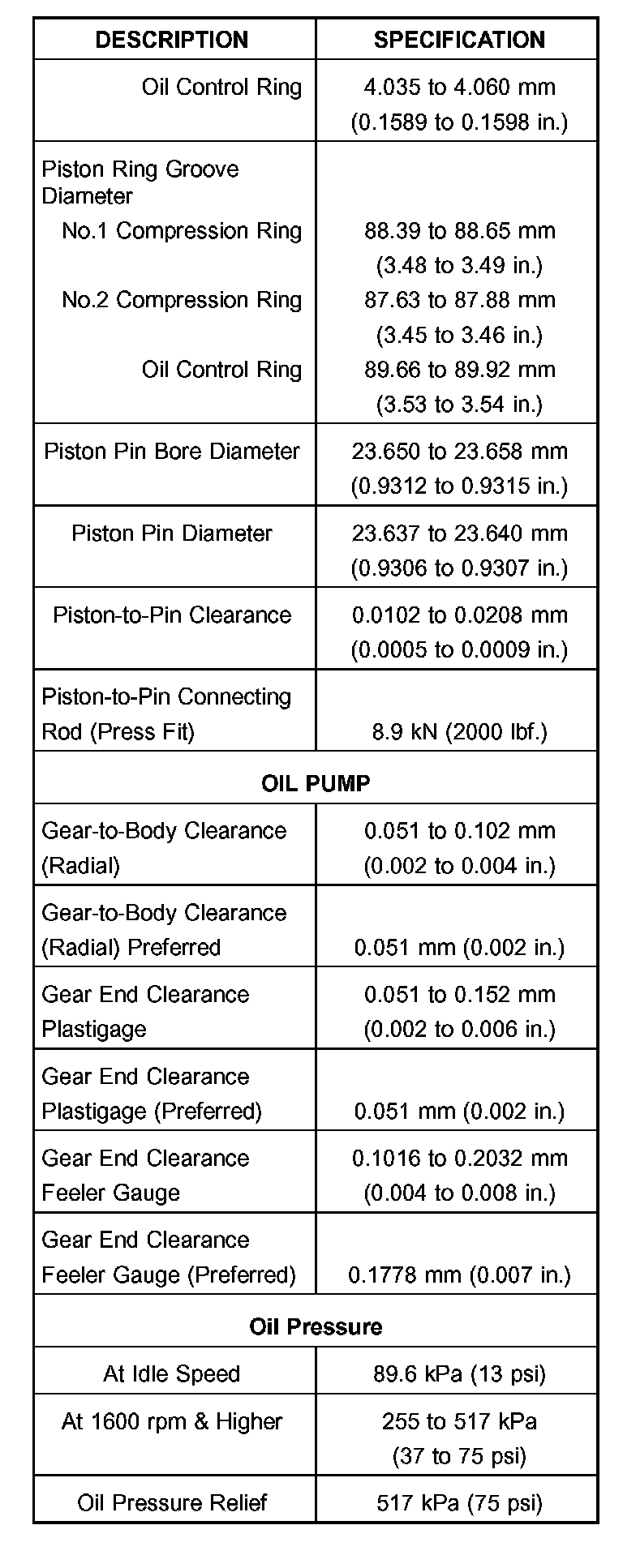

Engine General Specifications Part 6 of 7





Engine General Specifications Part 7 of 7

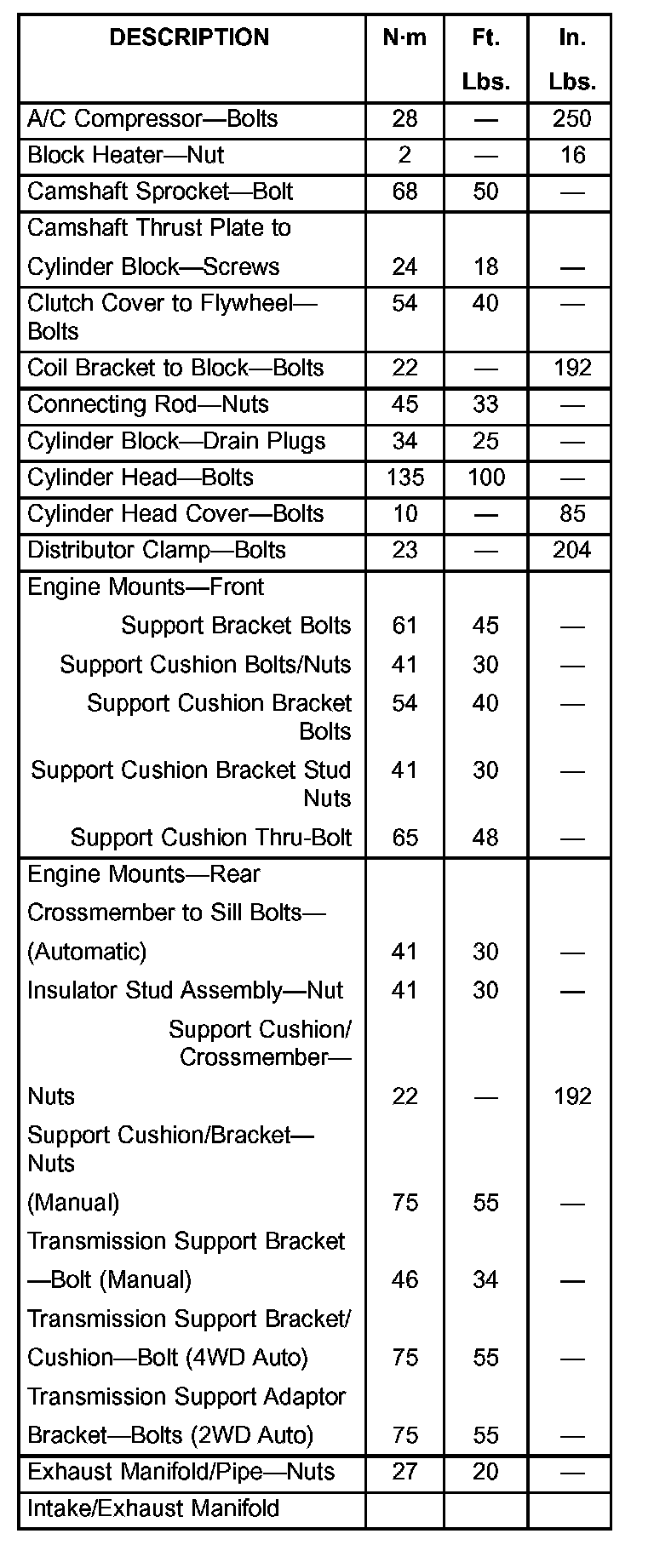

Engine Torque Specifications Part 1 of 2

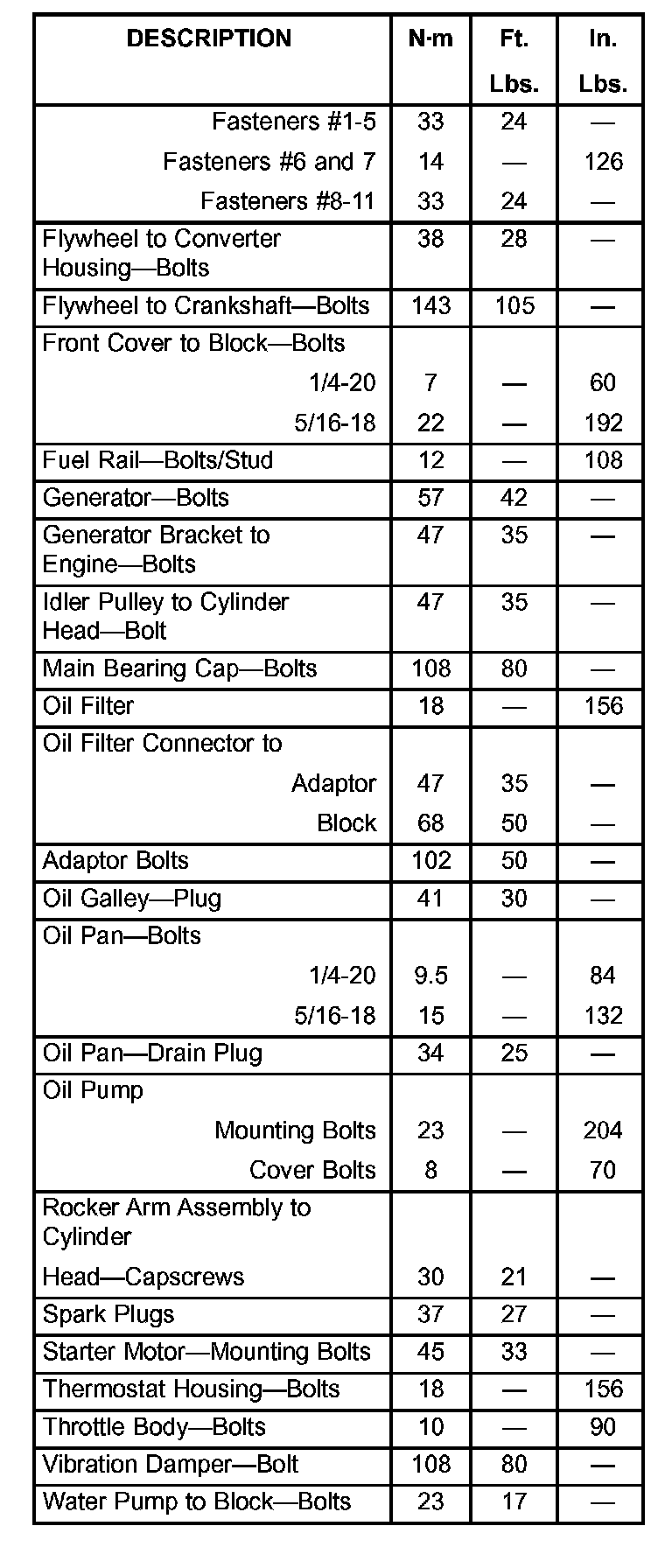

Engine Torque Specifications Part 2 of 2

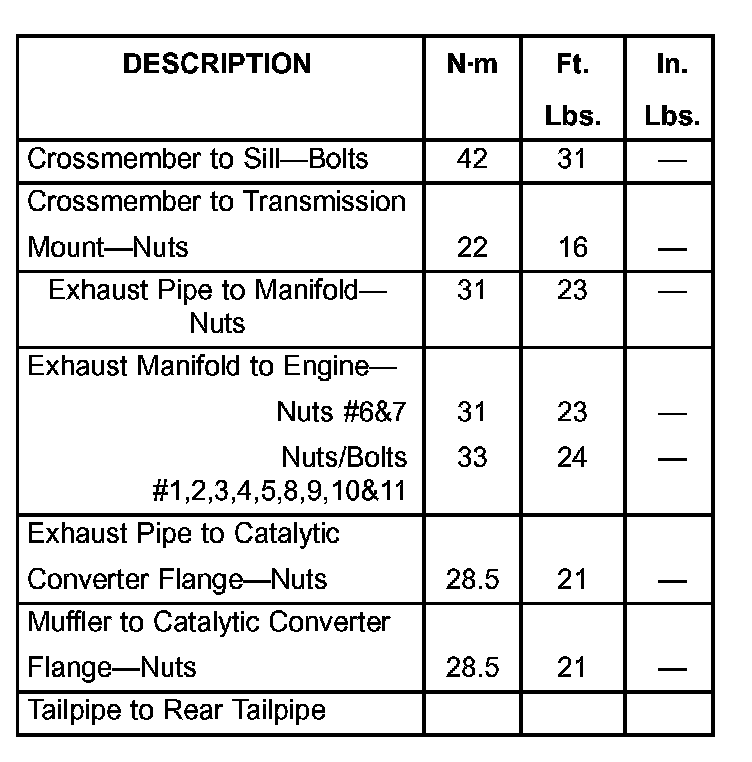

Exhaust System Torque Specifications Part 1 of 2

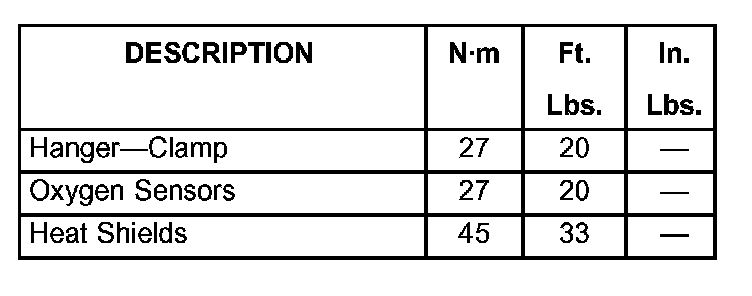

Exhaust System Torque Specifications Part 2 of 2
