Air Bag System

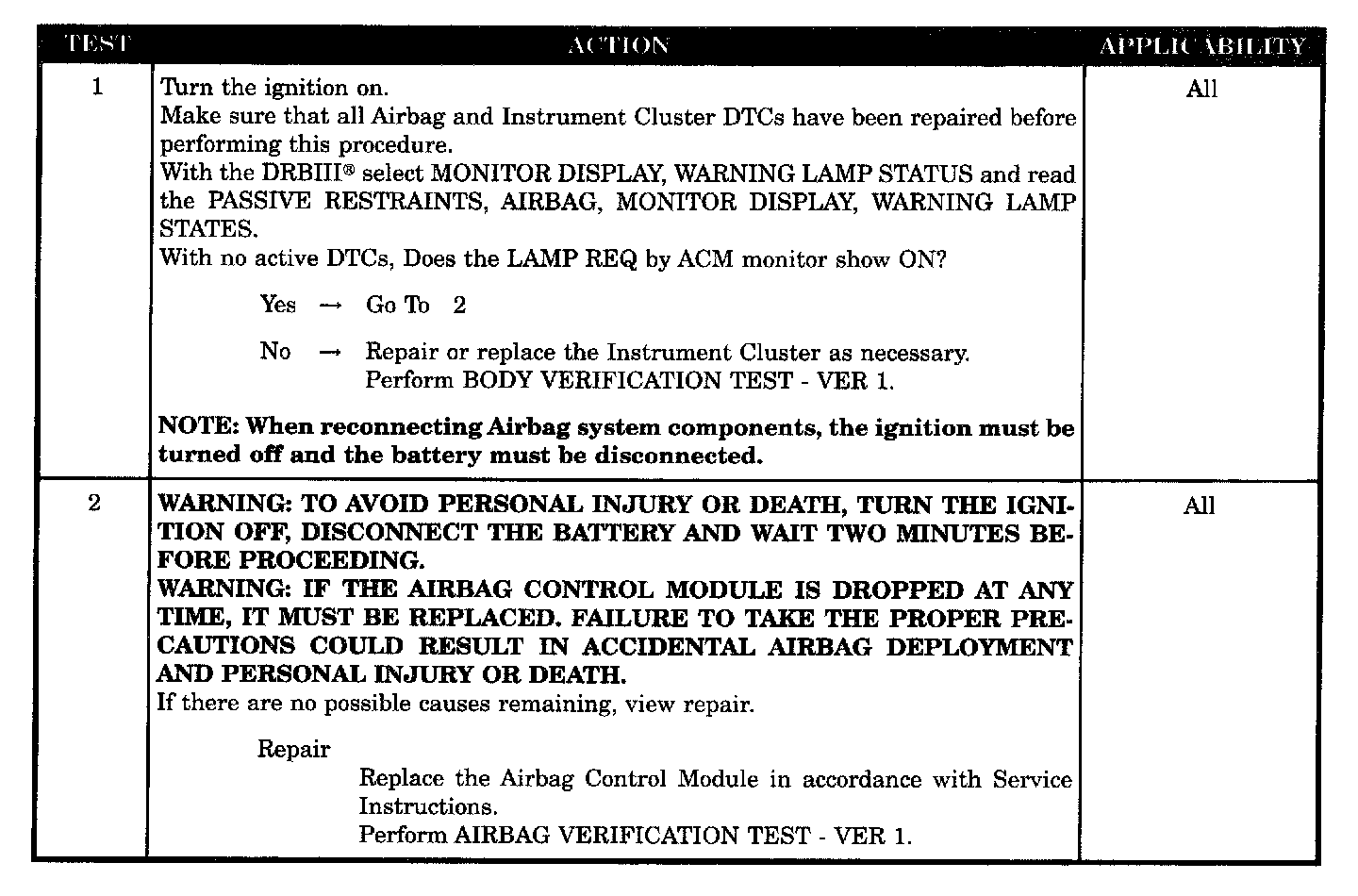

Test 1 - 2:






SYMPTOM
AIRBAG INDICATOR ON WITHOUT ACTIVE TROUBLE CODES

POSSIBLE CAUSES
- Airbag warning indicator ON without trouble codes
- instrument cluster problems
