Poor Sound Quality

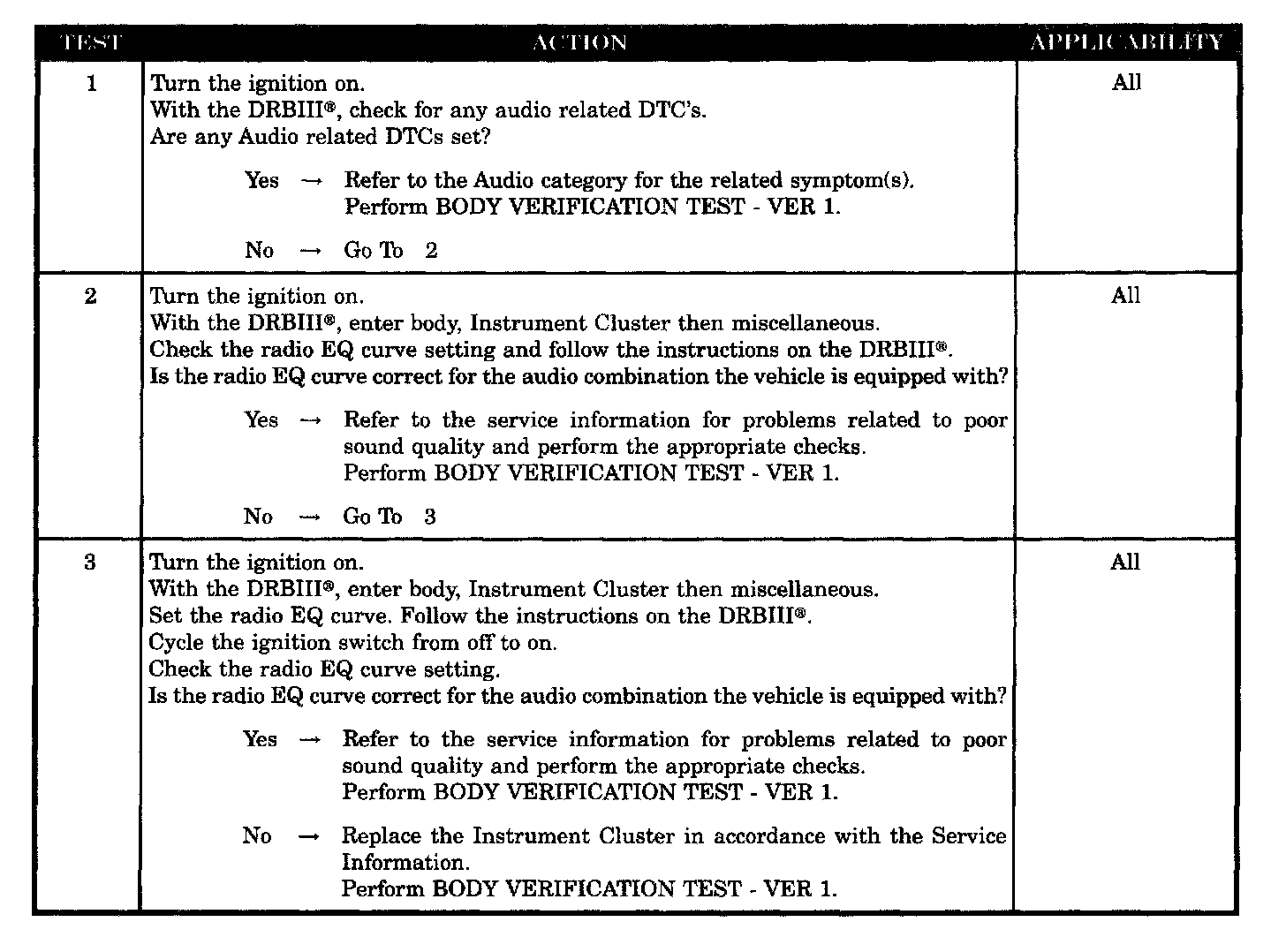

Test 1 - 3:






SYMPTOM
POOR SOUND QUALITY

POSSIBLE CAUSES
- Check audio DTCs
- Check selected radio eq curve
- Set the radio eq curve
- Verify sound performance
