Any PCI Bus Indicator Inoperative

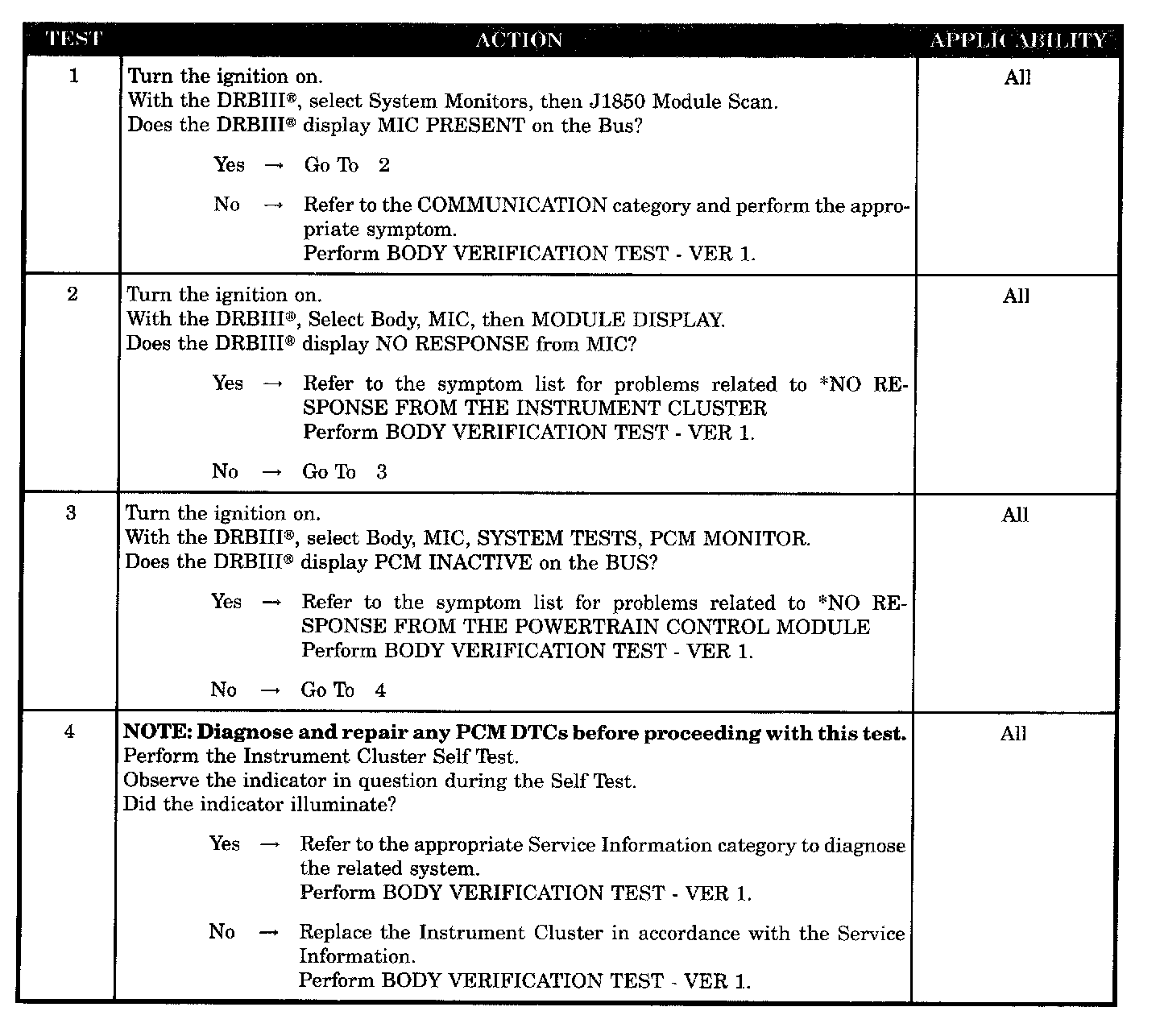

Test 1 - 4:






SYMPTOM
ANY PCI BUS INDICATOR INOPERATIVE

POSSIBLE CAUSES
- No response - PCI BUS
- No response - instrument cluster
- No response - powertrain control module
- Inoperative indicator
- Instrument cluster
