Connector End Views
>>
Subwoofer Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

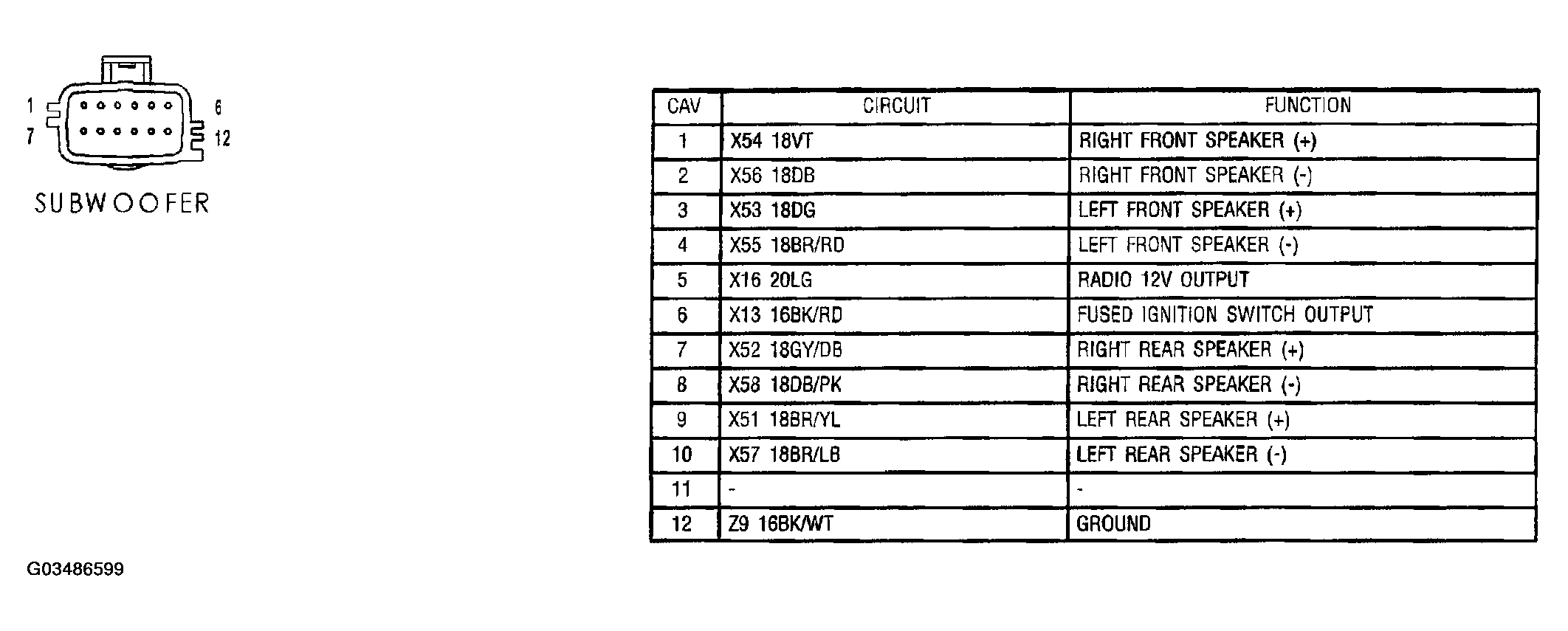

Subwoofer Connector End View
Fig 1: Subwoofer Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
