Transmission Control Module Connector End View

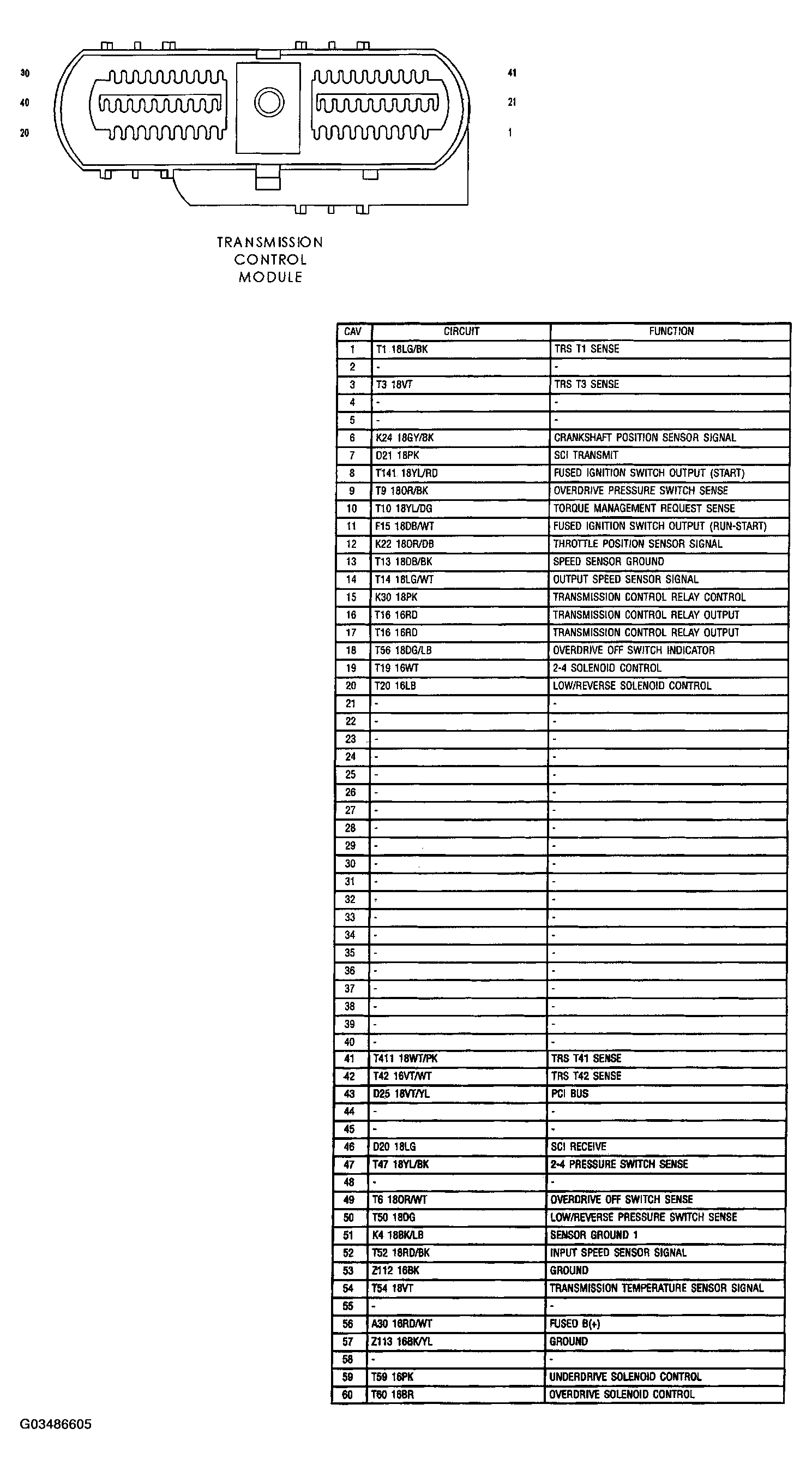

Fig 1: Transmission Control Module Connector End View
G03486605Courtesy of DAIMLERCHRYSLER CORP.
