Powertrain Control Module C2 - White 32 Way

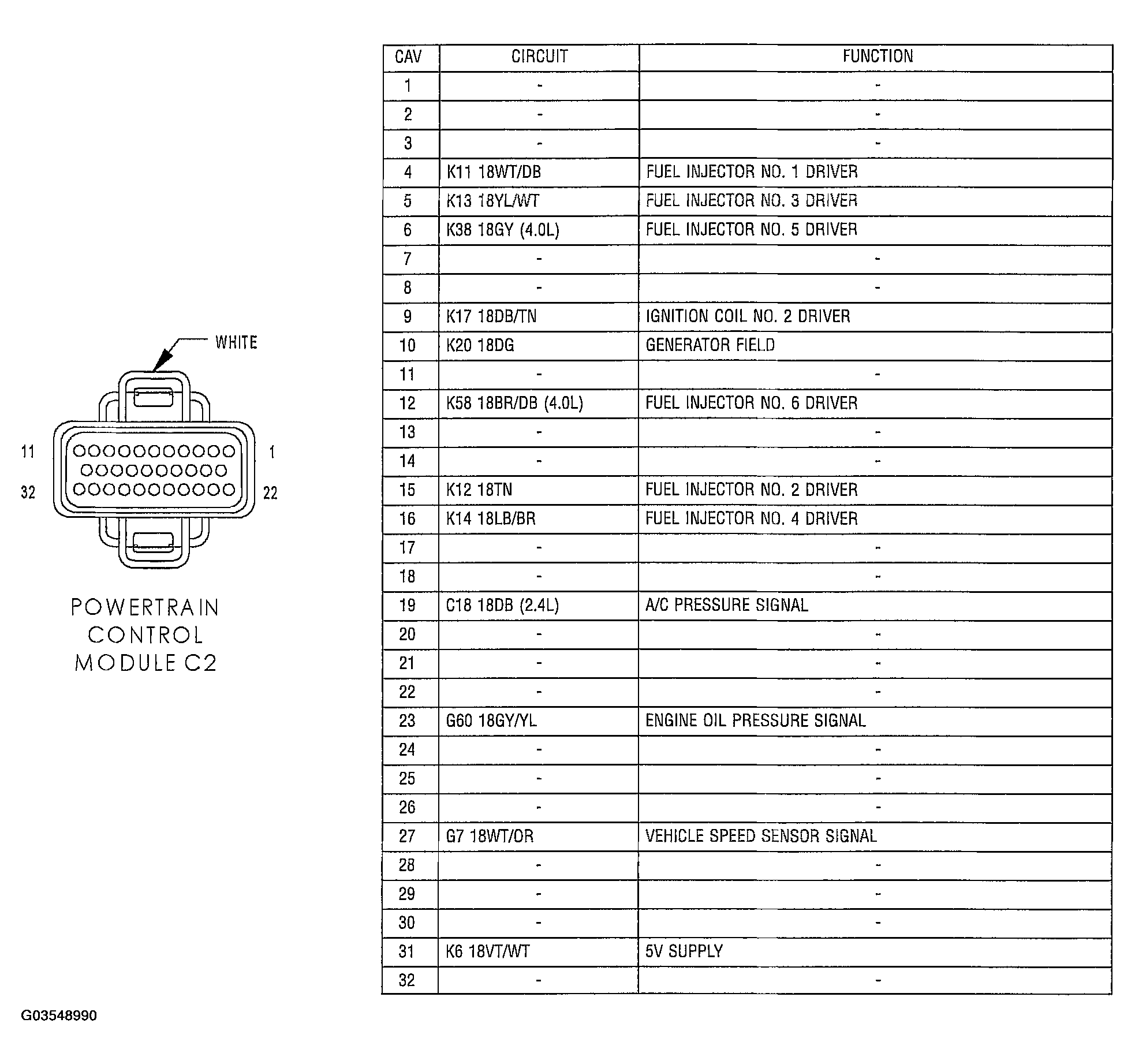

Fig 1: Identifying Powertrain Control Module C2 - White 32 Way
G03548990Courtesy of DAIMLERCHRYSLER CORP.
