Powertrain Control Module C3 - Gray 32 Way

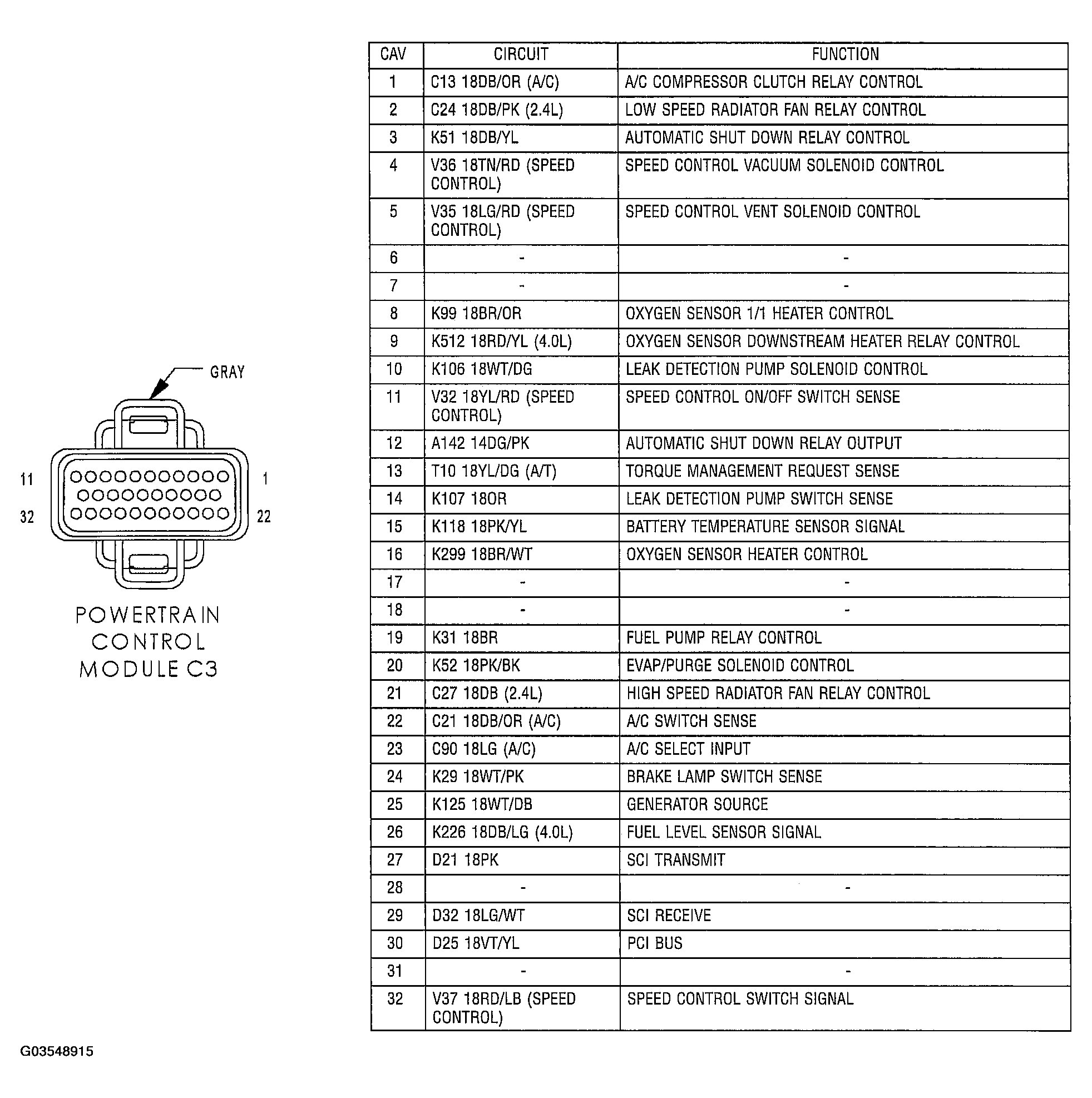

Fig 1: Identifying Powertrain Control Module C3 Connector Terminals And Specification (Gray 32 Way)
G03548915Courtesy of DAIMLERCHRYSLER CORP.
