Anti-Lock Brake System: G-Switch: Removal

  1. From the drivers side lift carpet back in front of the console/shifter.
  2. Disconnect harness for switch.
  3. Remove mounting bolts and remove switch (Fig 1 ).

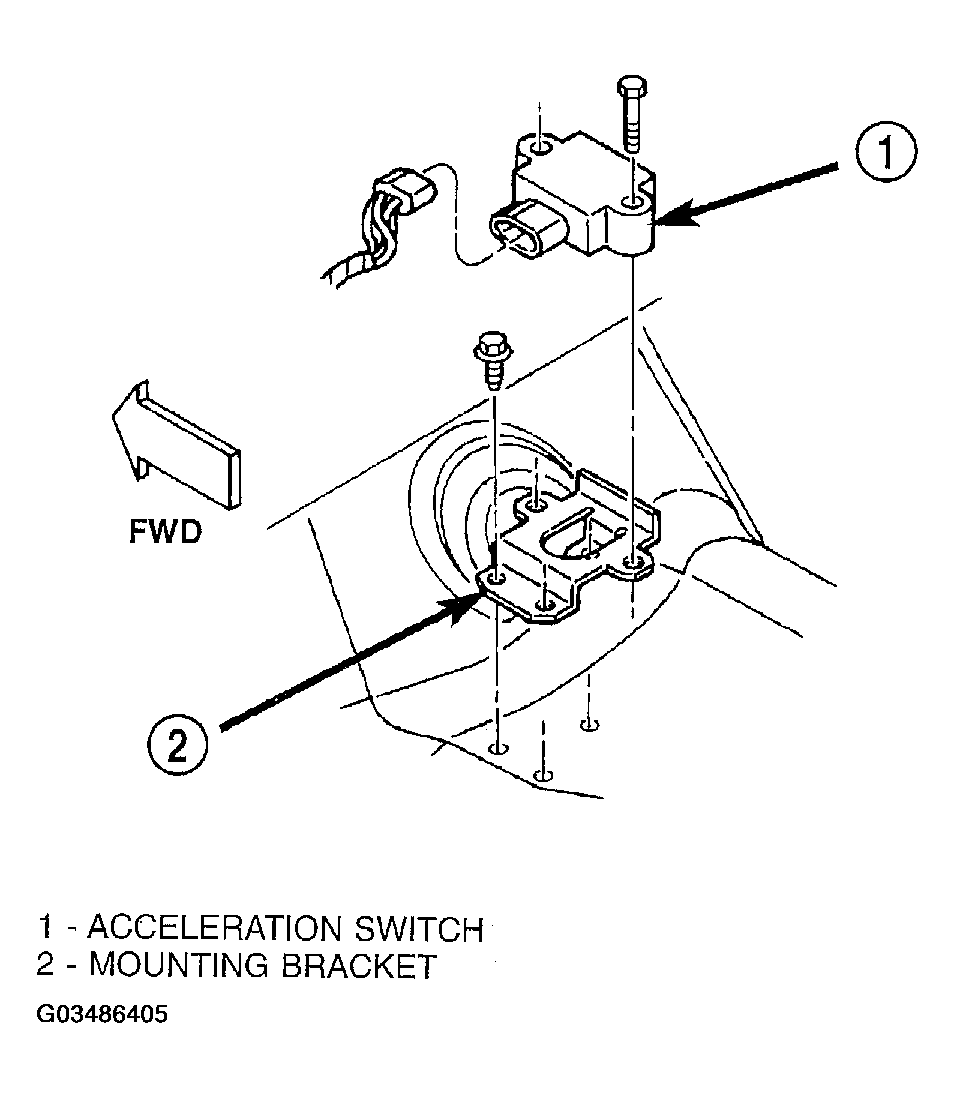

    Fig 1: Removing Mounting Bolts And Switch
    G03486405Courtesy of DAIMLERCHRYSLER CORP.
