Transmission Control Module - 60 Way

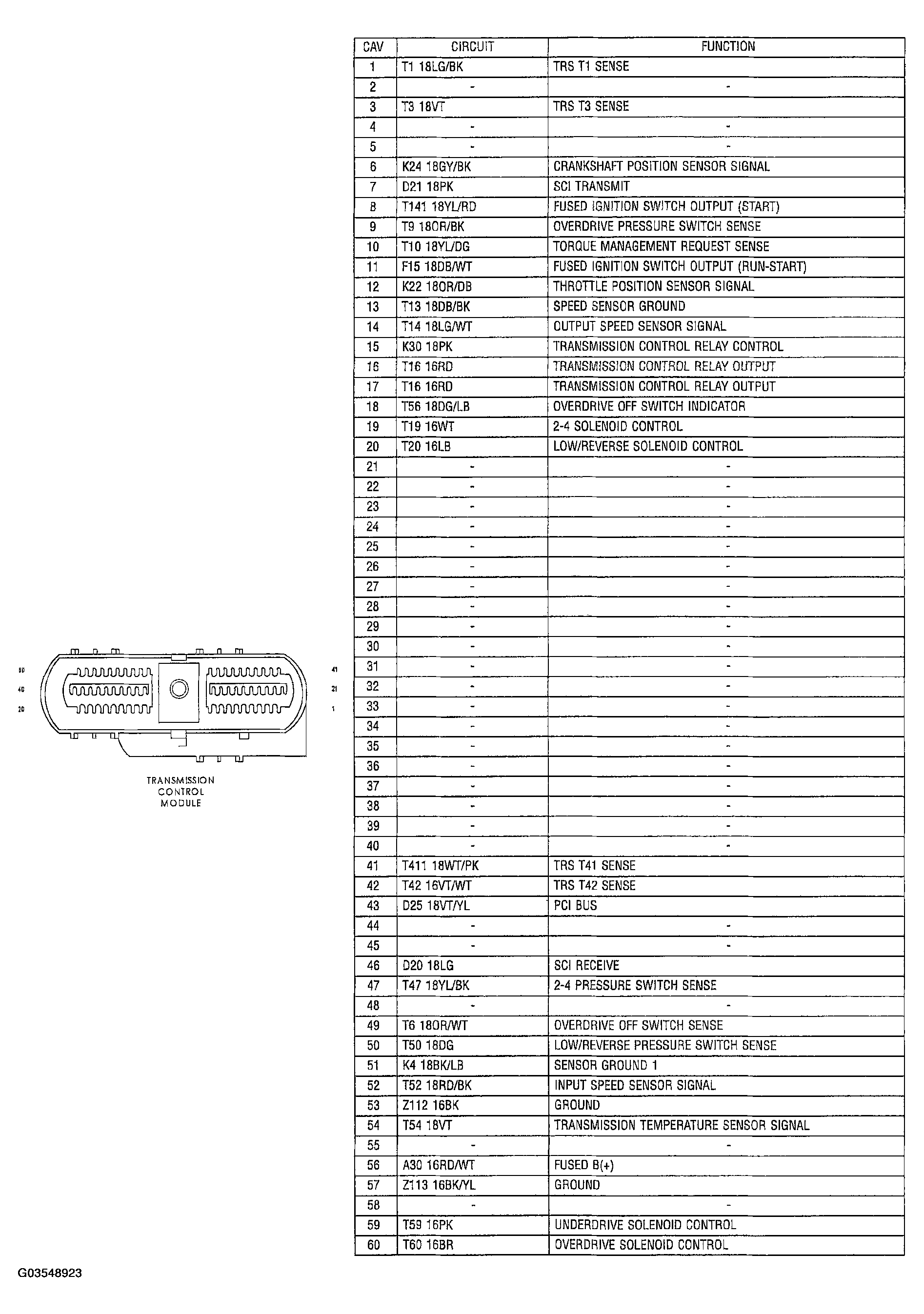

Fig 1: Identifying Transmission Control Module Connector Terminals And Specification (60 Way)
G03548923Courtesy of DAIMLERCHRYSLER CORP.
