DTC P1195: 1/1 O2 Sensor Slow During Catalyst Monitor, DTC P1196: 2/1 O2 Sensor Slow During Catalyst Monitor: Testing

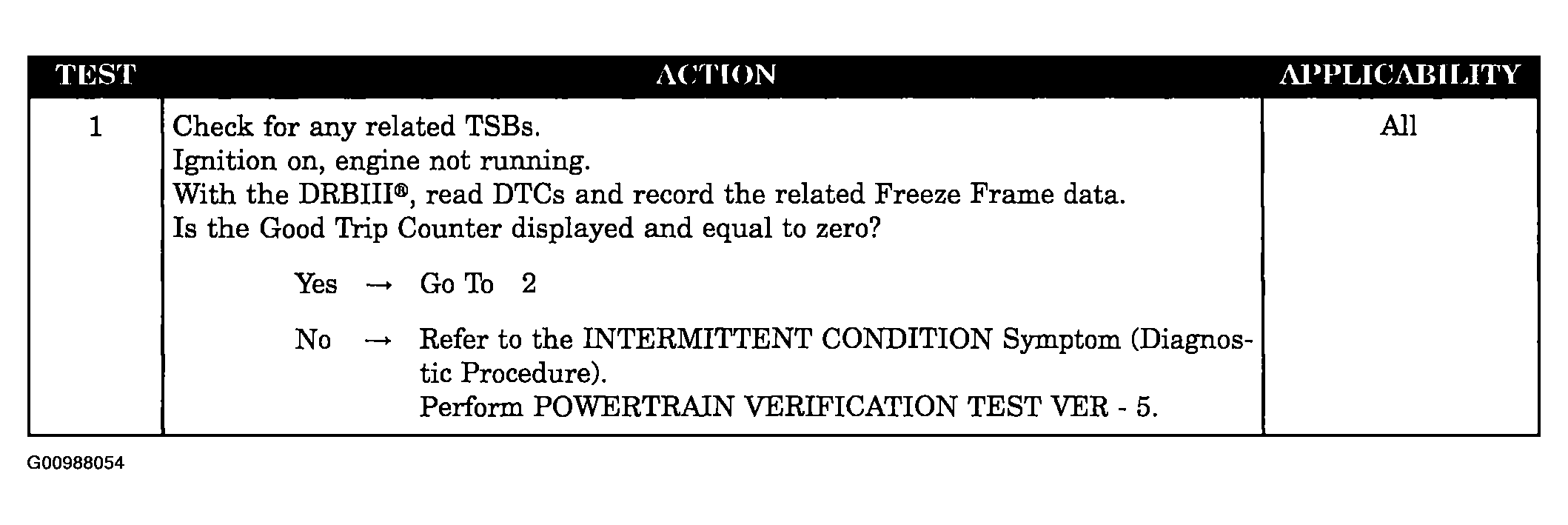

Fig 1: Testing: DTC P1195: 1/1 O2 Sensor Slow During Catalyst Monitor, DTC P1196: 2/1 O2 Sensor Slow During Catalyst Monitor

Courtesy of DAIMLERCHRYSLER CORP.

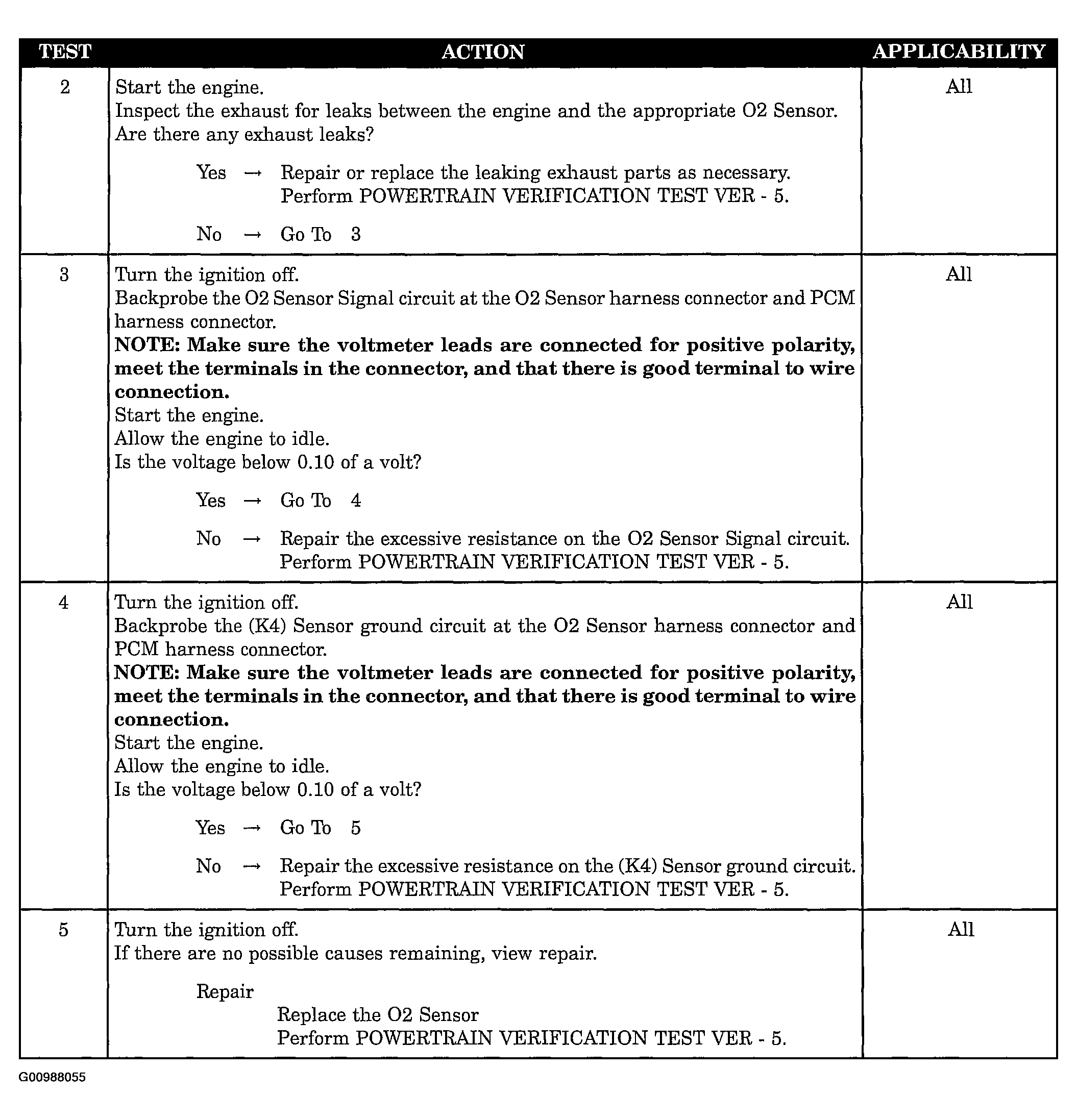

Fig 2: Testing: DTC P1195: 1/1 O2 Sensor Slow During Catalyst Monitor, DTC P1196: 2/1 O2 Sensor Slow During Catalyst Monitor

Courtesy of DAIMLERCHRYSLER CORP.
