Engine Control Module

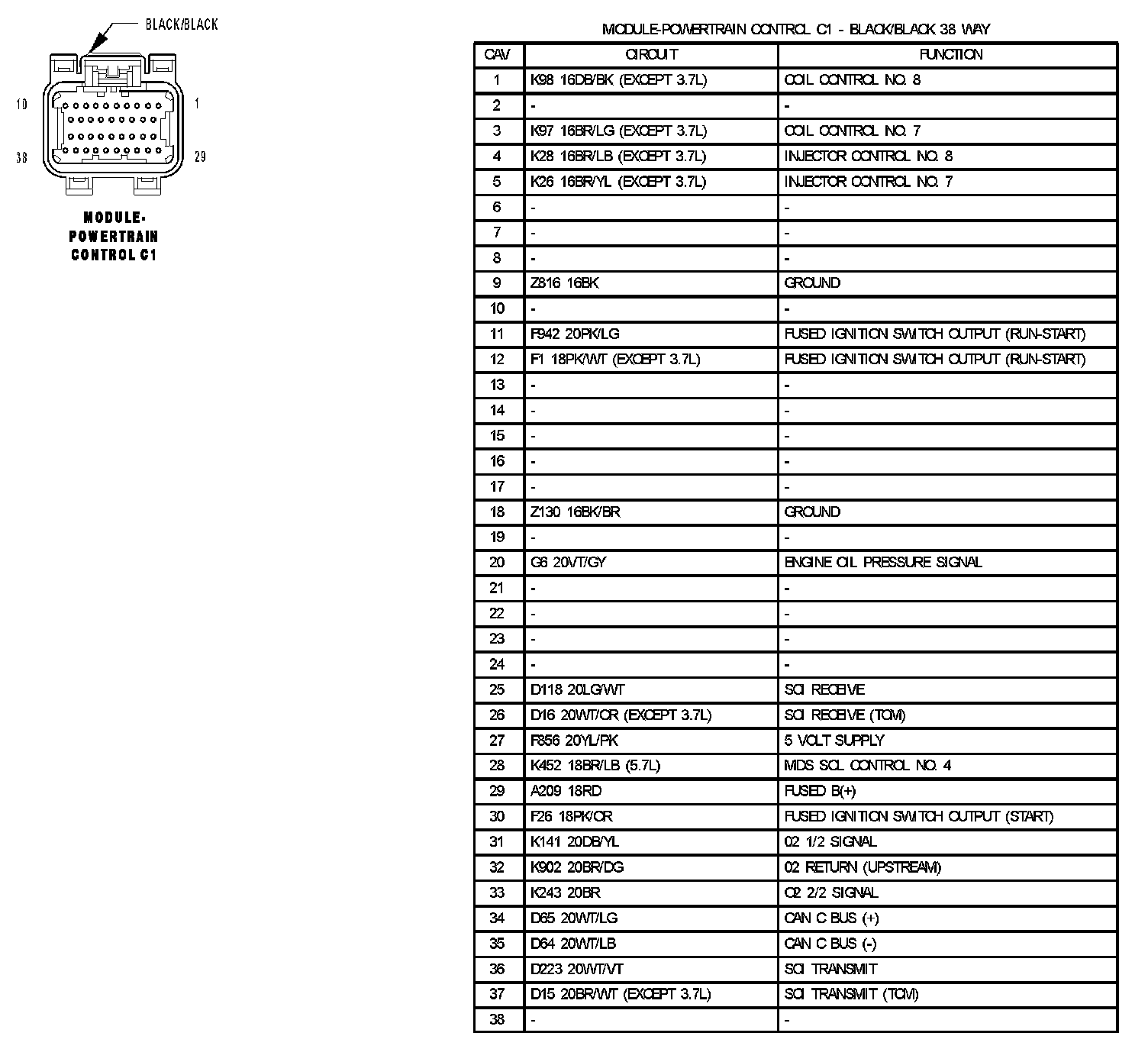

Module Powertrain Control C1:



Module Powertrain Control C2 (5.7L):

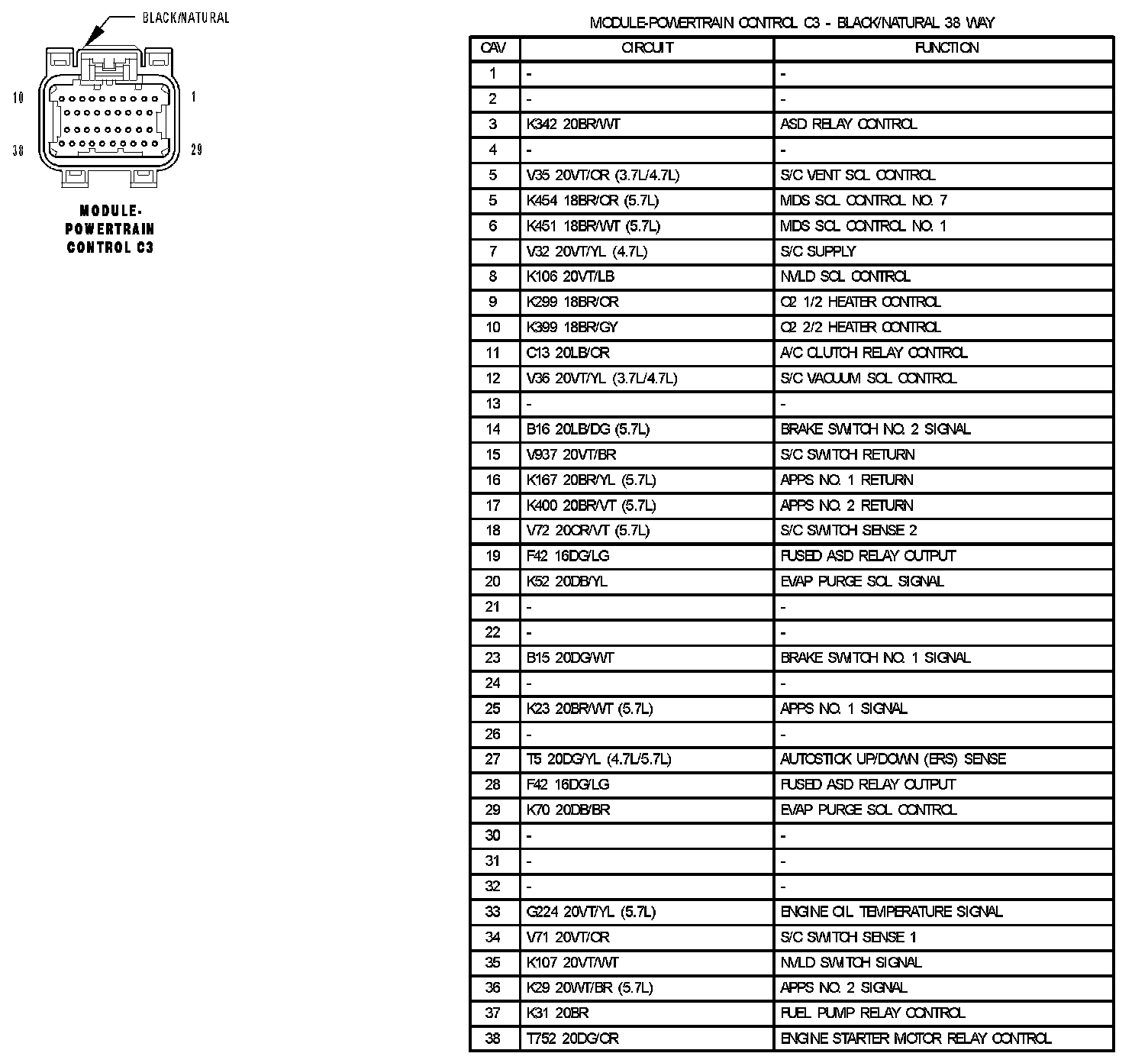

Module Powertrain Control C3:

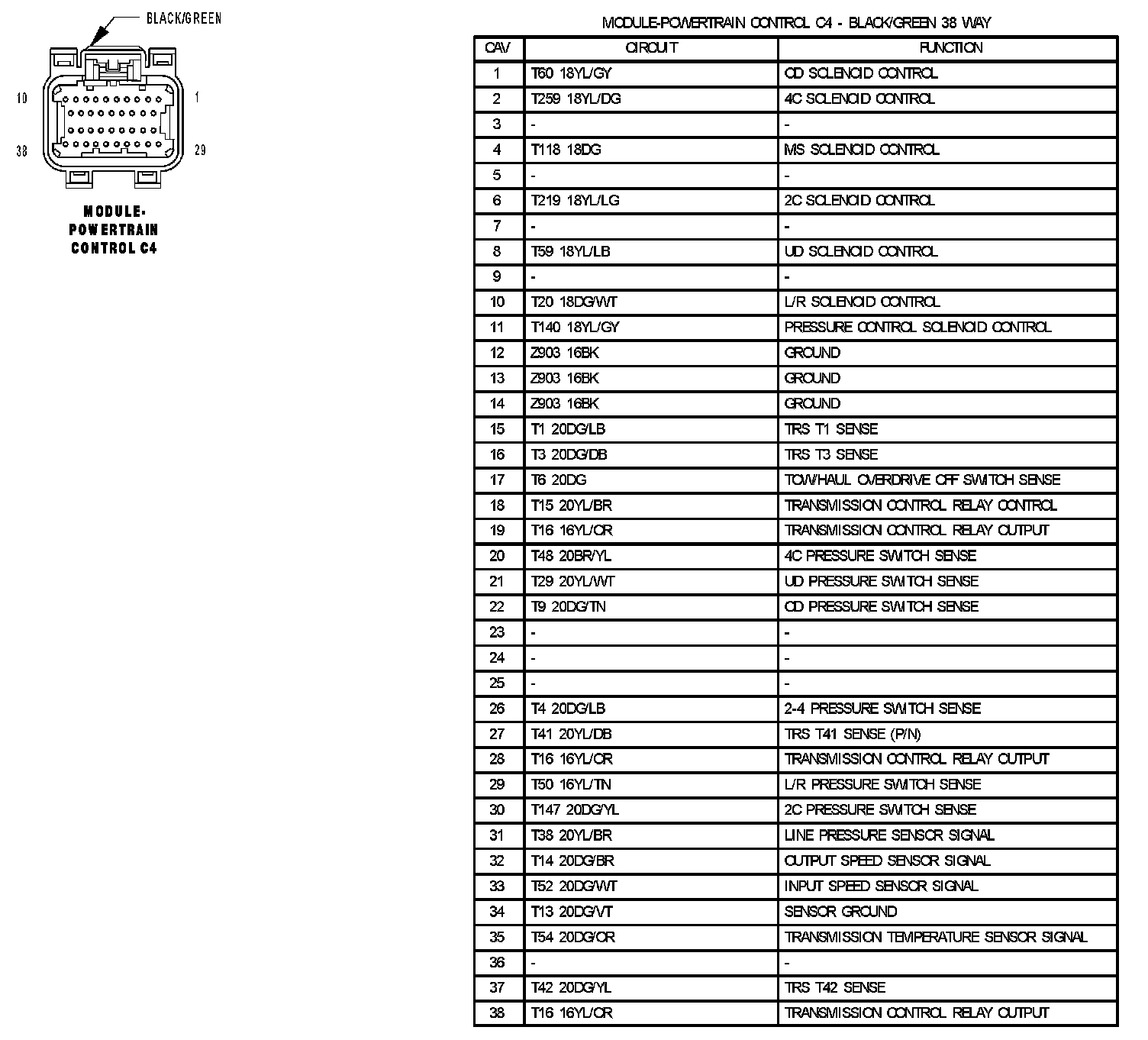

Module Powertrain Control C4:
