Power Distribution Module

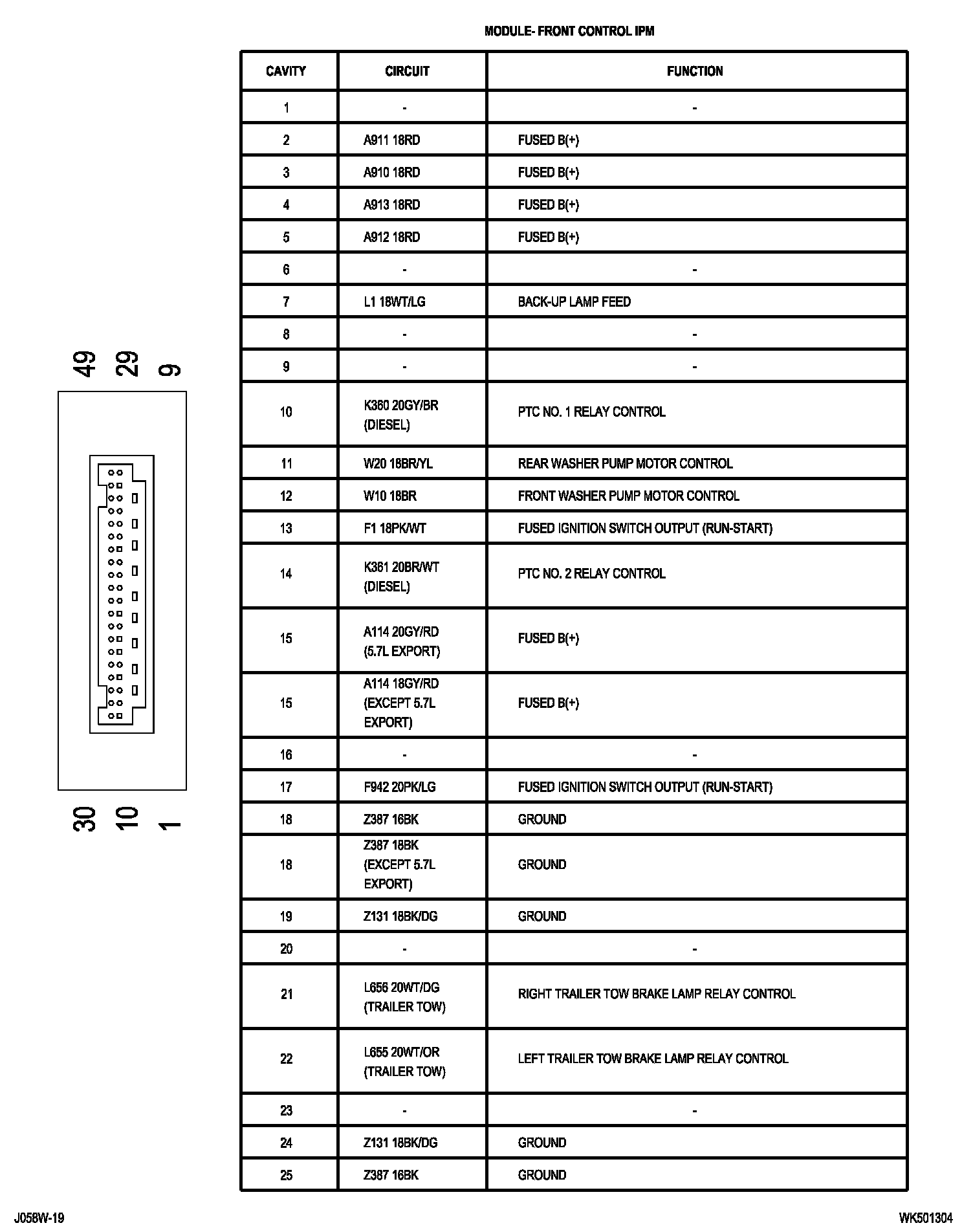

Module Front Control IPM Part 1:

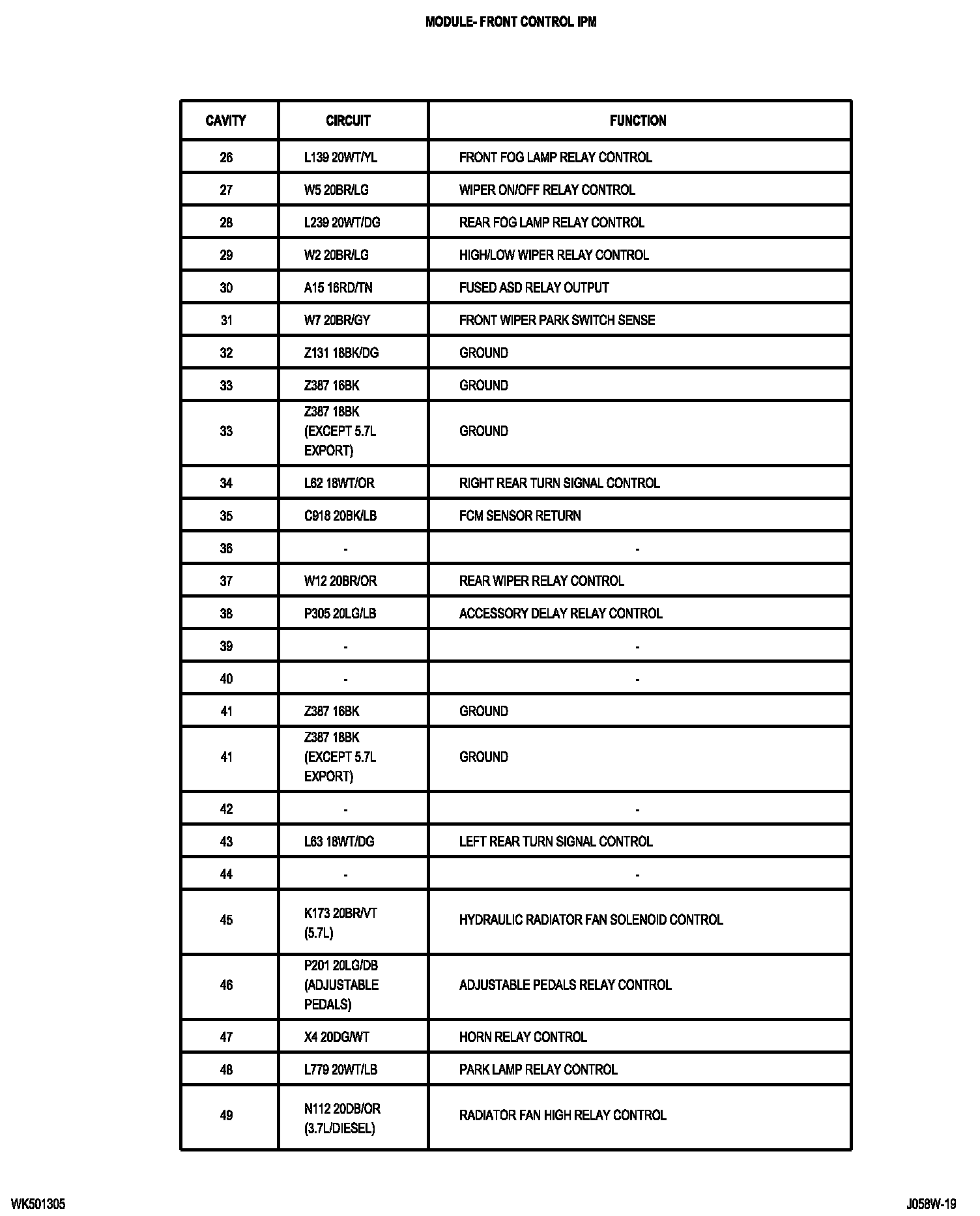

Module Front Control IPM Part 2:

Module Front Control C1:

Module Front Control C2:

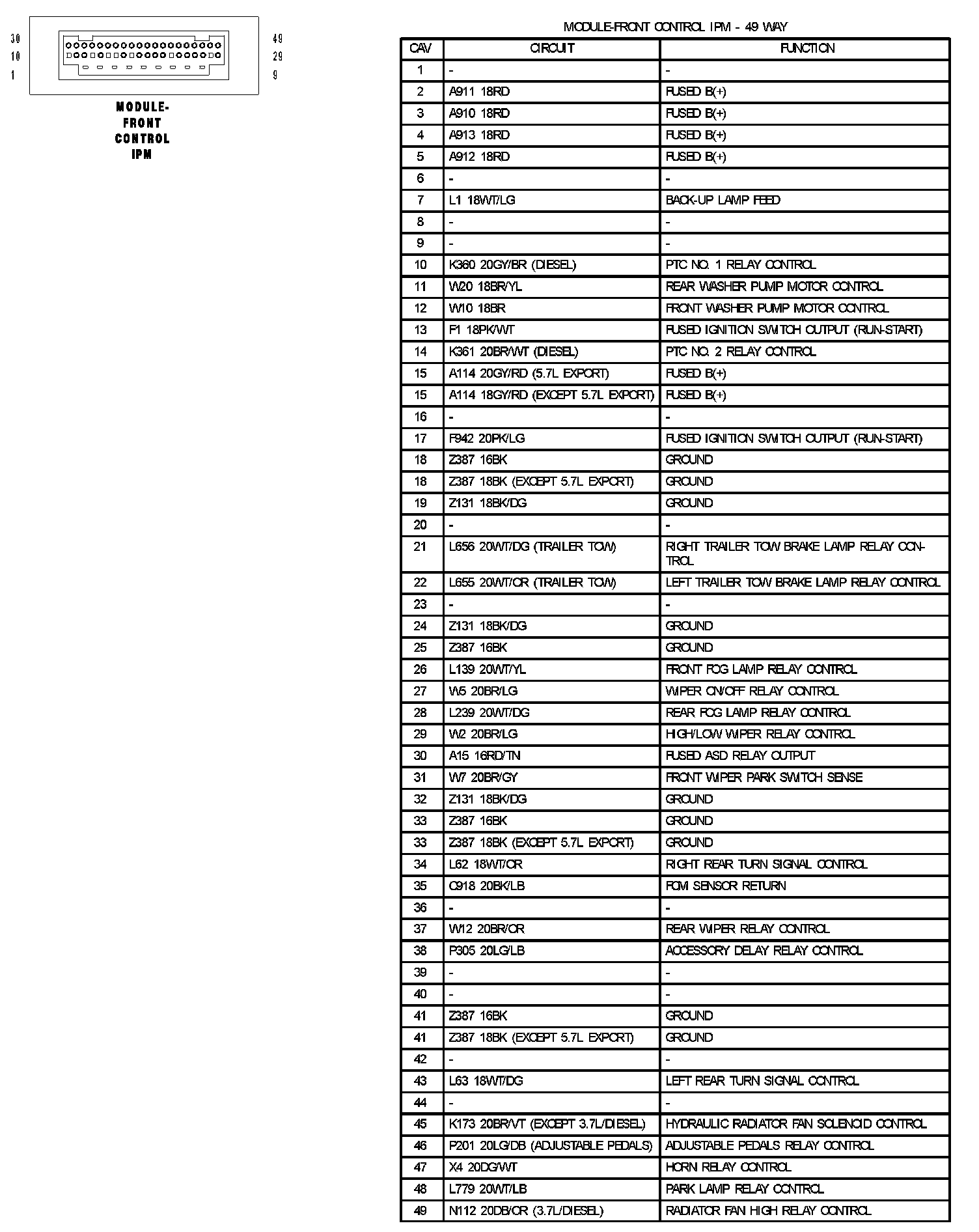

Module Front Control IPM:

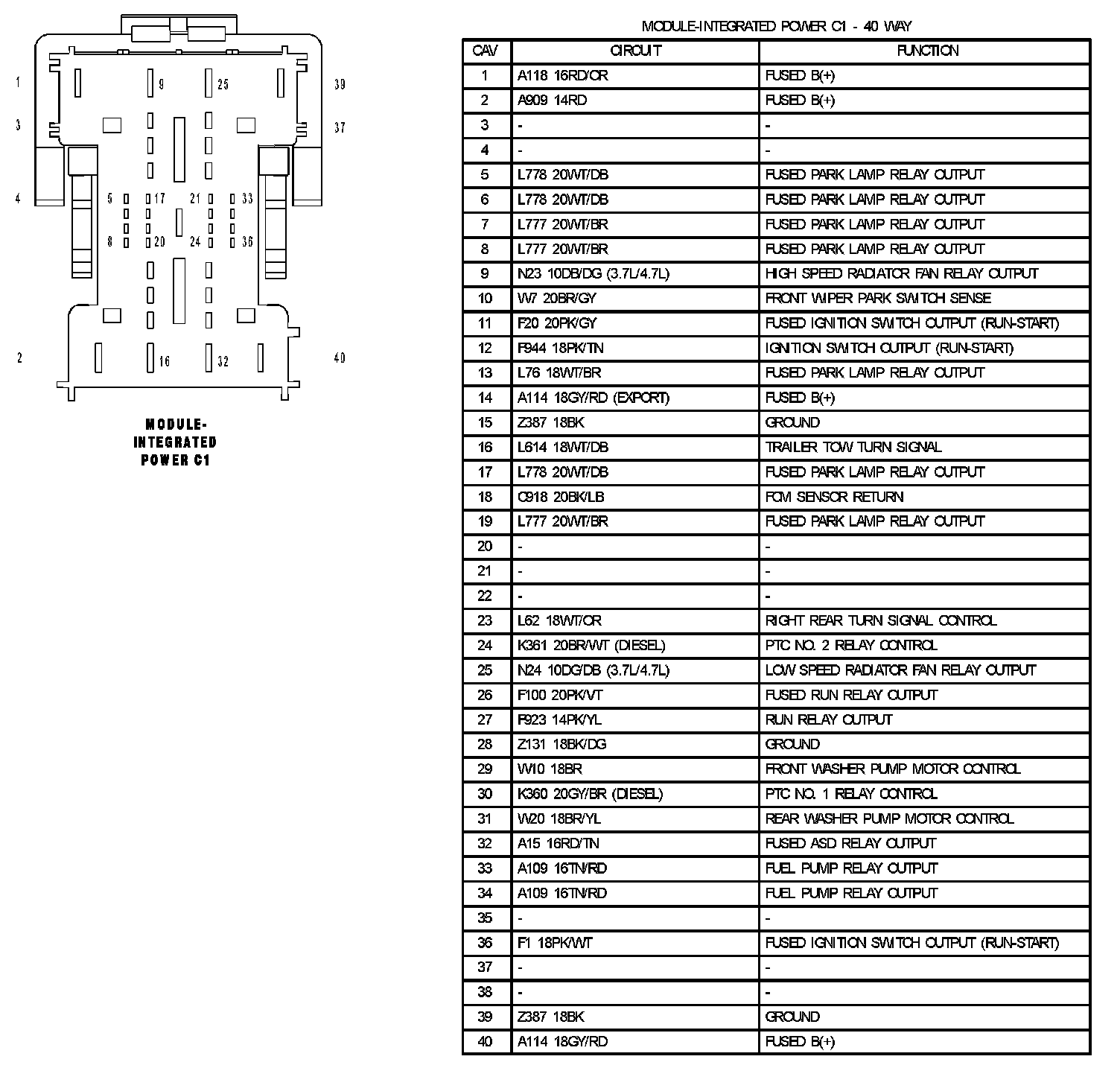

Module Integrated Power C1:

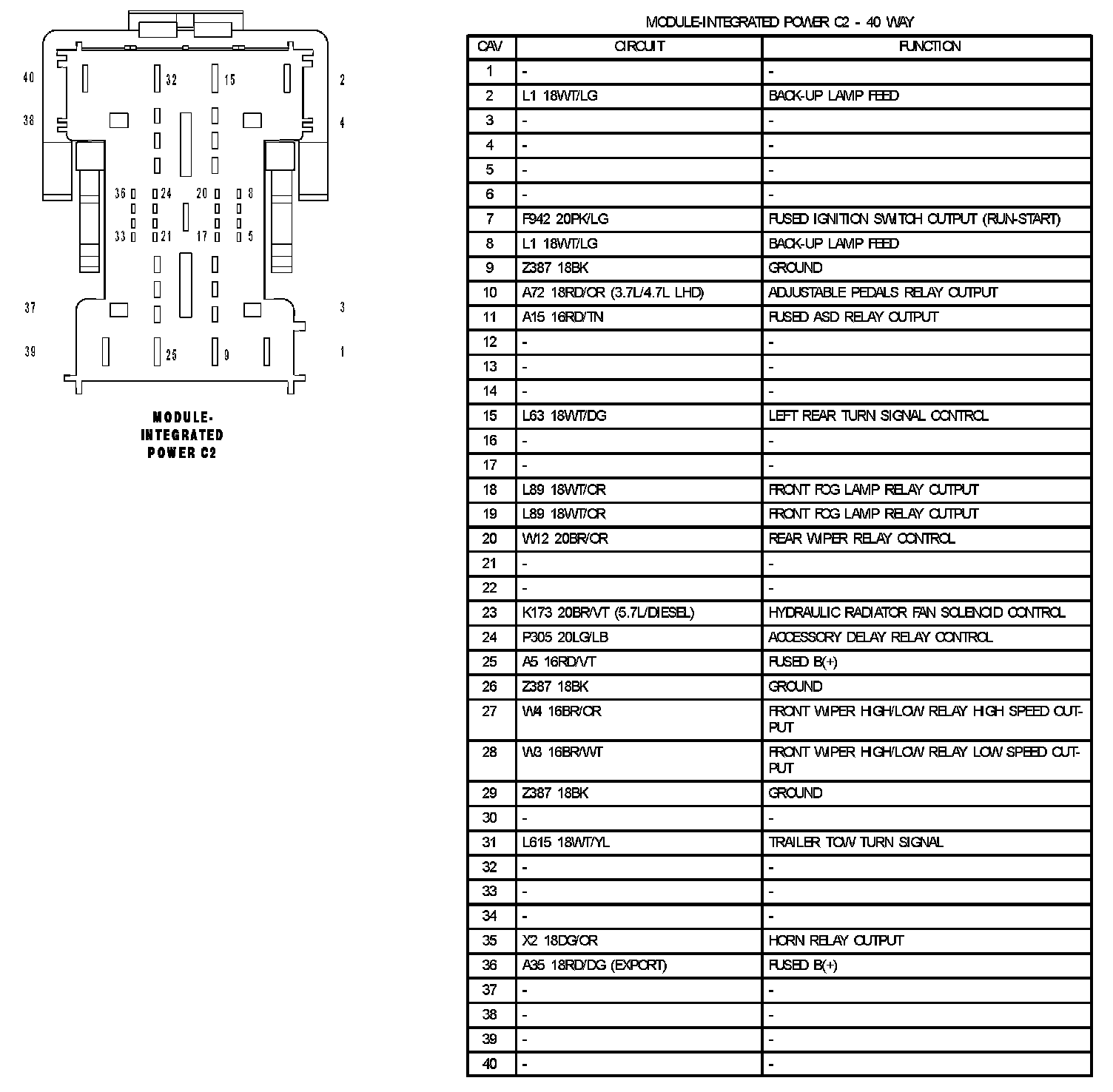

Module Integrated Power C2:

Module Integrated Power Eyelet (B+):

PDC Eyelet (B+):
