Radiator Cooling Fan Control Module
Module Hydraulic Cooling Fan (HEC):

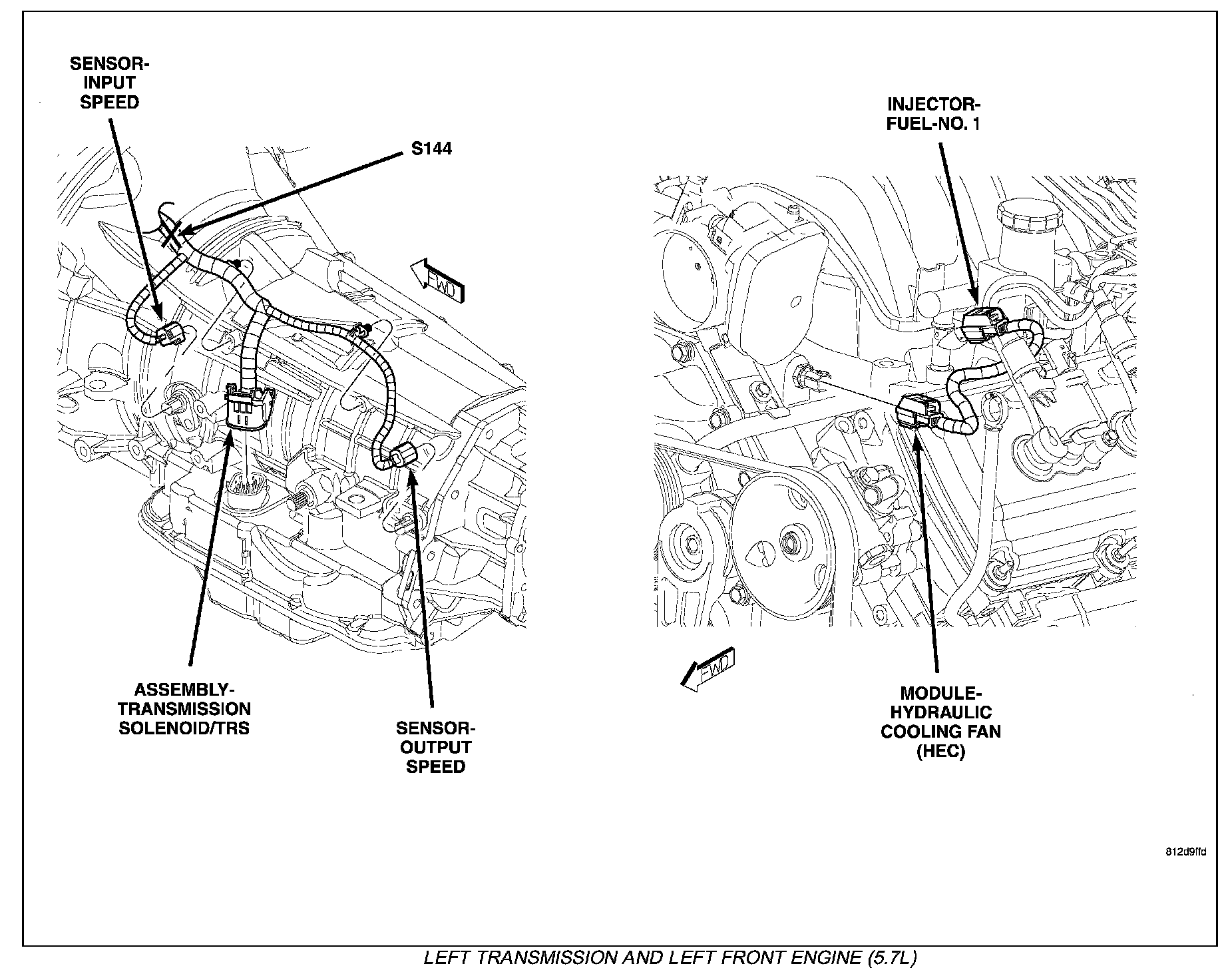

Left Transmission And Left Front Engine (5.7L):
