Chime Sounds With Drivers Door Open and Key Removed From Ignition

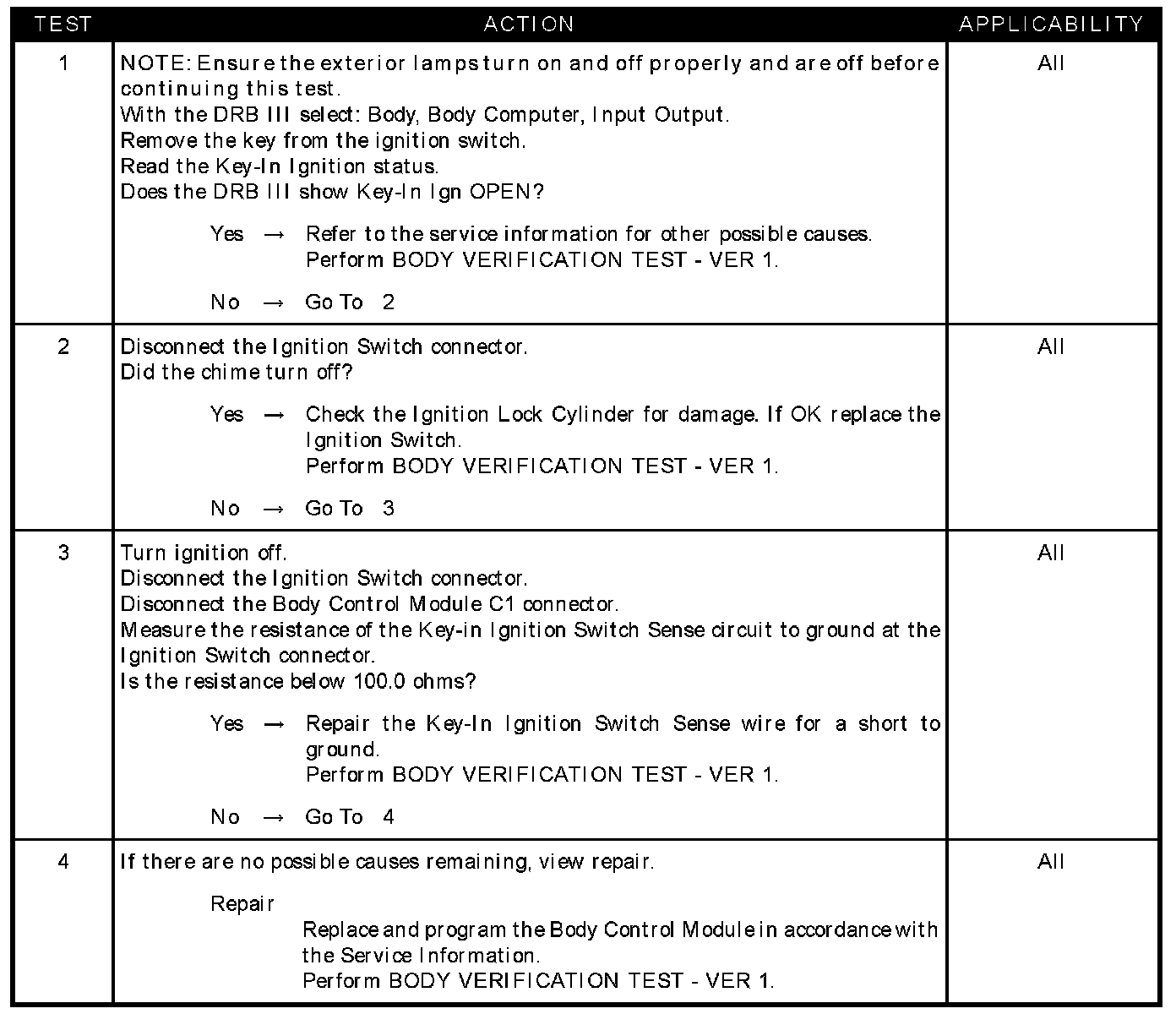

Test 1 - 4:






SYMPTOM
CHIME SOUNDS WITH DRIVER DOOR OPEN KEY REMOVED

POSSIBLE CAUSES
- Key-in IGN SW status
- Key-in ignition switch shorted
- Key-in ignition SW sense short to ground
- Body control module
