Module-Powertrain Control




Powertrain Control Module C1














Powertrain Control Module C2














Powertrain Control Module C3

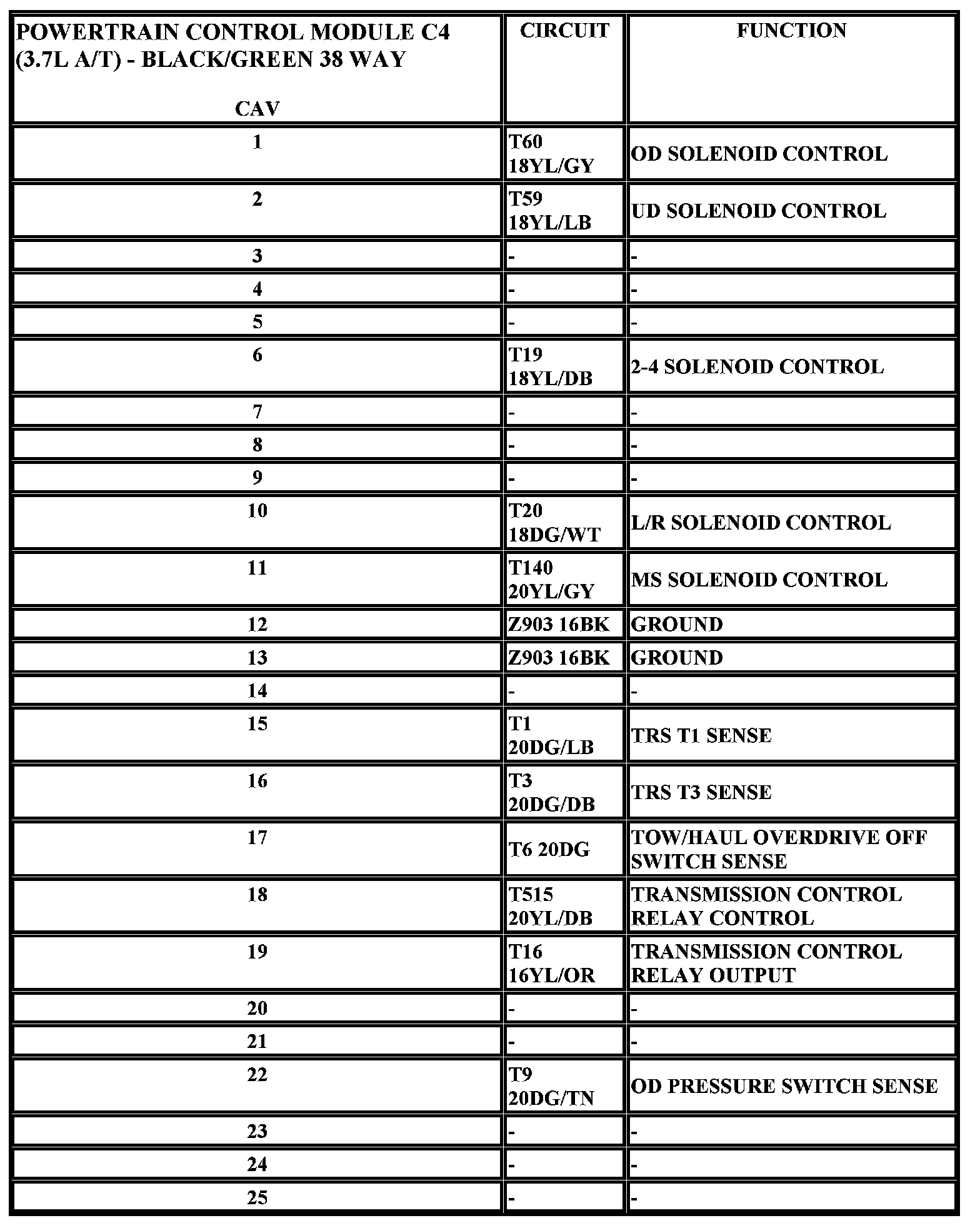

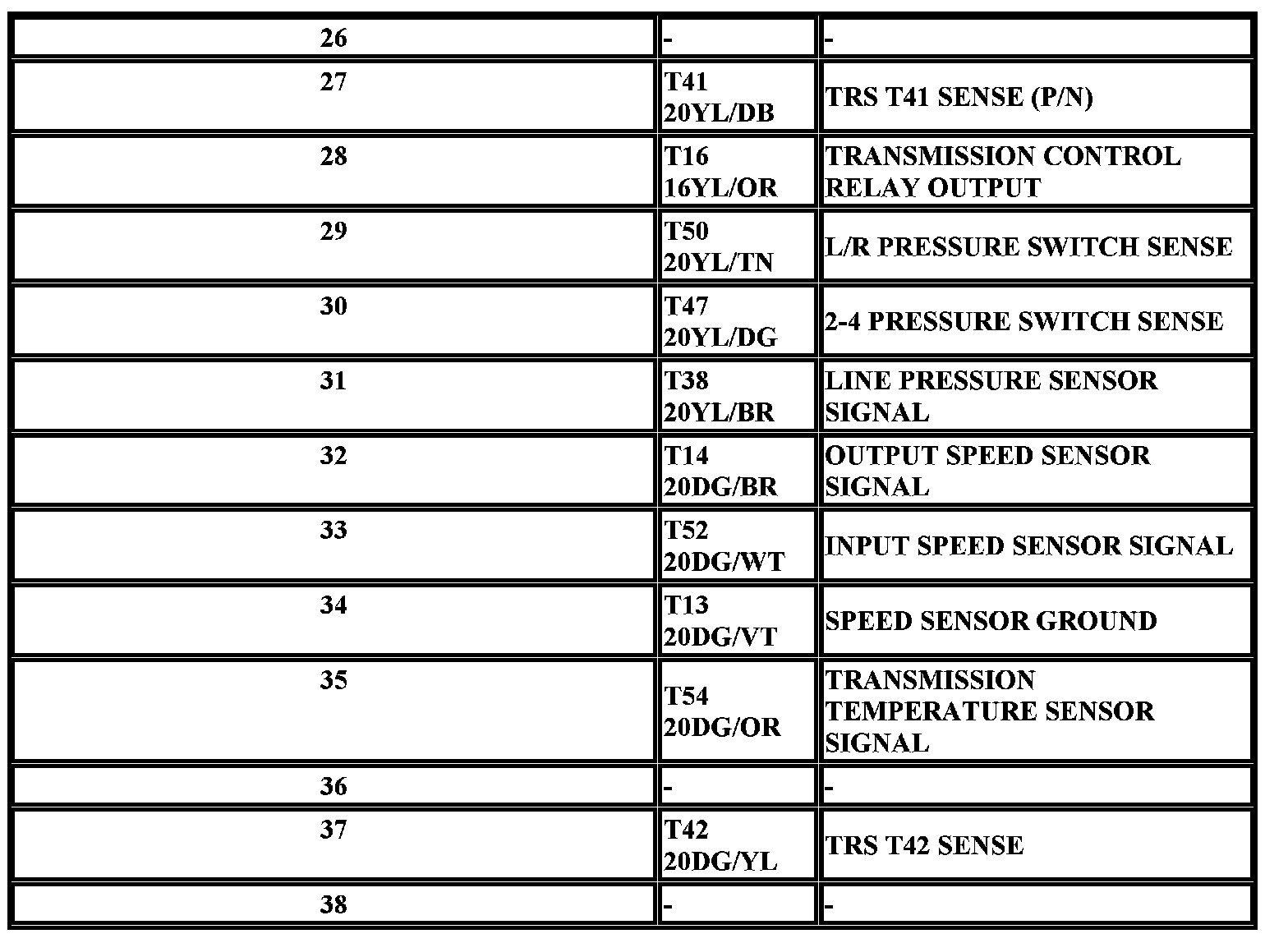

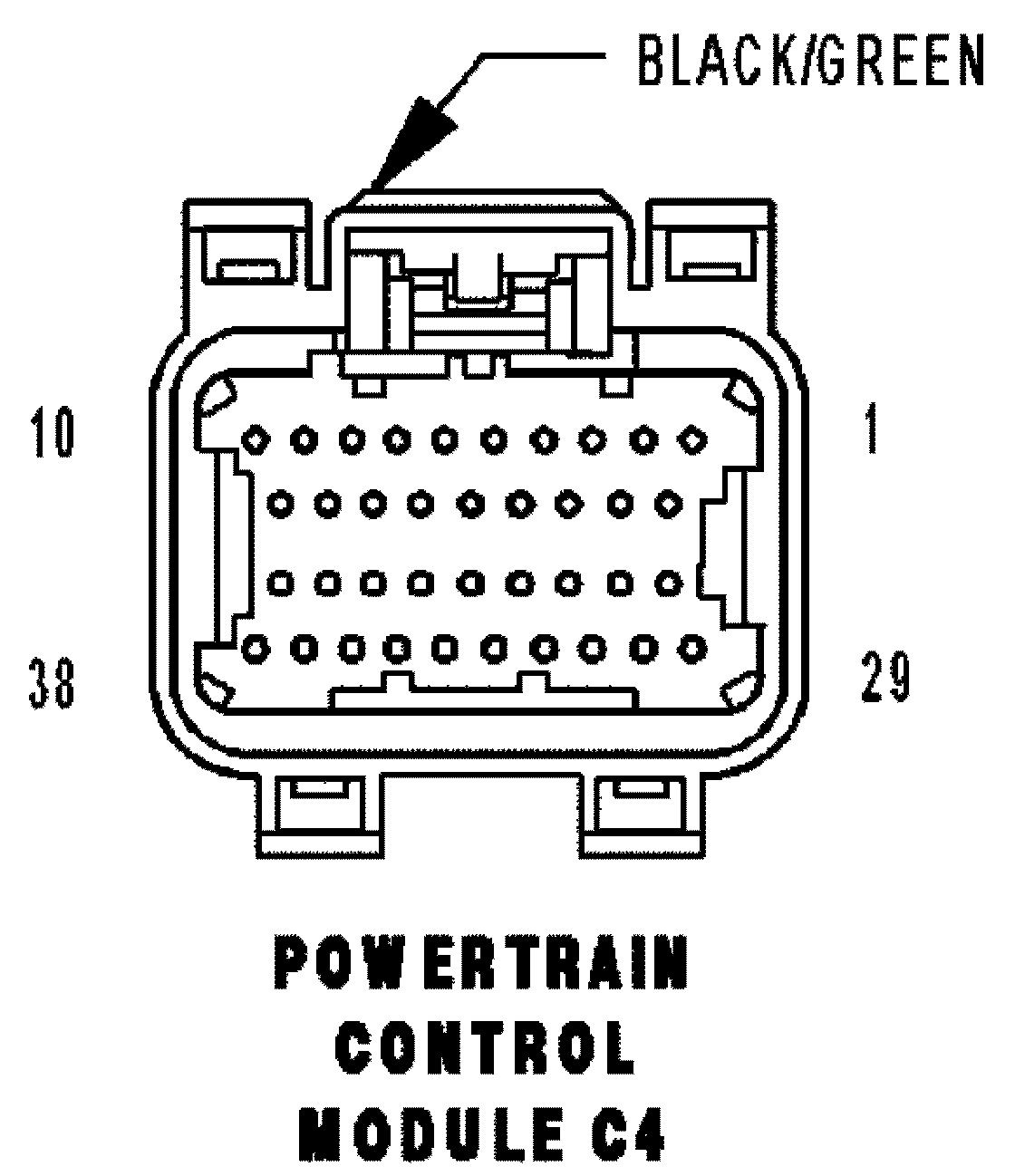

Powertrain Control Module C4 (A/T)
