Service Specifications

SPECIFICATIONS - 3.7L ENGINE








GENERAL SPECIFICATIONS





CYLINDER BLOCK





PISTONS





PISTON PINS





PISTON RINGS





CONNECTING RODS





CRANKSHAFT





CAMSHAFT








VALVE TIMING

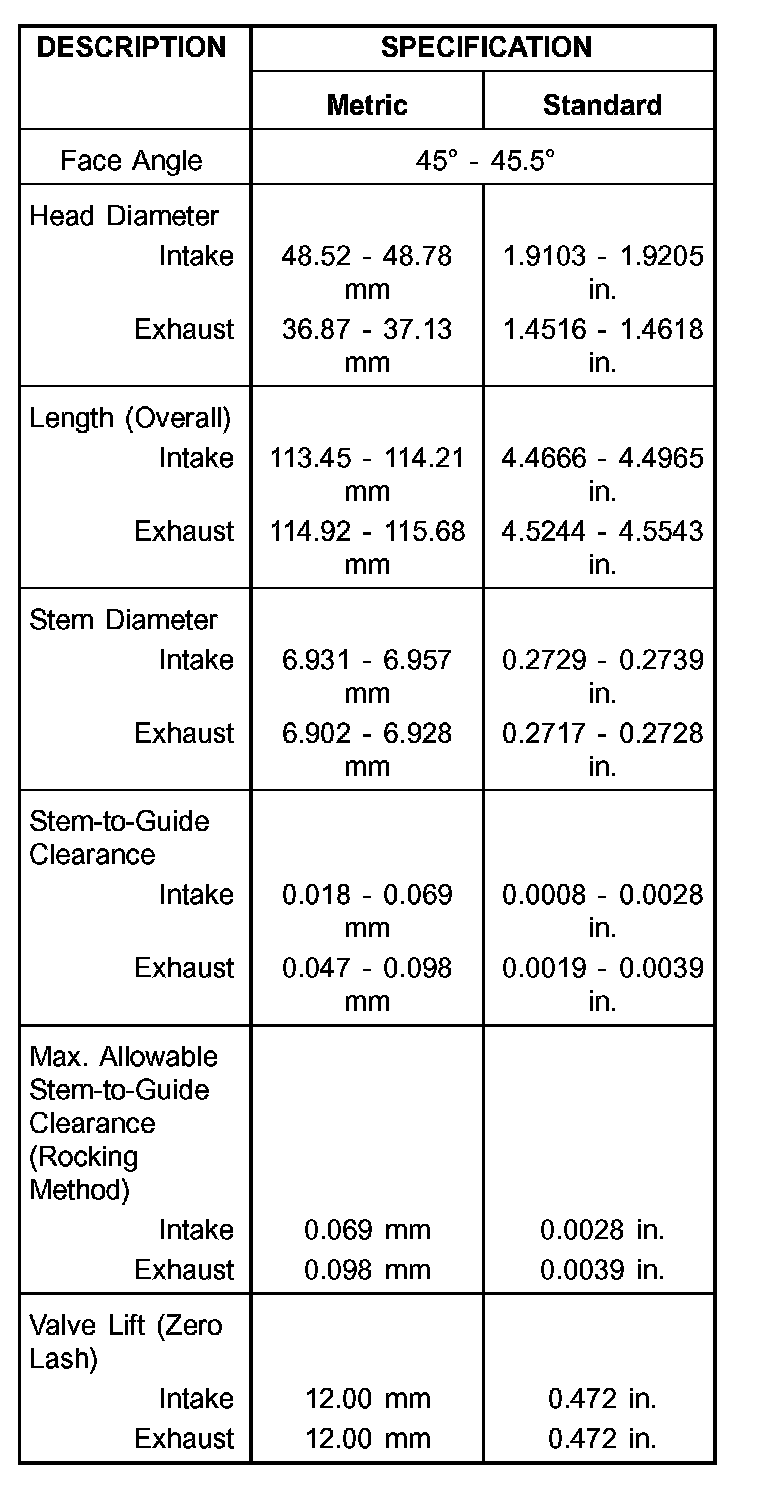

VALVES

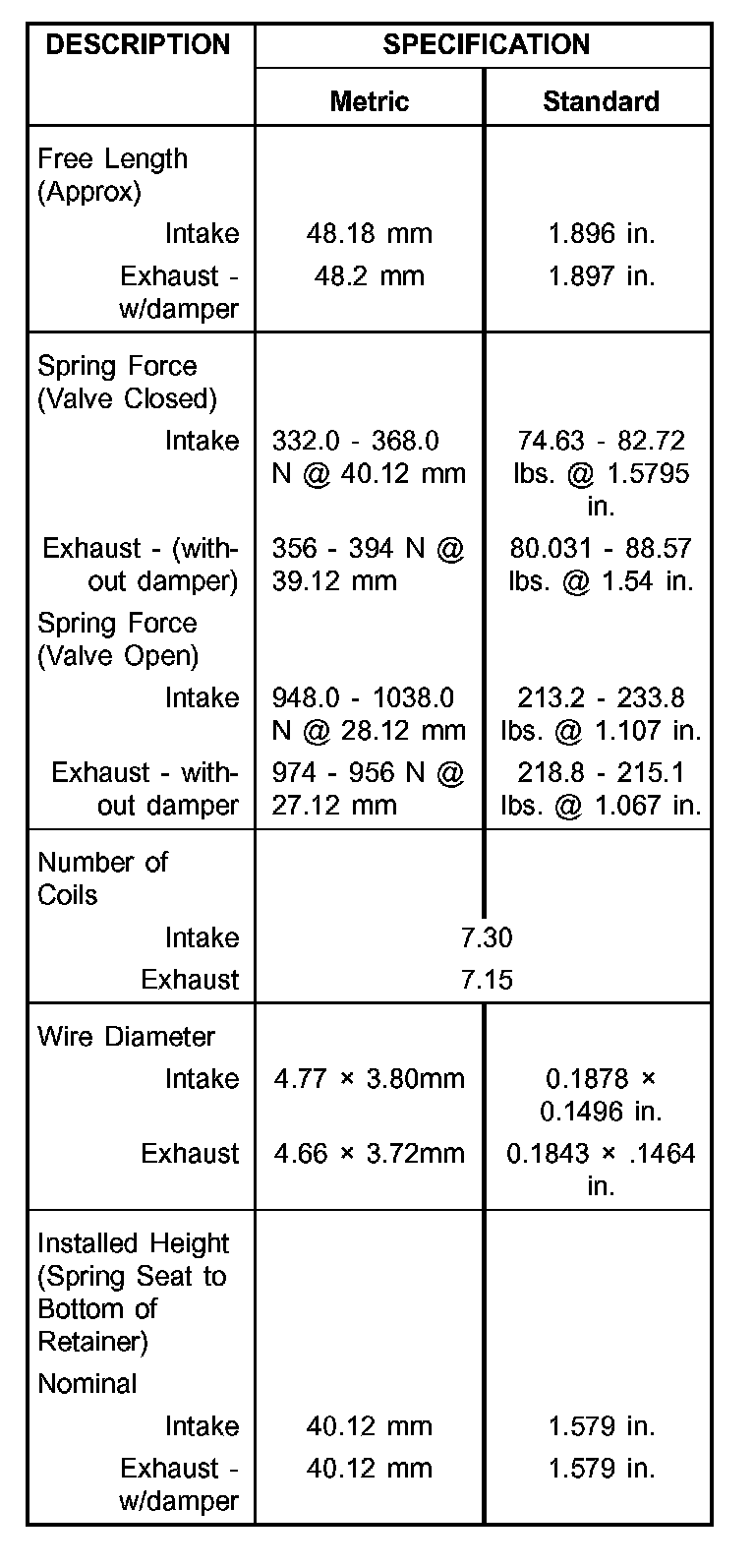

VALVE SPRING





CYLINDER HEAD





OIL PUMP





OIL PRESSURE
