System Specifications

Timing Chain Primary Tensioner-Bolts 28 Nm (250 inch lbs.)
Timing Chain Tensioner Arm-Bolt 28 Nm (250 inch lbs.)
Hydraulic Tensioner-Bolts 28 Nm (250 inch lbs.)

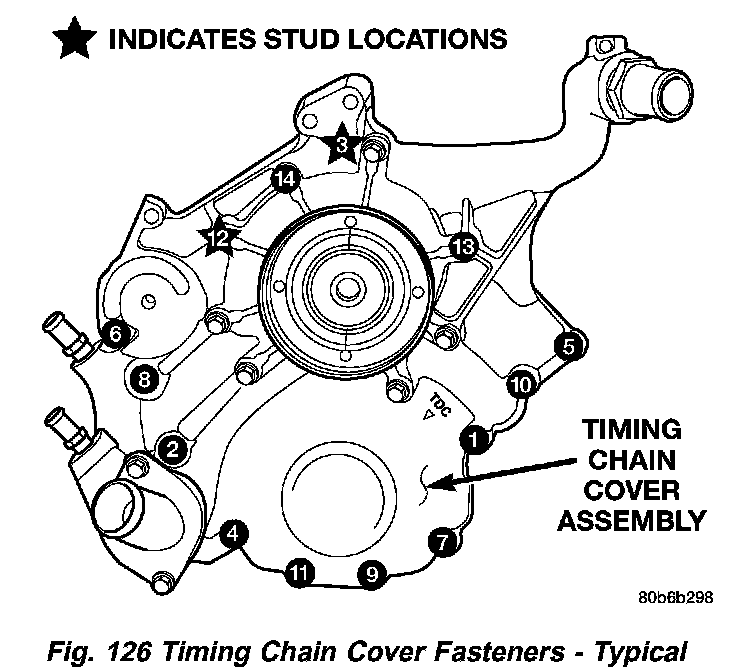

Timing Chain Cover-Bolts 58 Nm (43 ft. lbs.)
Crankshaft Damper-Bolt 175 Nm (130 ft. lbs.)
