Window Switch: Removal: Rear

  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick, gently pry the switch from the console. See Fig 1.

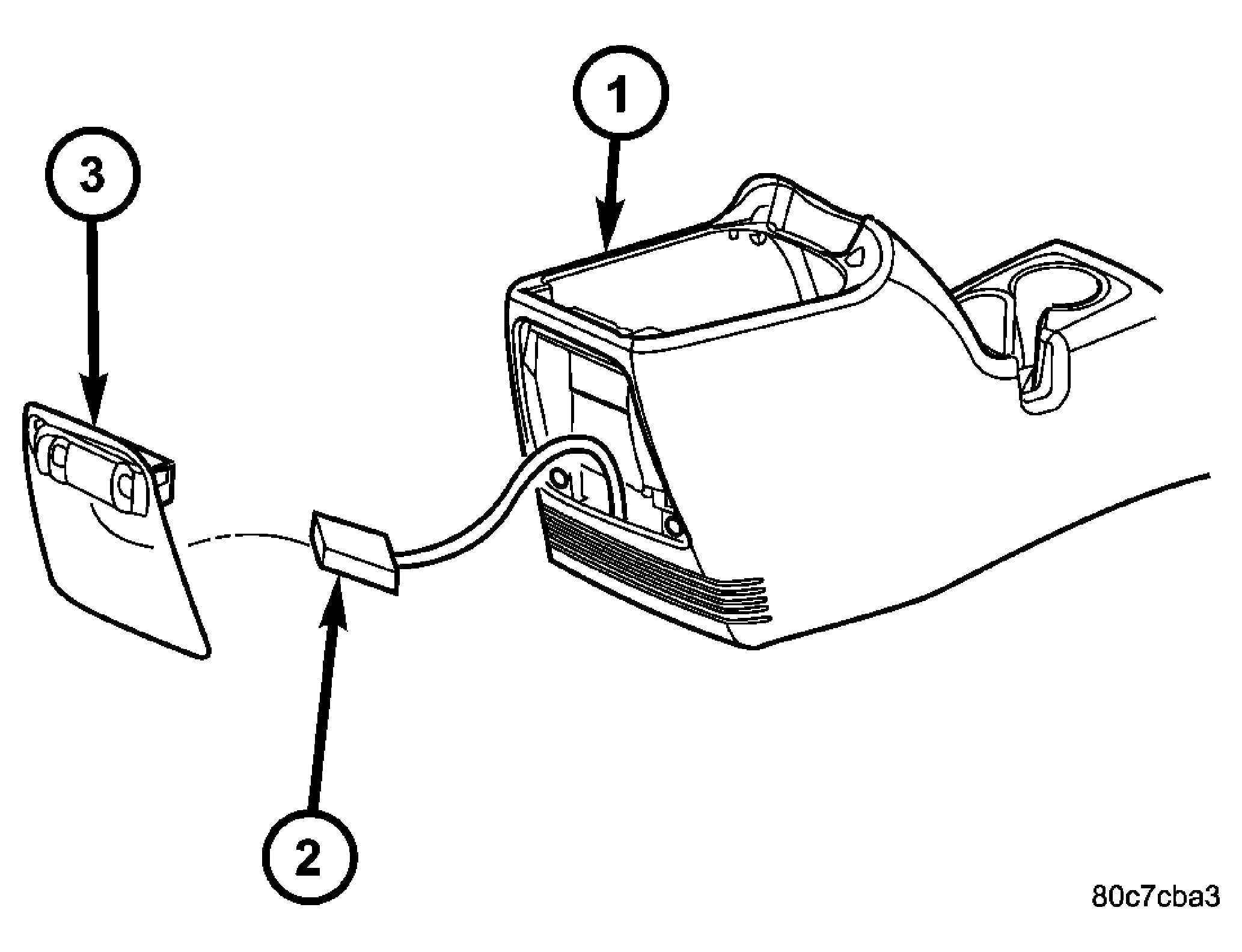

    Fig 1: Rear Window Switch
    GC0026574Courtesy of DAIMLERCHRYSLER CORP.
    1 - CENTER CONSOLE
    2 - ELECTRICAL CONNECTOR
    3 - REAR WINDOW SWITCH
  3. Disconnect electrical harness connector.
