O2 Sensor Configuration & Location Chart

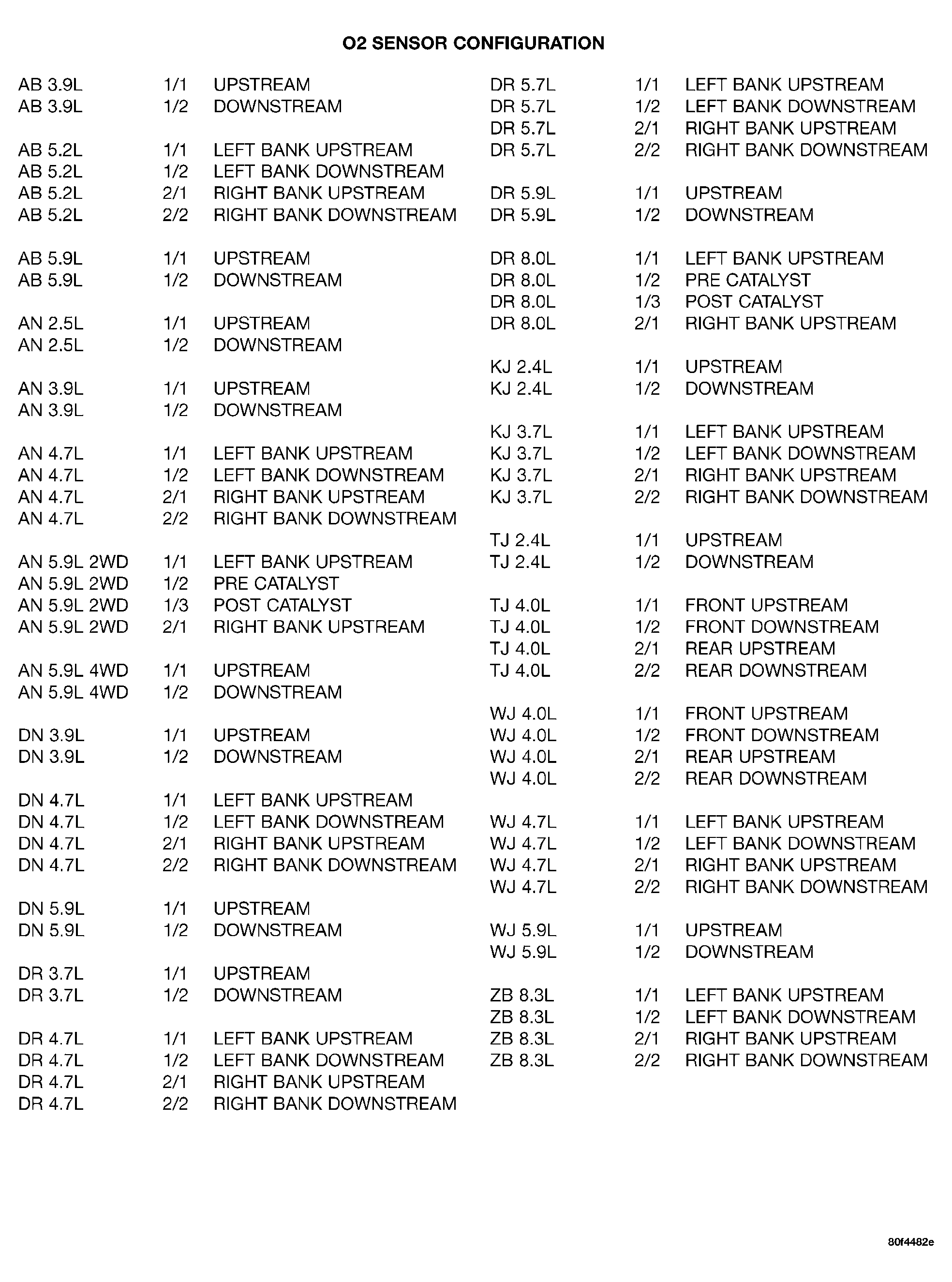

Fig 1: O2 Sensor Configuration Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
