Poor Sound Quality

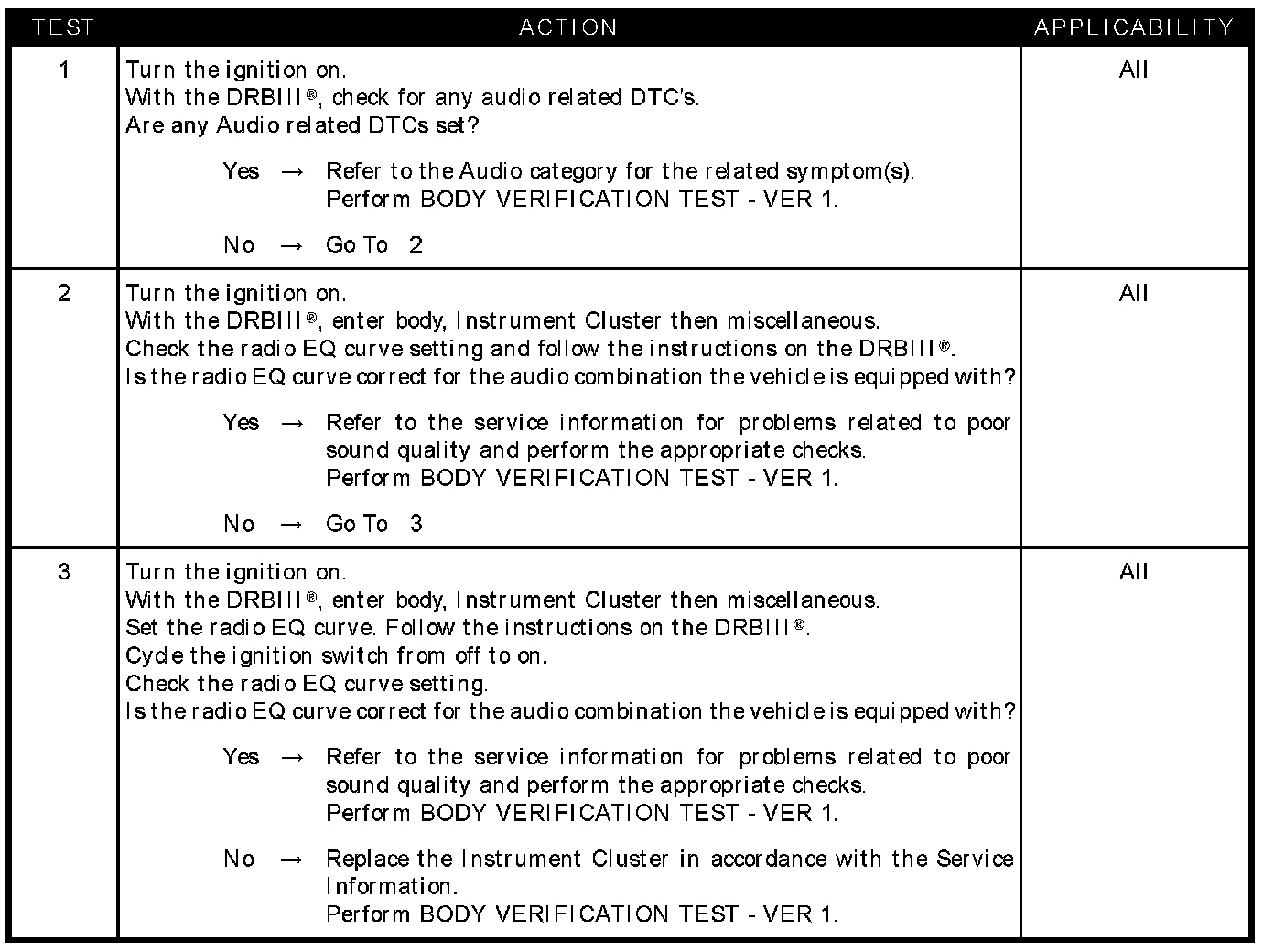

Test 1 - 3:






SYMPTOM
POOR SOUND QUALITY

POSSIBLE CAUSES
- Check audio DTC's
- Check selected radio EQ curve
- Set the radio EQ curve
- Verify sound performance
