Air Bag Indicator Inoperative

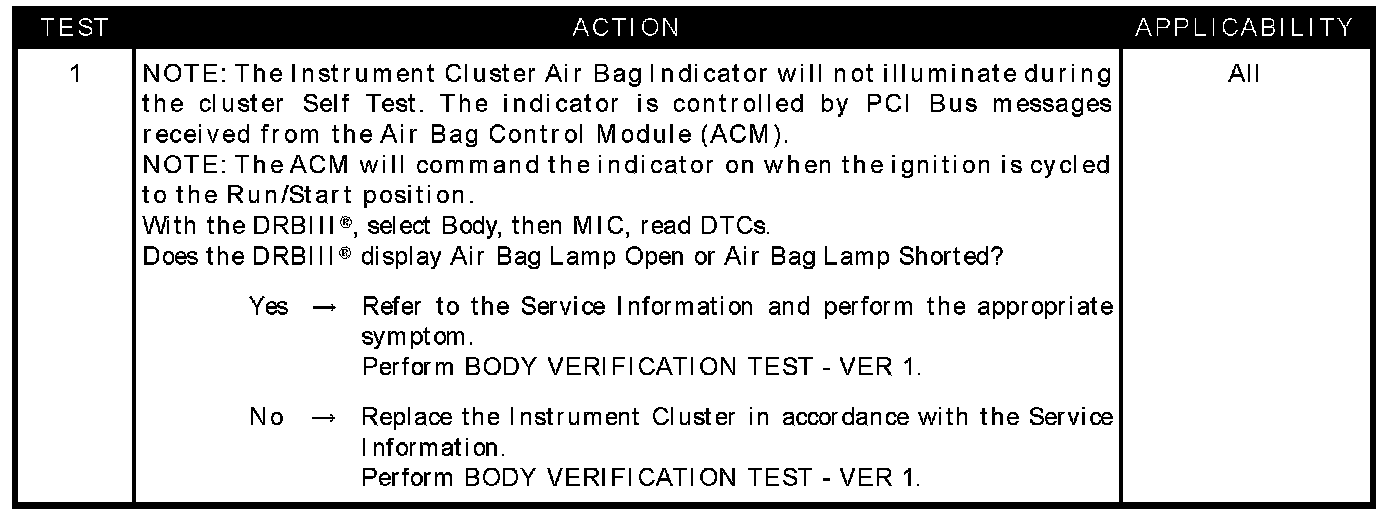

Test 1:






SYMPTOM
AIR BAG INDICATOR INOPERATIVE

POSSIBLE CAUSES
- Instrument cluster
- Air bag indicator DTC
