All Gauges Inoperative

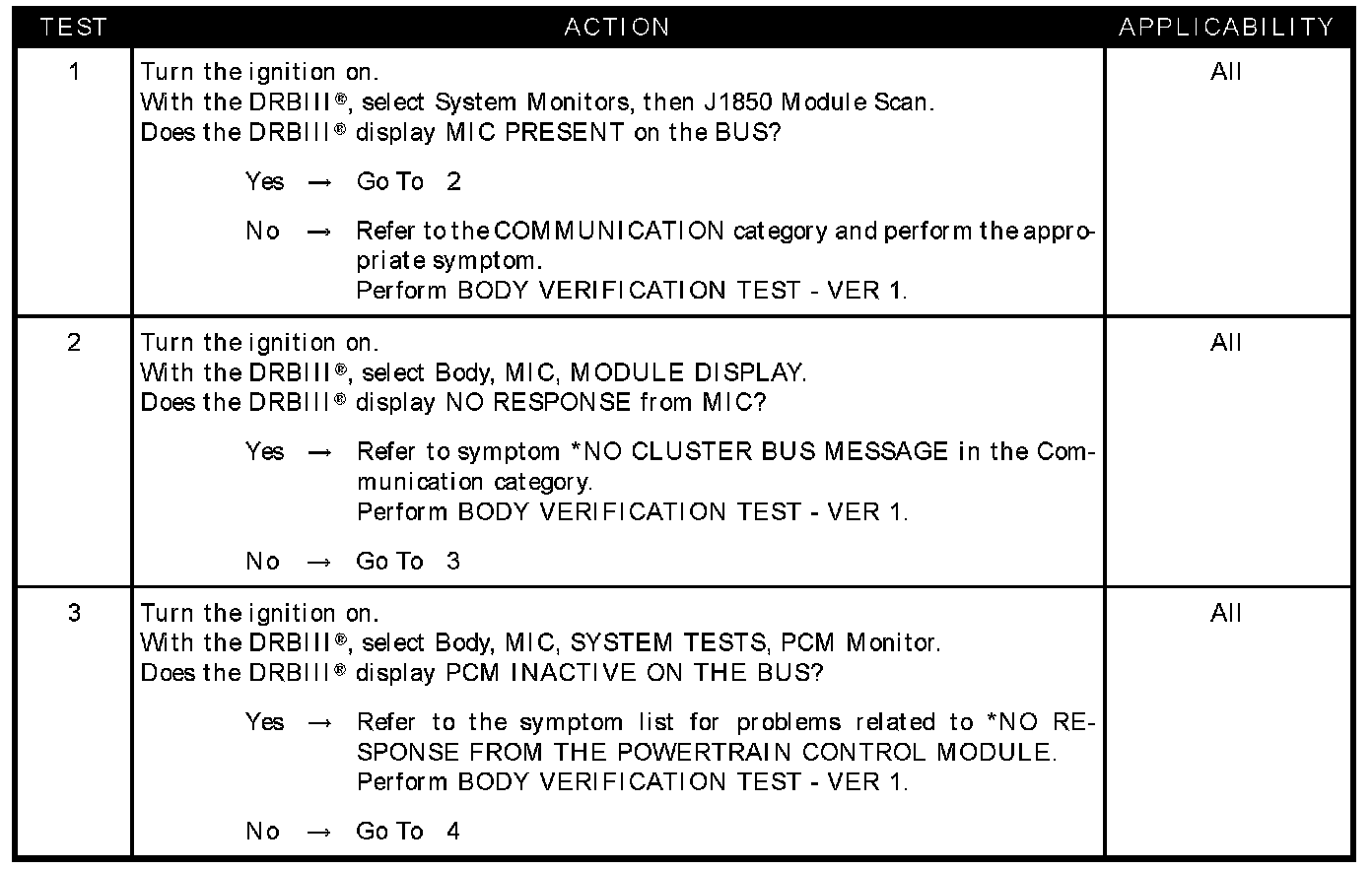

Test 1 - 3:

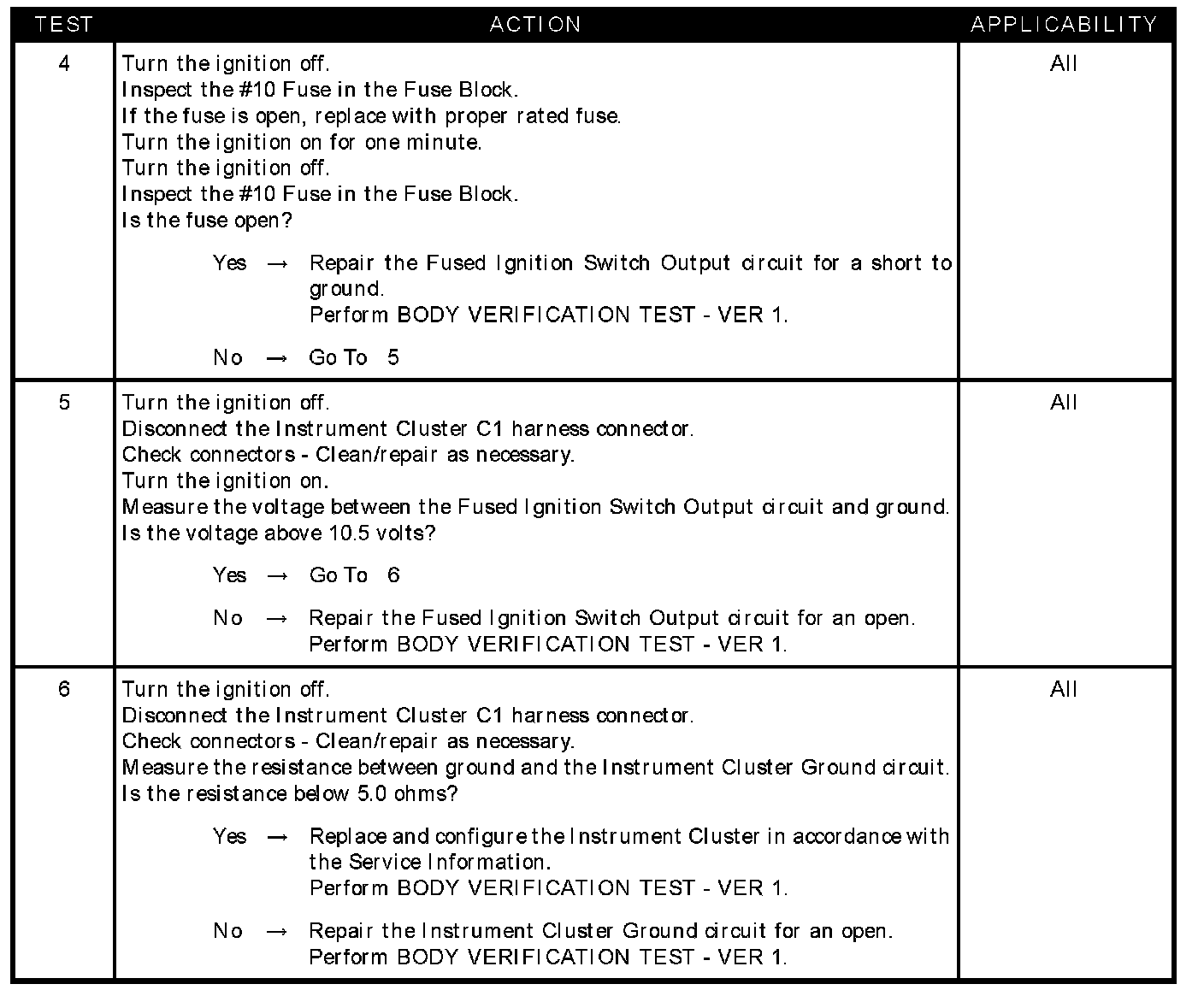

Test 4 - 6:






SYMPTOM
ALL GAUGES INOPERATIVE

POSSIBLE CAUSES
- NO response - PCI BUS
- NO response - PCI BUS - instrument cluster
- NO response - PCI BUS - powertrain control module
- Fused ignition switch output circuit short to ground
- Fused ignition switch output circuit open
- Ground circuit open
- Instrument cluster
