Courtesy Lamps On At All Times

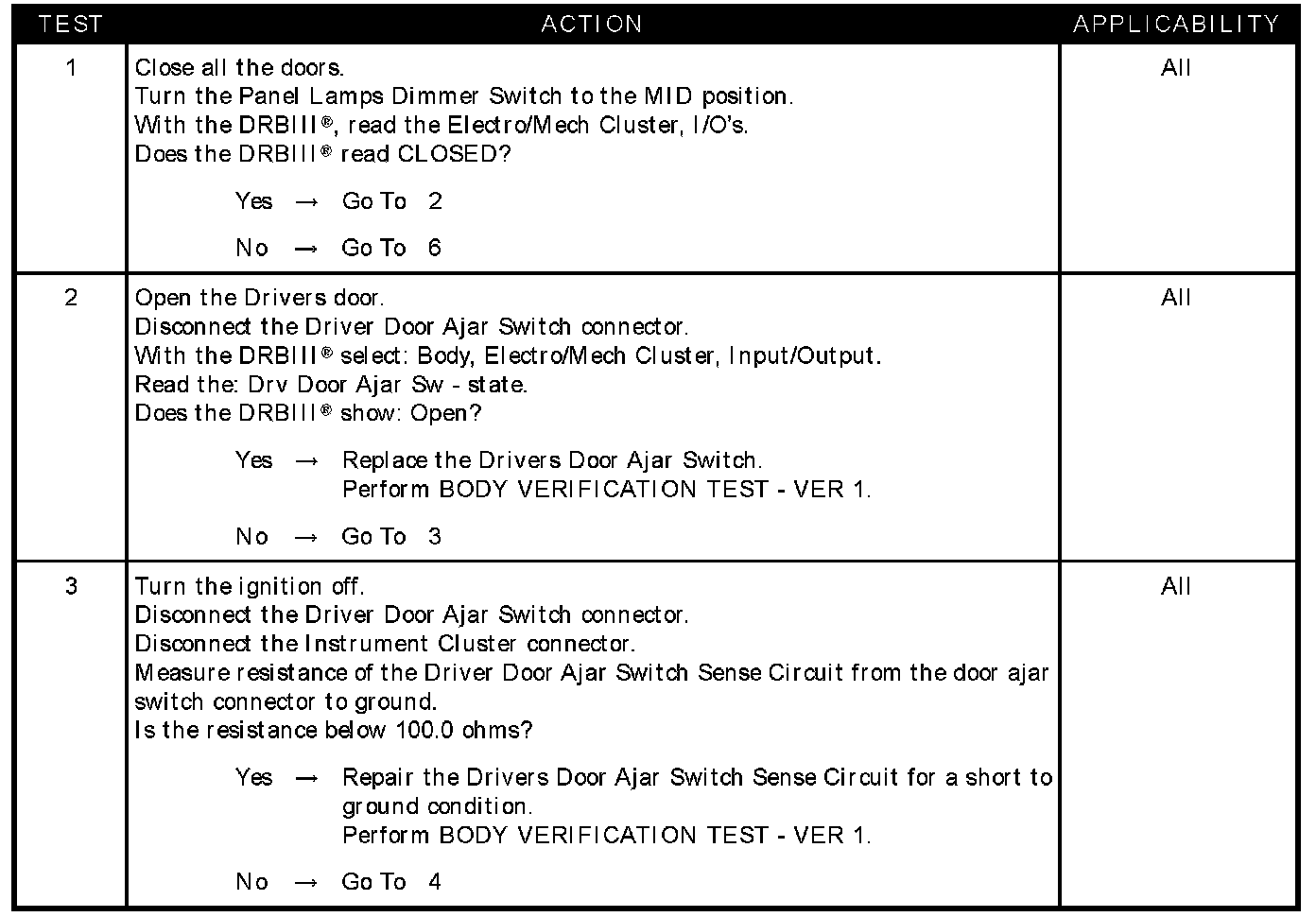

Test 1 - 3:

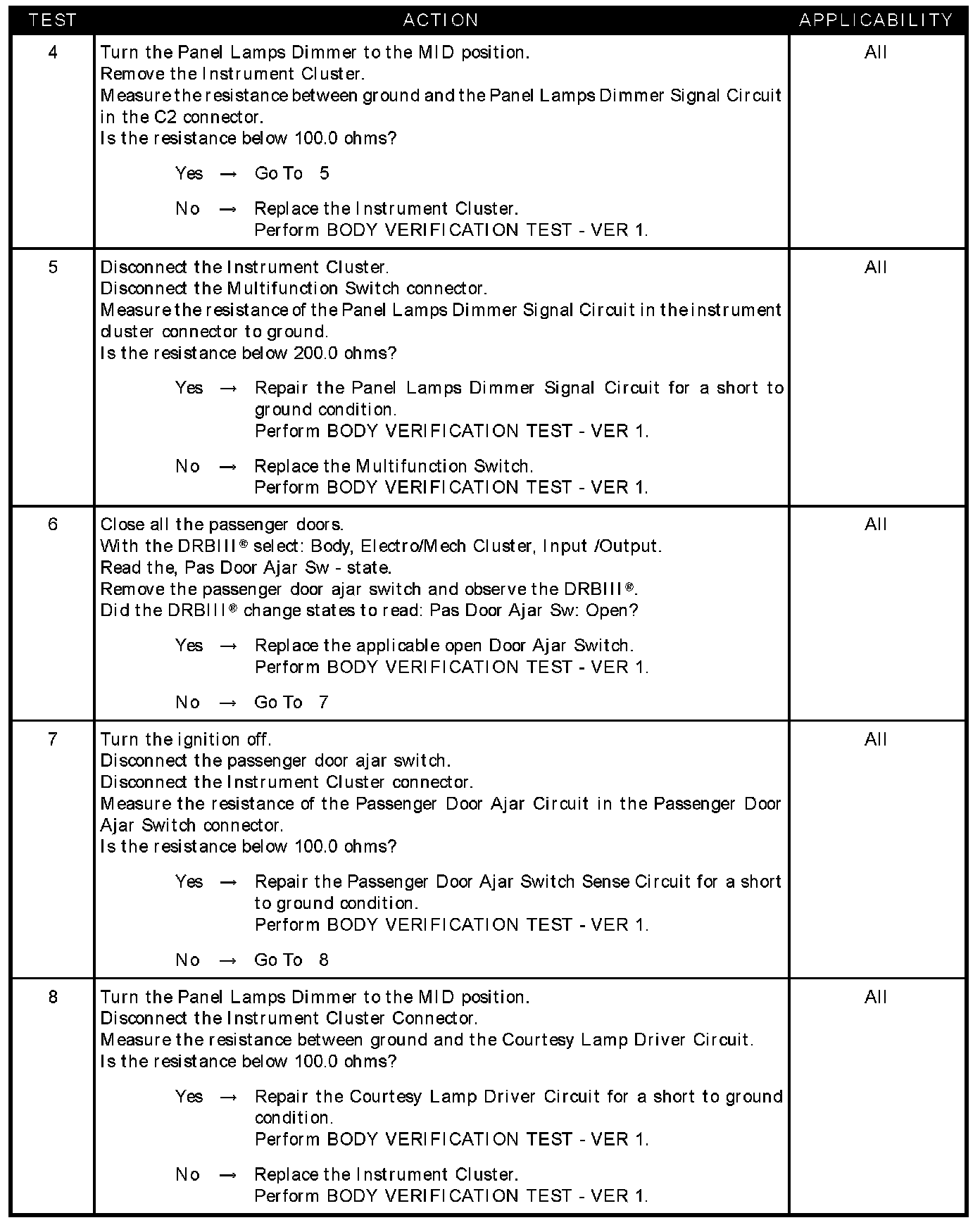

Test 4 - 8:

SYMPTOM
COURTESY LAMPS ON AT ALL TIMES

POSSIBLE CAUSES
- Drivers door ajar switch
- Drivers door ajar switch sense circuit short to ground
- Instrument cluster
- Panel lamps dimmer signal circuit short to ground
- Multifunction switch
- Door ajar switch open
- Passenger door ajar switch sense circuit short to ground
- Courtesy lamp driver circuit short to ground
- Instrument cluster
