System Specifications

42RLE AUTOMATIC TRANSMISSION





GENERAL SPECIFICATIONS





GEAR RATIOS





BEARING PRELOAD (DRAG TORQUE)





CLUTCH PACK





INPUT SHAFT





OIL PUMP CLEARANCES

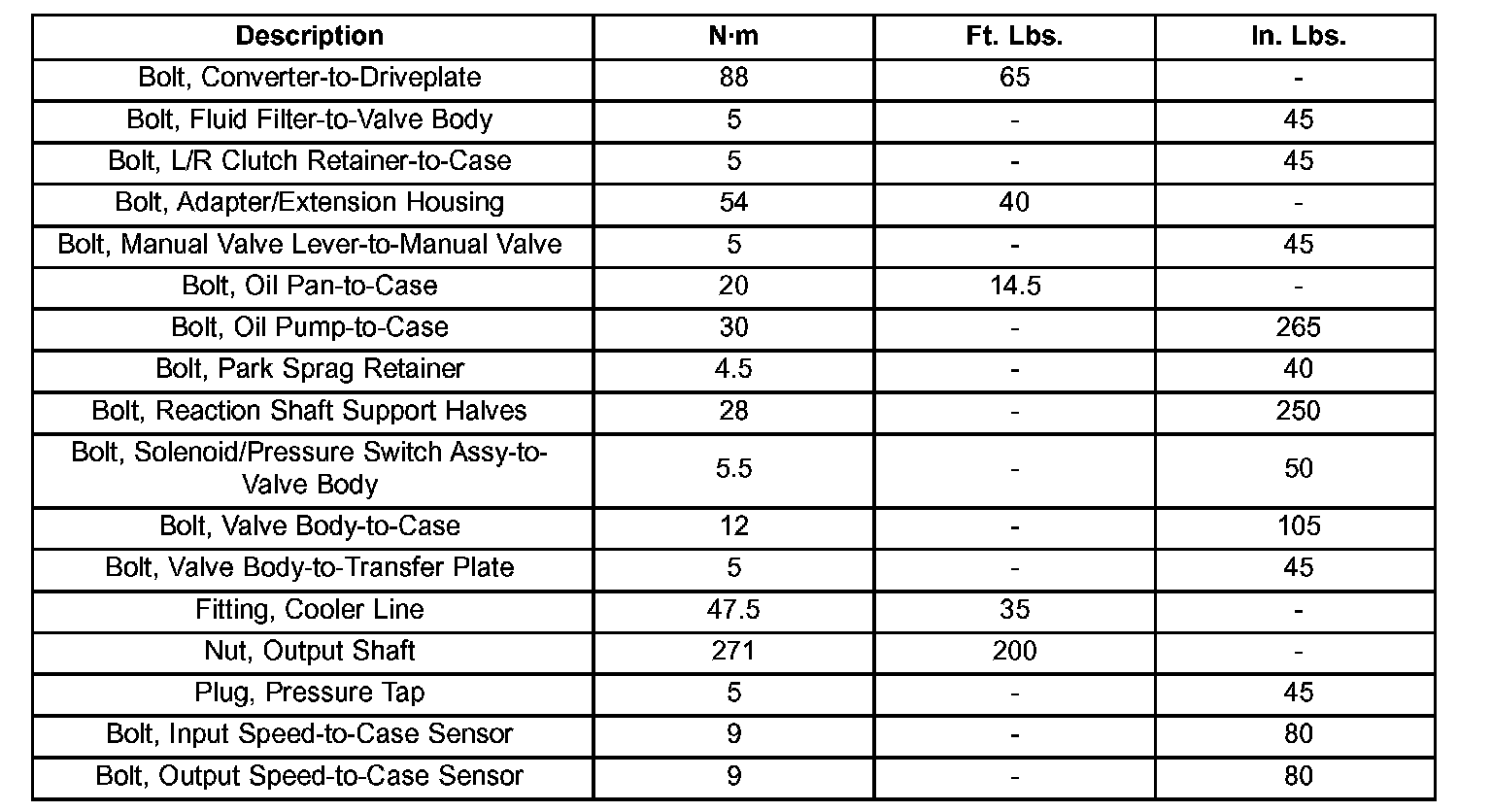

TORQUE SPECIFICATIONS
