Control Assembly, HVAC

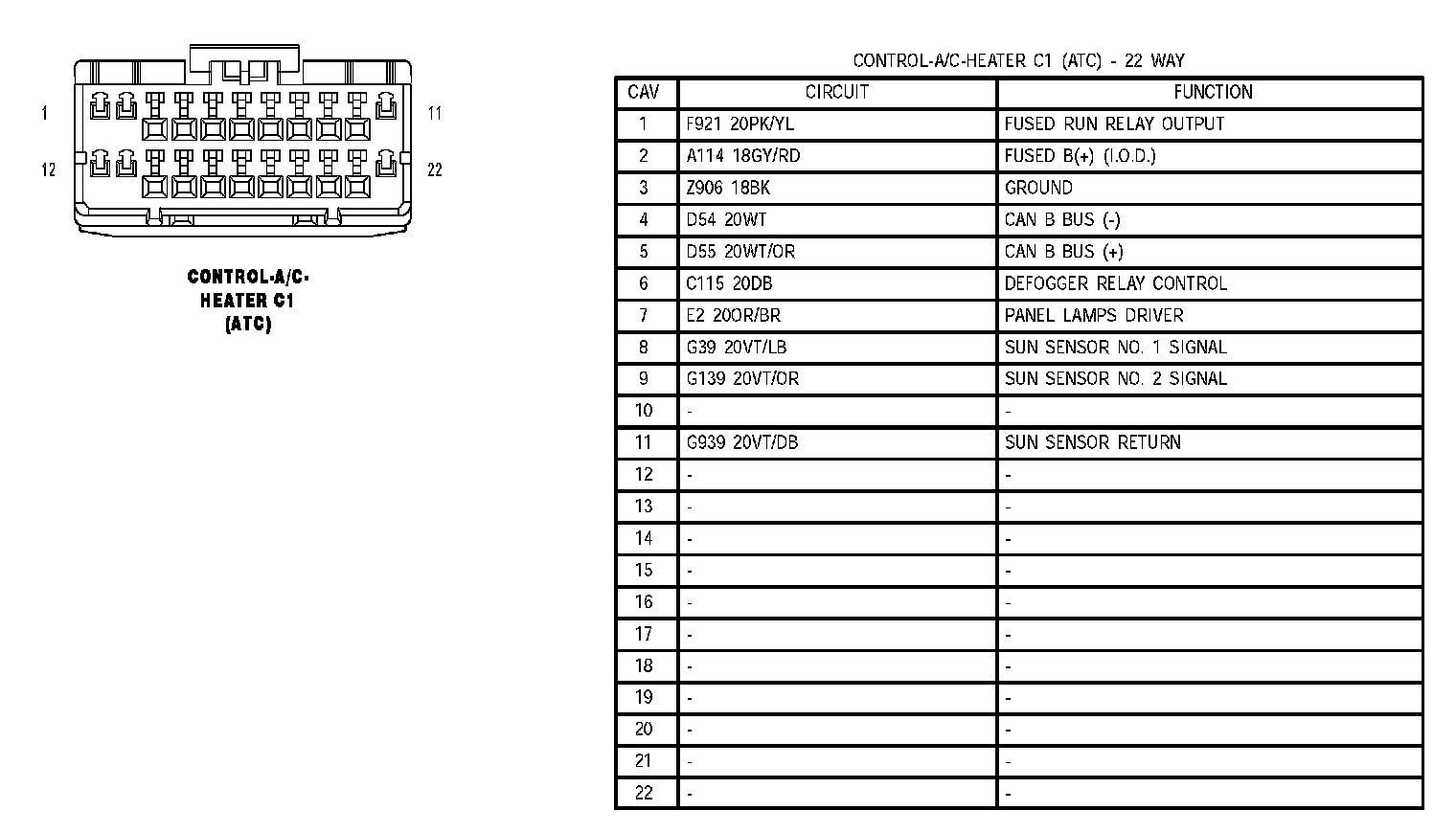

Control A/C Heater C1 (ATC):

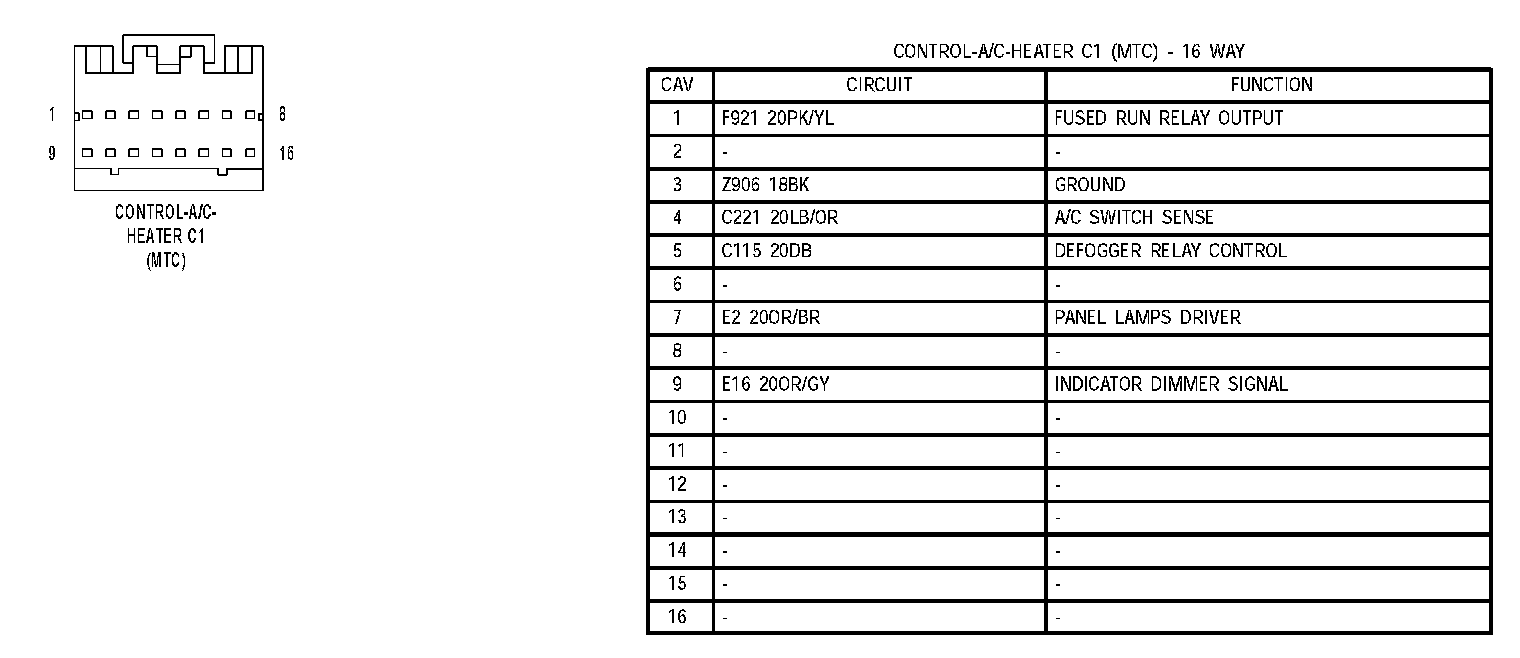

Control A/C Heater C1 (MTC):

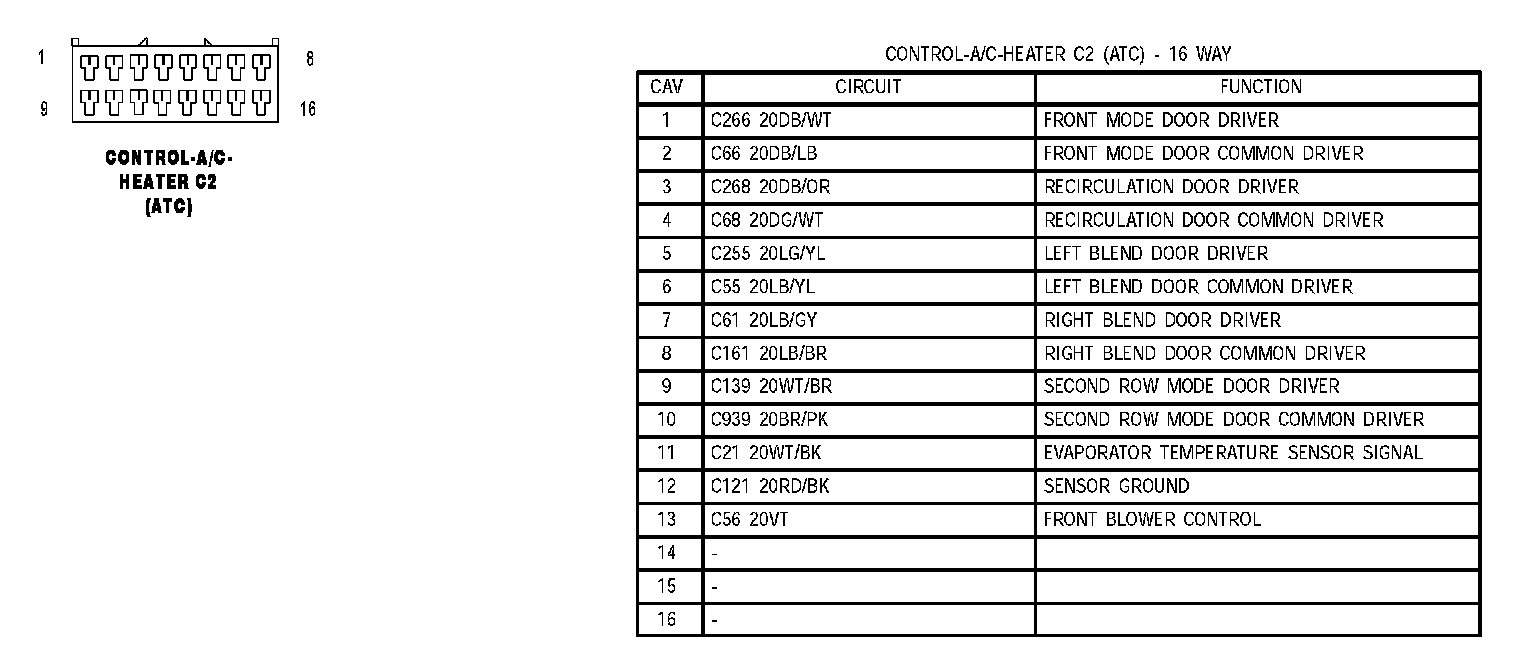

Control A/C Heater C2 (ATC):

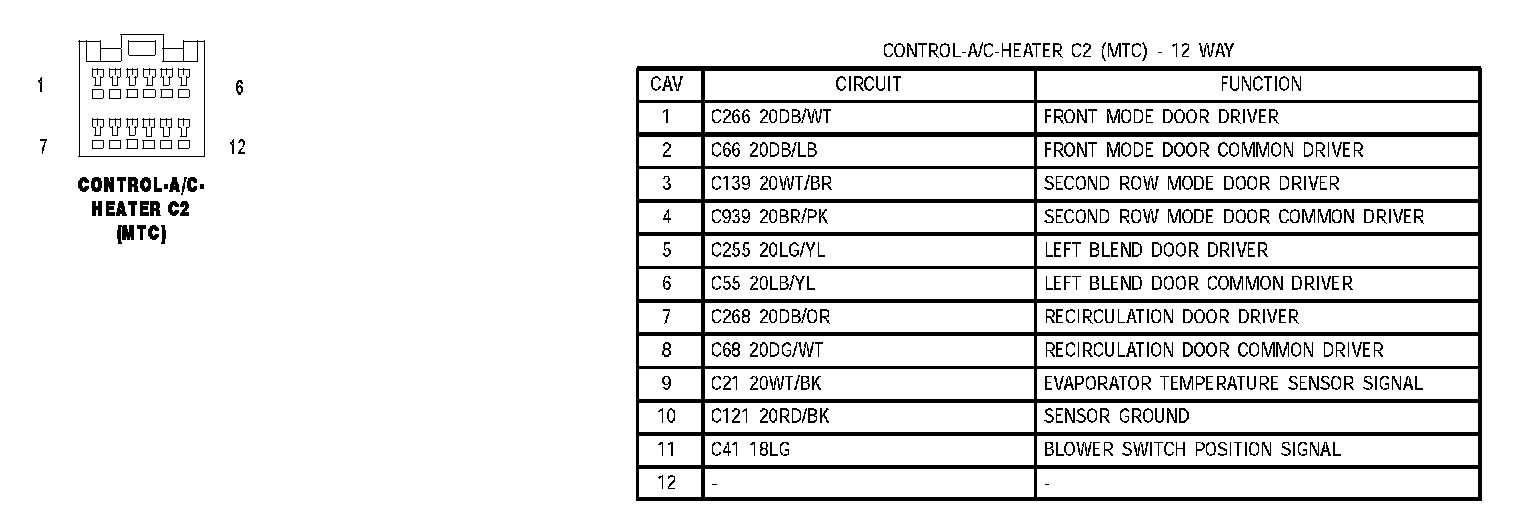

Control A/C Heater C2 (MTC):

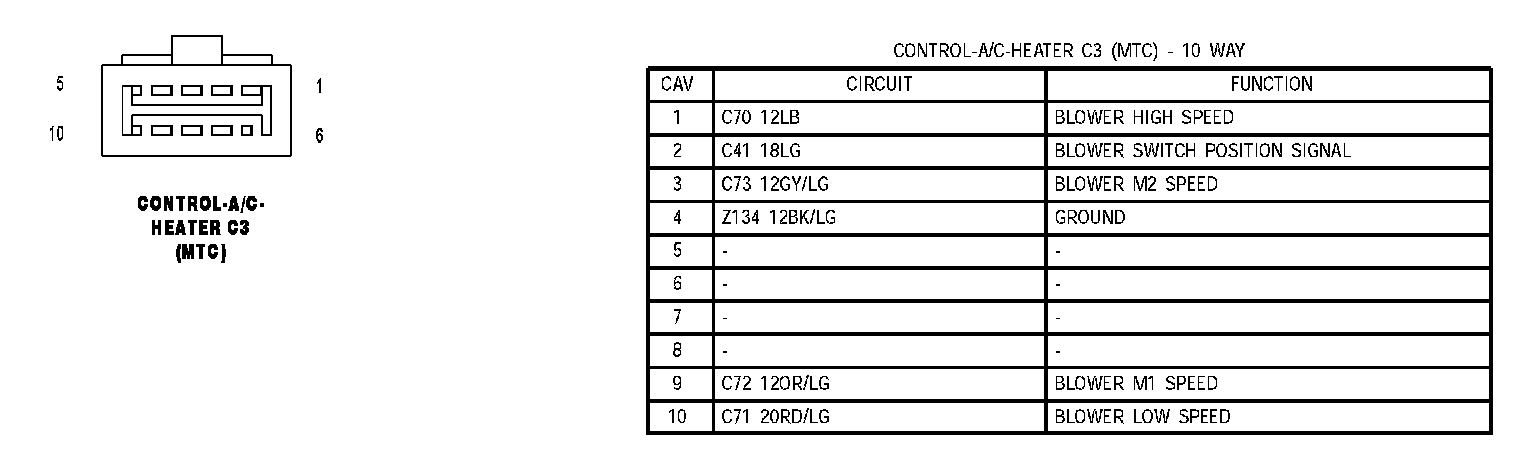

Control A/C Heater C3 (MTC):

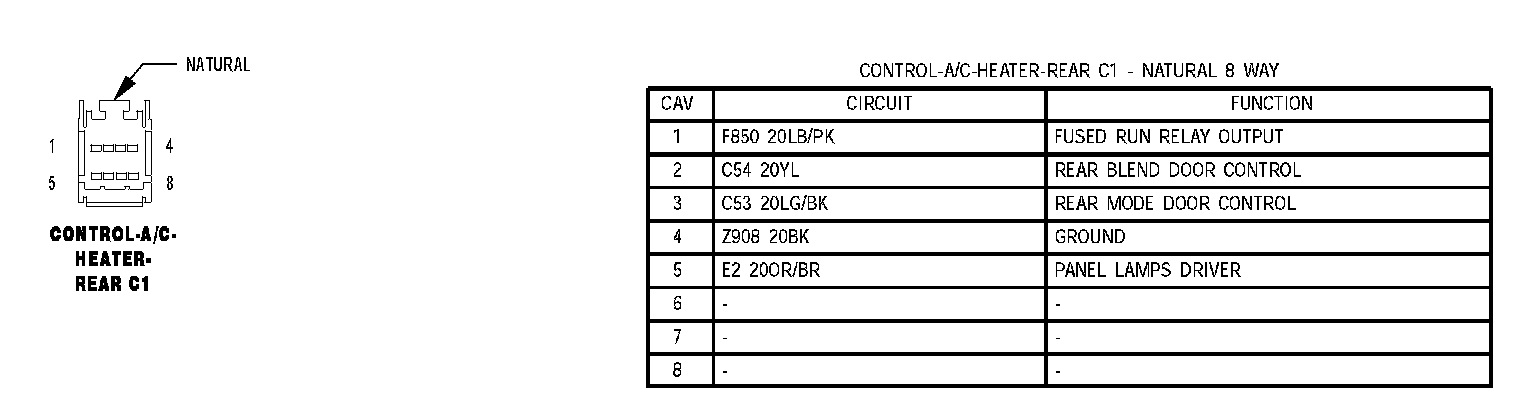

Control A/C Heater Rear C1:

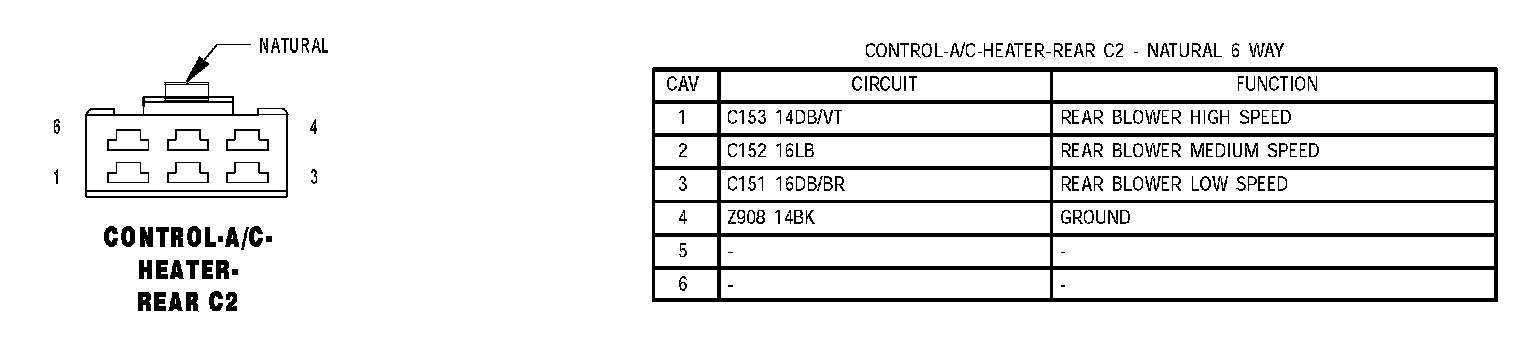

Control A/C Heater Rear C2:
