Power Window Switch

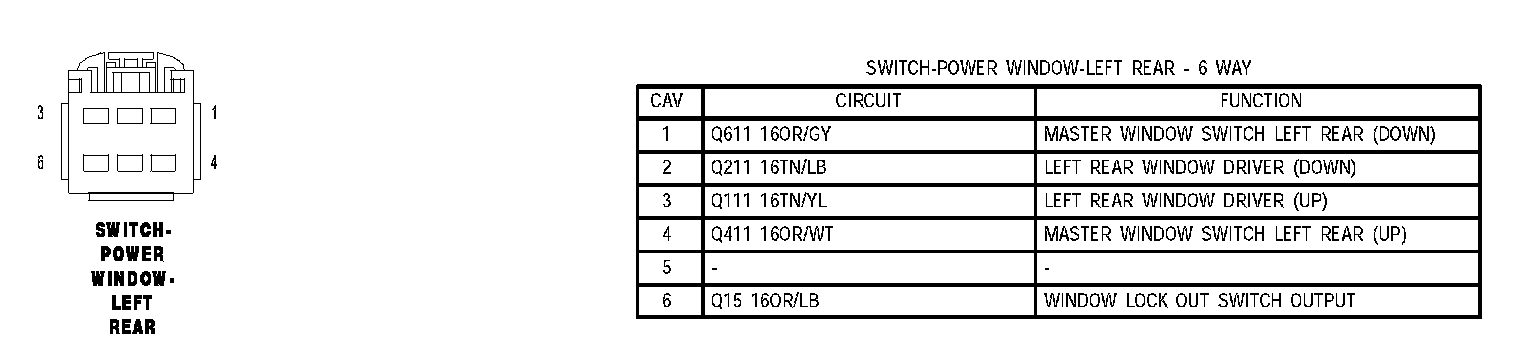

Switch Power Window Left Rear:

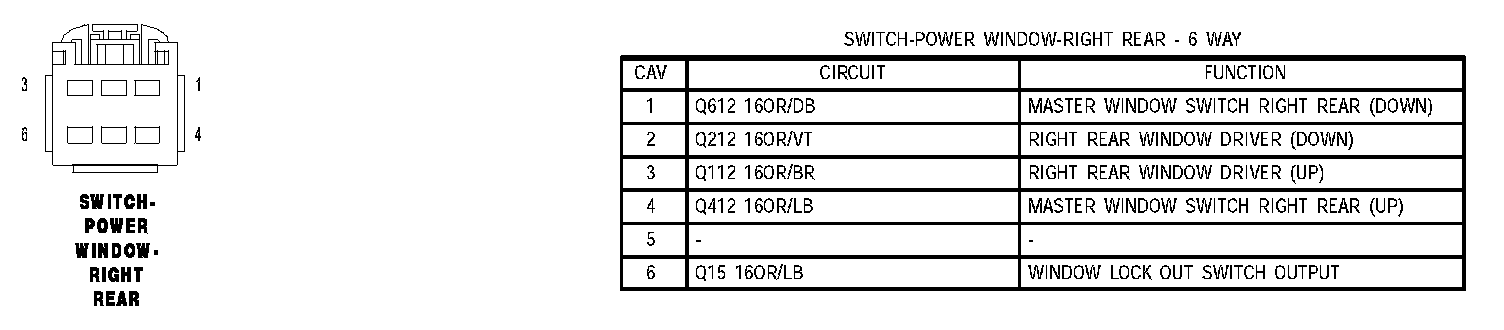

Switch Power Window Right Rear:

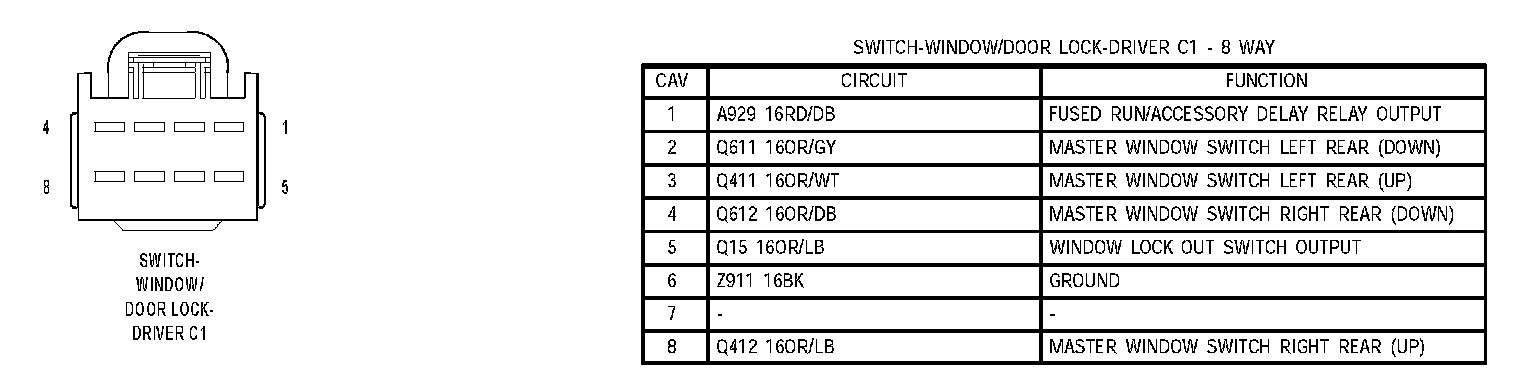

Switch Window/Door Lock Driver C1:

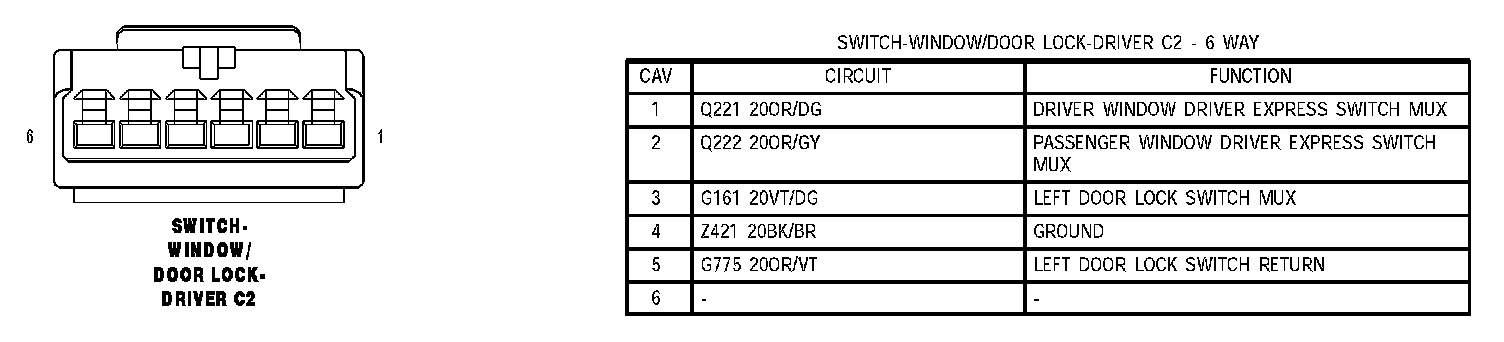

Switch Window/Door Lock Driver C2:

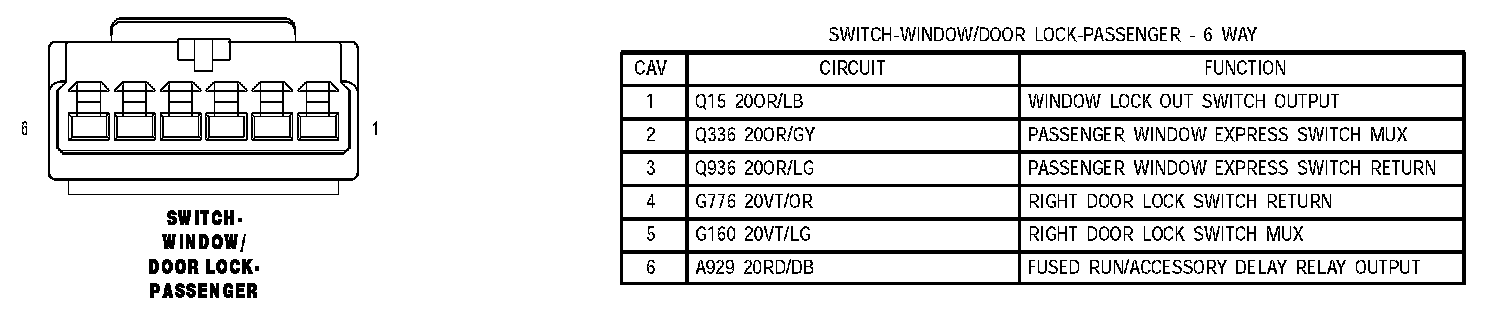

Switch Window/Door Lock Passenger:
