Seat Temperature Control Module: Service and Repair

MODULE-HEATED SEATS

CAUTION: The Heated Seat Module mounting tabs can be damaged during module removal and installation. Use care to properly align tabs to prevent binding that could result in tab breakage.

REMOVAL




1. Position the right front seat to the full rearward position.
2. Disconnect and isolate the battery negative cable.

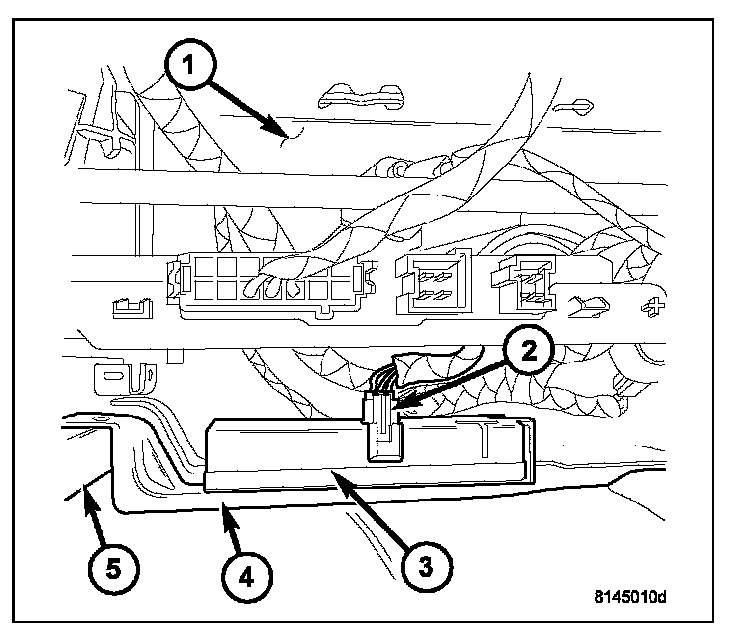

3. Disconnect the wire harness connector (2) from the heated seat module (3).
4. Unsnap the heated seat module retaining clips from the mounting bracket (4).
5. Remove the heated seat module (3) from the vehicle.

INSTALLATION

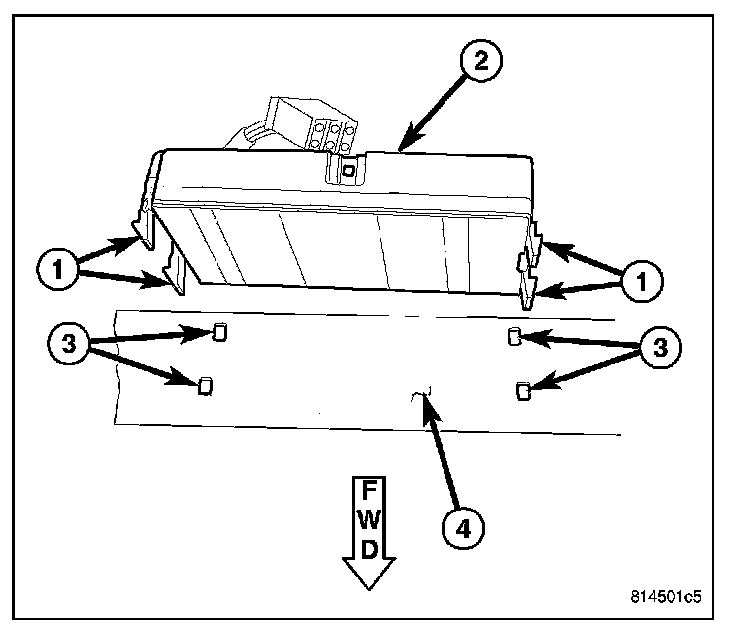

1. Install the heated seat module (2) into the vehicle.
2. Position the retaining clips (1) with the retaining holes (3) in the mounting bracket (4). Firmly apply even pressure to the module (2) until all four retaining clips (1) snap into place.




3. Connect the wire harness connector (2) to the heated seat module (3).
4. Connect the battery negative cable.
5. Check for proper heated seat system operation.
