Circuit Schematic

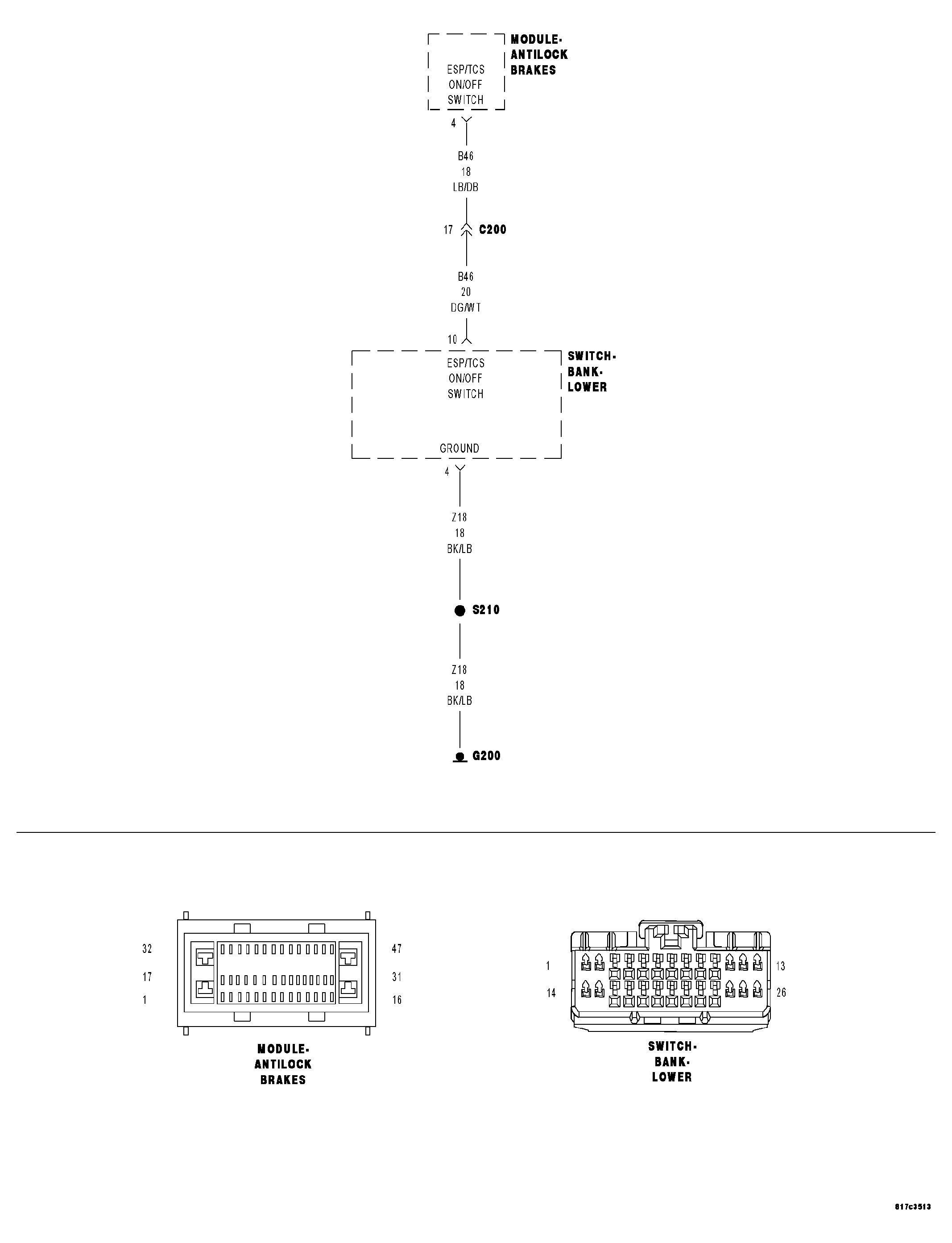

Fig 1: ESP/TCS Switch Circuit Schematic
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
