Power Outlet: Removal
Courtesy of DAIMLERCHRYSLER CORP.
- Disconnect and isolate the battery negative cable.

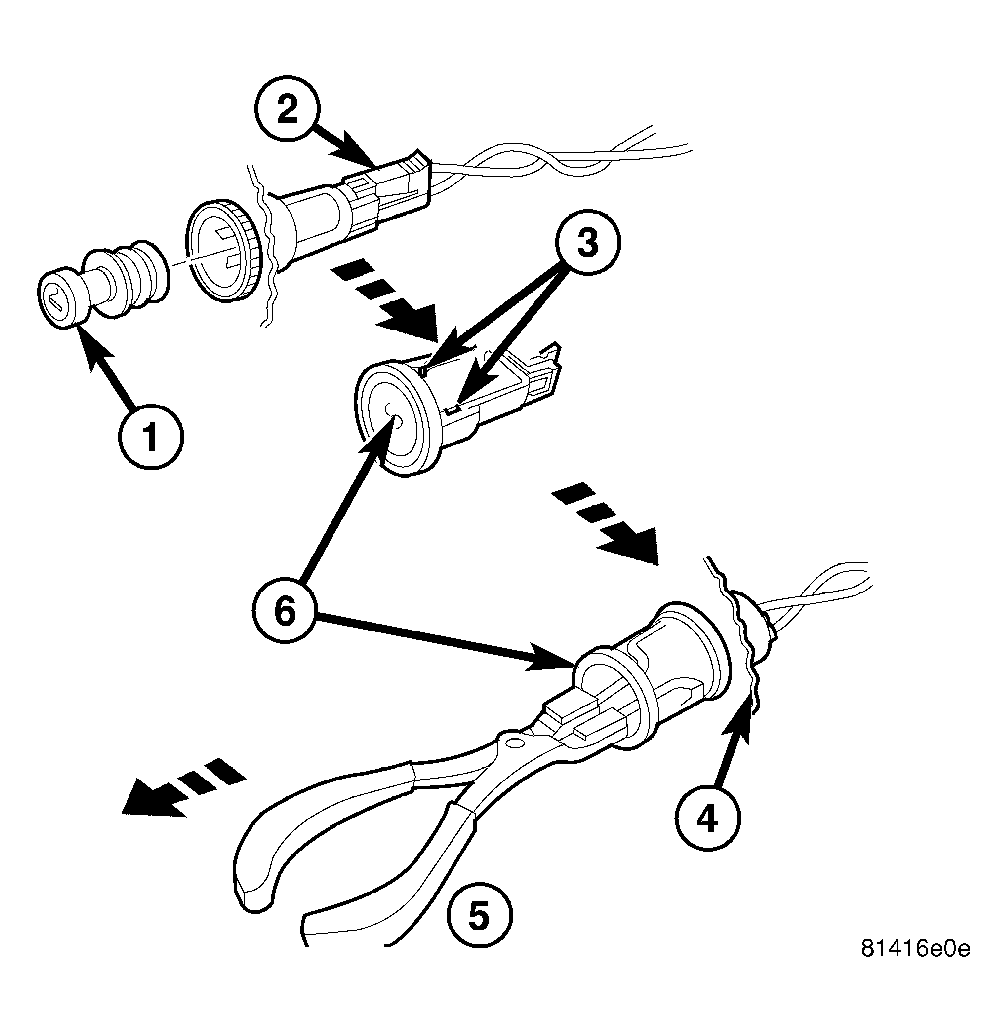

- Pull the cigar lighter knob and element (1) out of the cigar lighter receptacle base (6), or unsnap the protective cap from the power outlet receptacle base (6).
- Look inside the cigar lighter or power outlet receptacle base and note the position of the rectangular retaining bosses (3) of the mount that secures the receptacle base to the panel (4).
- Insert a pair of external snap ring pliers (5) into the cigar lighter or power outlet receptacle base and engage the tips of the pliers with the retaining bosses of the mount.
- Squeeze the pliers to disengage the mount retaining bosses from the receptacle base and, using a gentle rocking motion, pull the pliers and the receptacle base out of the mount.
- Pull the receptacle base away from the instrument panel far enough to access the instrument panel wire harness connector (2).
- Disconnect the instrument panel wire harness connector (2) from the cigar lighter or power outlet receptacle base (6).
- Remove the cigar lighter or power outlet mount from the instrument panel.
