3.7L Engine (Service Information): Manifold-Intake: Description

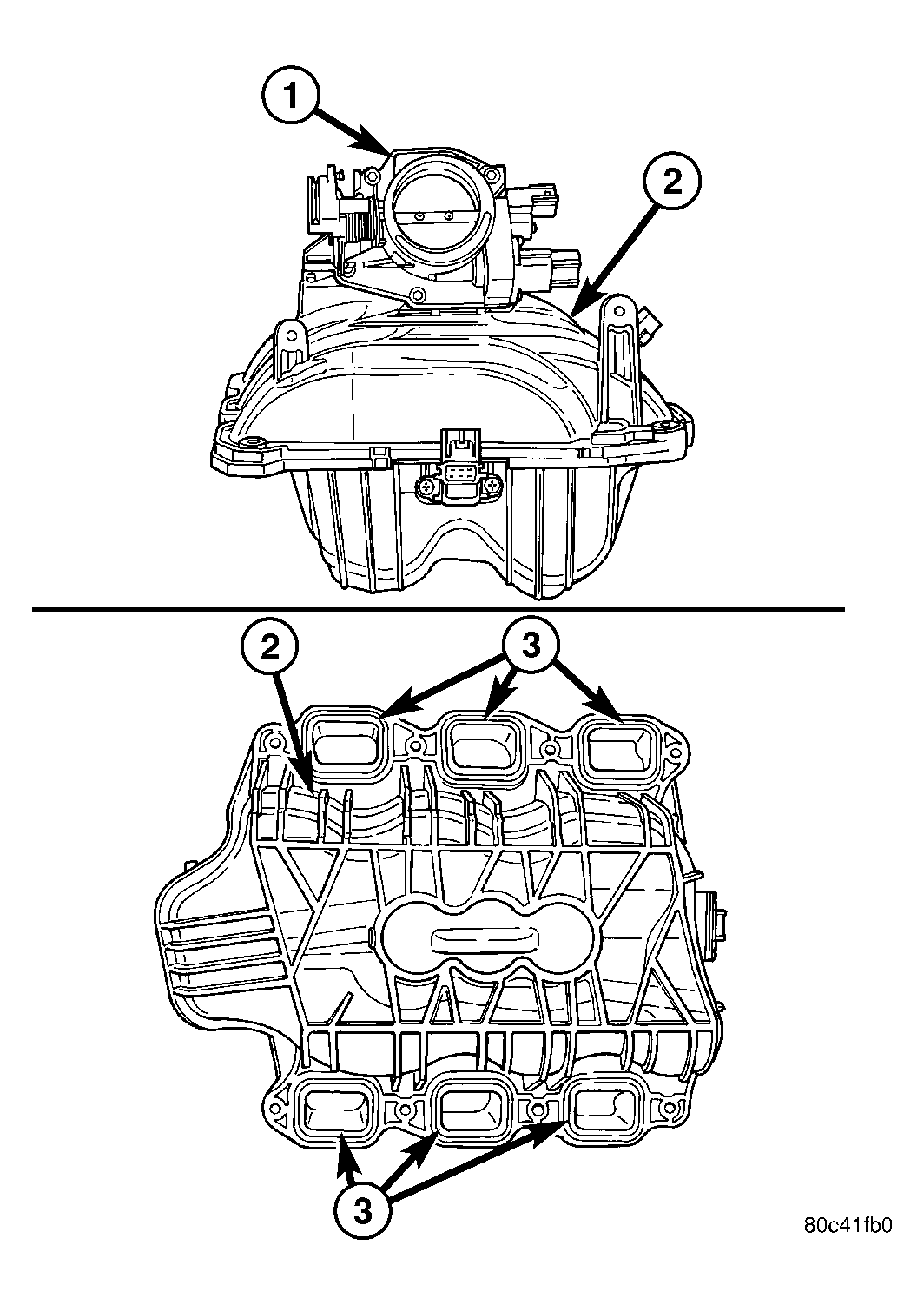

Fig 1: Intake Manifold

Courtesy of DAIMLERCHRYSLER CORP.

The intake manifold (2) is made of a composite material and features 300 mm (11.811 in.) long runners which maximizes low end torque. The intake manifold (2) uses single plane sealing which consist of six individual press in place port gaskets to prevent leaks. The throttle body (1) attaches directly to the intake manifold (2). Eight studs and two bolts are used to fasten the intake to the head.
