Engine Oil Service: Notes

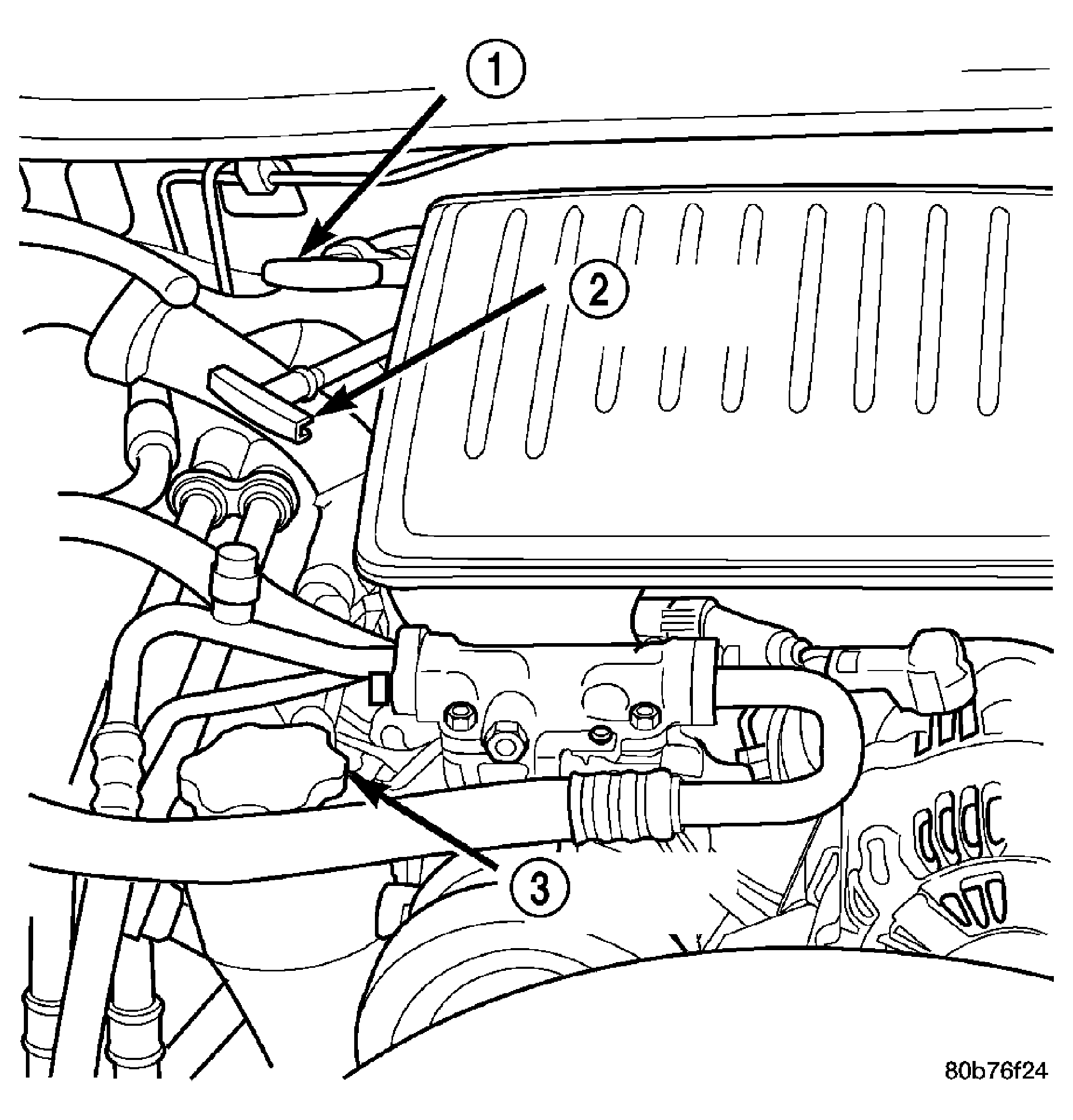

Fig 1: Engine Oil Dipstick
GC0011833Courtesy of DAIMLERCHRYSLER CORP.

The engine oil level indicator (2) is located at the right rear of the engine on the 3.7L engines.
