Component Location Graphics

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

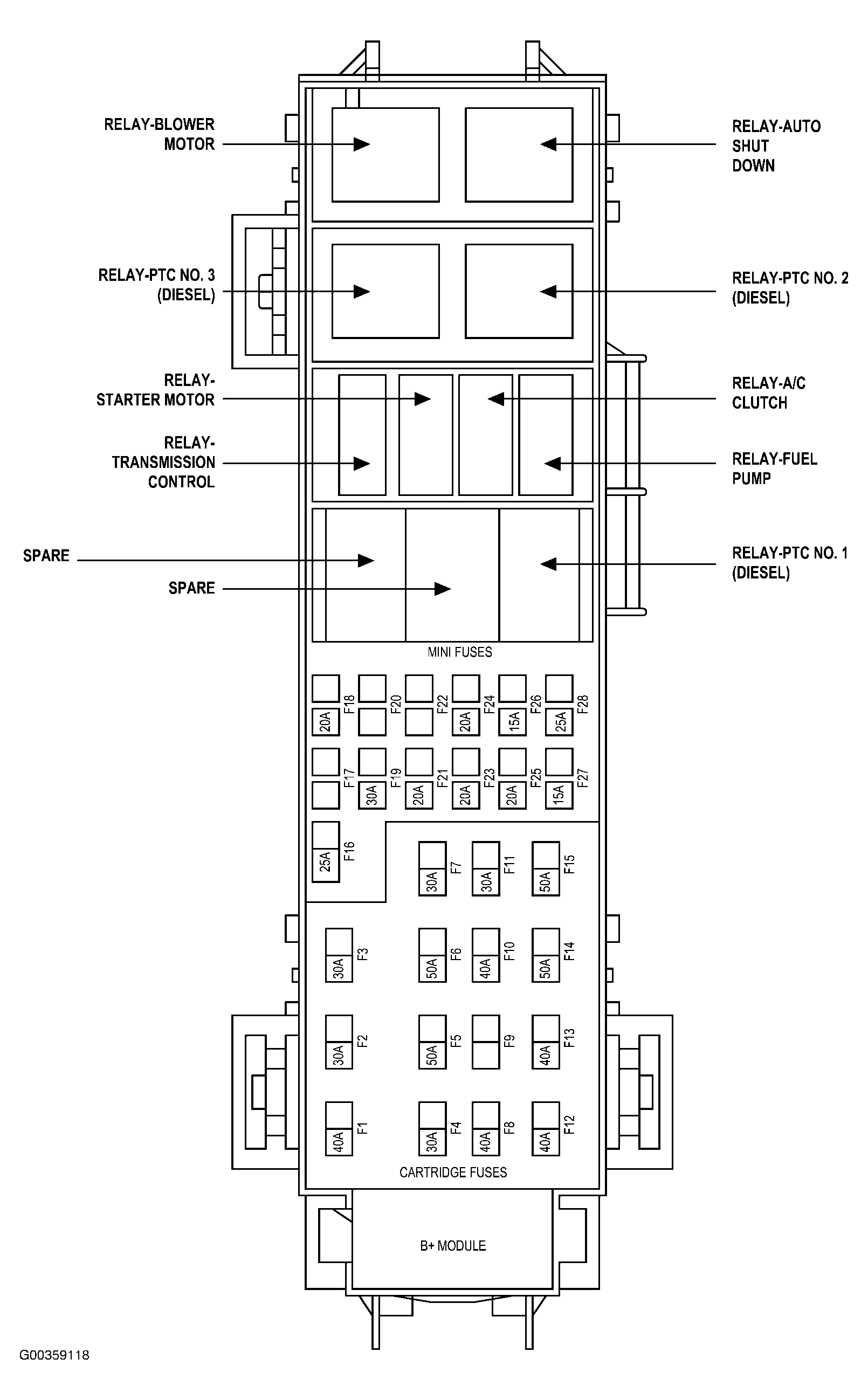

Fig 1: Power Distribution Center

G00359118

Courtesy of DAIMLERCHRYSLER CORP.

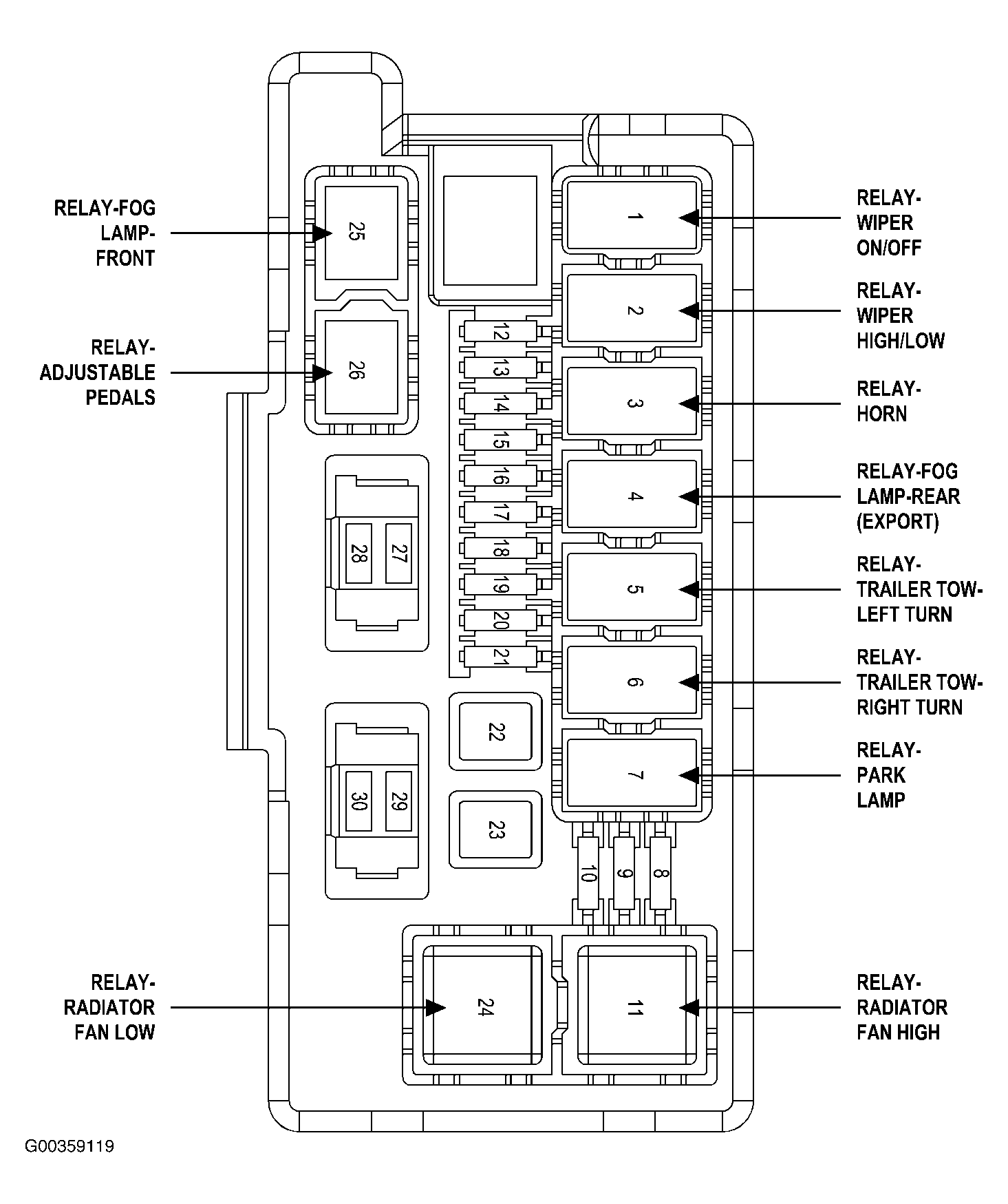

Fig 2: Integrated Power Module

G00359119

Courtesy of DAIMLERCHRYSLER CORP.

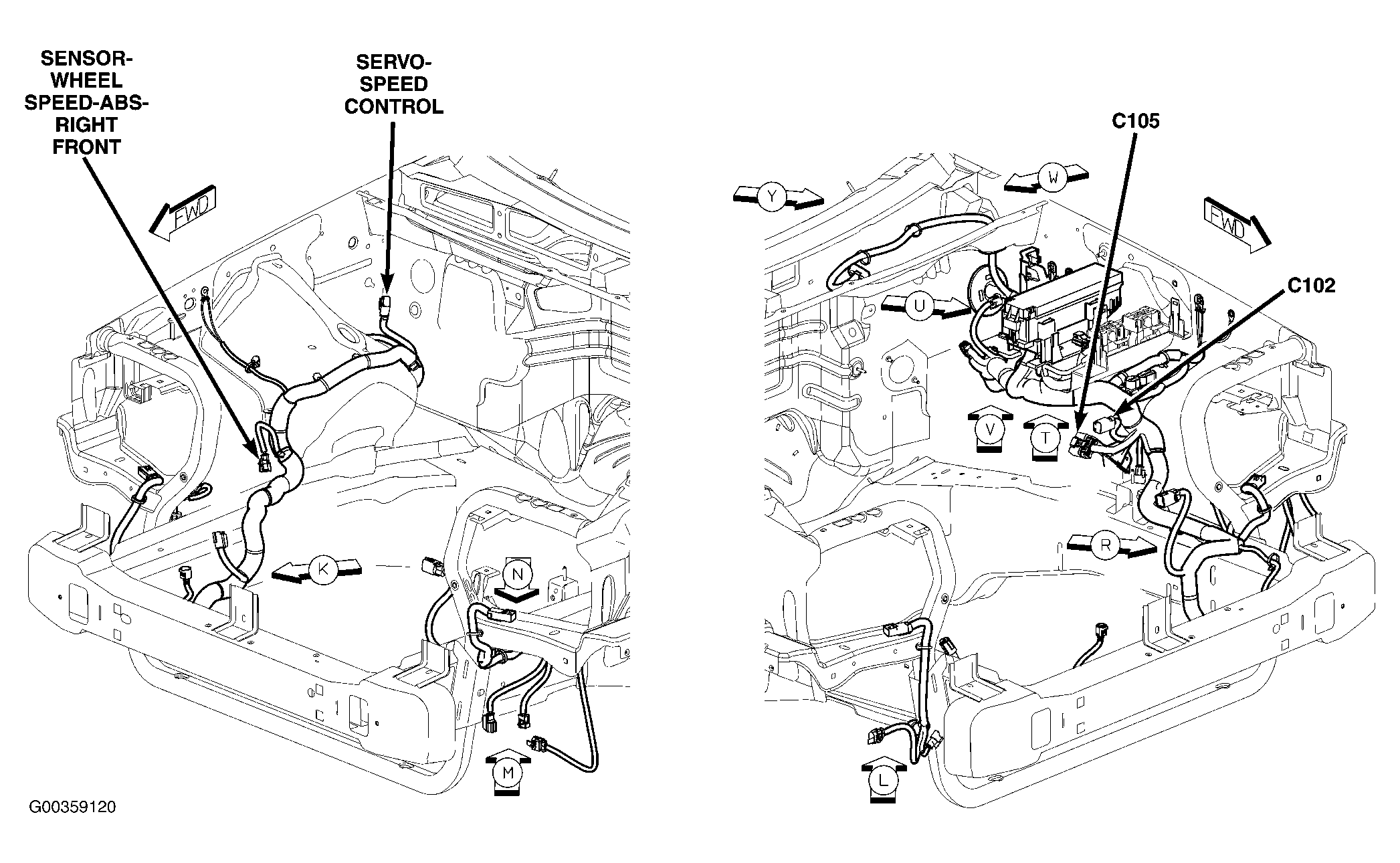

Fig 3: Left/Right Side Of Engine Compartment

G00359120

Courtesy of DAIMLERCHRYSLER CORP.

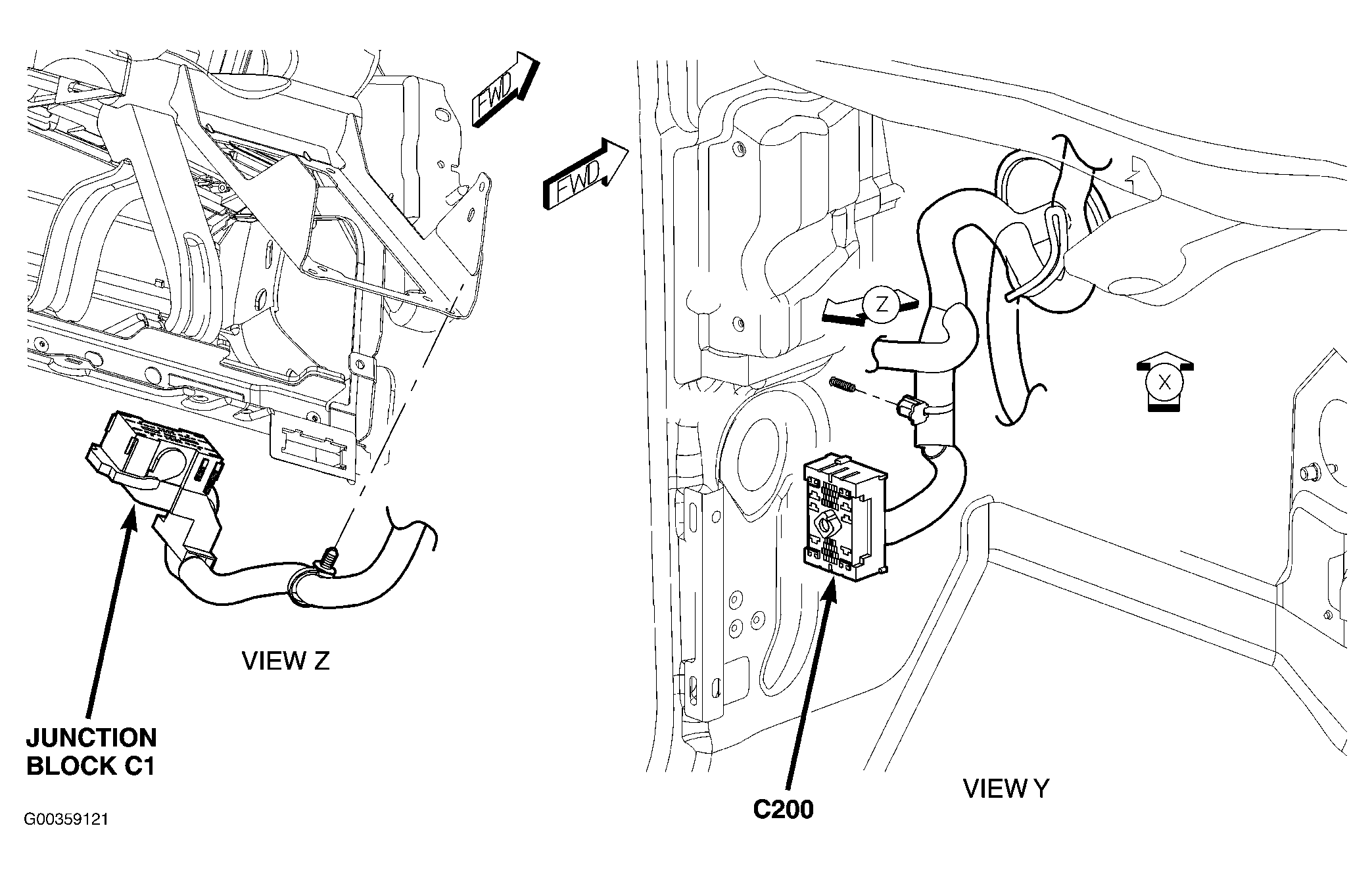

Fig 4: Left Side Of Dash

G00359121

Courtesy of DAIMLERCHRYSLER CORP.

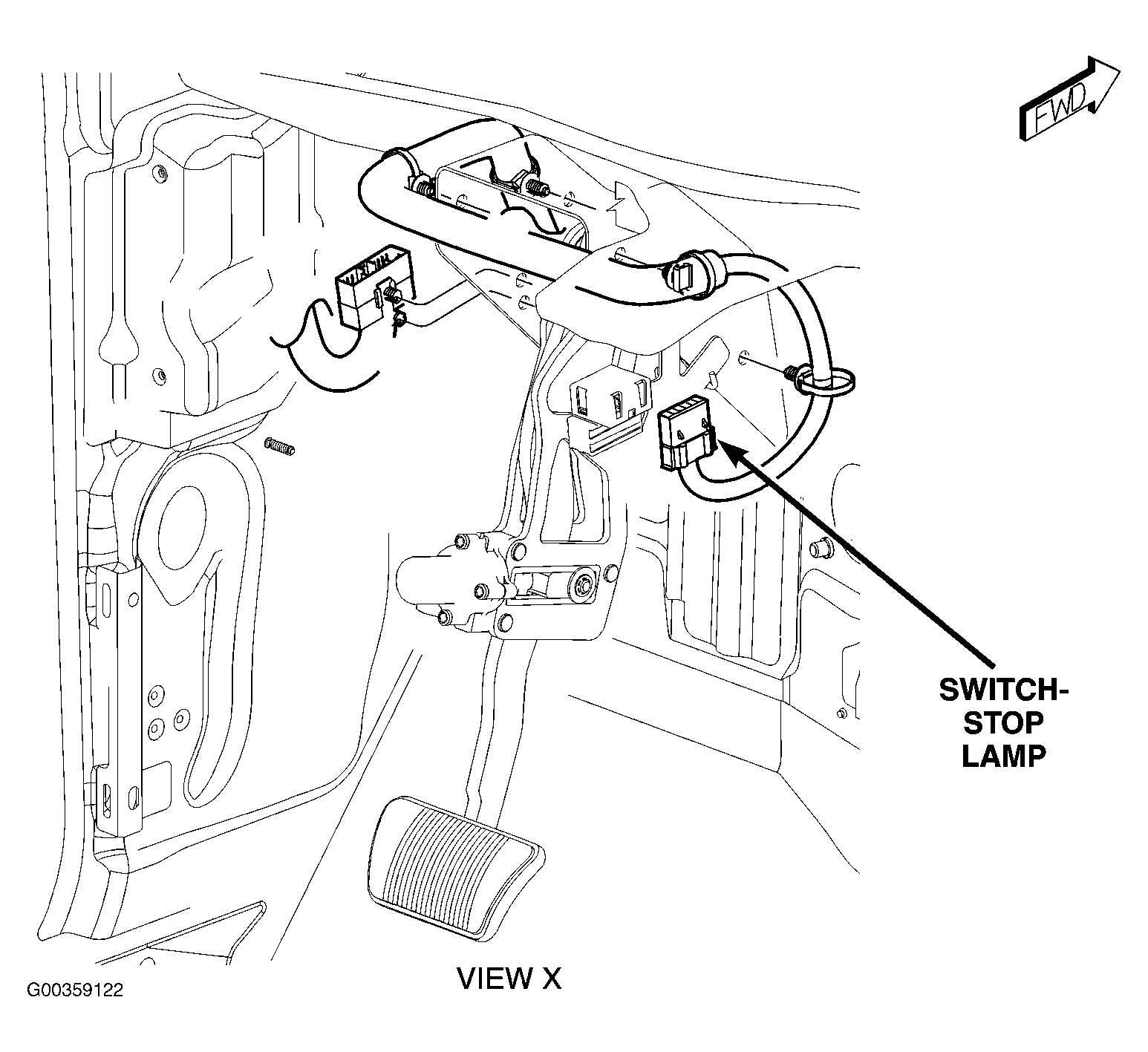

Fig 5: Lower Left Side Of Dash (3.7L & 4.7L)

G00359122

Courtesy of DAIMLERCHRYSLER CORP.

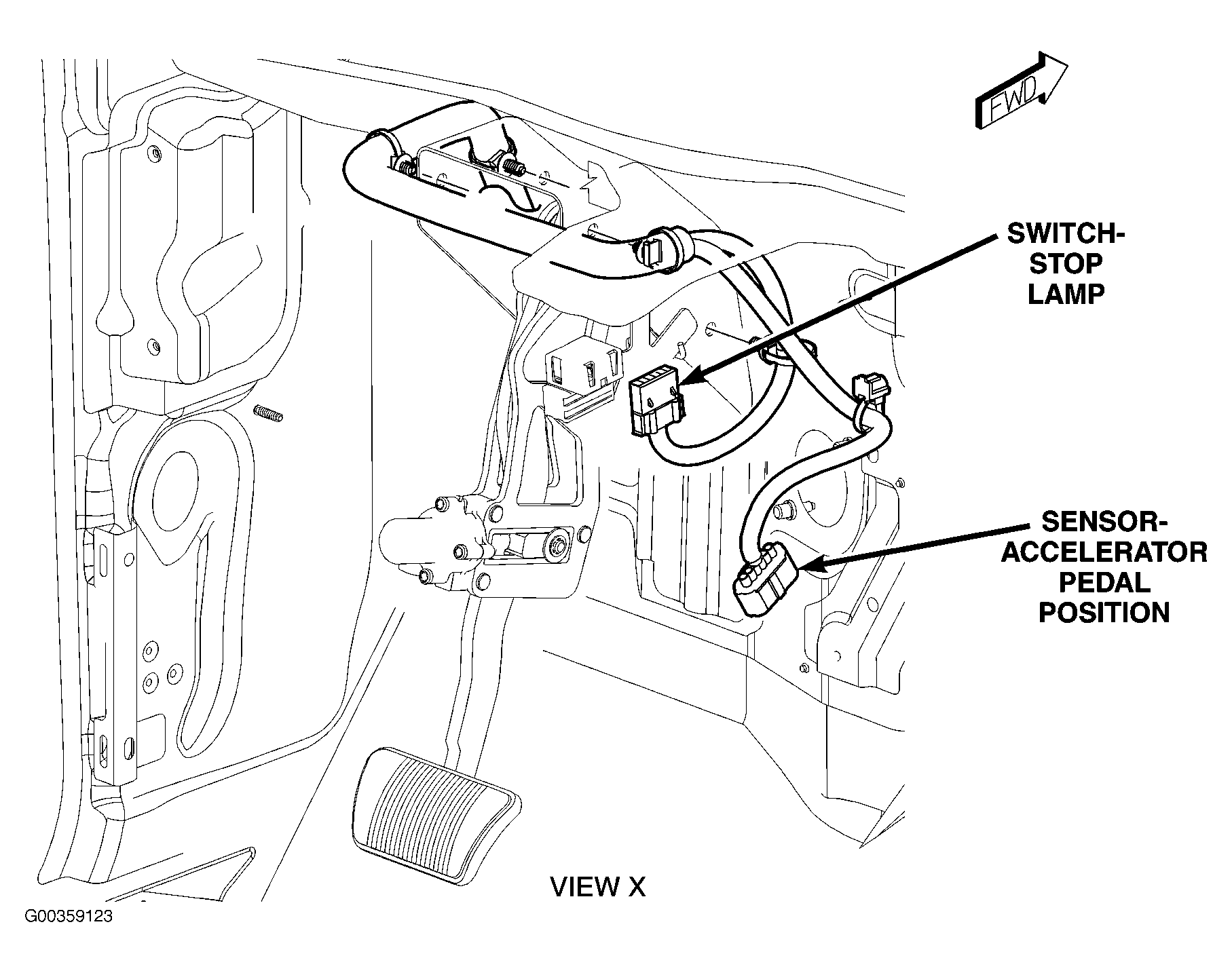

Fig 6: Lower Left Side Of Dash (5.7L)

G00359123

Courtesy of DAIMLERCHRYSLER CORP.

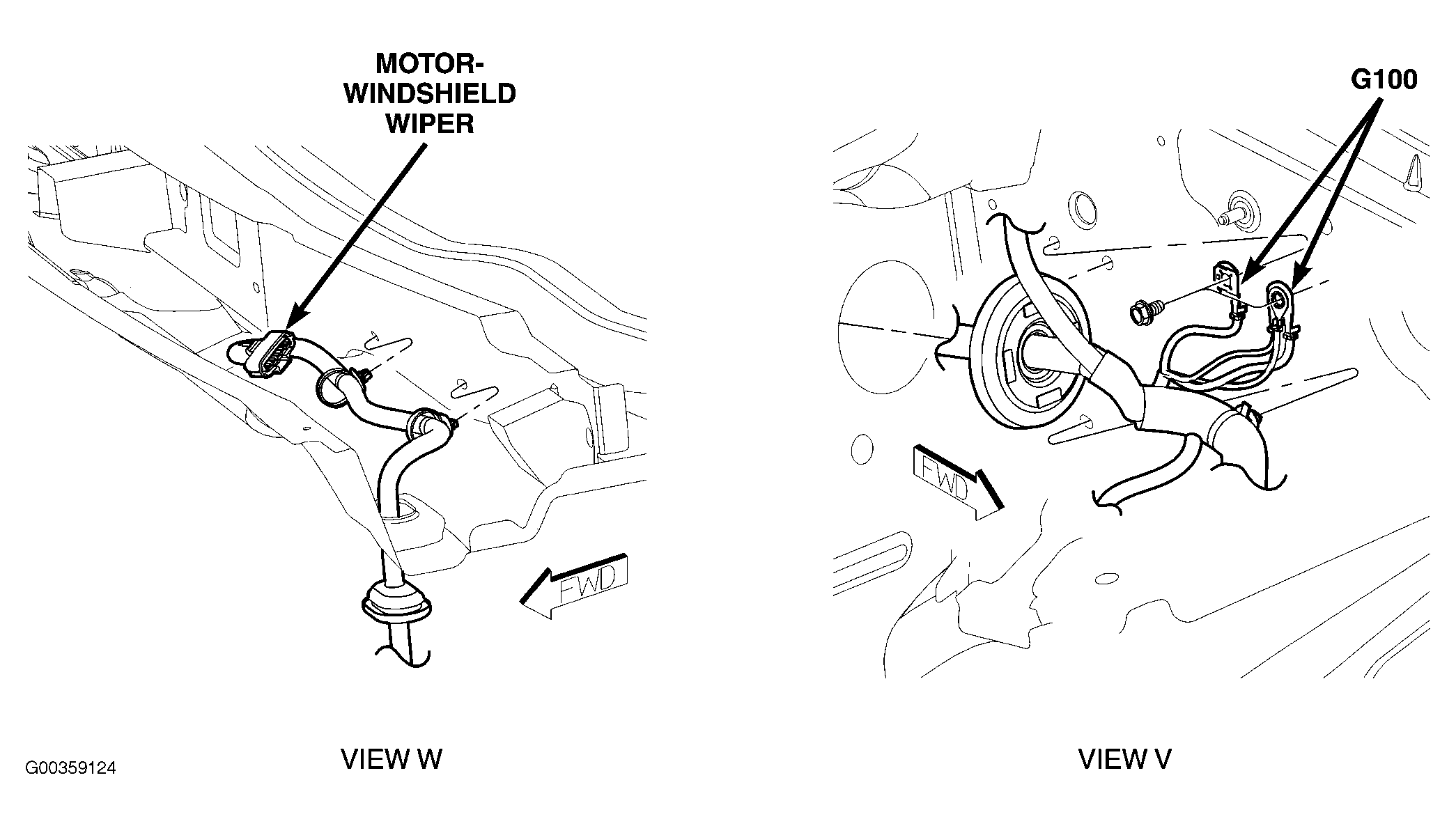

Fig 7: Left Rear Of Engine Compartment

G00359124

Courtesy of DAIMLERCHRYSLER CORP.

Fig 8: Left Side Of Engine Compartment

G00359125

Courtesy of DAIMLERCHRYSLER CORP.

Fig 9: Front Of Engine Compartment

G00359126

Courtesy of DAIMLERCHRYSLER CORP.

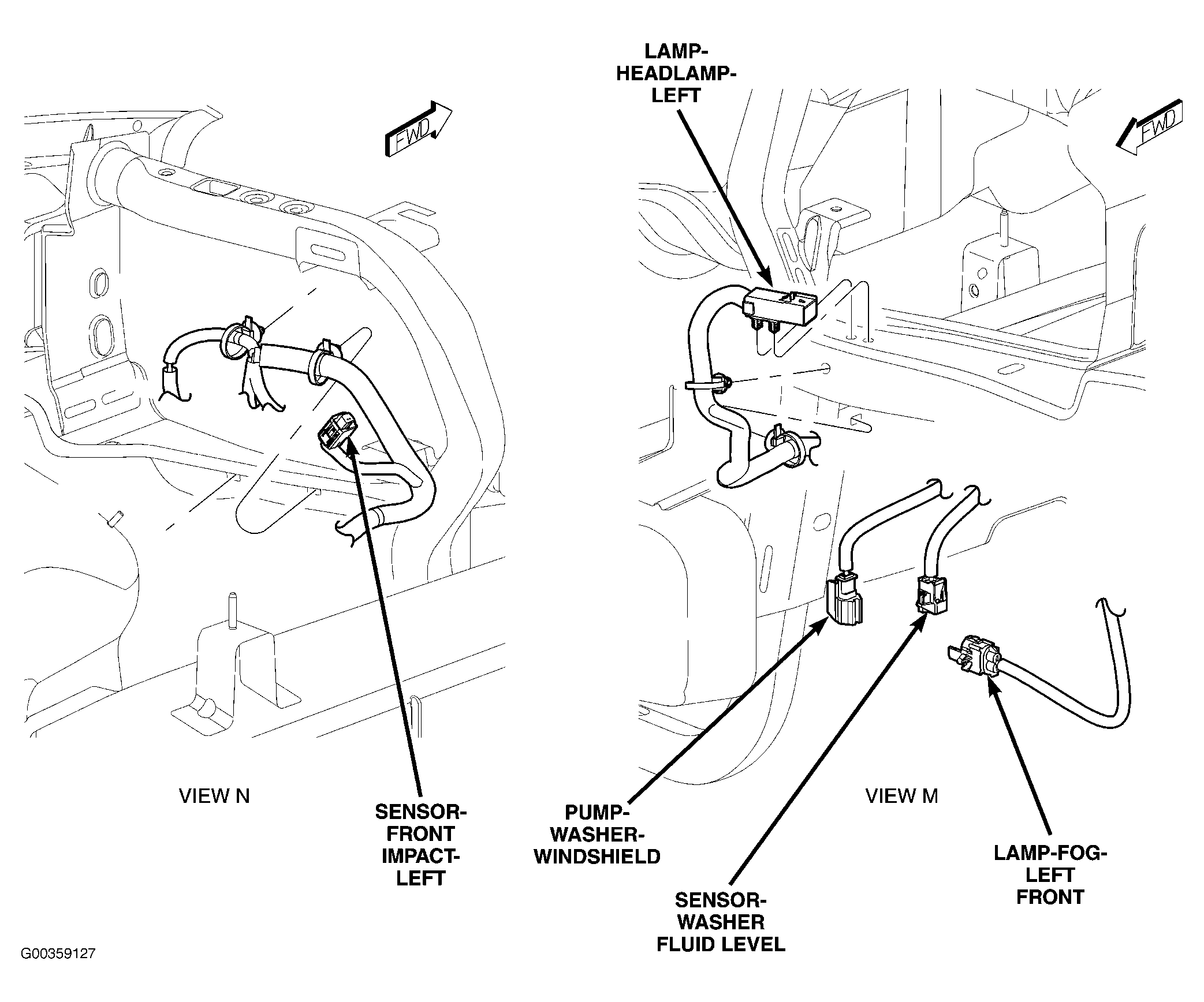

Fig 10: Left Front Of Engine Compartment

G00359127

Courtesy of DAIMLERCHRYSLER CORP.

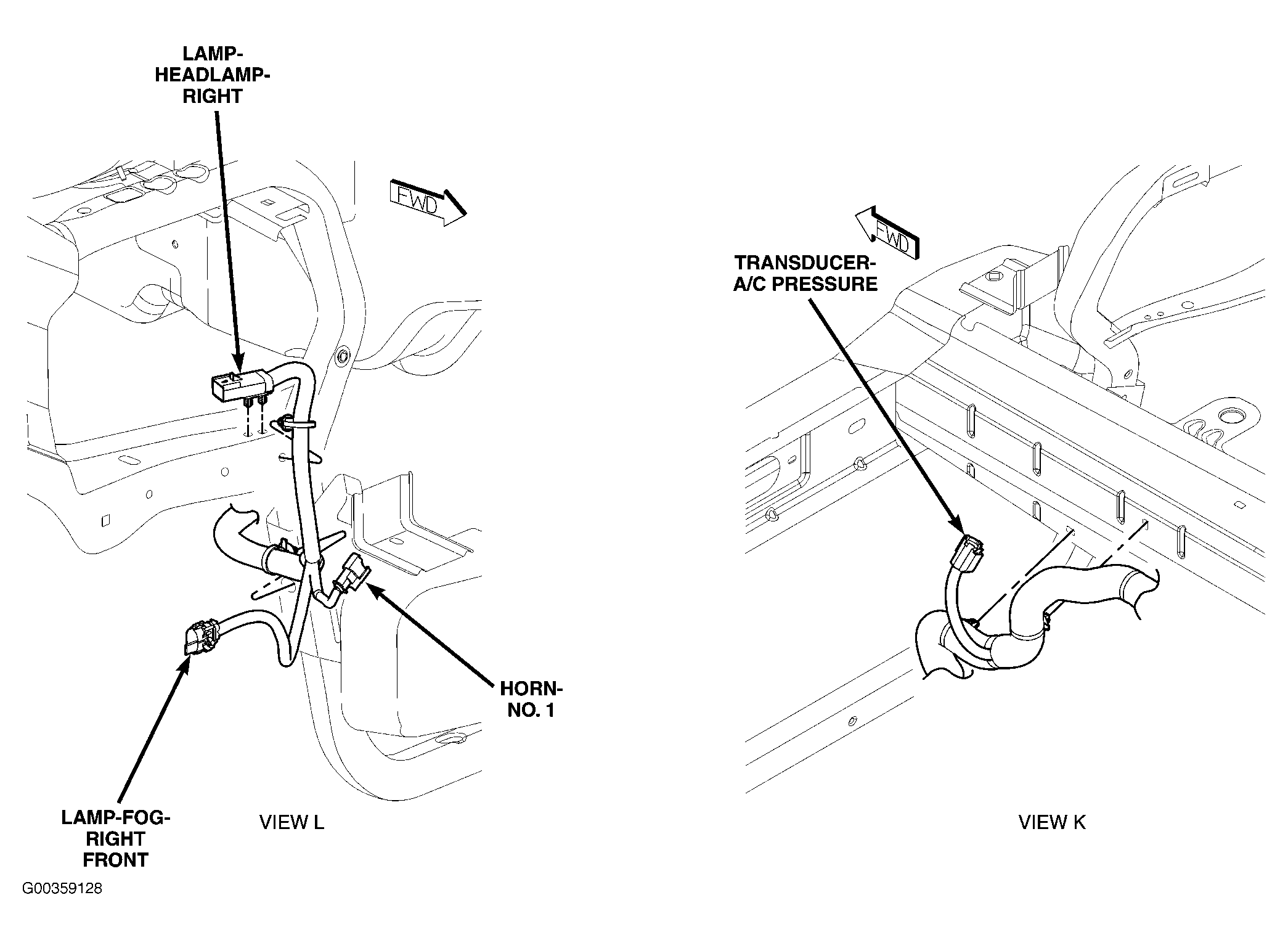

Fig 11: Right Front Of Engine Compartment

G00359128

Courtesy of DAIMLERCHRYSLER CORP.

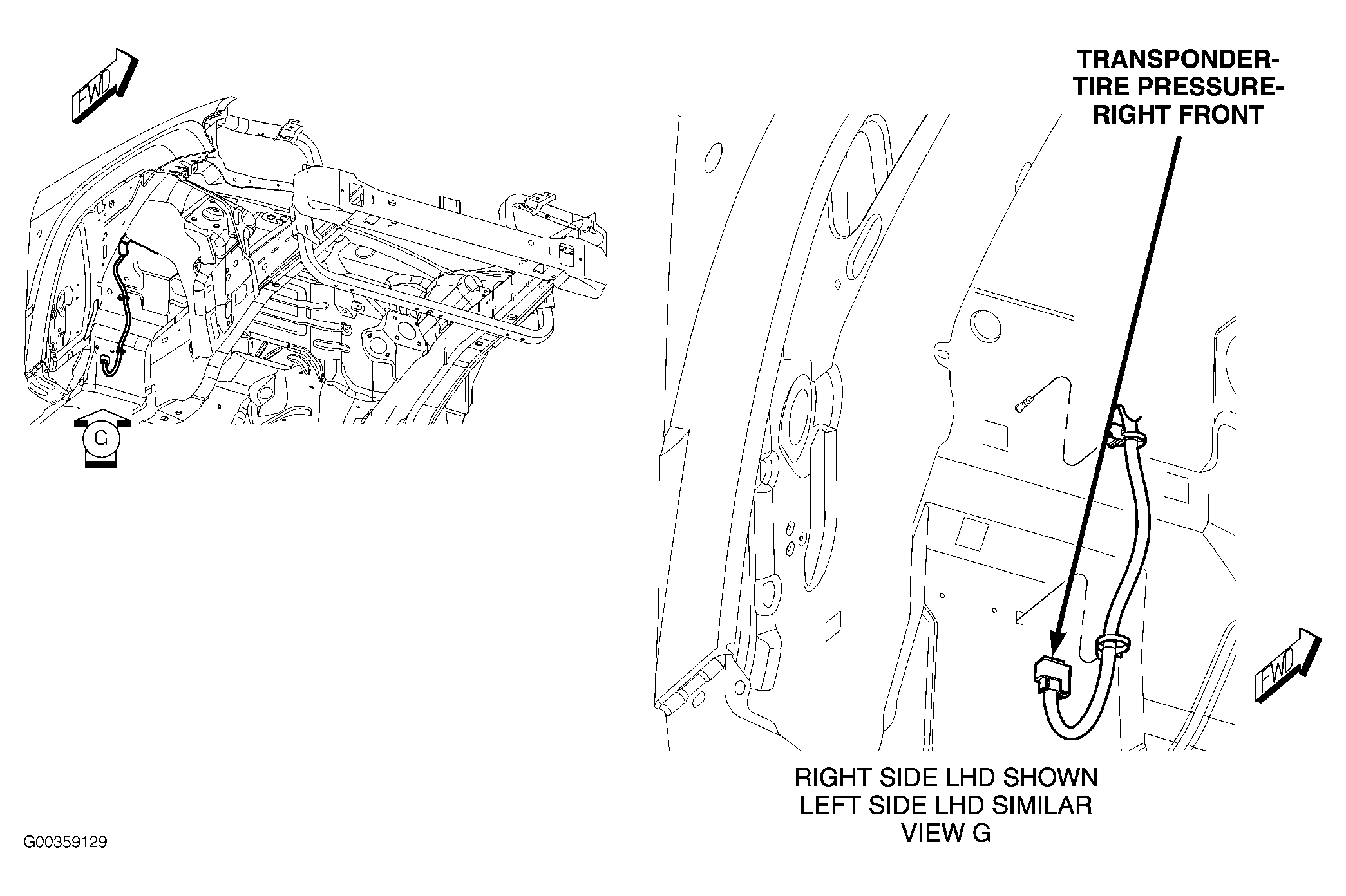

Fig 12: Right Front Wheelwell

G00359129

Courtesy of DAIMLERCHRYSLER CORP.

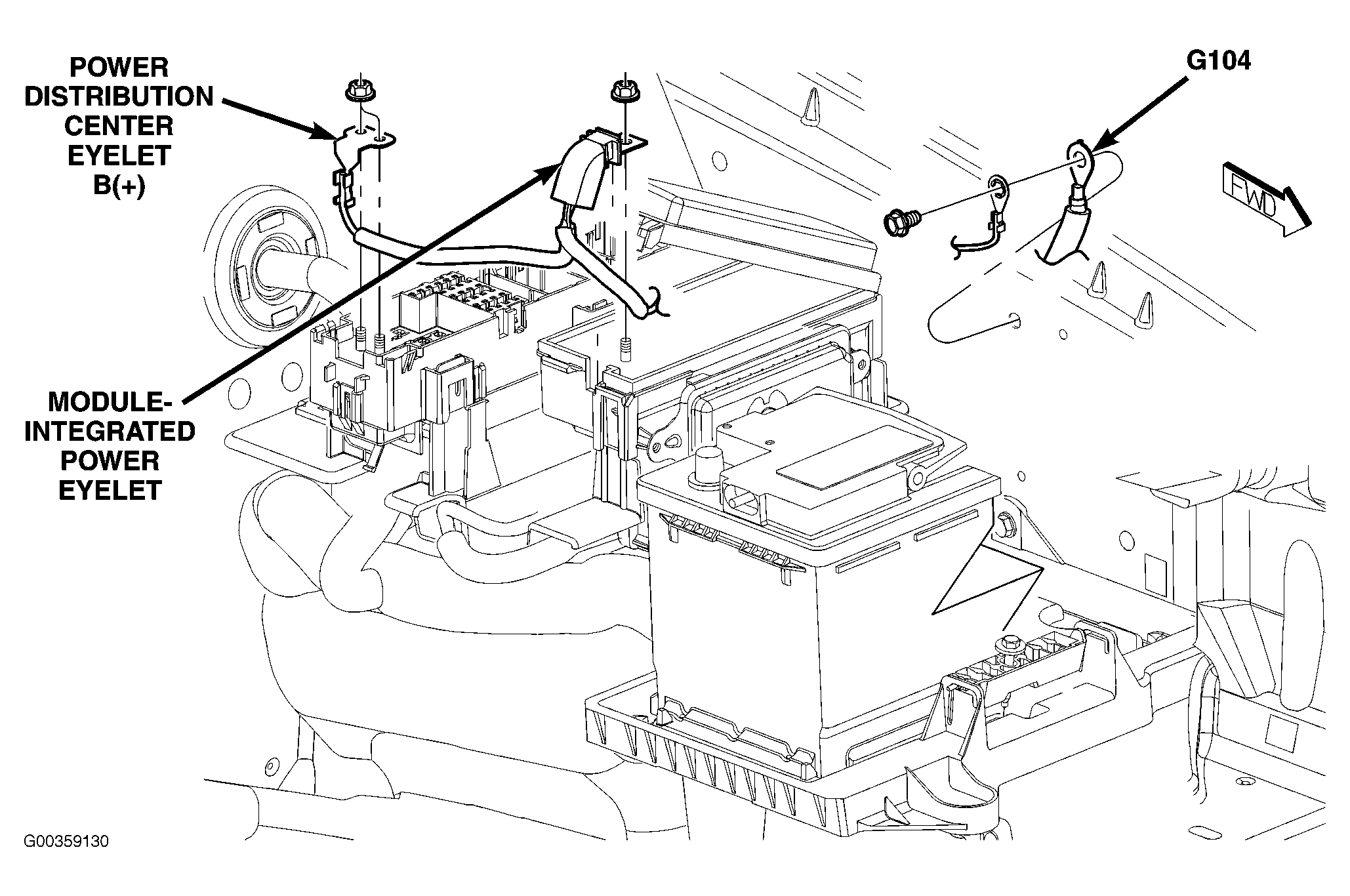

Fig 13: Left Side Of Engine Compartment

G00359130

Courtesy of DAIMLERCHRYSLER CORP.

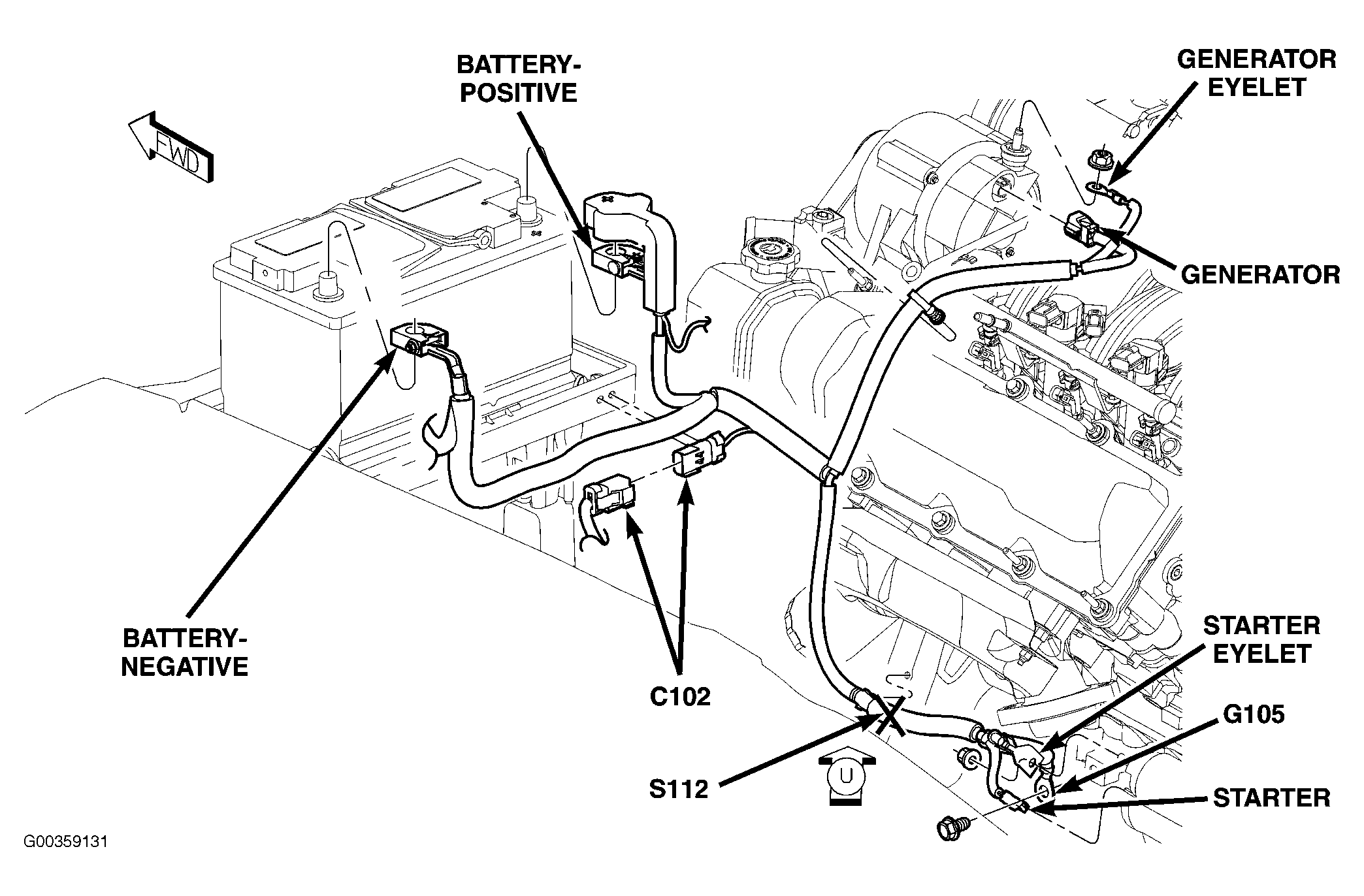

Fig 14: Left Side Of Engine Compartment (3.7L & 4.7L)

G00359131

Courtesy of DAIMLERCHRYSLER CORP.

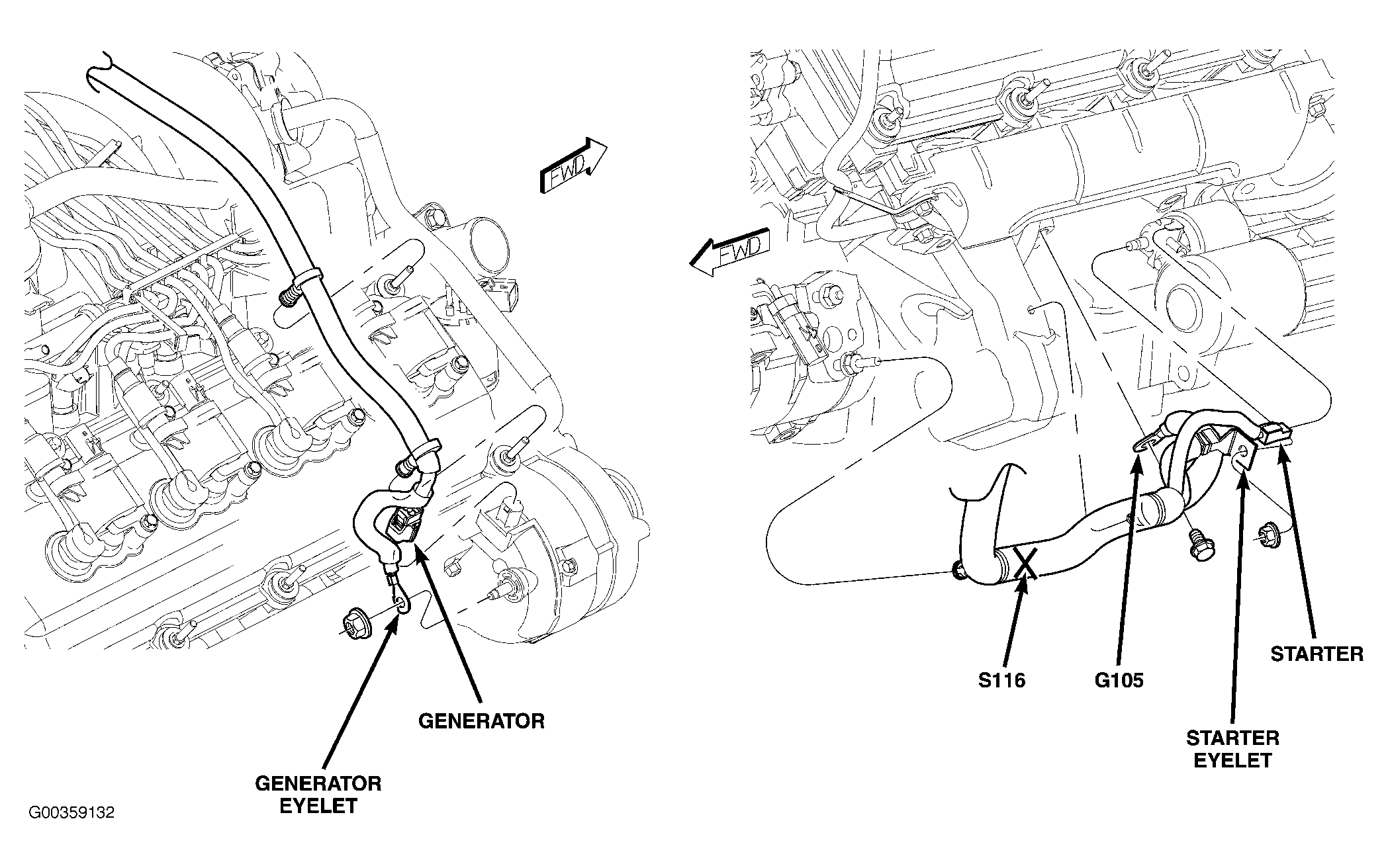

Fig 15: Generator & Starter (5.7L)

G00359132

Courtesy of DAIMLERCHRYSLER CORP.

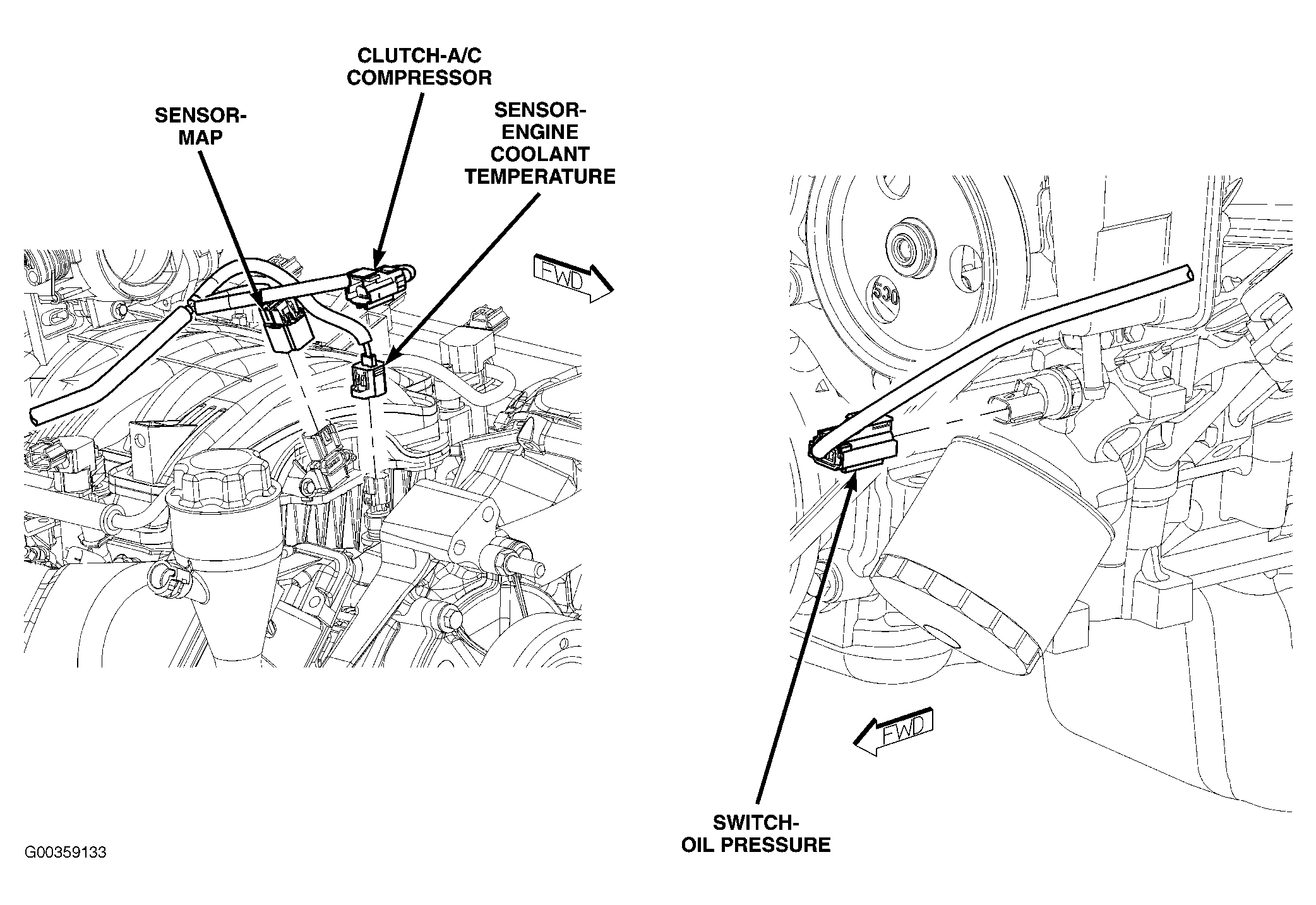

Fig 16: Front Of Engine (3.7L & 4.7L)

G00359133

Courtesy of DAIMLERCHRYSLER CORP.

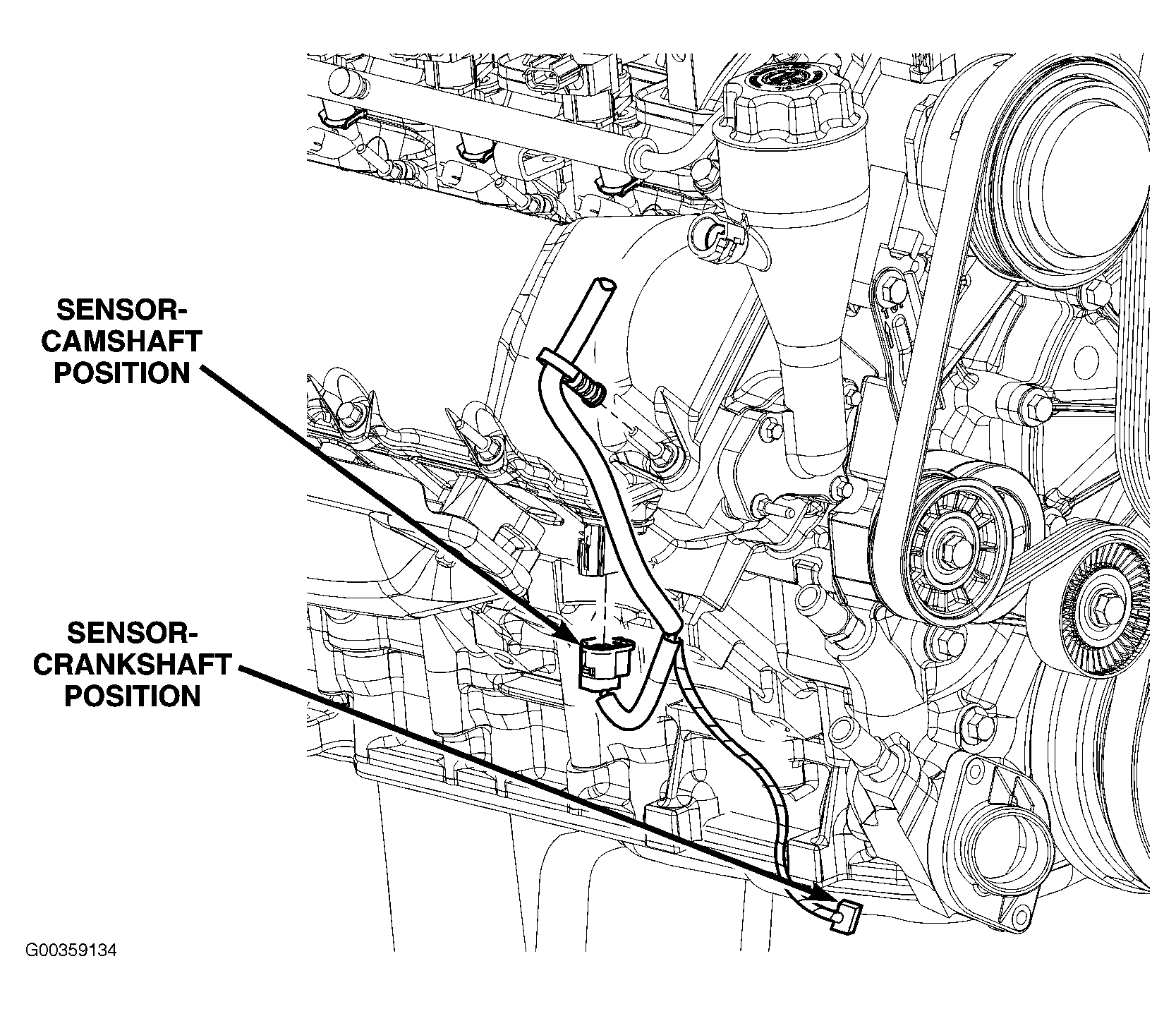

Fig 17: Right Side Of Engine (3.7L & 4.7L)

G00359134

Courtesy of DAIMLERCHRYSLER CORP.

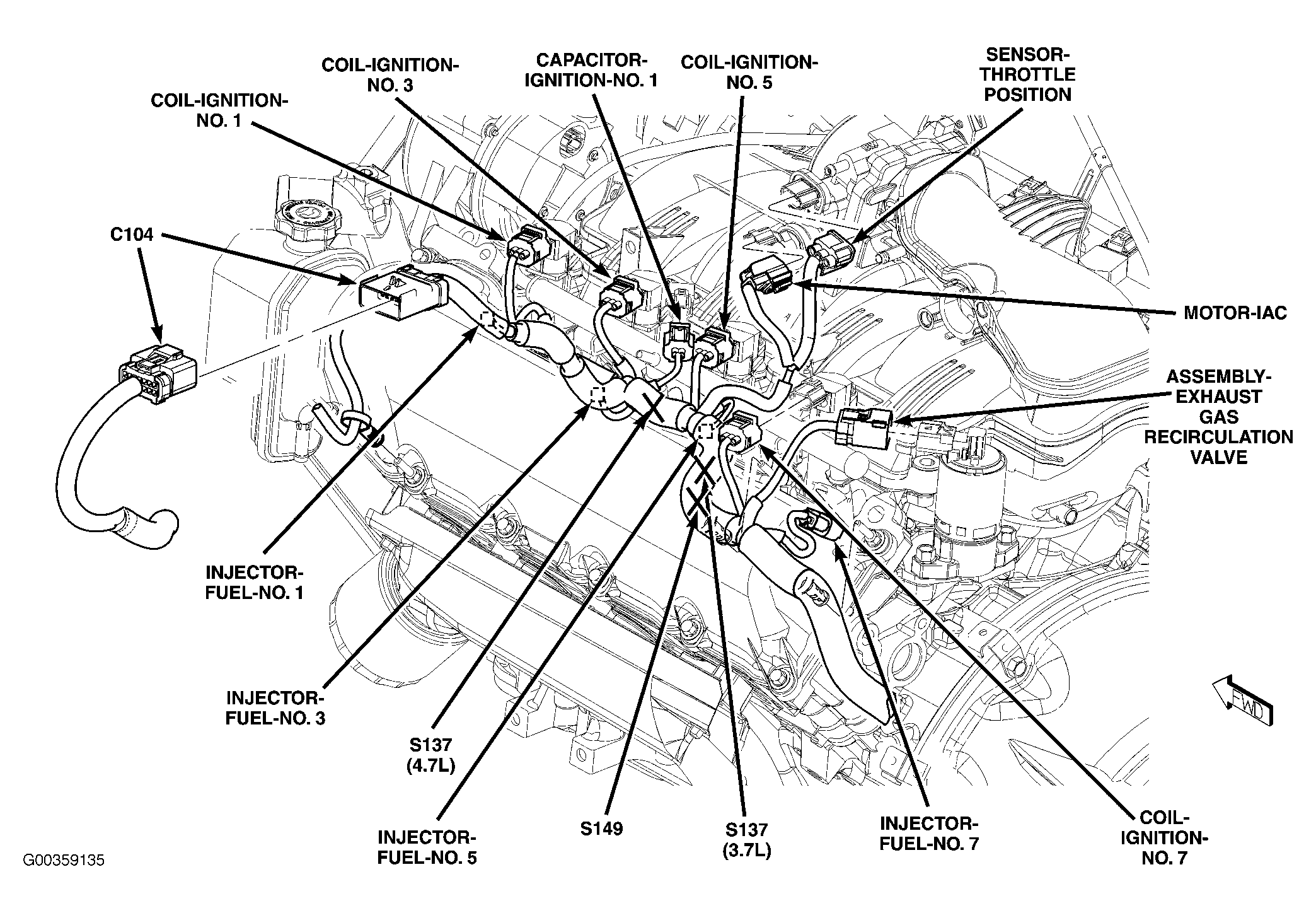

Fig 18: Left Side Of Engine (3.7L & 4.7L)

G00359135

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Right Side Of Engine (3.7L & 4.7L)

G00359136

Courtesy of DAIMLERCHRYSLER CORP.

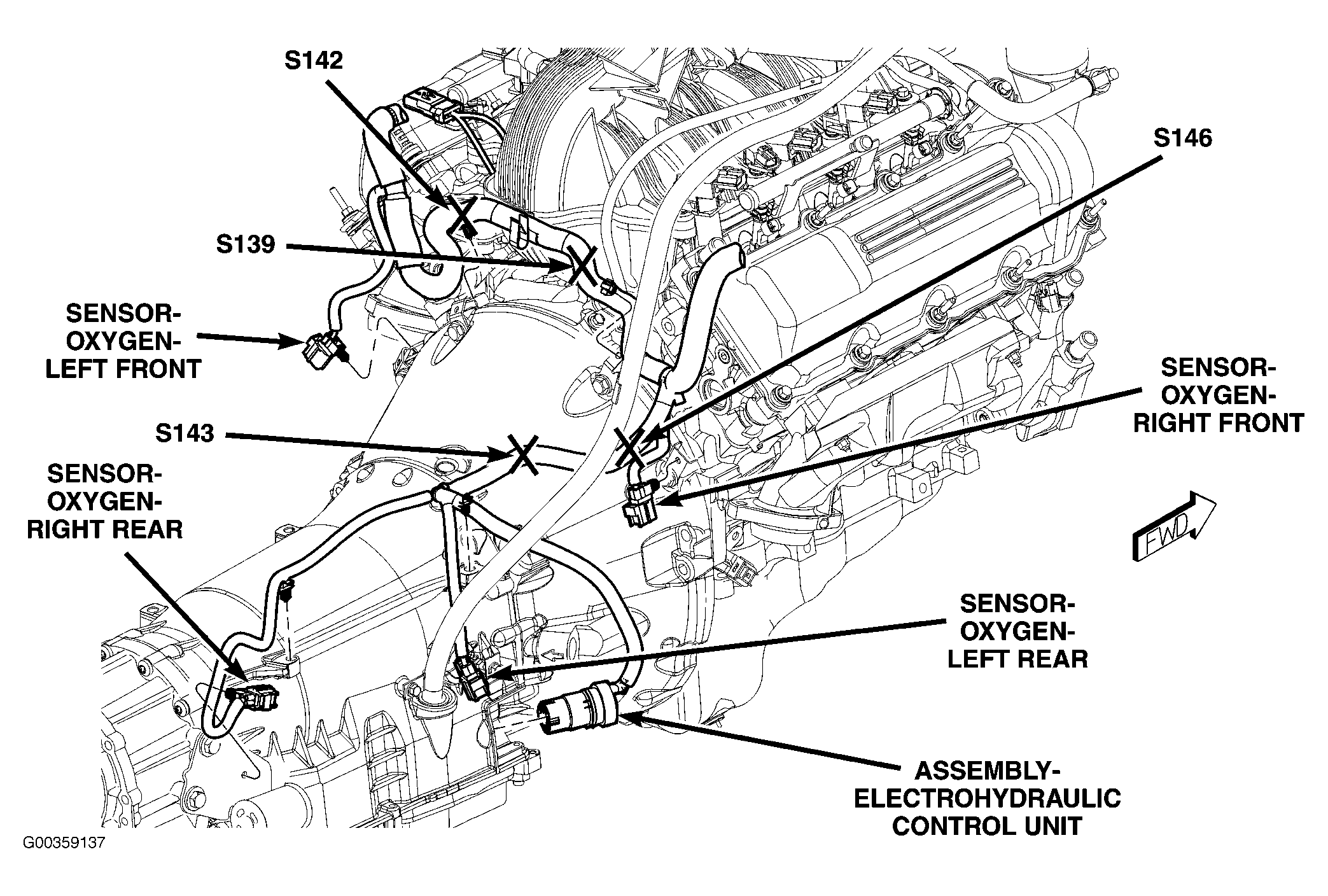

Fig 20: Engine/Transmission (3.7L)

G00359137

Courtesy of DAIMLERCHRYSLER CORP.

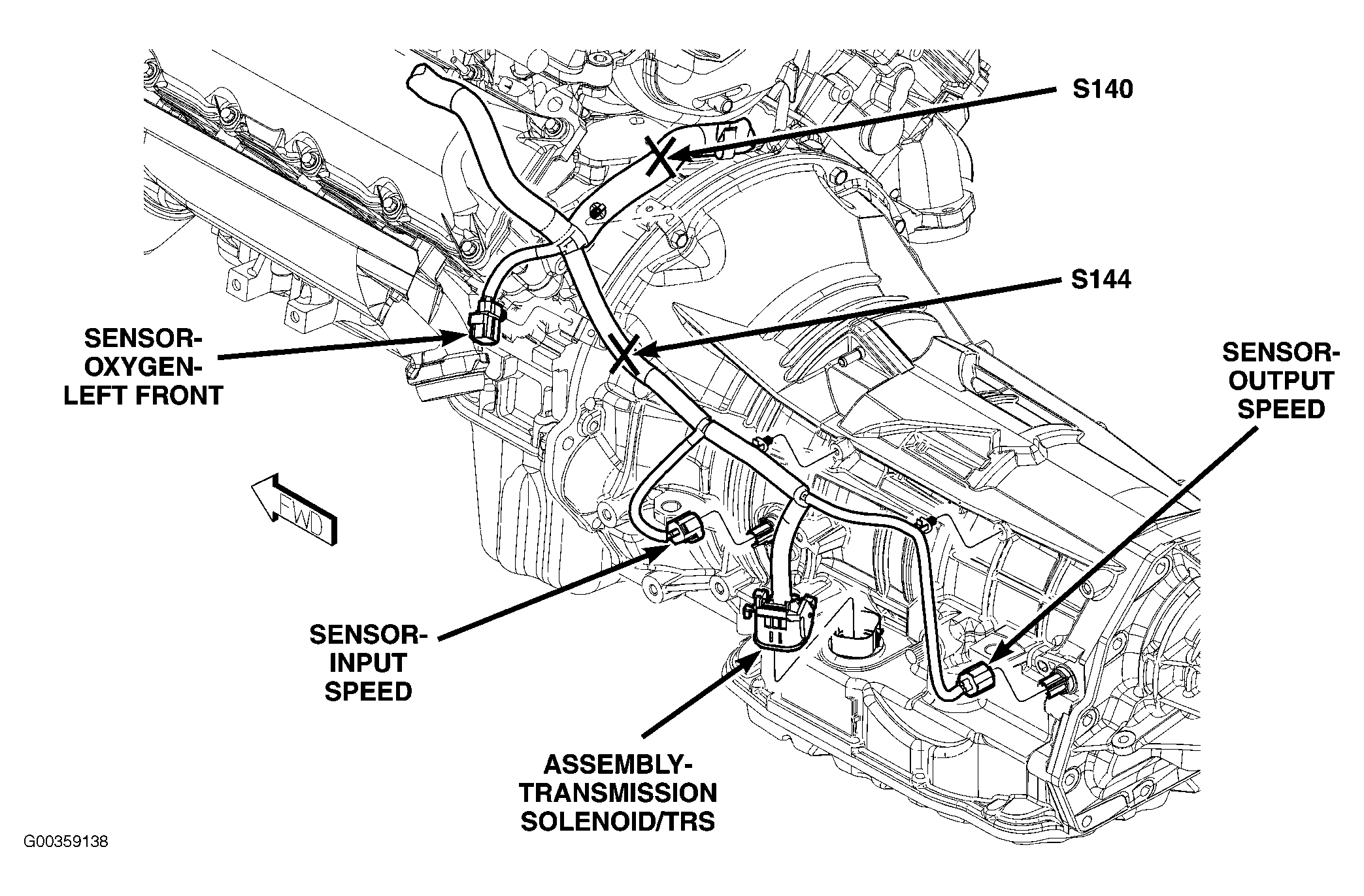

Fig 21: Engine/Transmission (4.7L)

G00359138

Courtesy of DAIMLERCHRYSLER CORP.

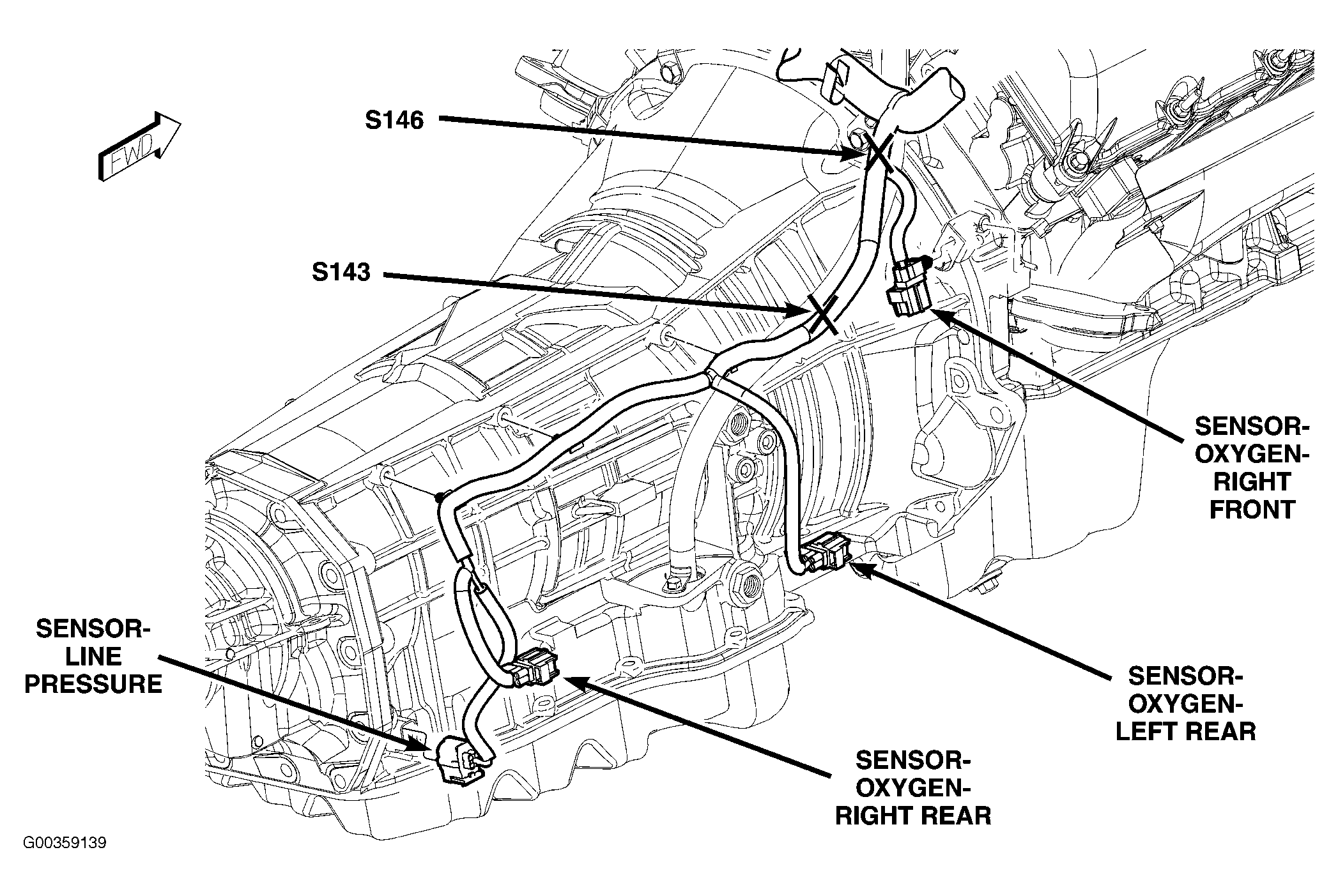

Fig 22: Right Side Of Engine/Transmission (4.7L)

G00359139

Courtesy of DAIMLERCHRYSLER CORP.

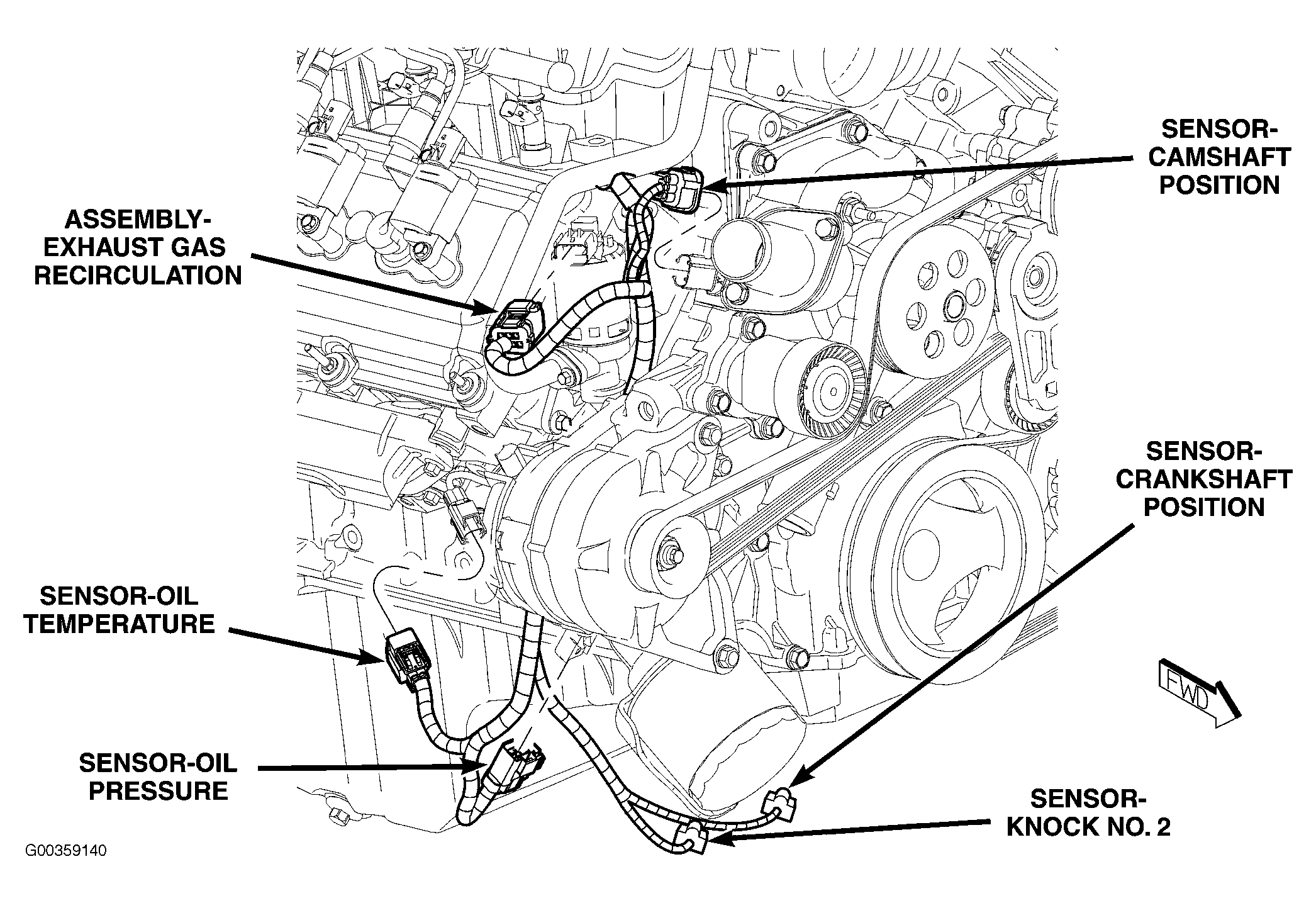

Fig 23: Right Front Of Engine (5.7L)

G00359140

Courtesy of DAIMLERCHRYSLER CORP.

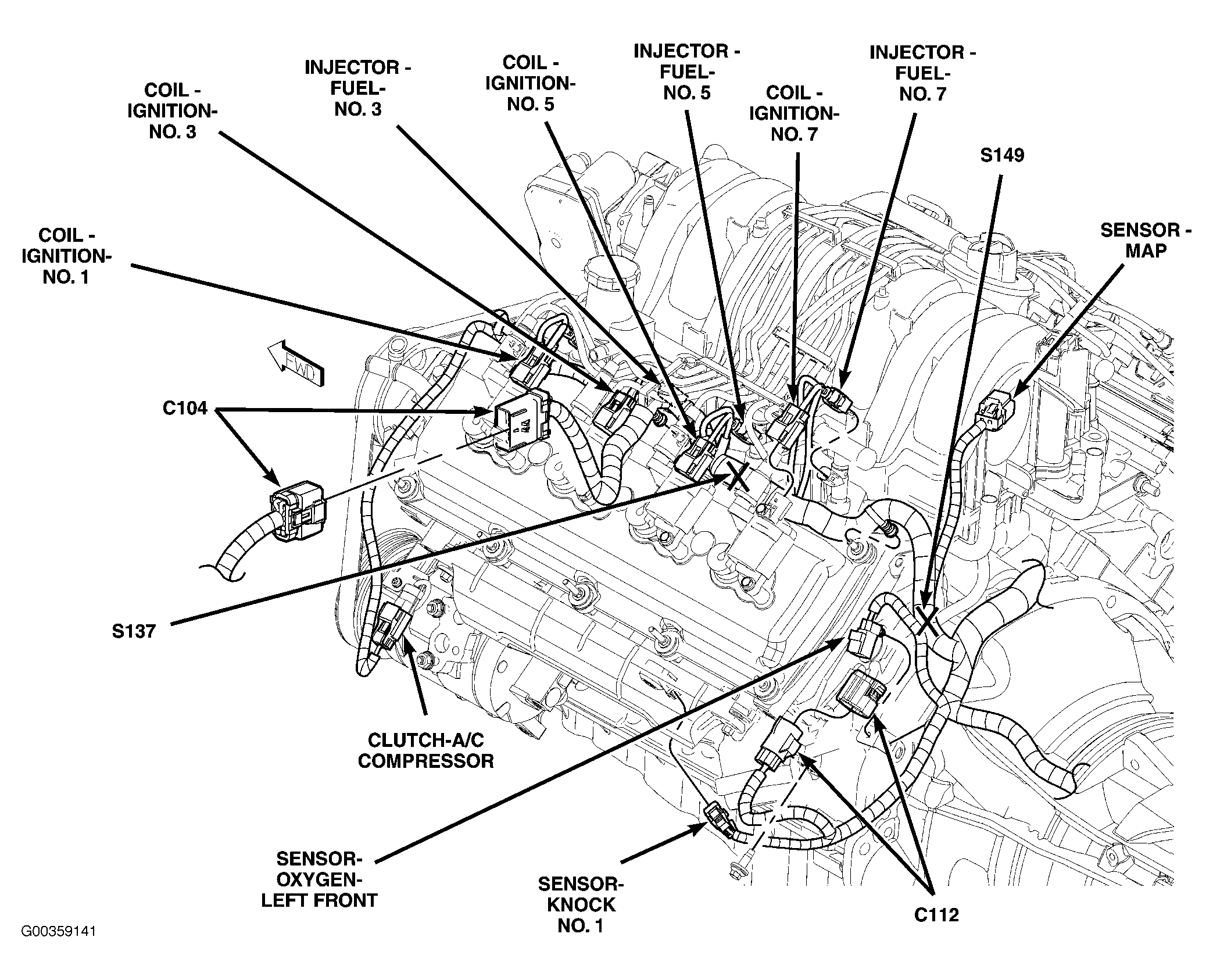

Fig 24: Engine (5.7L)

G00359141

Courtesy of DAIMLERCHRYSLER CORP.

Fig 25: Right Side Of Engine (5.7L)

G00359142

Courtesy of DAIMLERCHRYSLER CORP.

Fig 26: Engine/Transmission (5.7L)

G00359143

Courtesy of DAIMLERCHRYSLER CORP.

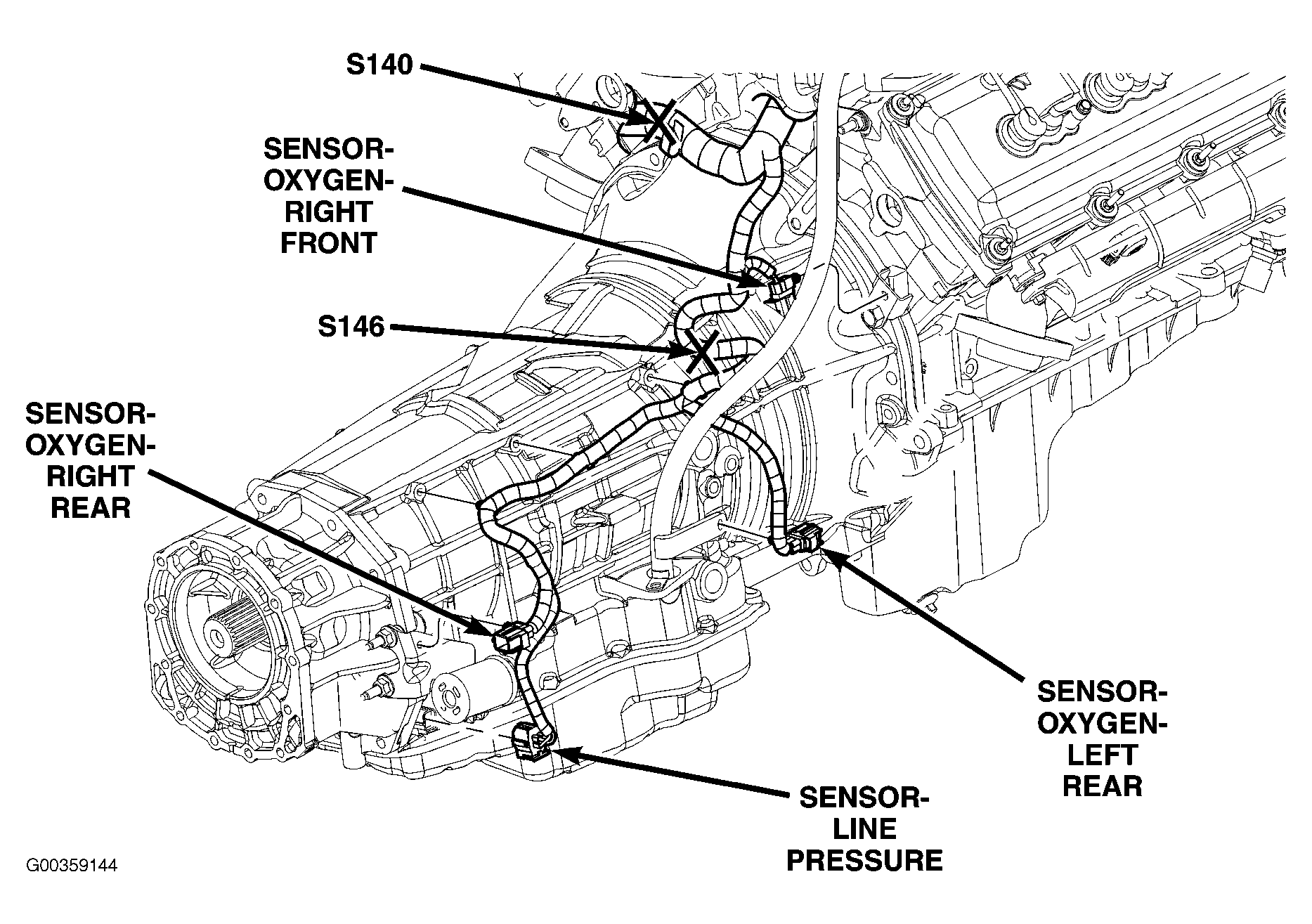

Fig 27: Transmission (5.7L)

G00359144

Courtesy of DAIMLERCHRYSLER CORP.

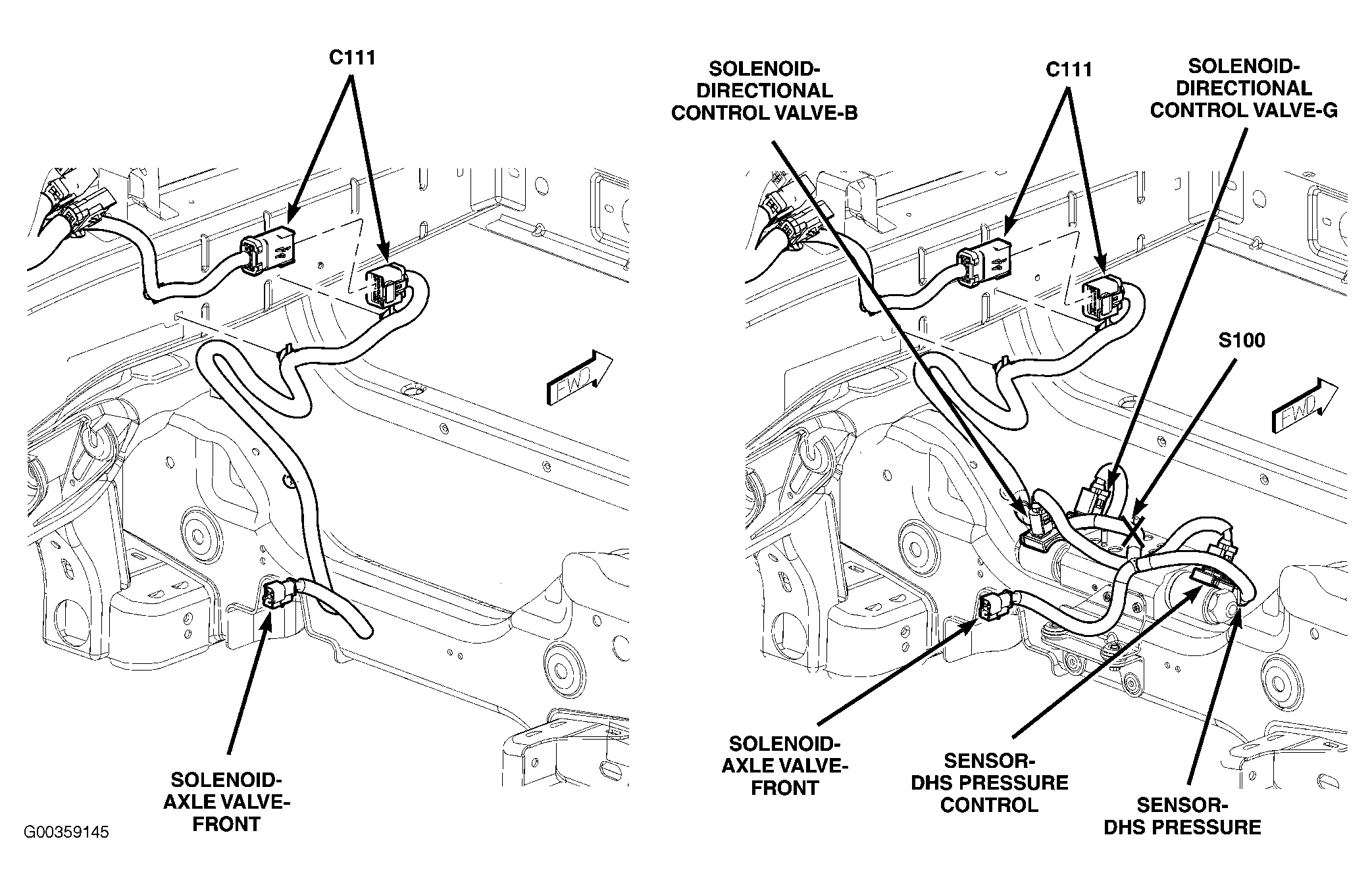

Fig 28: Front Of Frame

G00359145

Courtesy of DAIMLERCHRYSLER CORP.

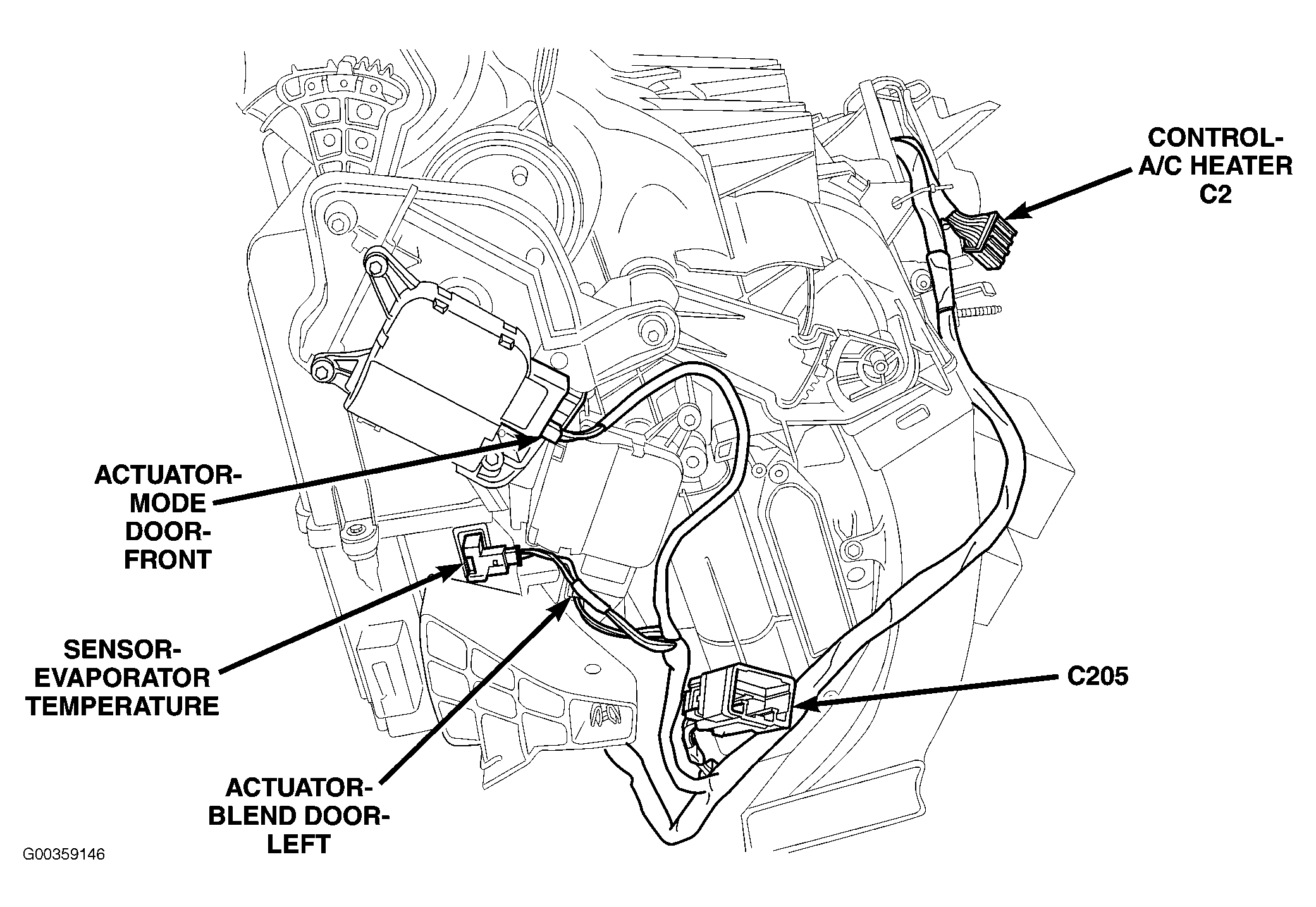

Fig 29: Left Side Of HVAC Unit

G00359146

Courtesy of DAIMLERCHRYSLER CORP.

Fig 30: Right Side Of HVAC Unit

G00359147

Courtesy of DAIMLERCHRYSLER CORP.

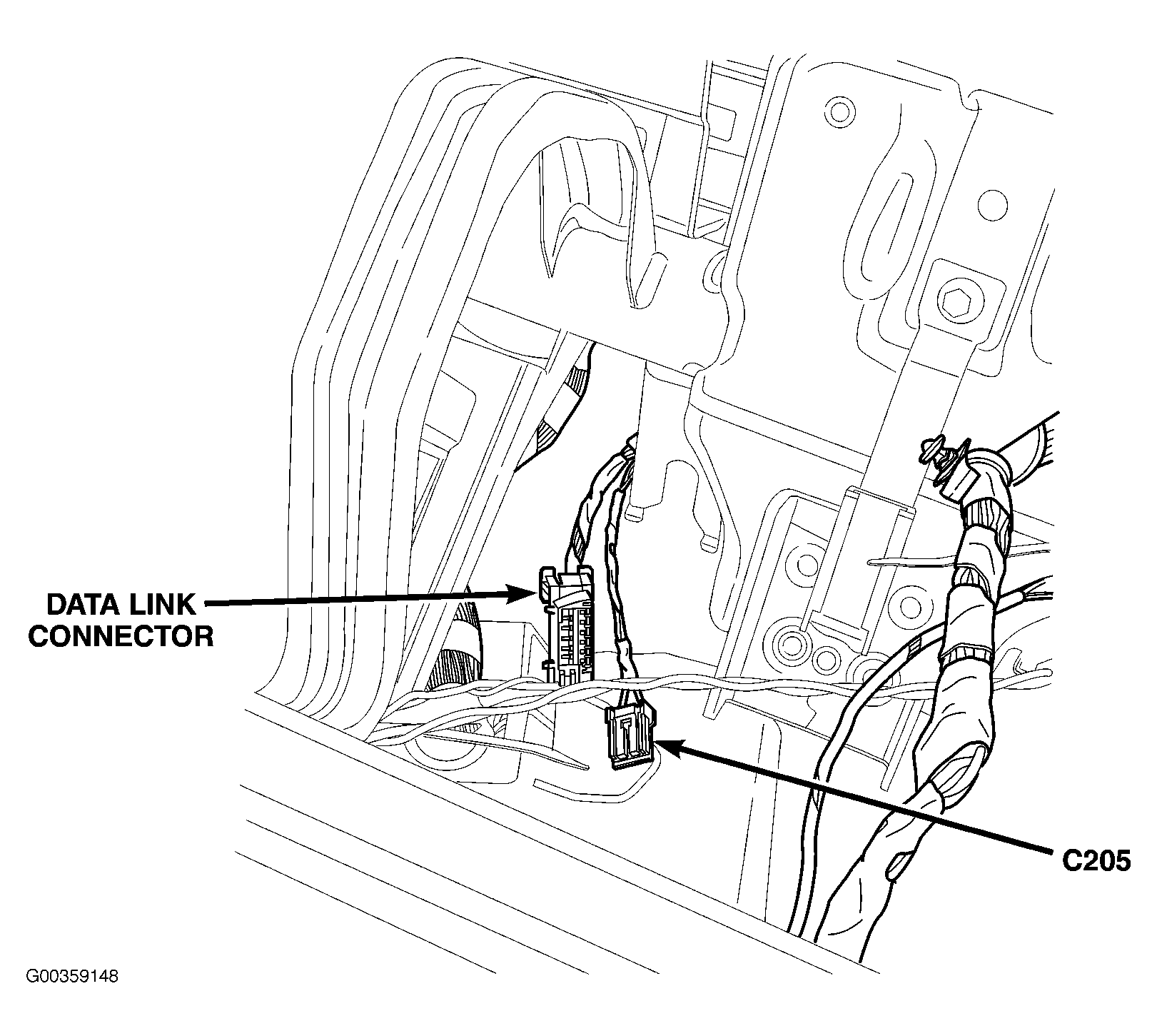

Fig 31: Lower Left Side Of Dash

G00359148

Courtesy of DAIMLERCHRYSLER CORP.

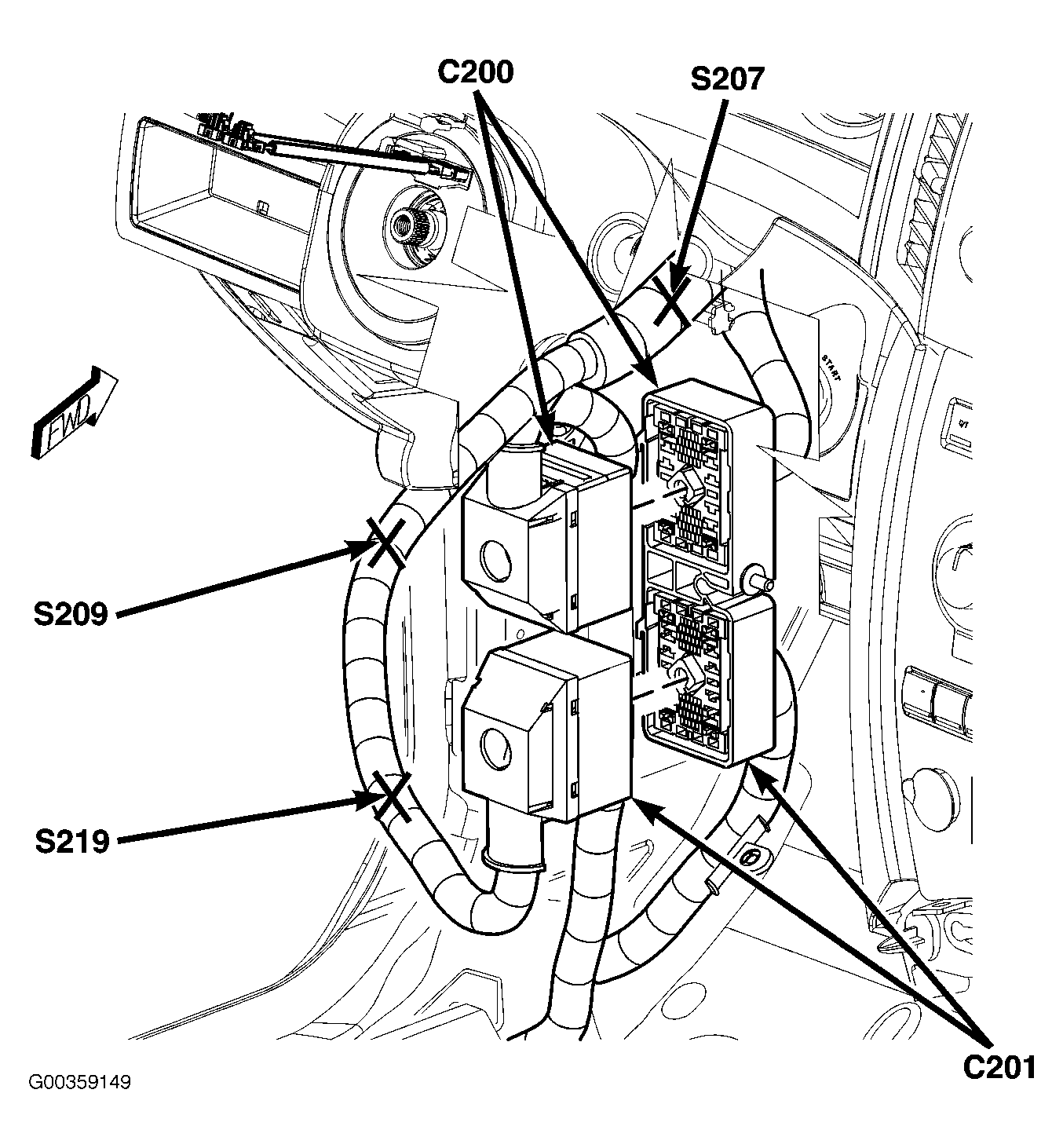

Fig 32: Left Kick Panel

G00359149

Courtesy of DAIMLERCHRYSLER CORP.

Fig 33: Right Kick Panel

G00359150

Courtesy of DAIMLERCHRYSLER CORP.

Fig 34: Steering Wheel

G00359151

Courtesy of DAIMLERCHRYSLER CORP.

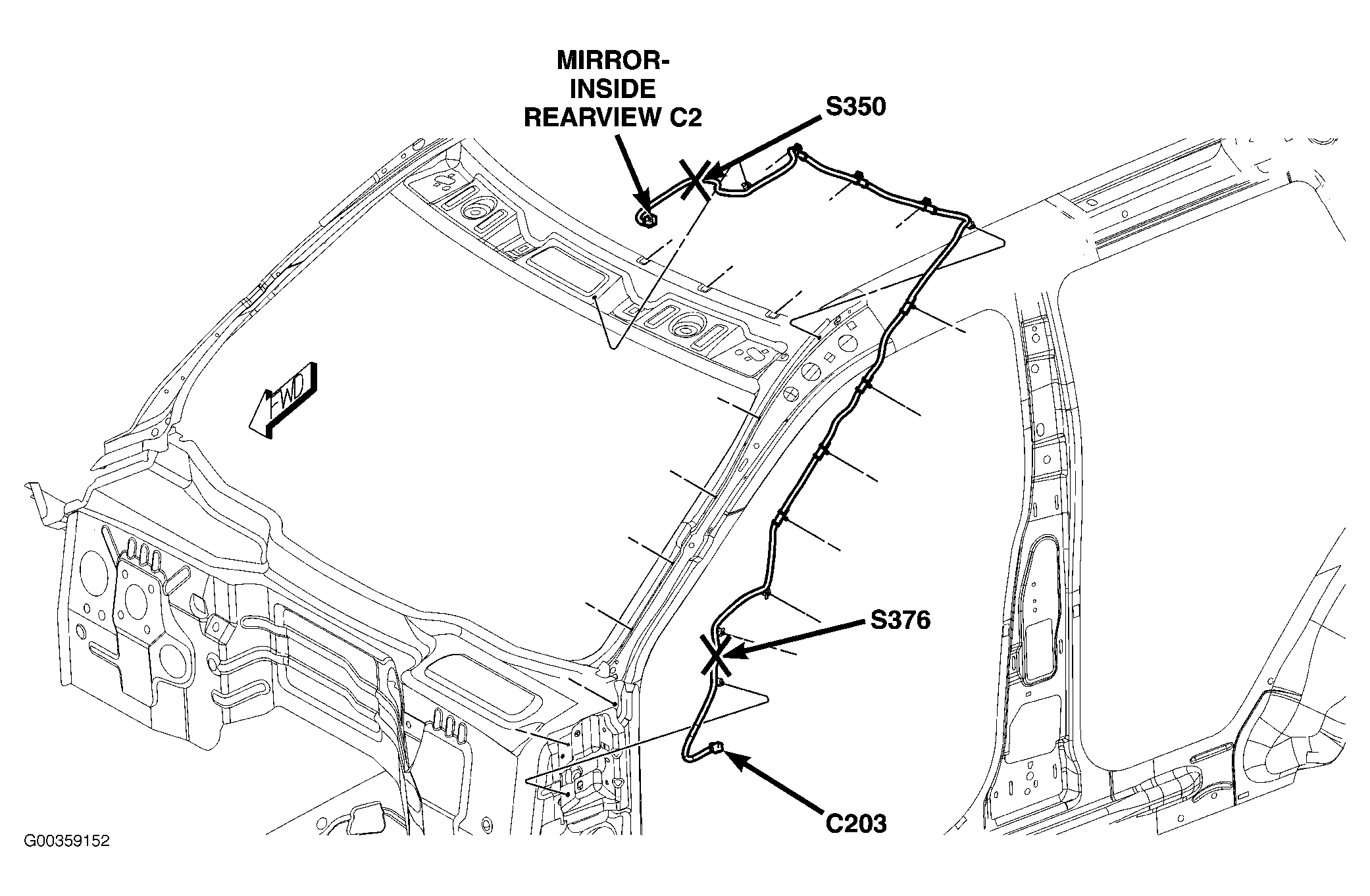

Fig 35: "A" Pillar

G00359152

Courtesy of DAIMLERCHRYSLER CORP.

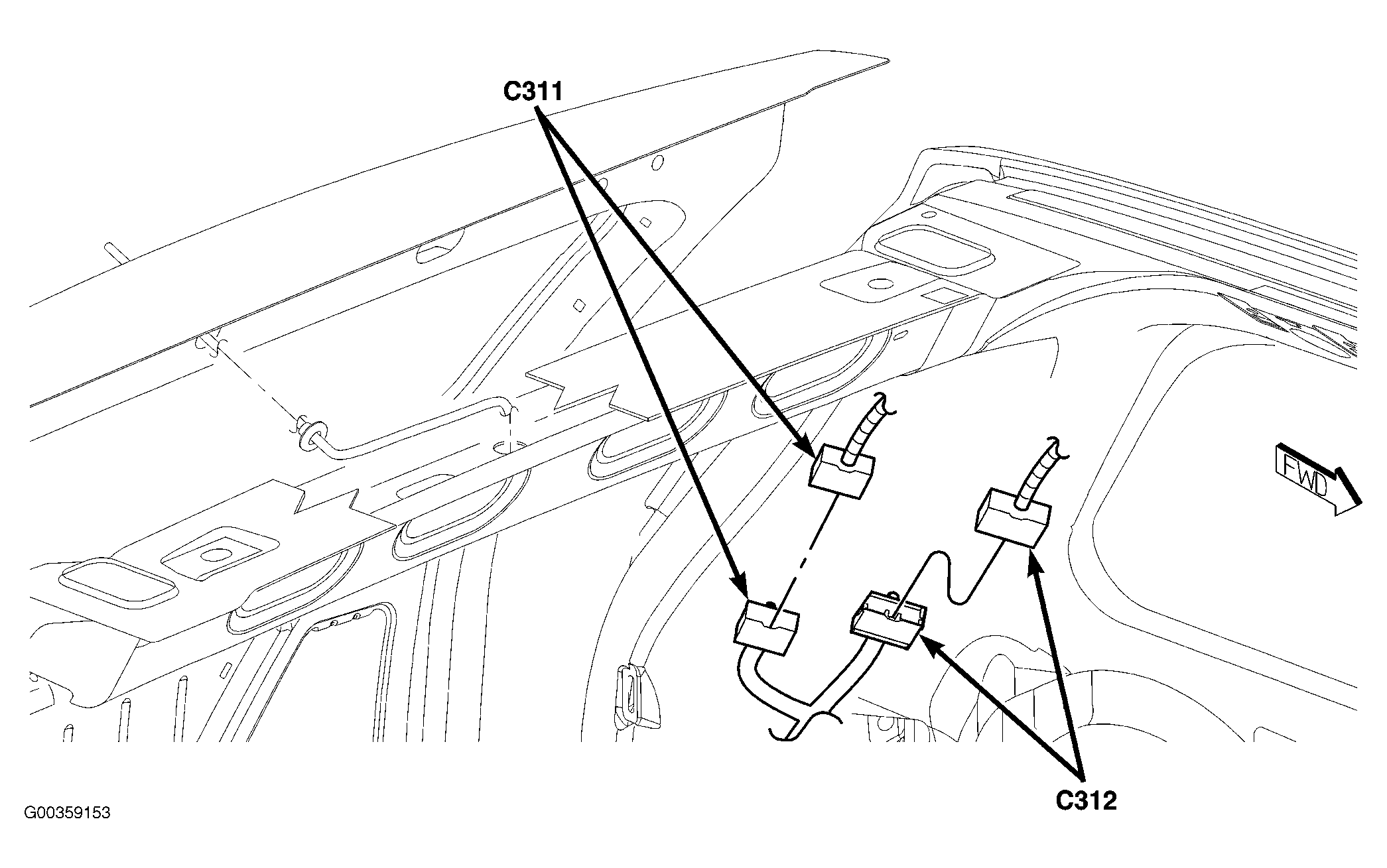

Fig 36: Left Rear Of Headliner

G00359153

Courtesy of DAIMLERCHRYSLER CORP.

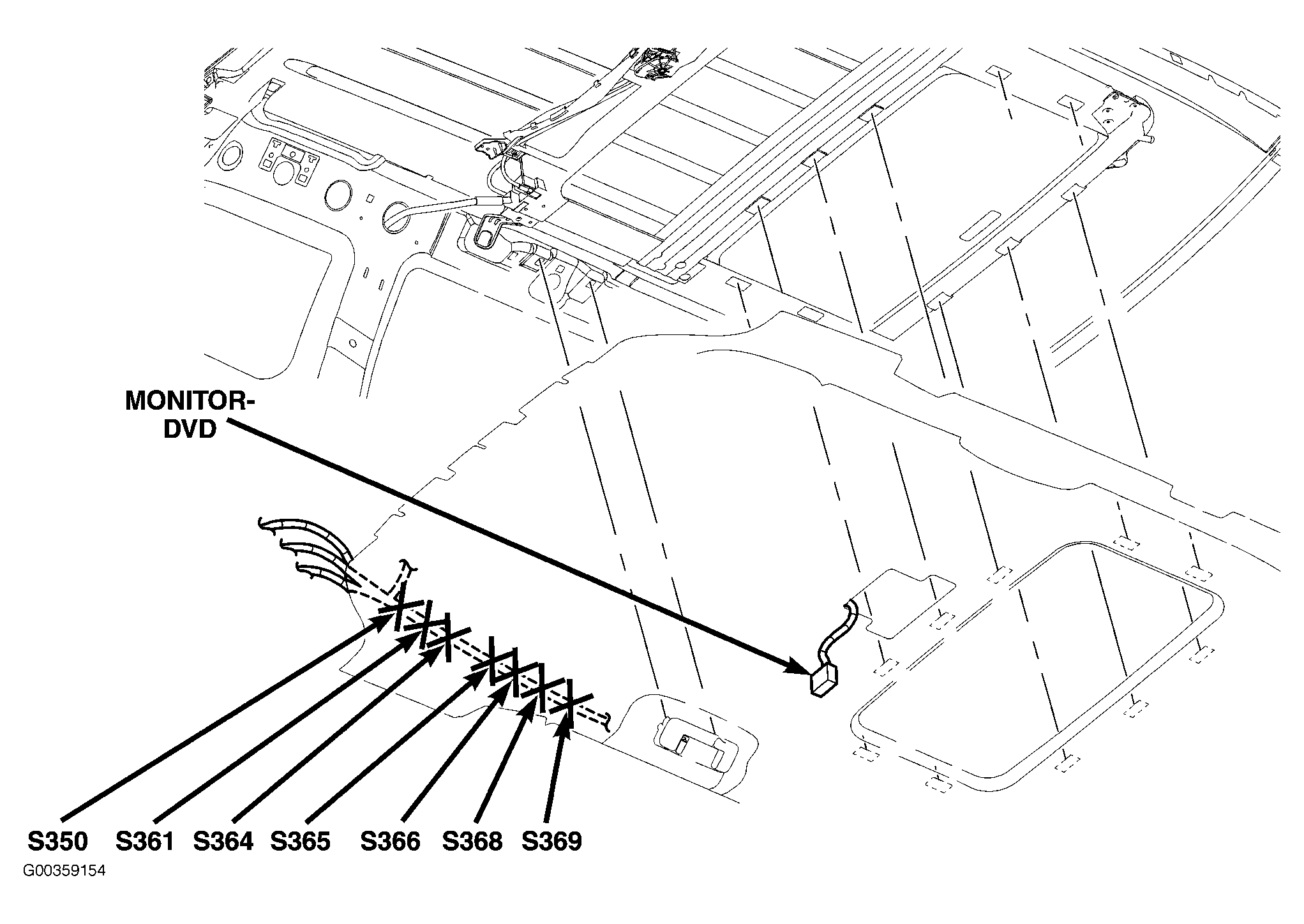

Fig 37: Rear Of Headliner

G00359154

Courtesy of DAIMLERCHRYSLER CORP.

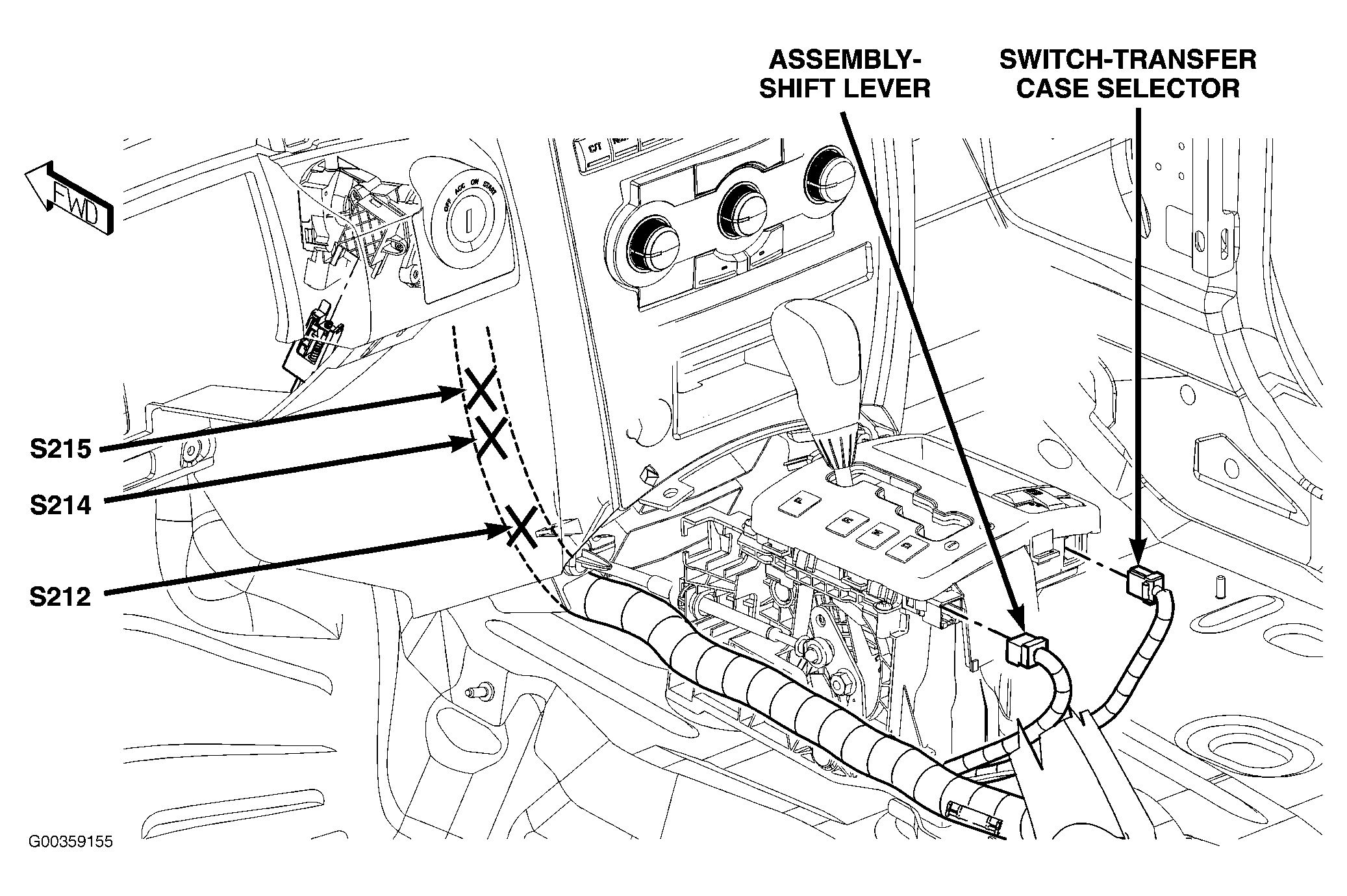

Fig 38: Shift Assembly

G00359155

Courtesy of DAIMLERCHRYSLER CORP.

Fig 39: Center Console

G00359156

Courtesy of DAIMLERCHRYSLER CORP.

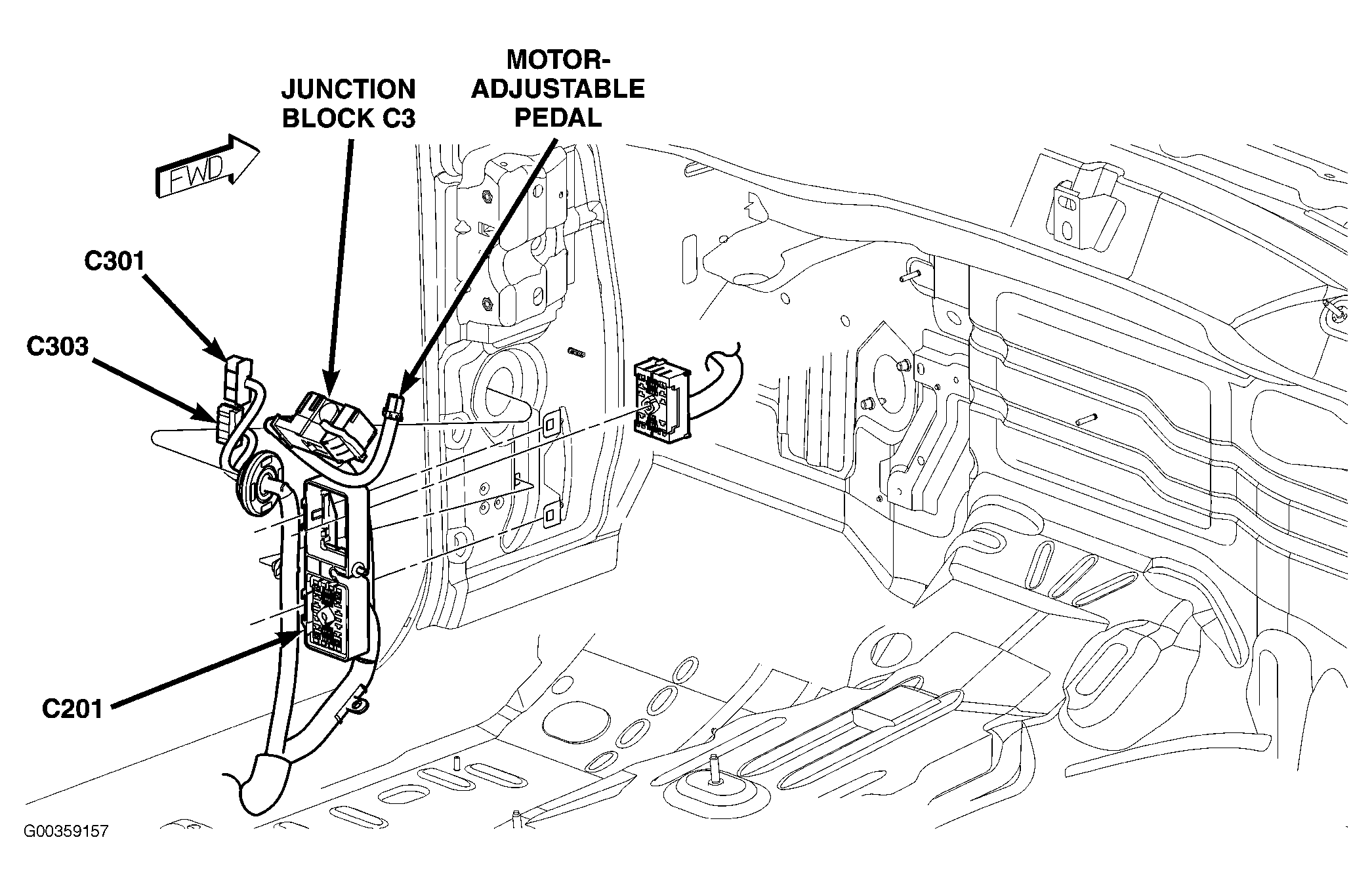

Fig 40: Left Front Of Passenger Compartment

G00359157

Courtesy of DAIMLERCHRYSLER CORP.

Fig 41: Right Side Of Passenger Compartment

G00359158

Courtesy of DAIMLERCHRYSLER CORP.

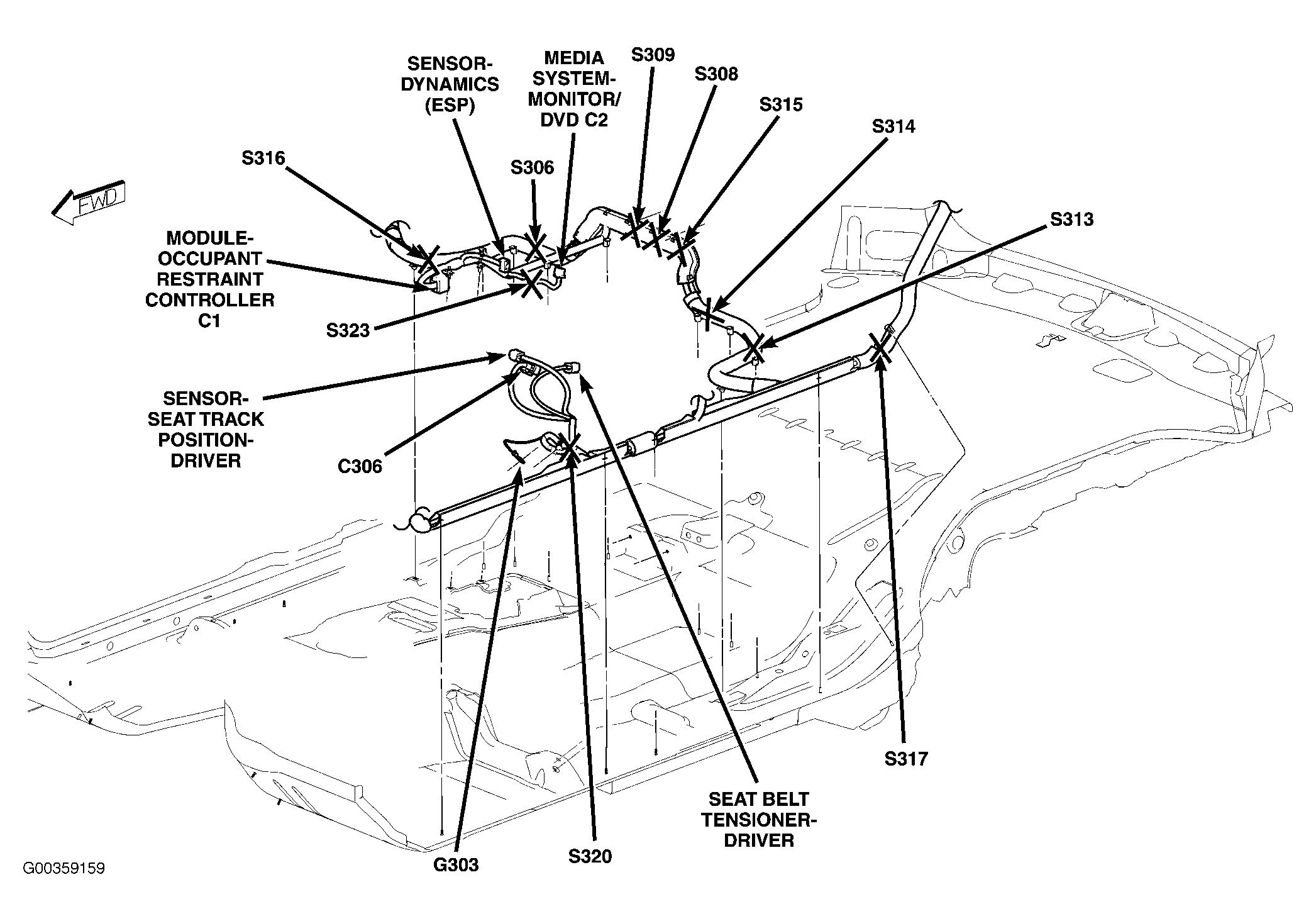

Fig 42: Left Side Of Passenger Compartment

G00359159

Courtesy of DAIMLERCHRYSLER CORP.

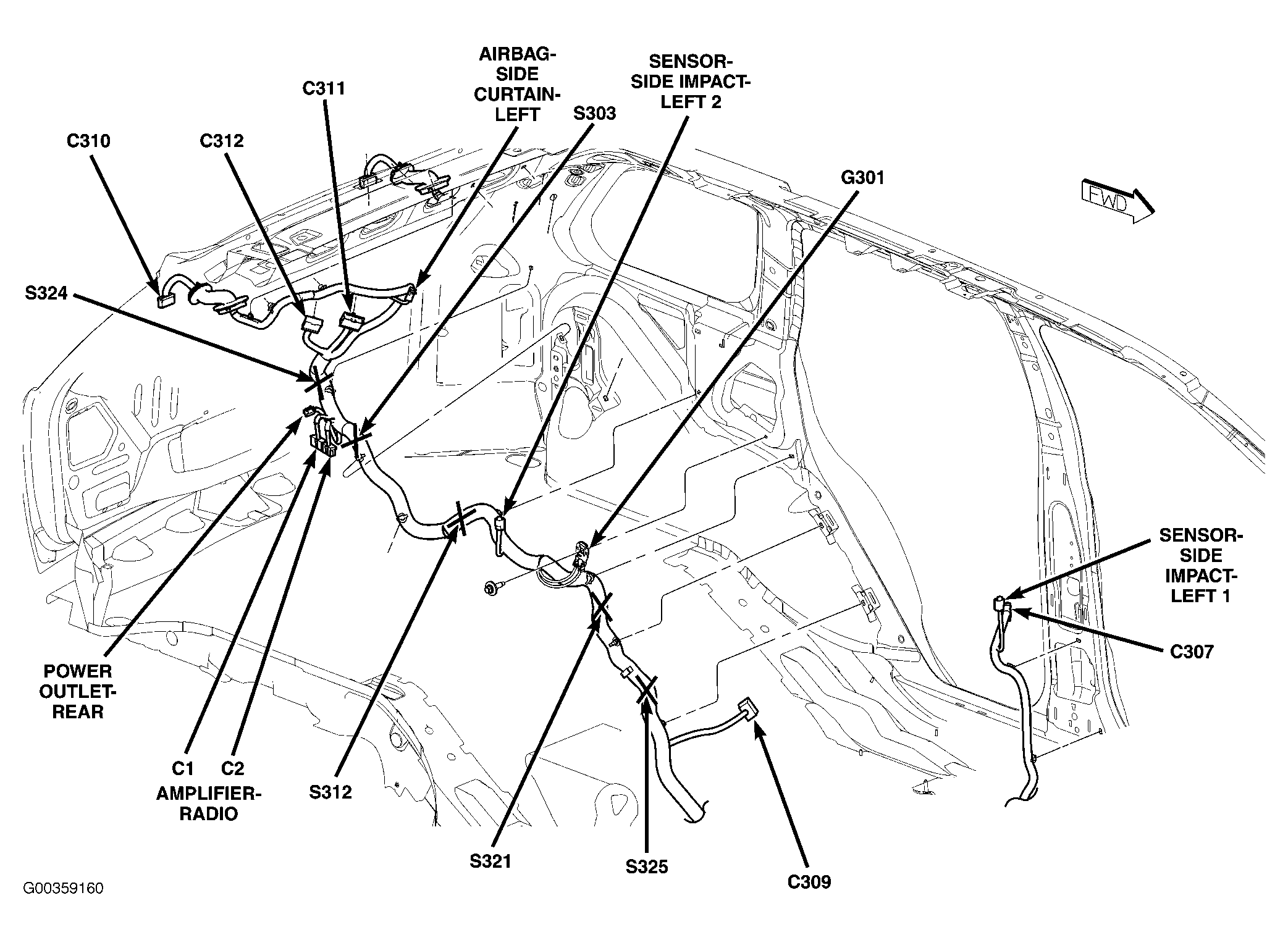

Fig 43: Left Rear Of Passenger Compartment

G00359160

Courtesy of DAIMLERCHRYSLER CORP.

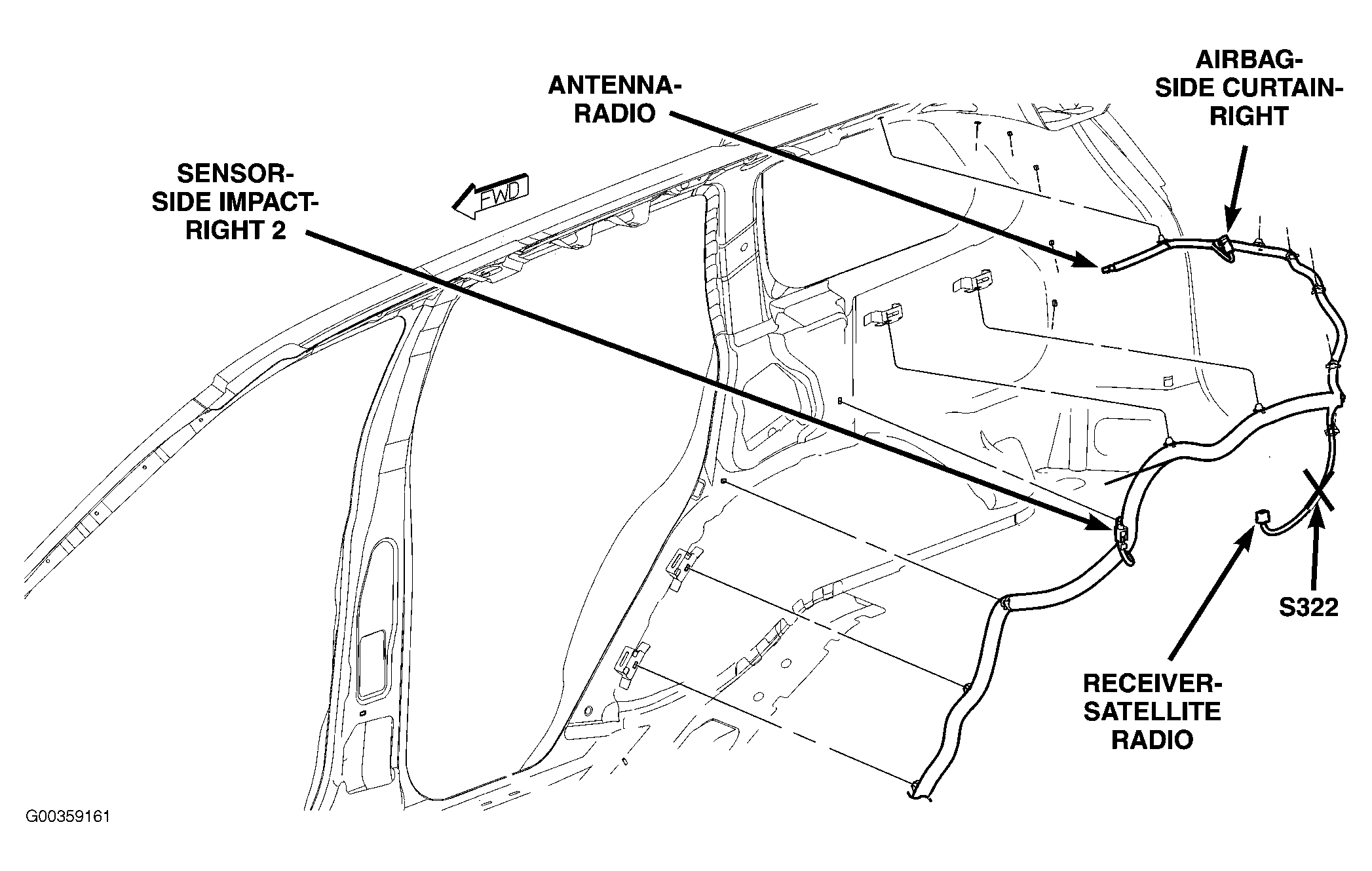

Fig 44: Right Rear Of Passenger Compartment

G00359161

Courtesy of DAIMLERCHRYSLER CORP.

Fig 45: Driver Seat

G00359162

Courtesy of DAIMLERCHRYSLER CORP.

Fig 46: Passenger Seat

G00359163

Courtesy of DAIMLERCHRYSLER CORP.

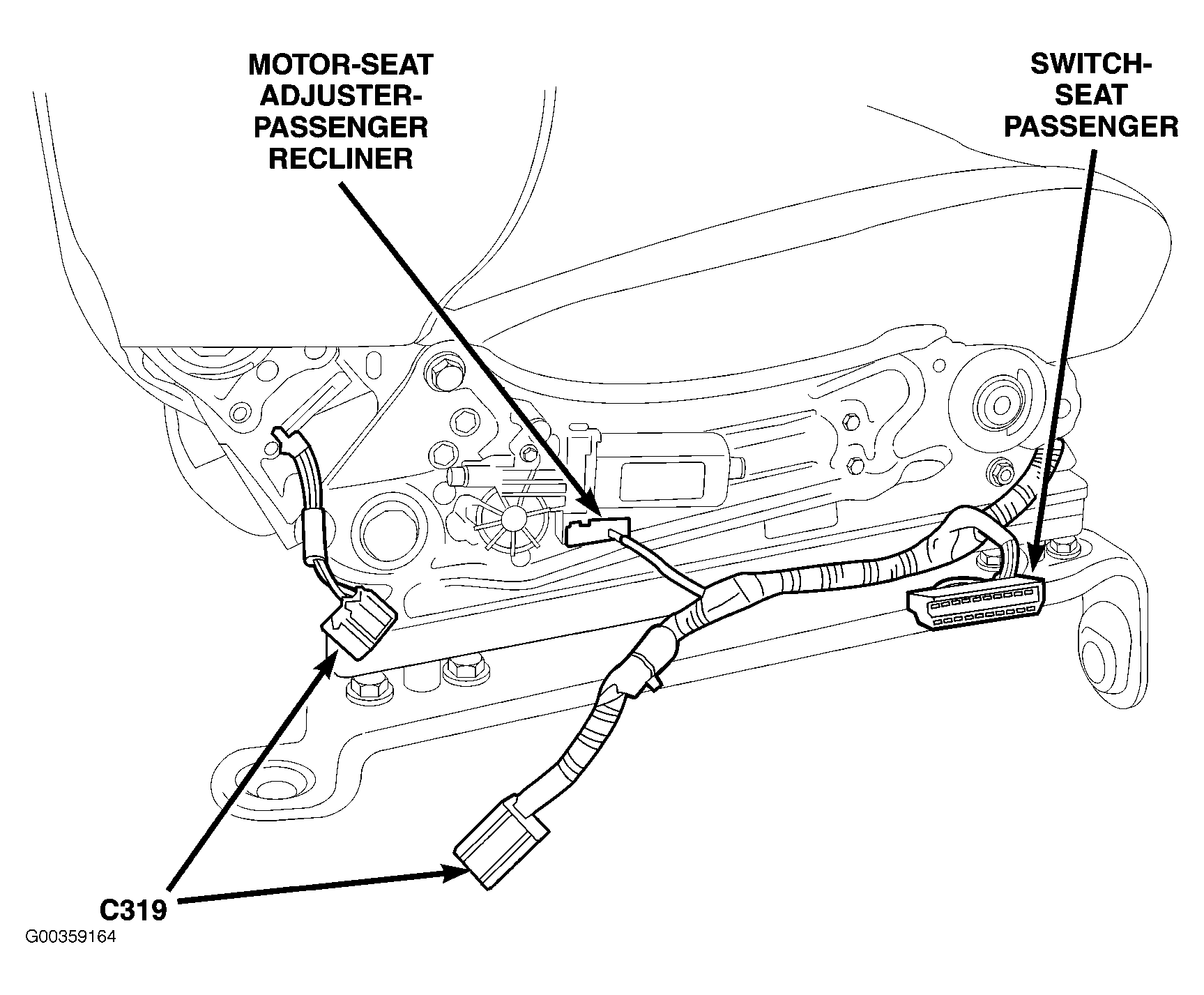

Fig 47: Passenger Seat

G00359164

Courtesy of DAIMLERCHRYSLER CORP.

Fig 48: Driver Door

G00359165

Courtesy of DAIMLERCHRYSLER CORP.

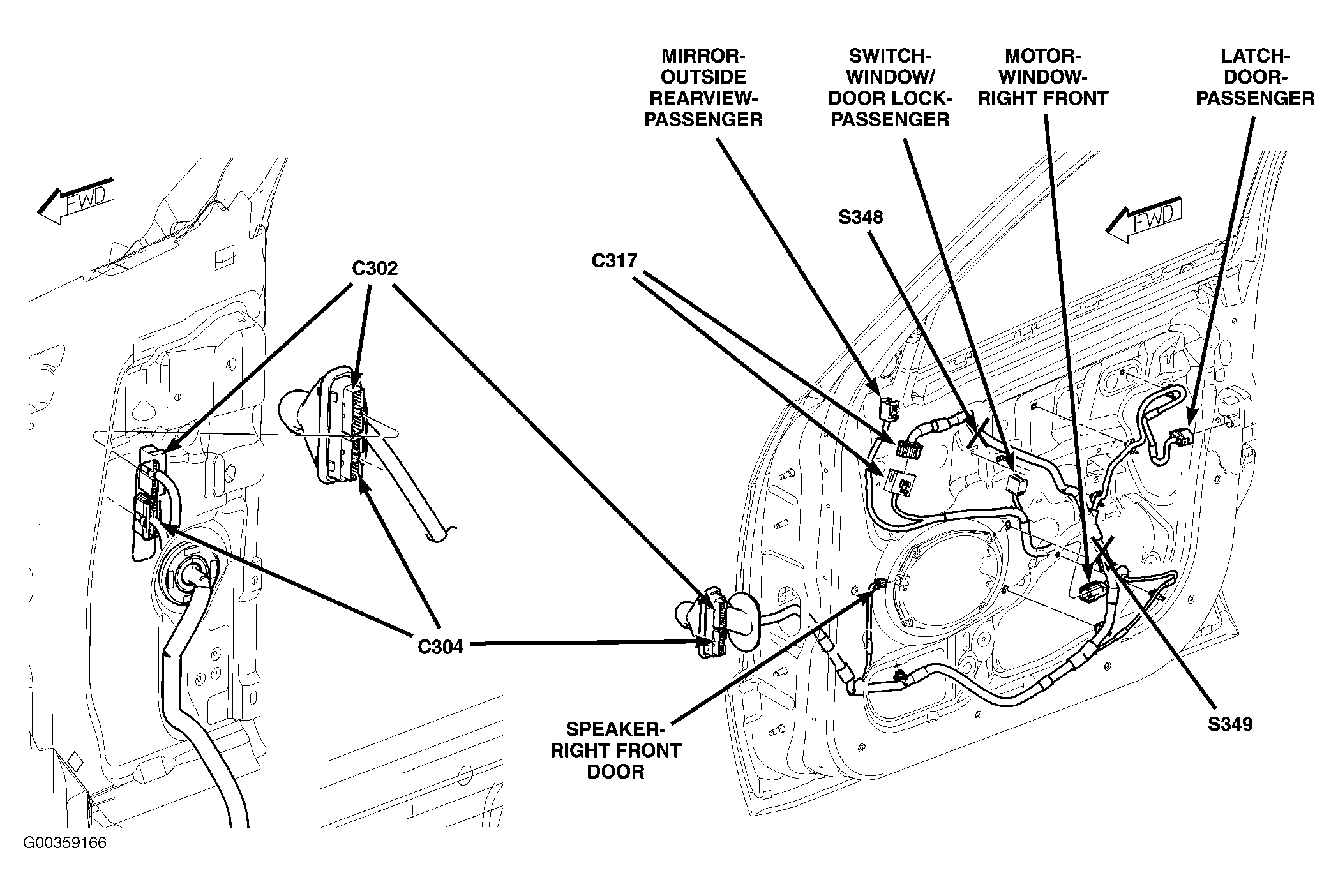

Fig 49: Passenger Door

G00359166

Courtesy of DAIMLERCHRYSLER CORP.

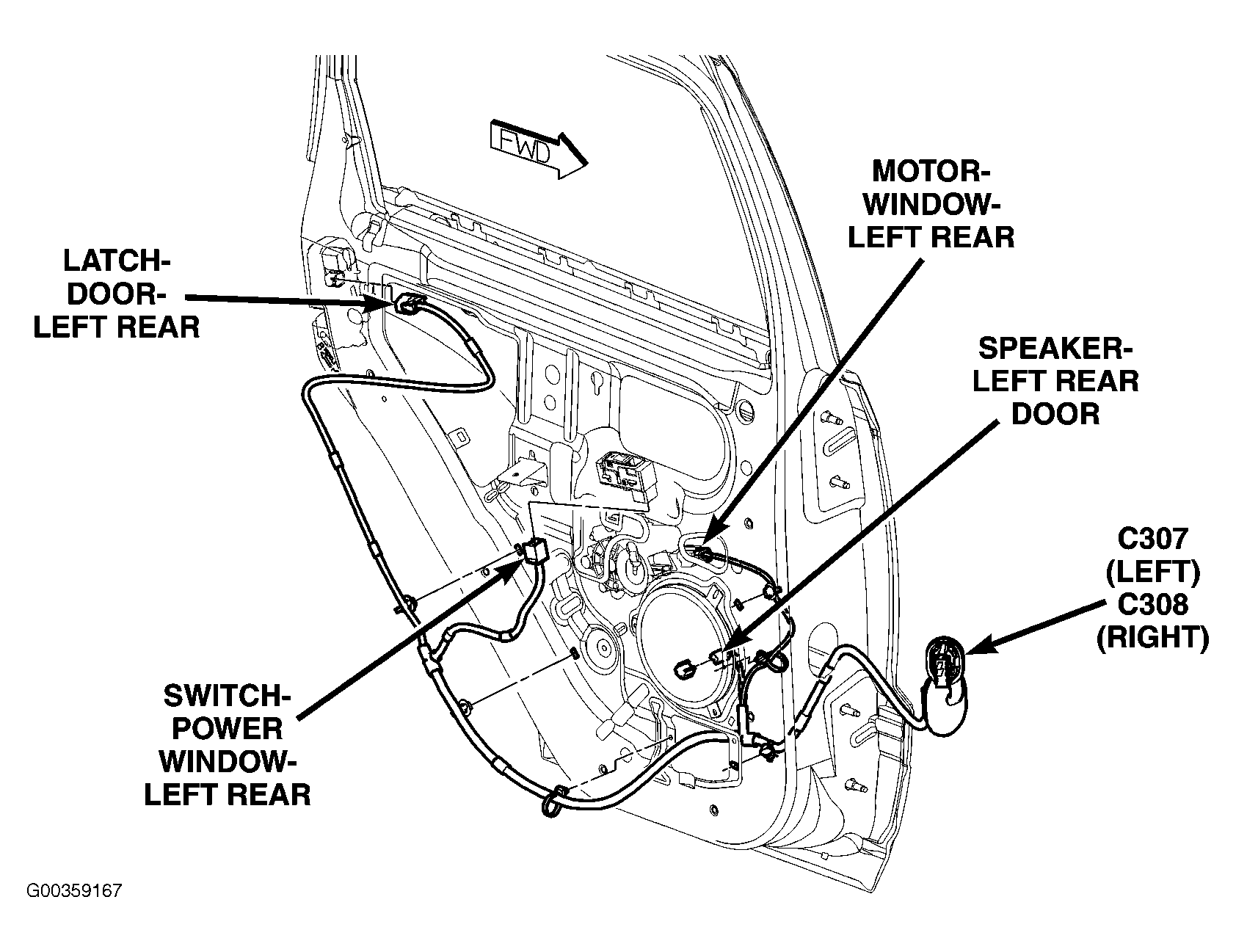

Fig 50: Rear Door

G00359167

Courtesy of DAIMLERCHRYSLER CORP.

Fig 51: Center Of Vehicle

G00359168

Courtesy of DAIMLERCHRYSLER CORP.

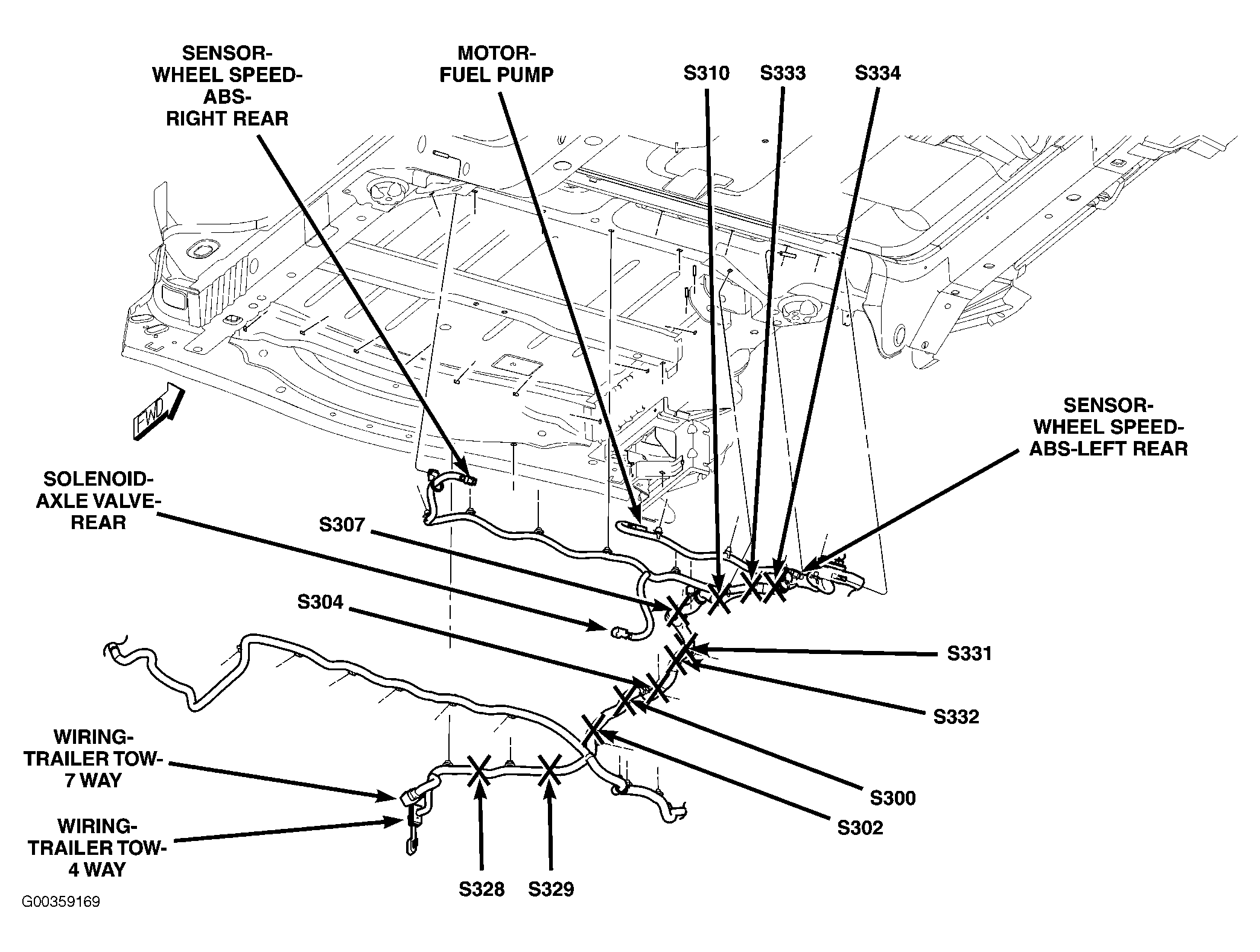

Fig 52: Rear Of Vehicle

G00359169

Courtesy of DAIMLERCHRYSLER CORP.

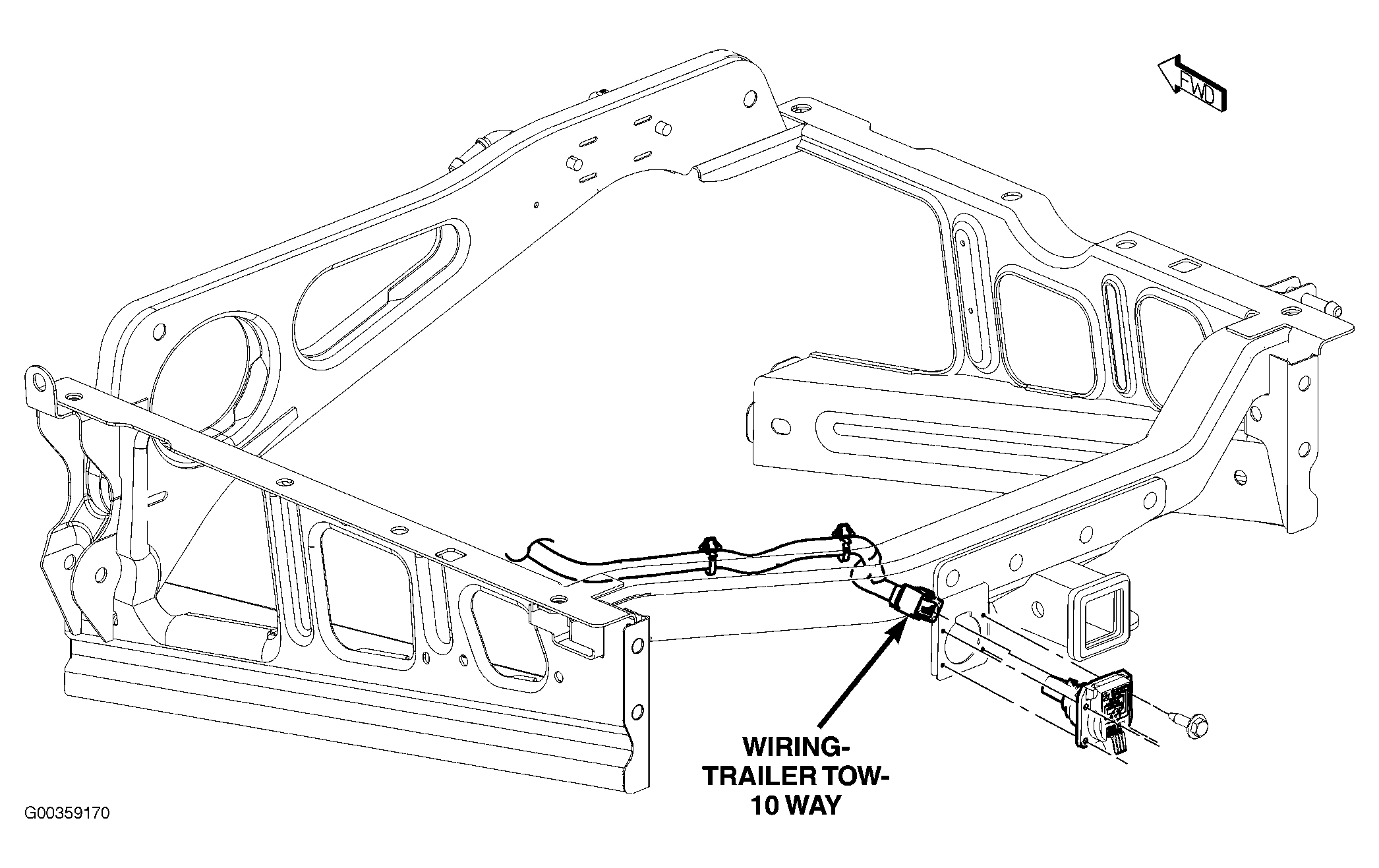

Fig 53: Rear Of Chassis

G00359170

Courtesy of DAIMLERCHRYSLER CORP.

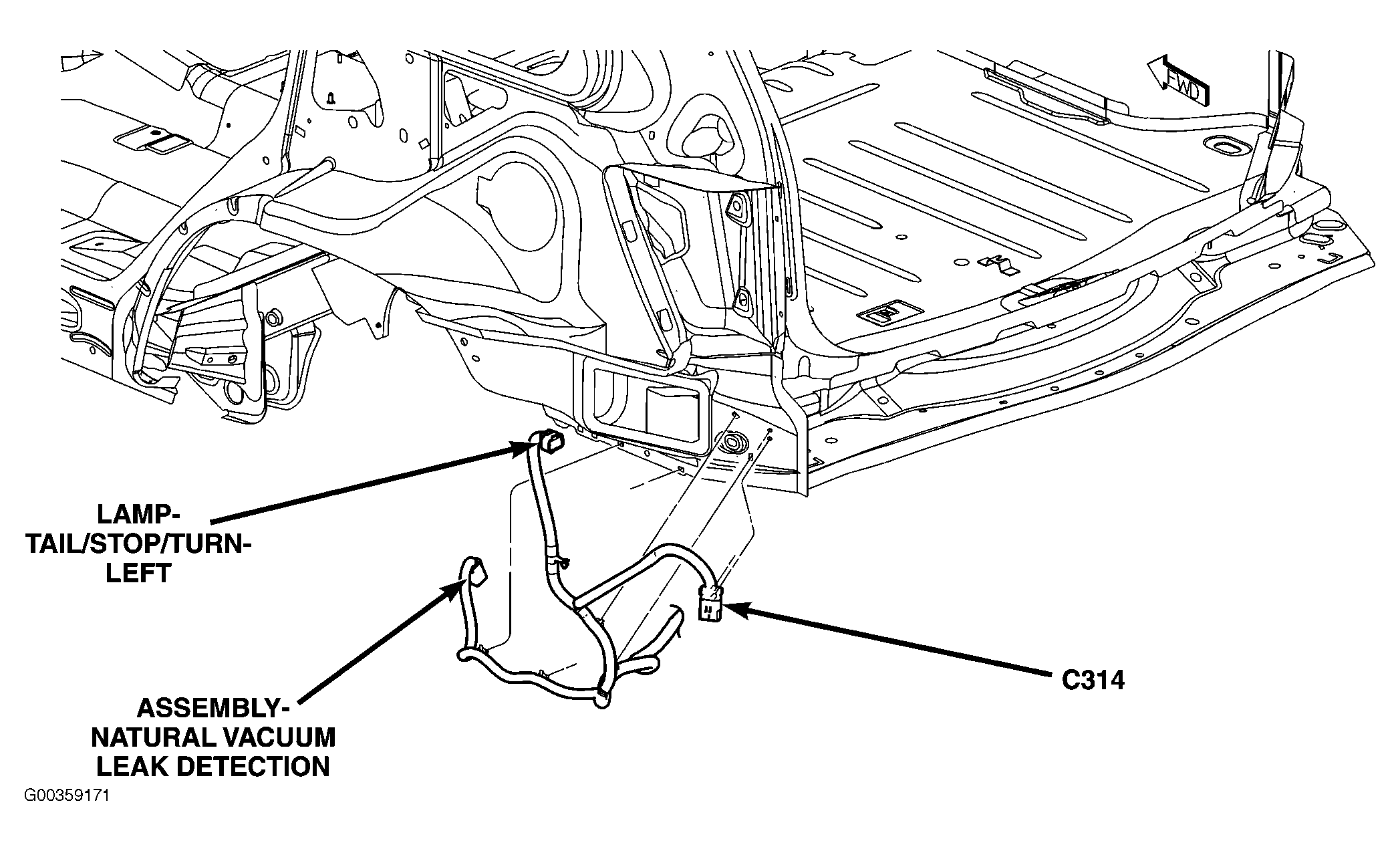

Fig 54: Left Rear Of Vehicle

G00359171

Courtesy of DAIMLERCHRYSLER CORP.

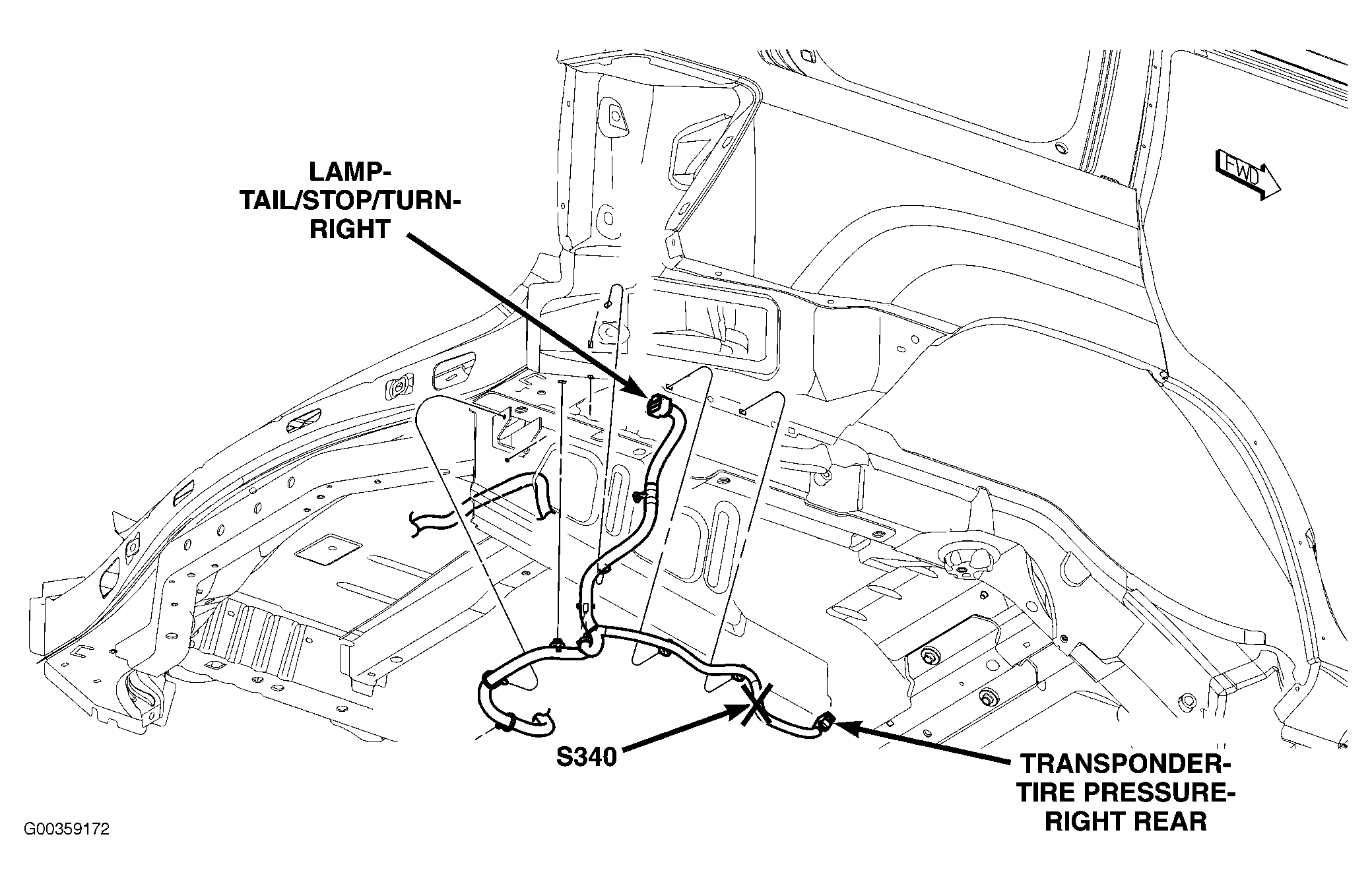

Fig 55: Right Rear Of Vehicle

G00359172

Courtesy of DAIMLERCHRYSLER CORP.

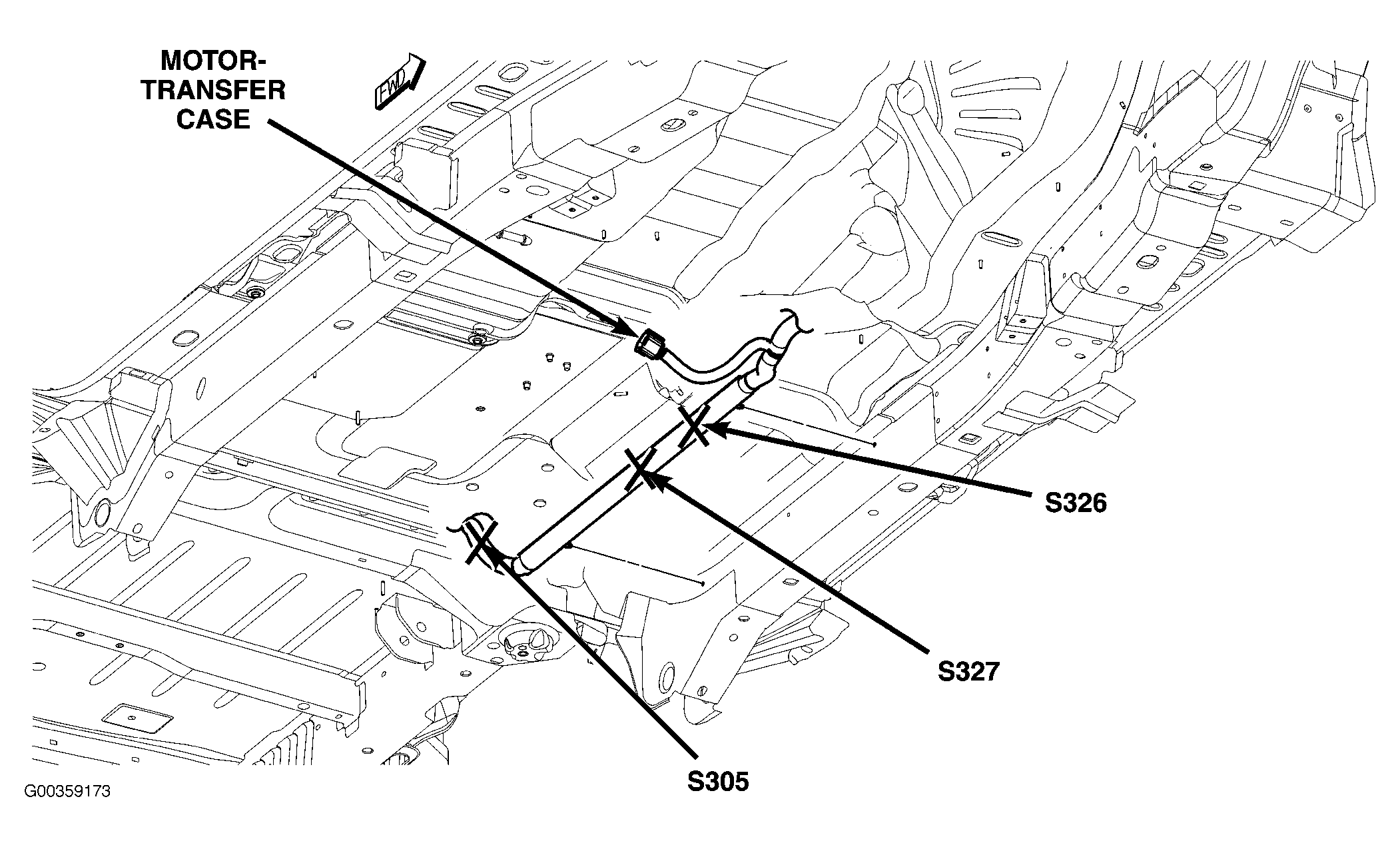

Fig 56: Center Of Vehicle

G00359173

Courtesy of DAIMLERCHRYSLER CORP.

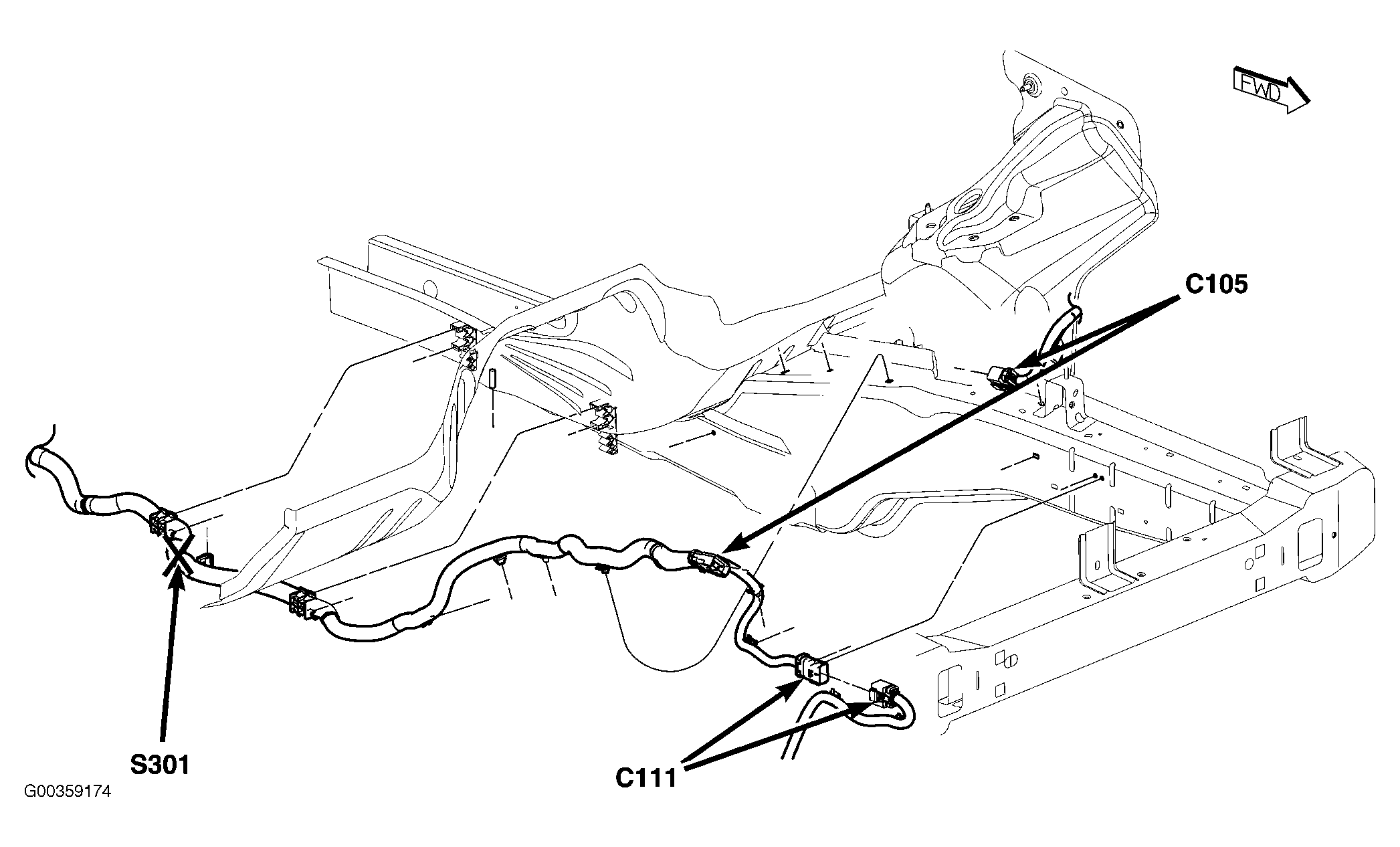

Fig 57: Left Front Of Vehicle

G00359174

Courtesy of DAIMLERCHRYSLER CORP.

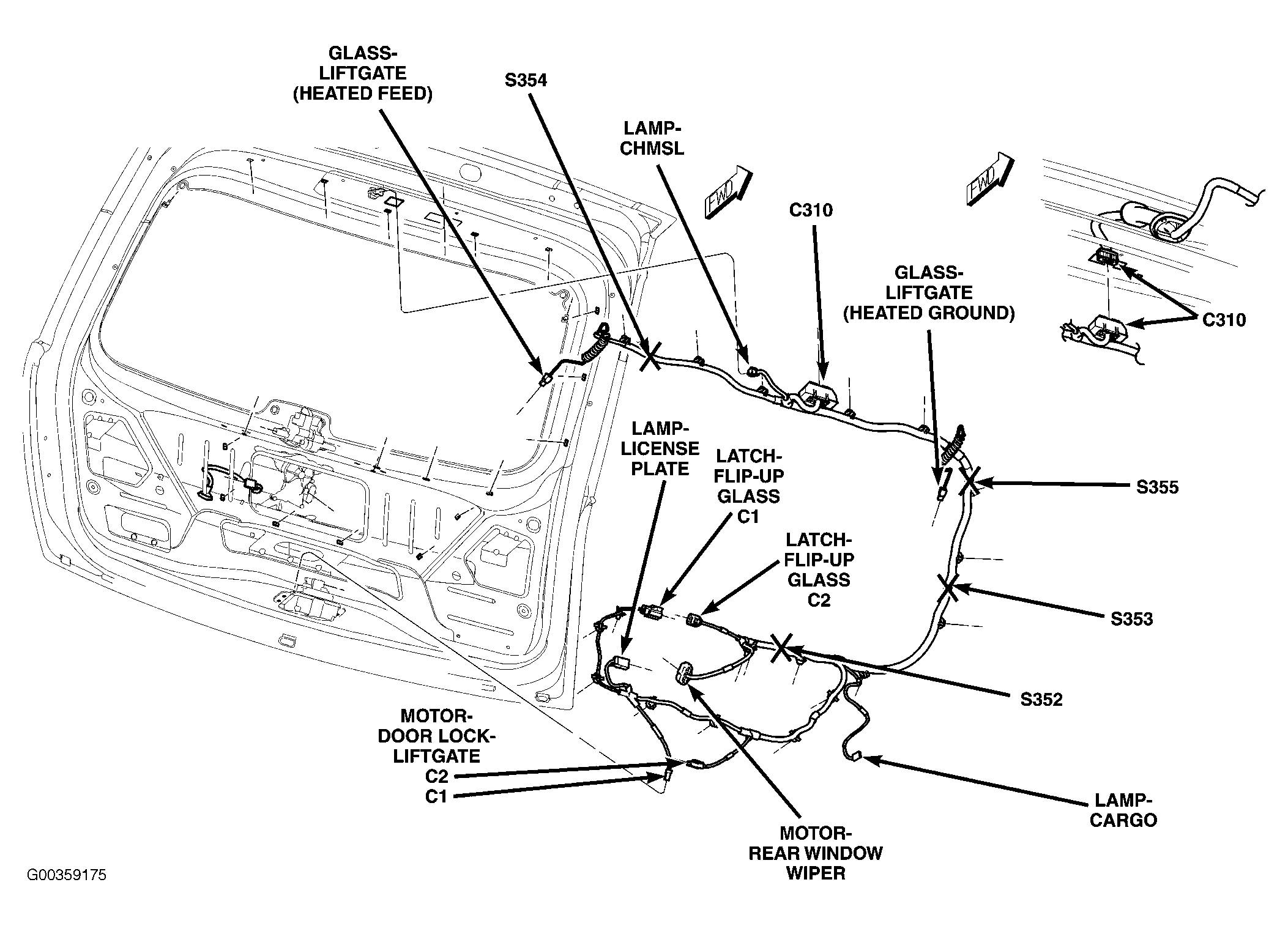

Fig 58: Liftgate

G00359175

Courtesy of DAIMLERCHRYSLER CORP.

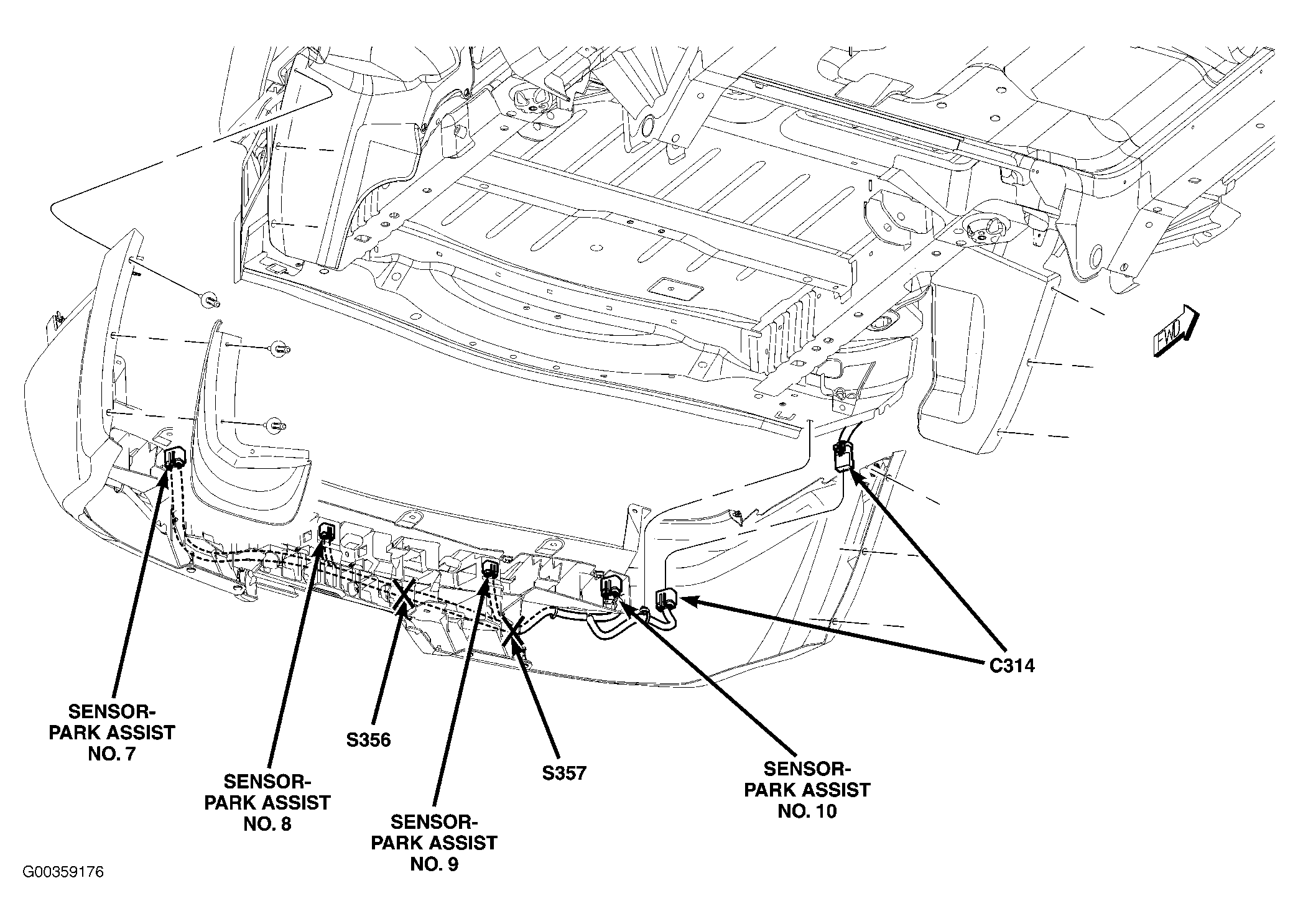

Fig 59: Rear Bumper

G00359176

Courtesy of DAIMLERCHRYSLER CORP.

Fig 60: Transmission Control Module Location - 3.0L & 3.7L Vehicles

GC0027623

Courtesy of DAIMLERCHRYSLER CORP.
