Control Units

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

CONTROL UNITS LOCATION

Component	Location

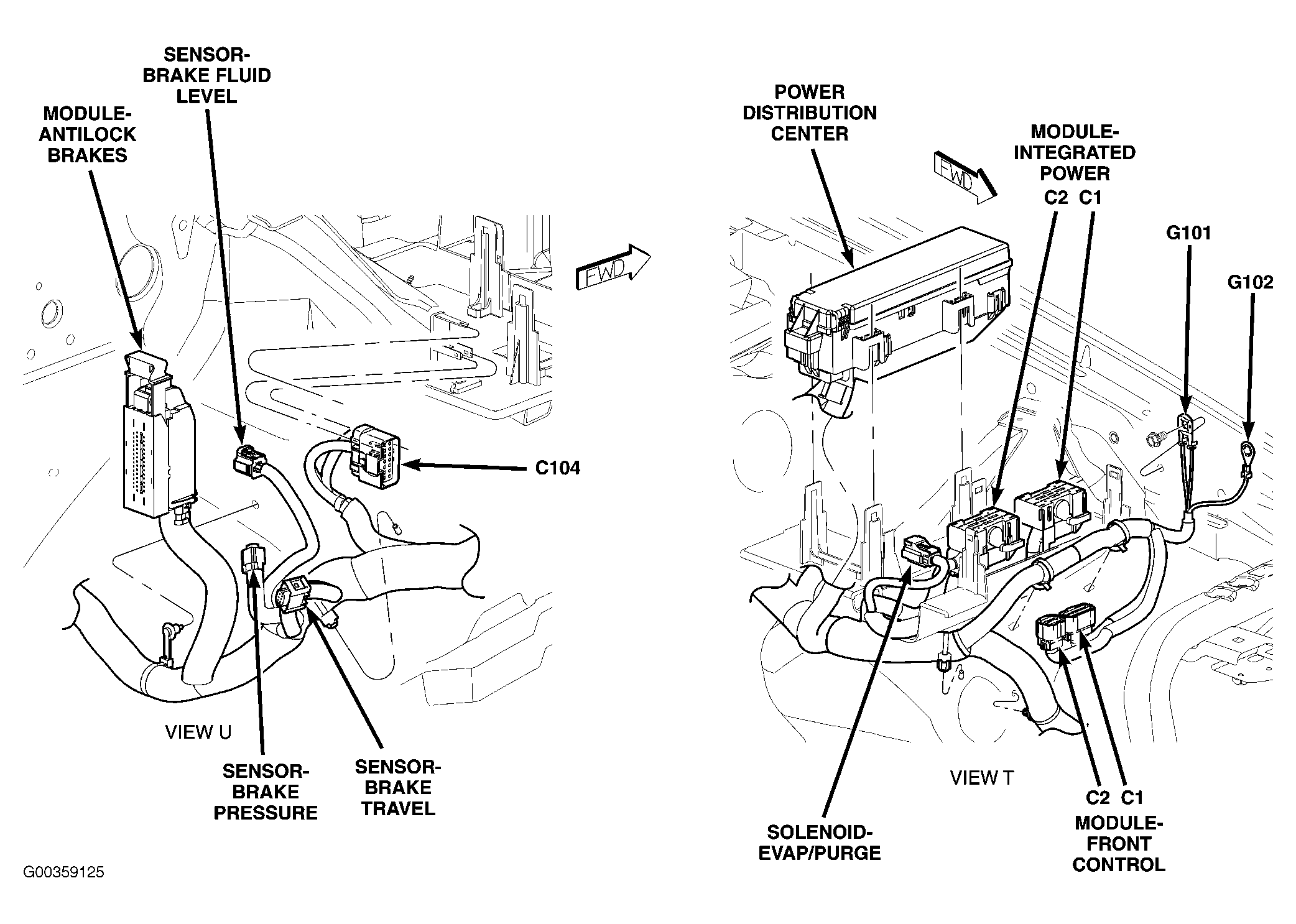

Antilock Brakes Module	Left rear of engine compartment. See Figure.

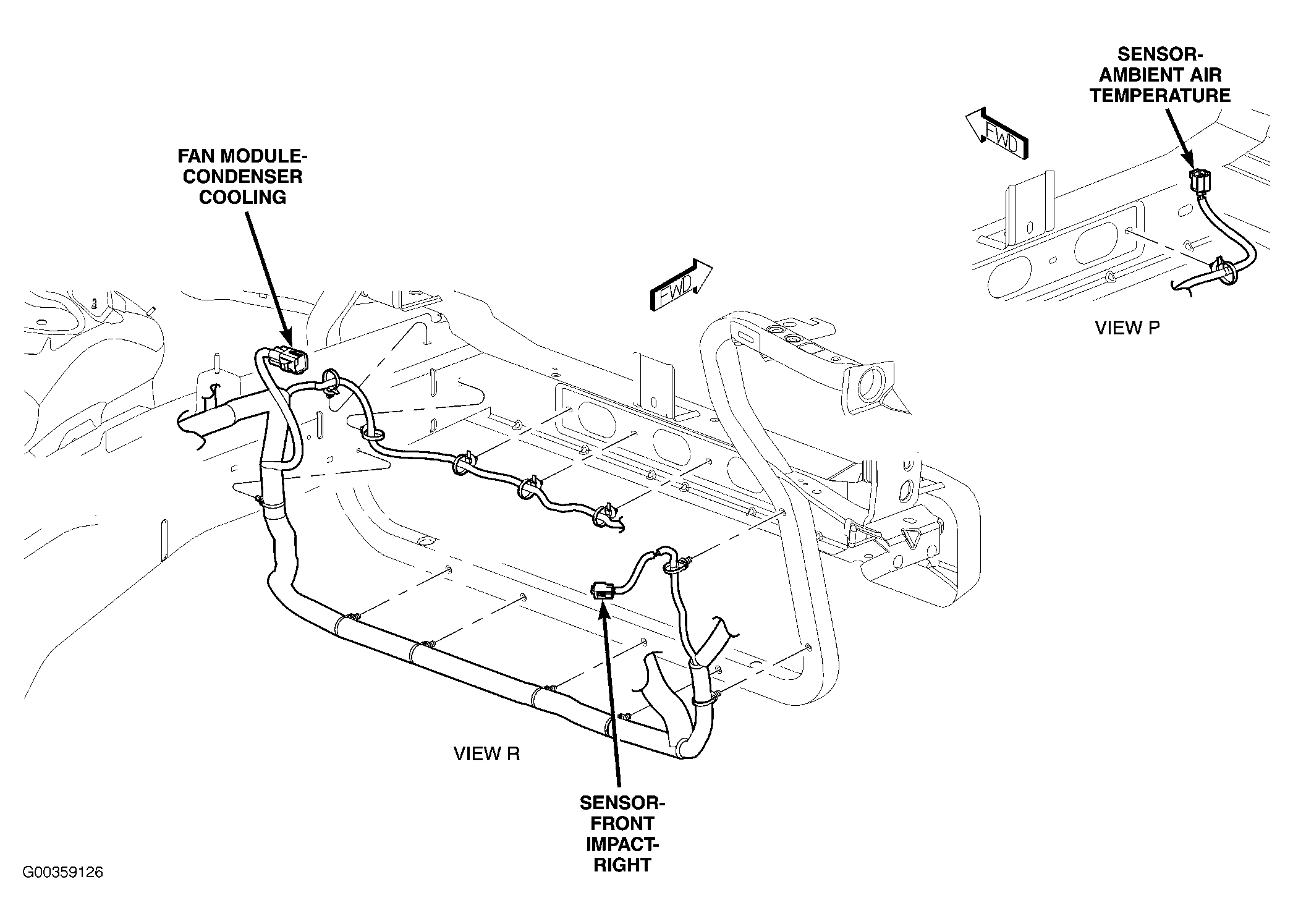

Condenser Cooling Fan Module	Left front of engine compartment. See Figure.

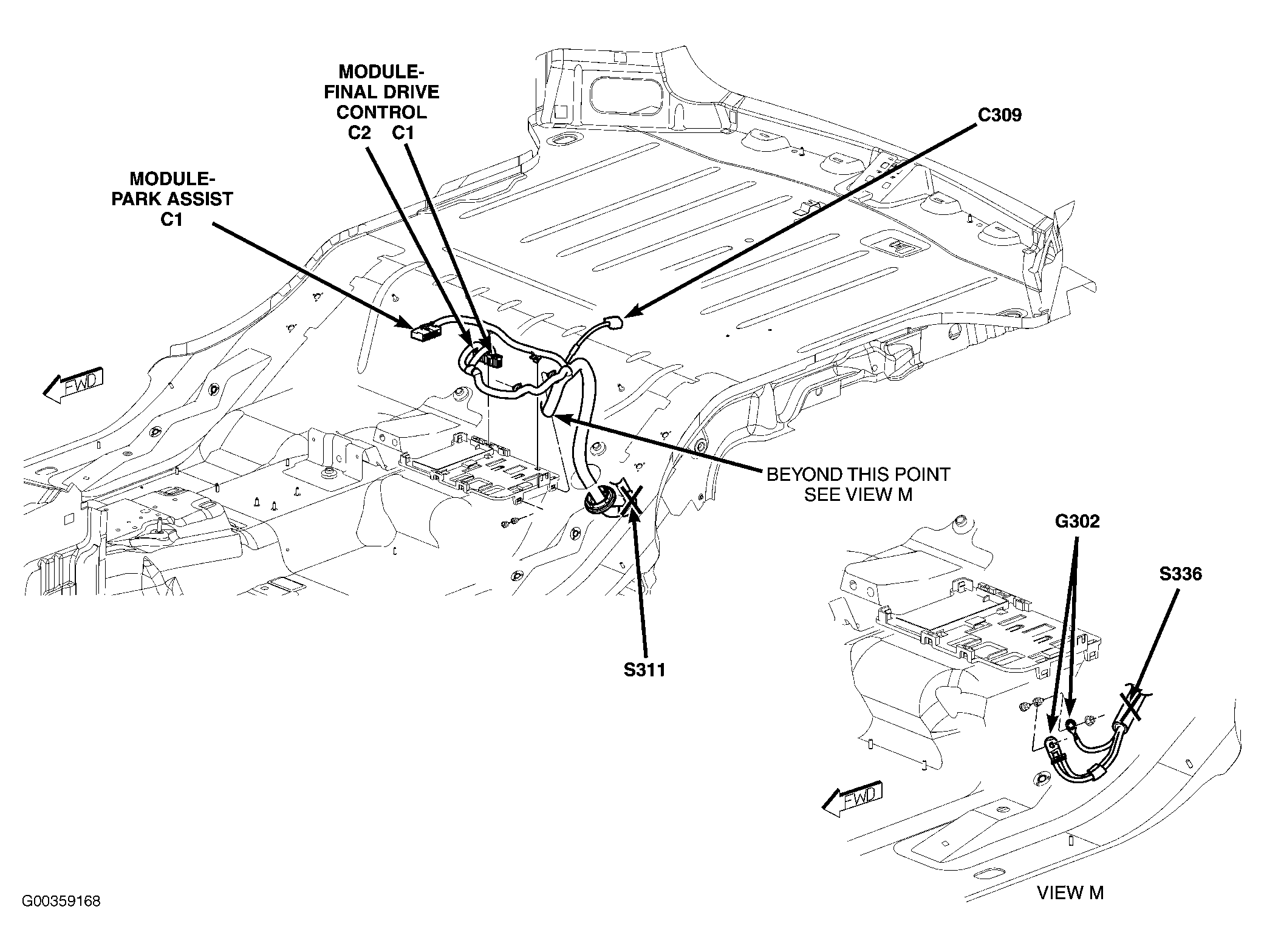

Final Drive Control Module	Below left rear seat. See Figure.

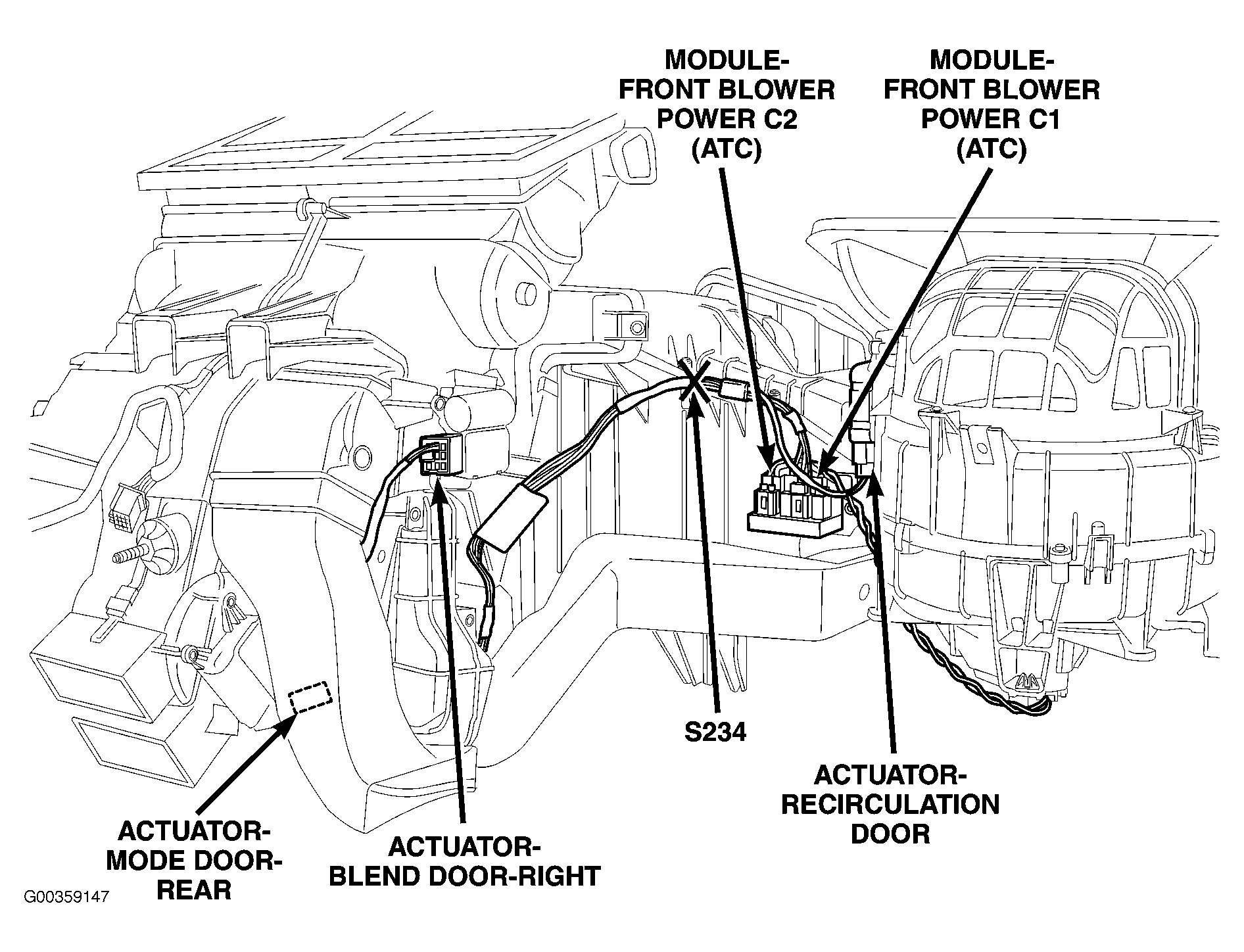

Front Blower Power Module	Right side of HVAC unit. See Figure.
Front Control Module	Left side of engine compartment. See Figure.
Fuel Pump Module	On top of fuel tank.

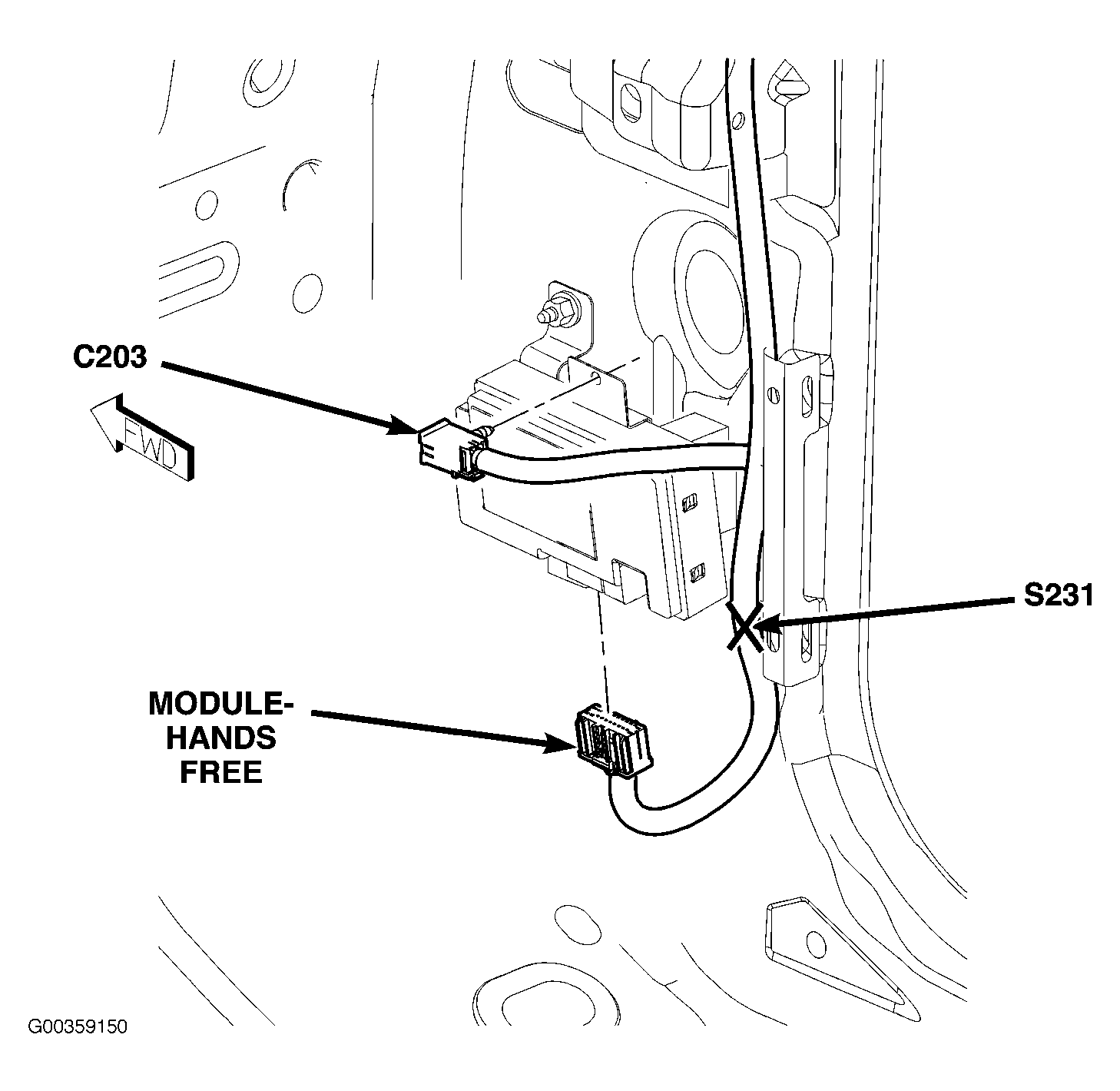

Hands Free Module	Right kick panel. See Figure.

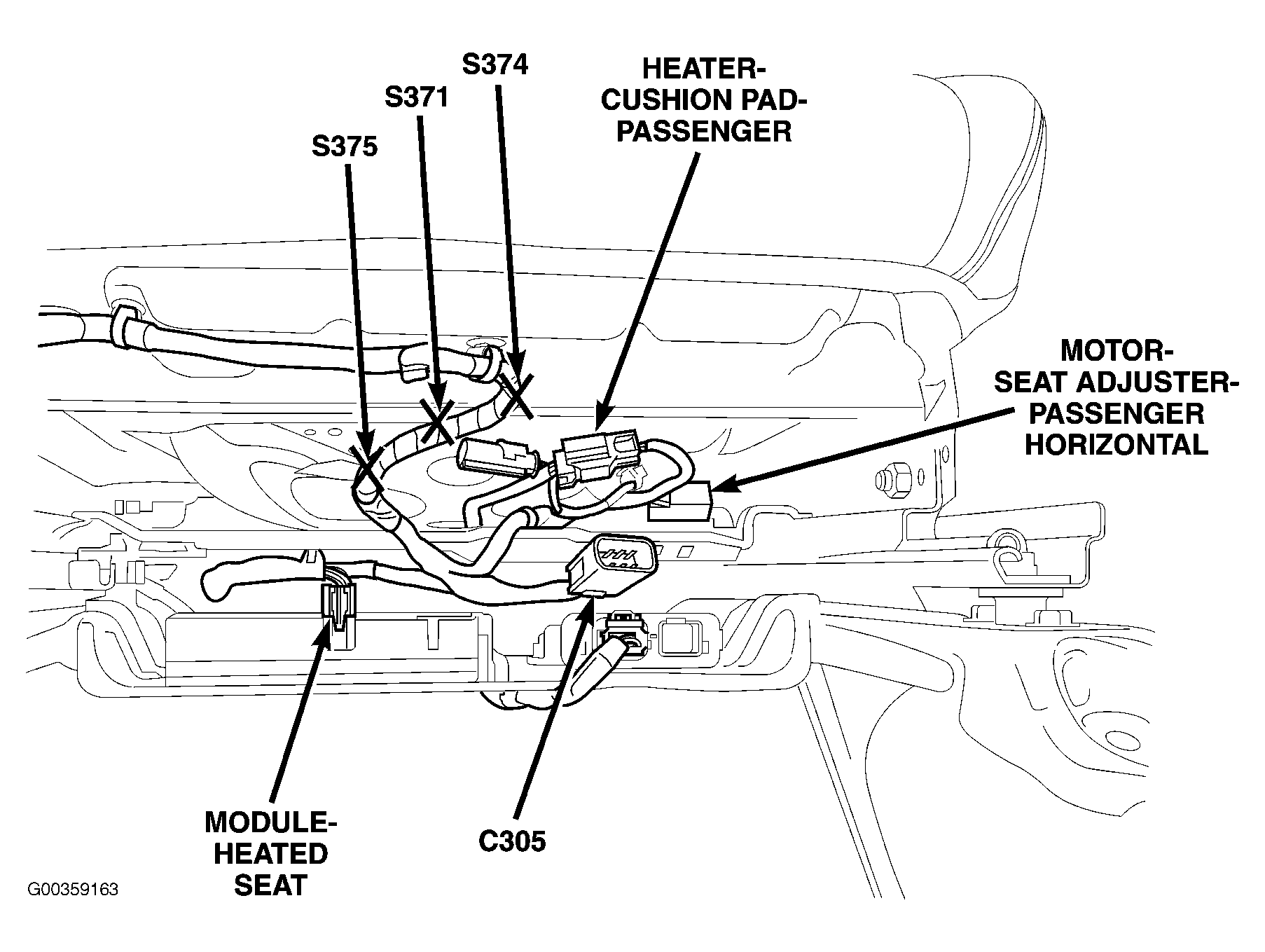

Heated Seat Module	Below passenger seat. See Figure.

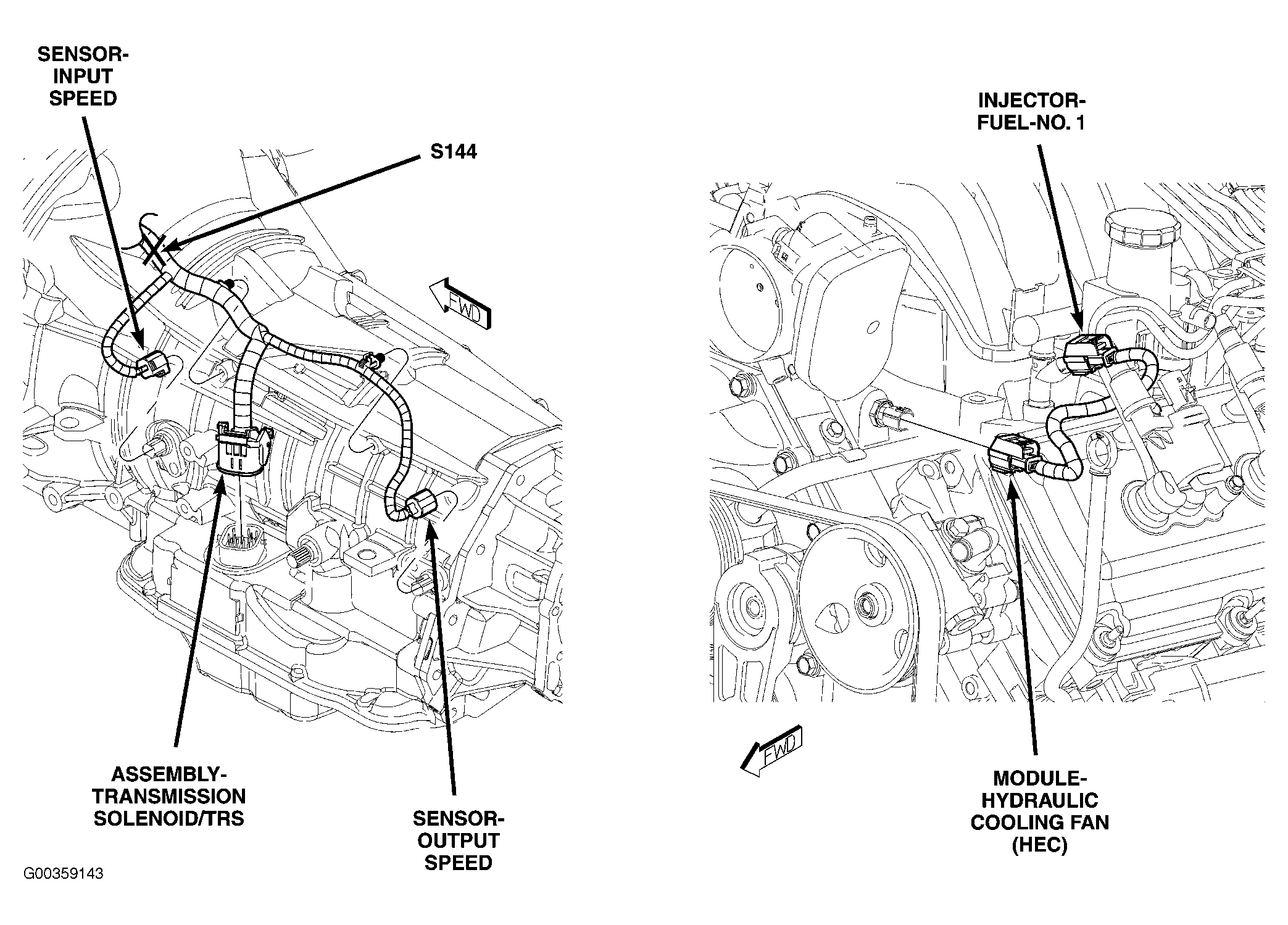

Hydraulic Cooling Fan Module (HEC)	Front of engine. See Figure.

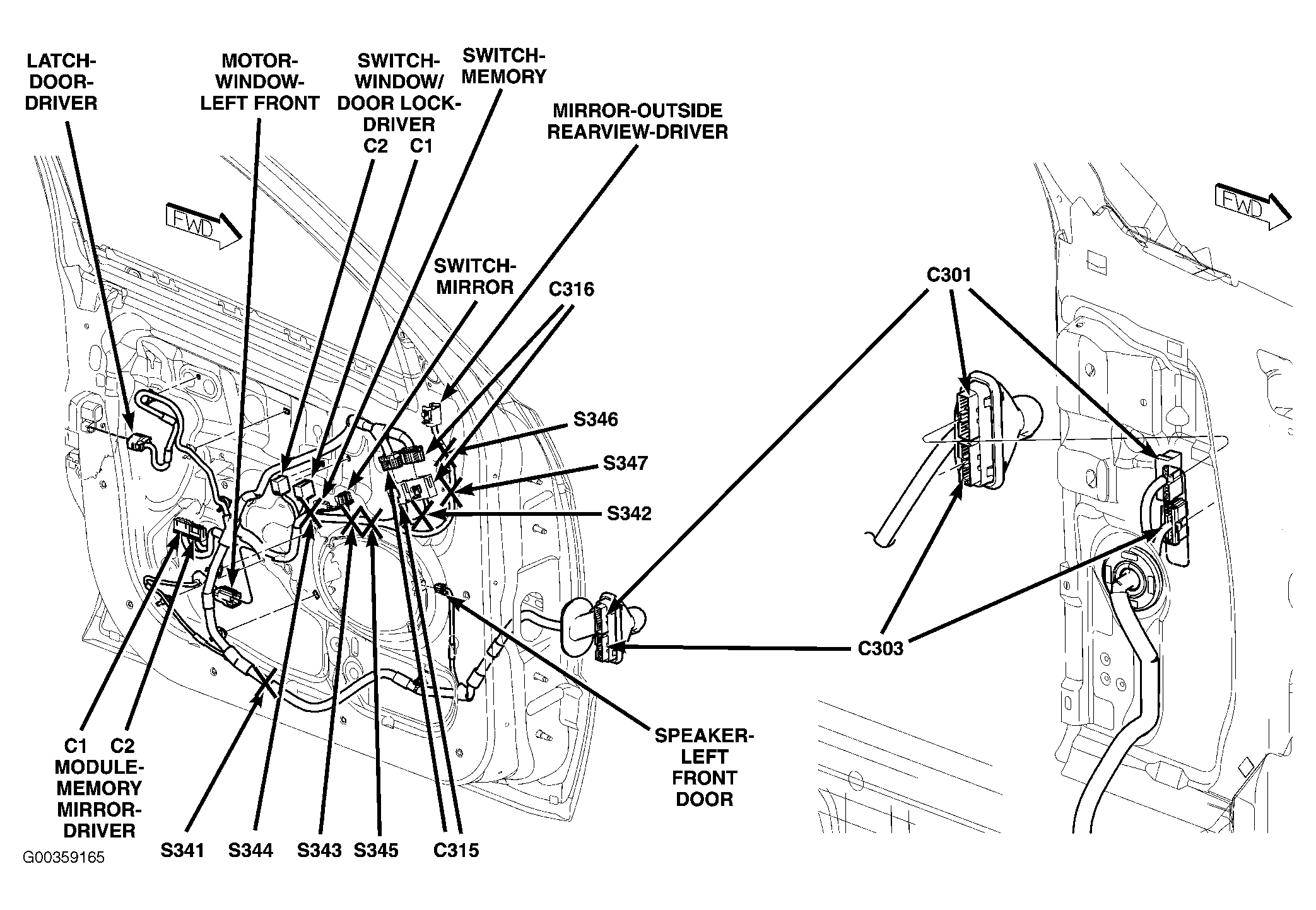

Memory Mirror Module (Driver)	In driver door. See Figure.
Memory Mirror Module (Passenger)	In passenger door.

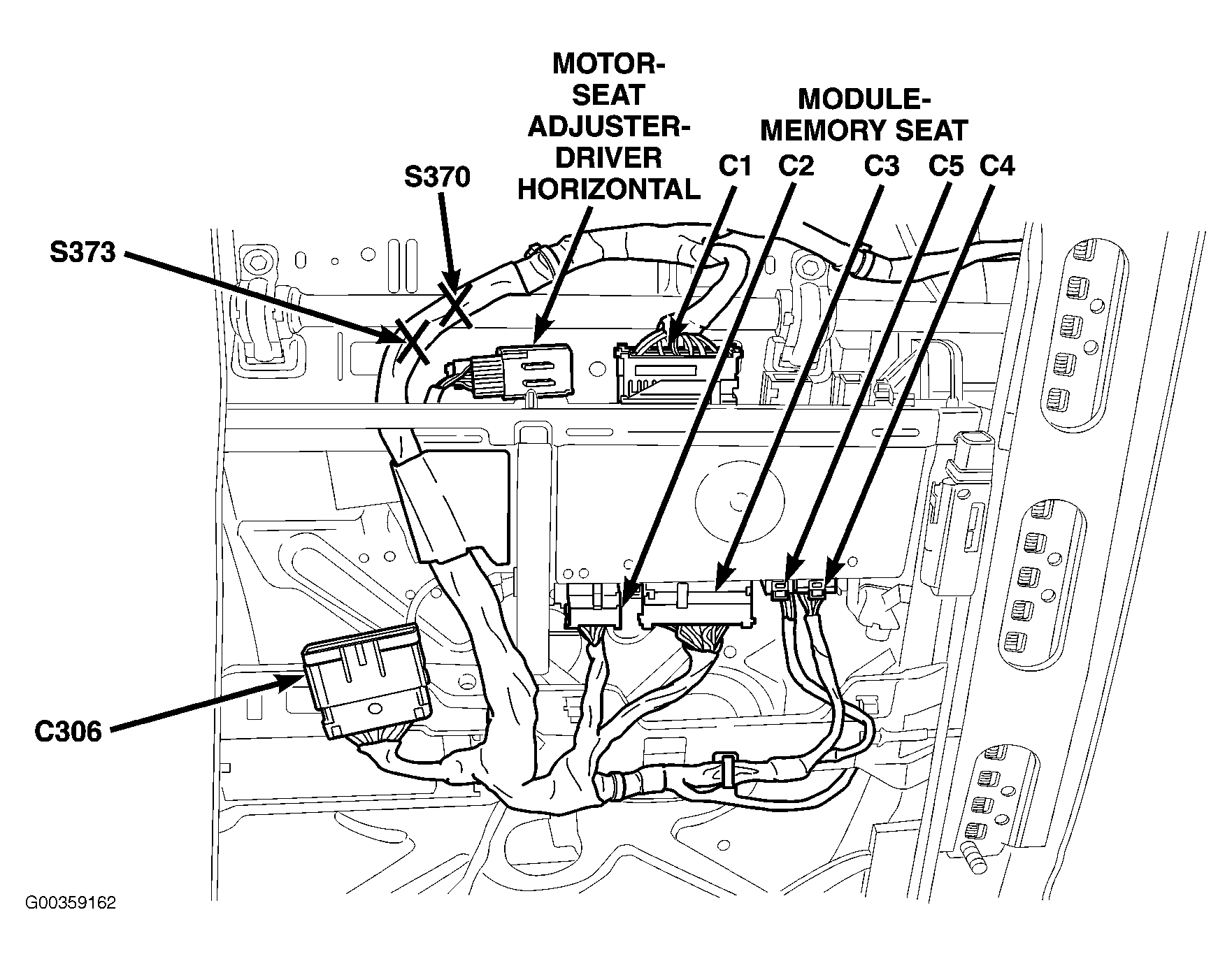

Memory Seat Module	Below driver seat. See Figure.

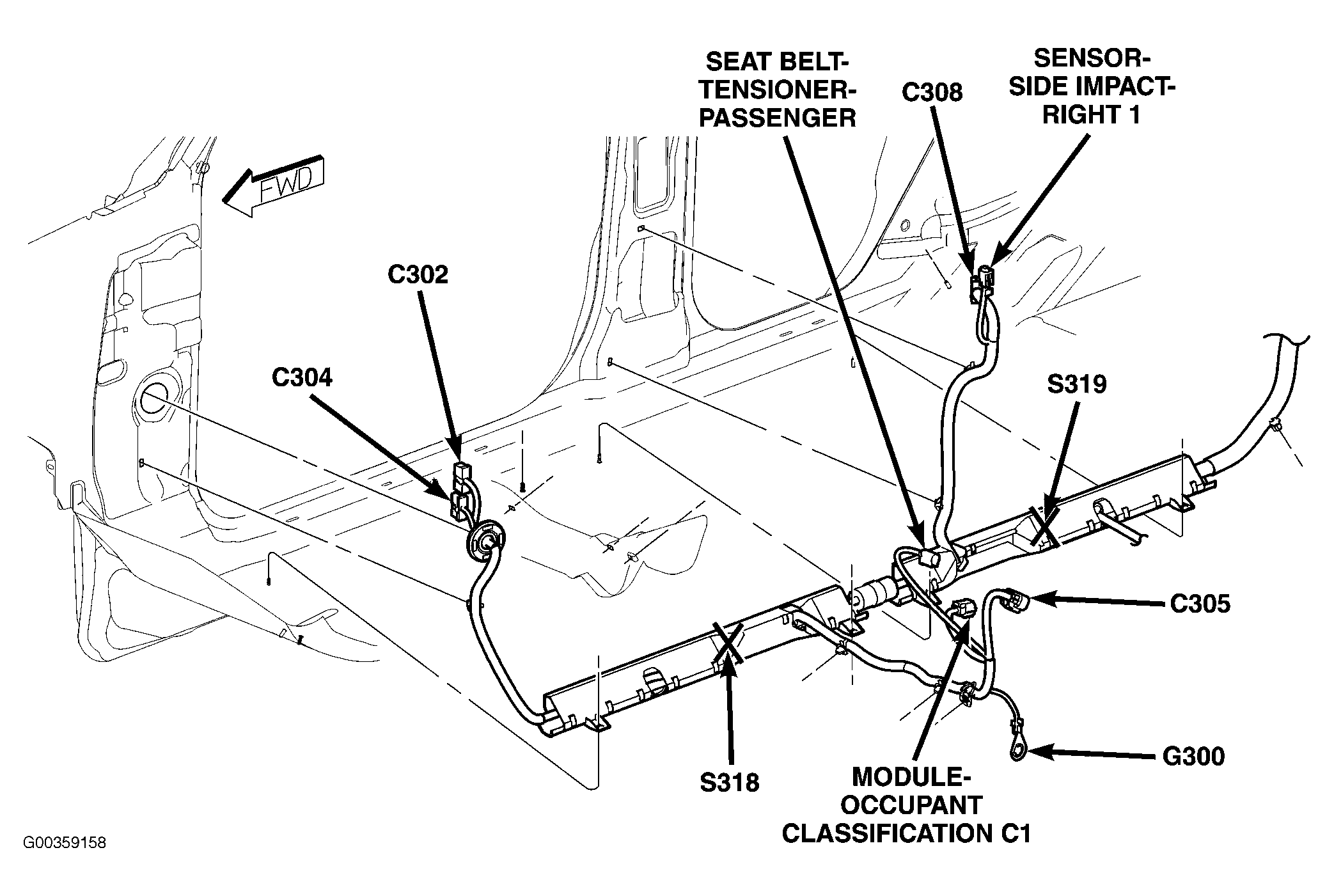

Occupant Classification Module	Below passenger seat. See Figure.

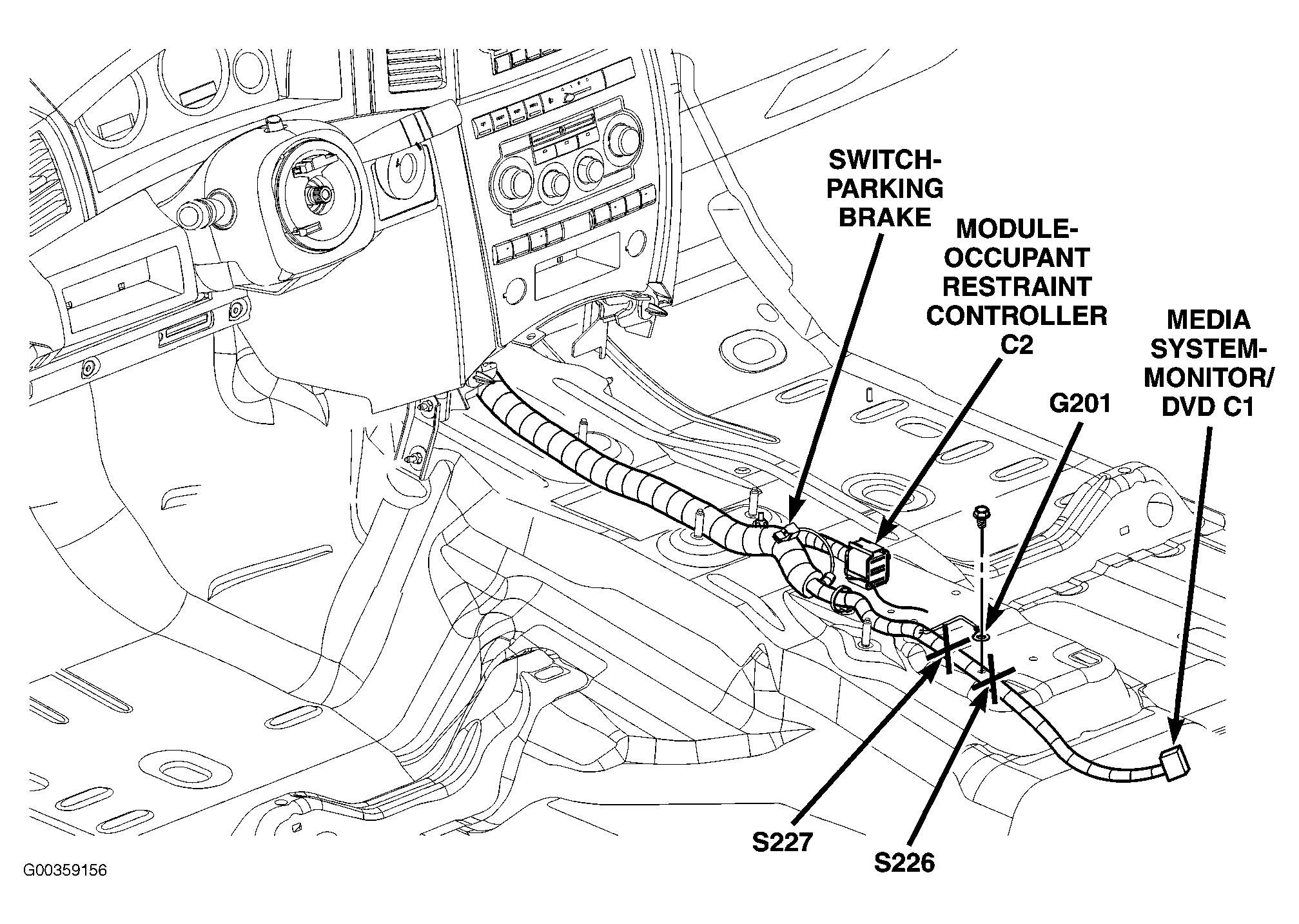

Occupant Restraint Controller Module	Below center console. See Figure.
Park Assist Module	Below left rear seat. See Figure.

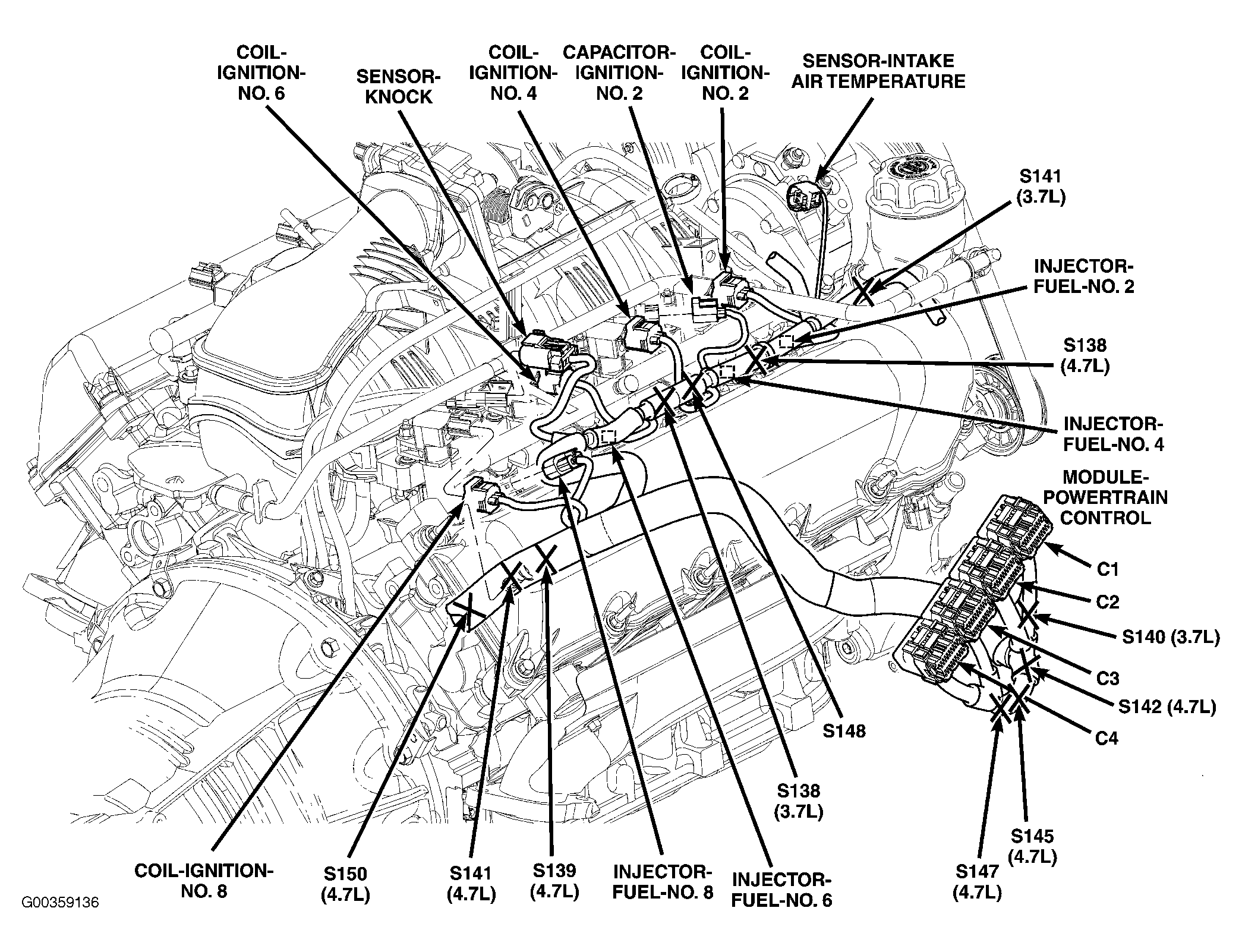

Powertrain Control Module (3.7L & 4.7L)	Right rear of engine compartment. See Figure.

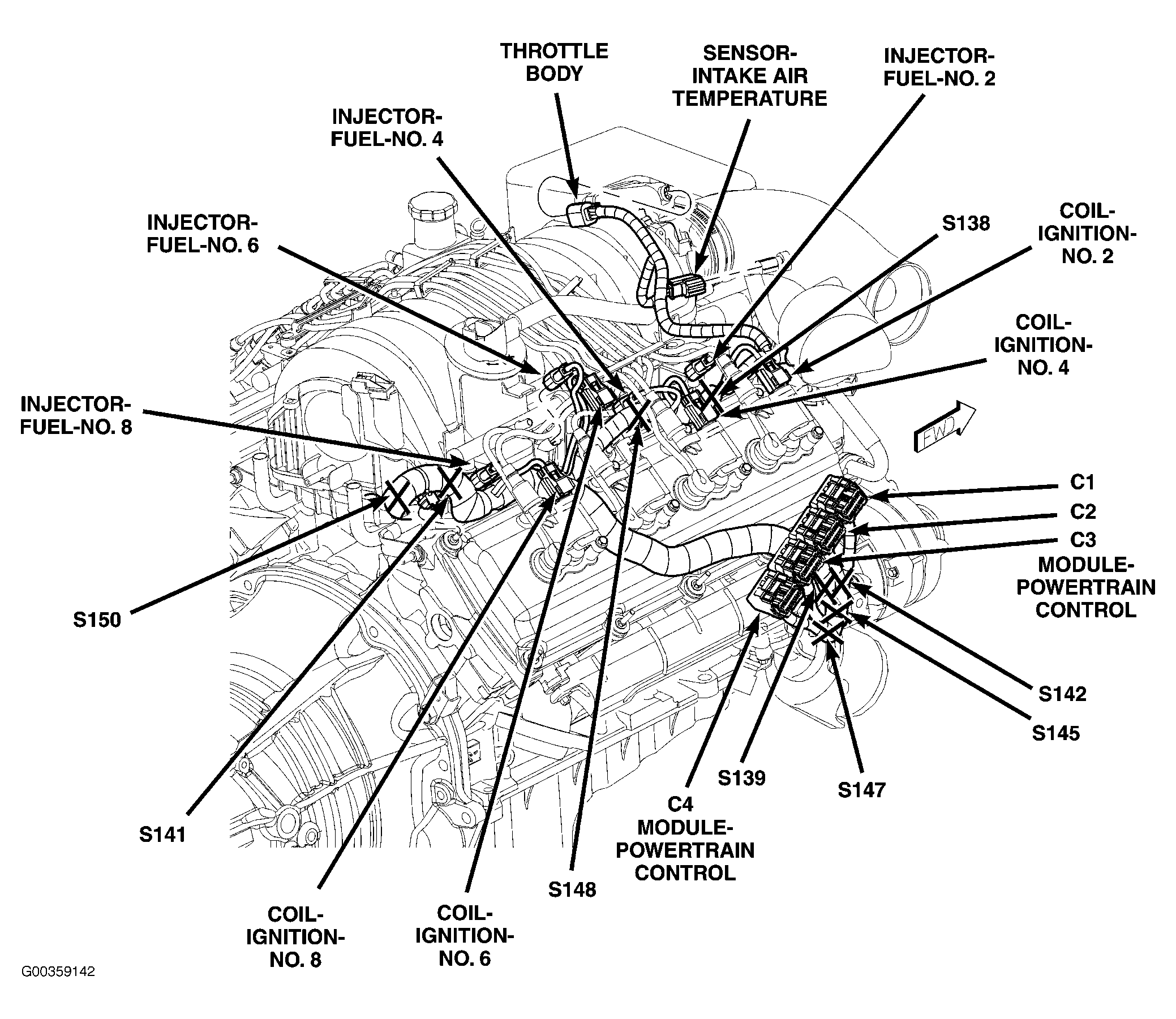

Powertrain Control Module (5.7L)	Right rear of engine compartment. See Figure.
Sentry Key Remote Entry Module	At steering column.

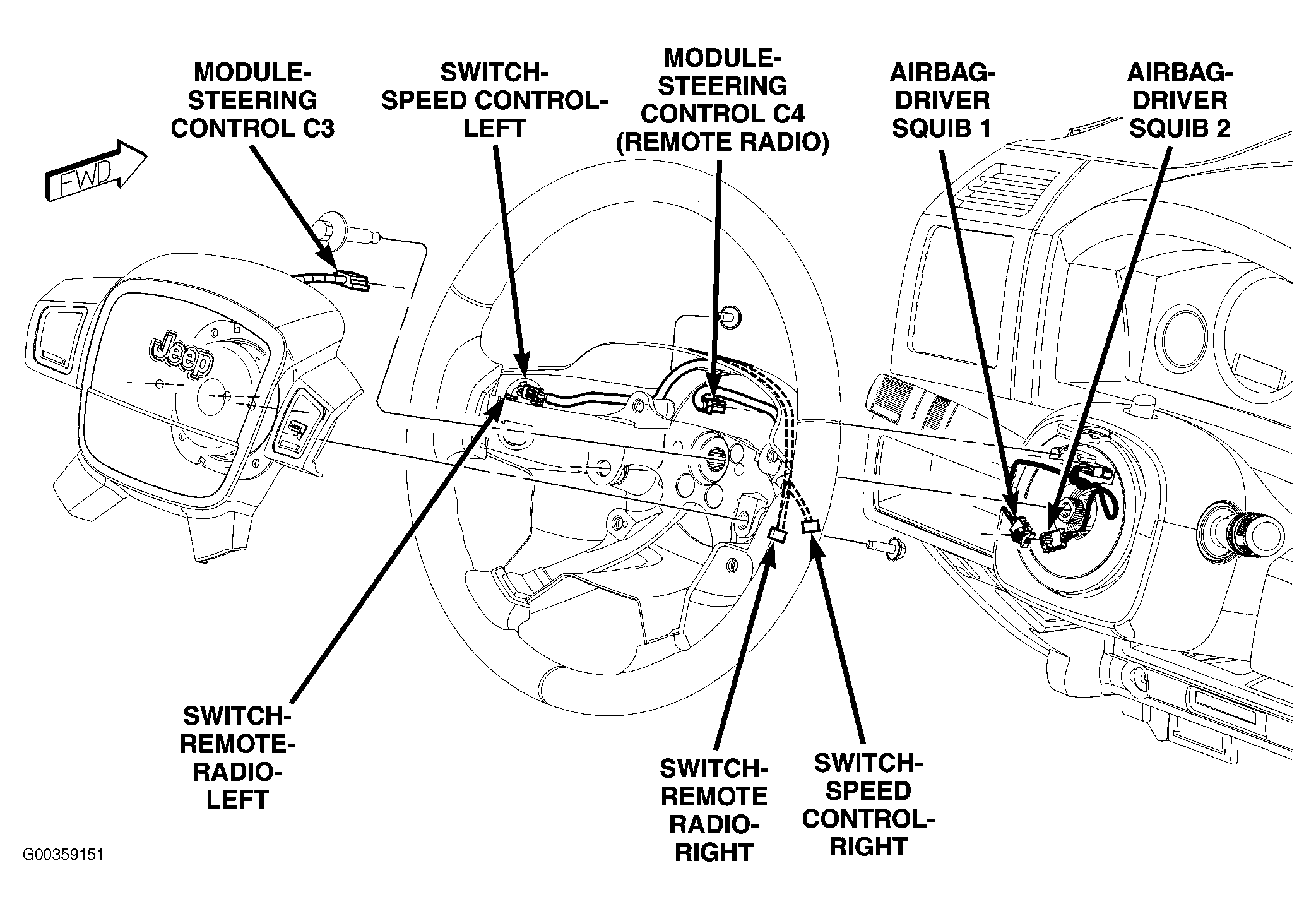

Steering Control Module	At steering wheel. See Figure.
Sunroof Motor/Module	On sunroof assembly.
Transmission Control Module (3.7L)	TCM (1) is mounted to the dash panel (2), under the dash panel silencer pad, just to the right of the steering column. See Figure.
Transmission Control Module (4.7L & 5.7L)	TCM is a sub-module within the Powertrain Control Module (PCM). It is located at right rear of engine compartment. See Figure and Figure.
Transmission Control Module (6.1L)	TCM (1) is mounted to the dash panel (2), under the dash panel silencer pad, just to the right of the steering column. See Figure.
