Servo Cable

WARNING: This page is about a different car, the 2007 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

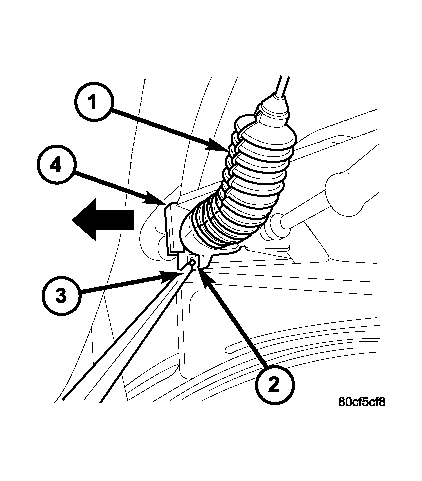

Fig 1: Removing/Installing Speed Control Cable At Bracket - 3.7L/4.7L

Courtesy of CHRYSLER LLC

Install end of cable to speed control servo. Refer to SERVO-SPEED CONTROL Removal/Installation.
Slide speed control cable plastic mount (2) into throttle body bracket.

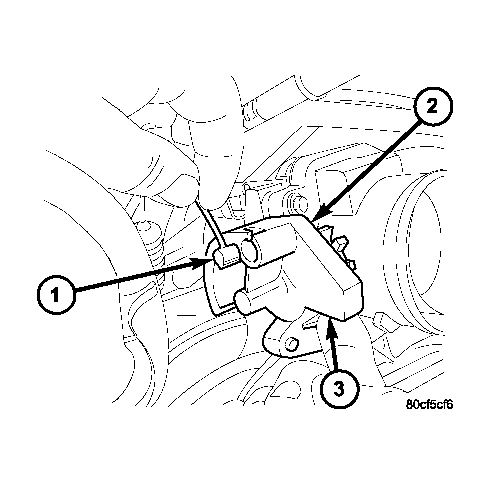

Fig 2: Removing/Installing Speed Control Cable At Bellcrank - 3.7L/4.7L
Courtesy of CHRYSLER LLC
Install speed control cable connector (2) onto throttle body bellcrank pin (push rearward to snap into location).

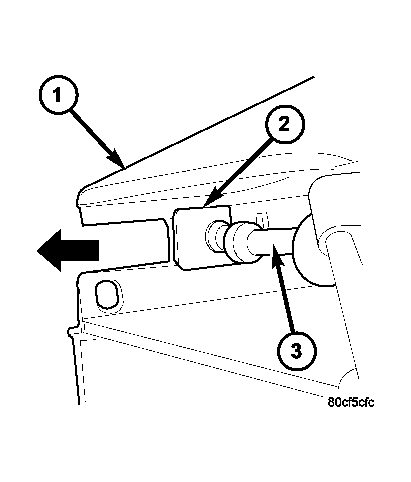

Fig 3: Locating Throttle Cable Release Tab - 3.7L / 4.7L
Courtesy of CHRYSLER LLC
Slide throttle (accelerator) cable plastic mount (4) into throttle body bracket. Continue sliding until cable release tab (2) is aligned to hole in throttle body mounting bracket.

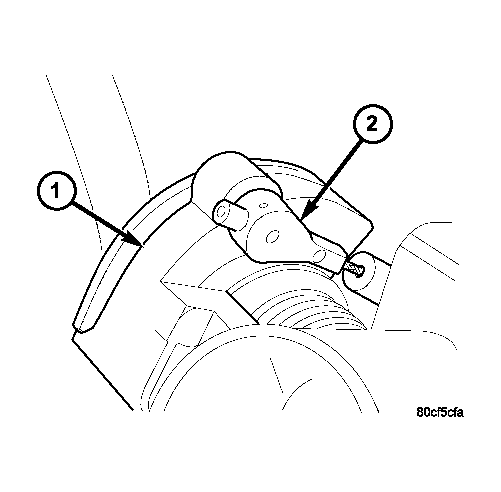

Fig 4: Removing/Installing Throttle Cable Pin - 3.7L/4.7L
Courtesy of CHRYSLER LLC
While holding throttle to wide open position, place throttle cable pin (1) into throttle body bellcrank.
Install air intake tube to top of throttle body.
Connect negative battery cable at battery.
Before starting engine, operate accelerator pedal to check for any binding.
