Engine Control Module (Diesel) Connector End View (C1)

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

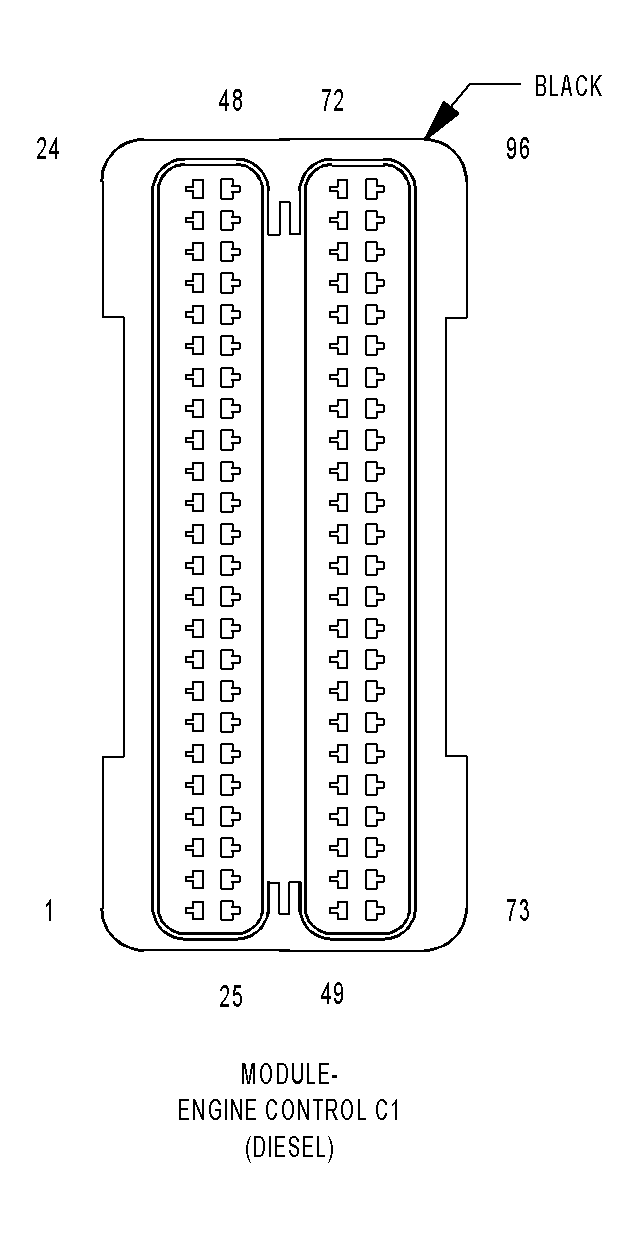

MODULE-ENGINE CONTROL C1 (DIESEL) - BLACK 96 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K11 16BL	FUEL INJECTOR NO. 1 HIGH-SIDE CONTROL
2	K12 16BL/VT	FUEL INJECTOR NO. 2 HIGH-SIDE CONTROL
3	K13 16BL/RD	FUEL INJECTOR NO. 3 HIGH-SIDE CONTROL
4	-	-
5	-	-
6	K902 20GY/WT	O2 1/1 PUMP CELL CURRENT TRIM
7	K844 20RD/VT	CAMSHAFT POSITION SENSOR 5 VOLT SUPPLY
8	K900 20BR/RD	INLET AIR PRESSURE SENSOR GROUND
9	K934 20OR	EXHAUST GAS PRESSURE SENSOR GROUND
10	K944 20BR/DG	CAMSHAFT POSITION SENSOR GROUND
11	K312 20GY/OR	EGR AIRFLOW CONTROL VALVE POSITION SENSOR SIGNAL
12	N116 18BR/VT	CRANKCASE VENT HEATER CONTROL
13	-	-
14	-	-
15	K853 16BR/BK	CRANKSHAFT POSITION SENSOR 5 VOLT SUPPLY
16	-	-
17	-	-
18	F858 20GY/YL	EXHAUST GAS PRESSURE SENSOR 5 VOLT SUPPLY
19	K356 20RD/BK	BOOST PRESSURE SENSOR 5 VOLT SUPPLY
20	N117 20GY	INTAKE SWIRL SERVO MOTOR CONTROL
21	-	-
22	X635 20GY/DG	BOOST PRESSURE SERVO MOTOR CONTROL
23	K369 18RD/GY	FUEL PRESSURE SOLENOID 12 VOLT SUPPLY
24	K315 20OR/PK	EGR AIRFLOW CONTROL VALVE MOTOR (-)
25	K14 16BL/YL	FUEL INJECTOR NO. 4 HIGH-SIDE CONTROL
26	K38 16BL/DG	FUEL INJECTOR NO. 5 HIGH-SIDE CONTROL
27	K58 16BK/WT	FUEL INJECTOR NO. 6 HIGH-SIDE CONTROL
28	K960 18BR/VT	INTAKE AIR TEMPERATURE SENSOR GROUND
29	-	-
30	-	-
31	K41 20DG/BK	O2 1/1 REFERENCE SIGNAL
32	-	-
33	K44 20YL/GY	CAMSHAFT POSITION SENSOR SIGNAL
34	K358 20GY/BL	OIL LEVEL SWITCH SIGNAL
35	G123 18PK/RD	WATER IN FUEL SENSOR SIGNAL
36	K923 18GY/DG	WATER IN FUEL SENSOR GROUND
37	K957 18BR	MASS AIR FLOW SENSOR GROUND
38	-	-
39	G224 20YL/GY	OIL TEMPERATURE SENSOR SIGNAL
40	F851 20DG	OIL PRESSURE SENSOR 5 VOLT SUPPLY
41	K313 20DG/GY	EGR AIRFLOW CONTROL VALVE SUPPLY
42	K668 20BR/BK	INLET AIR PRESSURE SENSOR 5 VOLT SUPPLY
43	K350 20RD/WT	FUEL PRESSURE SENSOR 5 VOLT SUPPLY
44	-	-
45	-	-
46	-	-
47	K366 18BK/BL/DG	FUEL QUANTITY SOLENOID 12 VOLT SUPPLY
48	K99 16GY/BR	O2 1/1 HEATER CONTROL
49	K638 16BK/DG	FUEL INJECTOR NO. 5 LOW-SIDE CONTROL
50	K611 16BK/BL	FUEL INJECTOR NO. 1 LOW-SIDE CONTROL
51	K658 16BL/WT	FUEL INJECTOR NO. 6 LOW-SIDE CONTROL
52	K222 20BR/YL	ENGINE COOLANT TEMPERATURE SENSOR GROUND
53	Z753 20RD/VT	CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
54	-	-
55	-	-
56	K914 20BL/DG	FUEL TEMPERATURE SENSOR GROUND
57	Z43 20DG/BL	O2 1/1 NEGATIVE CURRENT CONTROL
58	-	-
59	-	-
60	K2 20VT/OR	ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
61	K156 20BL/RD	FUEL TEMPERATURE SENSOR SIGNAL
62	K916 20BR/WT	PRE-CATALYST EXHAUST GAS TEMPERATURE GROUND
63	K915 20BR/WT	POST-CATALYST EXHAUST GAS TEMPERATURE GROUND
64	K359 20GY/BR	FUEL PRESSURE SENSOR GROUND
65	K181 20DG/VT	FUEL PRESSURE SENSOR SIGNAL
66	K157 20BL/YL	MASS AIR FLOW SENSOR SIGNAL
67	K390 20DG/PK	EGR AIRFLOW CONTROL VALVE RETURN
68	-	-
69	-	-
70	-	-
71	K34 20GY/YL	EGR SOLENOID CONTROL
72	K314 20GY/RD	EGR AIRFLOW CONTROL VALVE MOTOR (+)
73	K612 16BK/VT	FUEL INJECTOR NO. 2 LOW-SIDE CONTROL
74	K613 16BK/RD	FUEL INJECTOR NO. 3 LOW-SIDE CONTROL
75	K614 16BK/YL	FUEL INJECTOR NO. 4 LOW-SIDE CONTROL
76	Z36 20YL/DG	OIL TEMPERATURE SENSOR GROUND
77	K24 16DG/WT	CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
78	K936 20GY/PK	OIL PRESSURE SENSOR GROUND
79	-	-
80	K43 20GY/RD	O2 1/1 POSITIVE CURRENT CONTROL
81	K35 20GY/BK	EXHAUST GAS PRESSURE SENSOR SIGNAL
82	K37 20GY/YL	BOOST PRESSURE SENSOR SIGNAL
83	K352 20YL	PRE-CATALYST EXHAUST GAS TEMPERATURE SIGNAL
84	K21 20DG/WT	INTAKE AIR TEMPERATURE SENSOR SIGNAL
85	K68 20RD/BL	INLET AIR PRESSURE SENSOR SIGNAL
86	-	-
87	K656 20BR/GY	BOOST PRESSURE SENSOR GROUND
88	D509 20WT/BL	LIN BUS
89	K353 20YL/WT	POST-CATALYST EXHAUST GAS TEMPERATURE SIGNAL
90	K362 20DG/YL	MASS AIR FLOW SENSOR 5 VOLT SUPPLY
91	-	-
92	-	-
93	K370 18BK/WT	FUEL PRESSURE SOLENOID CONTROL
94	K365 18YL/BK	FUEL QUANTITY SOLENOID CONTROL
95	-	-
96	-	-
