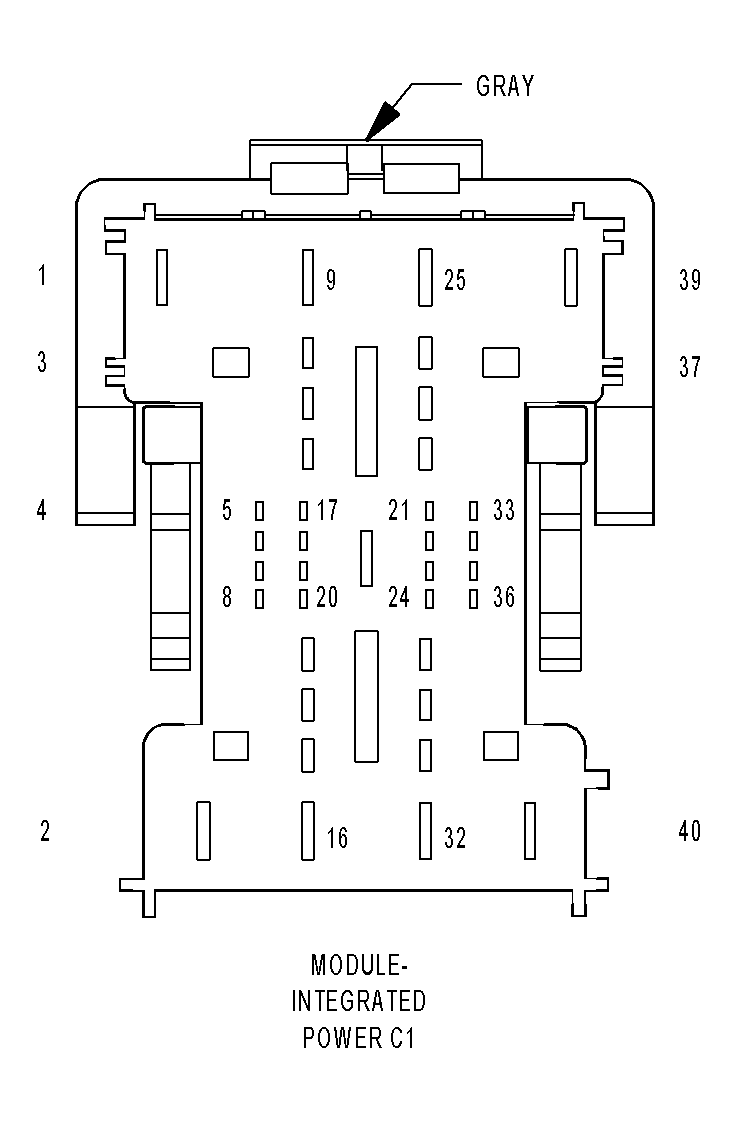

Integrated Power Module Connector End View (C1)

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

MODULE-INTEGRATED POWER C1 - GRAY 40 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A118 16RD/OR	FUSED B(+)
2	A909 14RD	FUSED B(+)
3	-	-
4	-	-
5	L778 20WT/DB	FUSED PARK LAMP RELAY OUTPUT
6	L778 20WT/DB	FUSED PARK LAMP RELAY OUTPUT
7	L777 20WT/BR	FUSED PARK LAMP RELAY OUTPUT
8	L777 20WT/BR	FUSED PARK LAMP RELAY OUTPUT
9	N23 10DB/DG (3.7L/4.7L/SRT8)	HIGH SPEED RADIATOR FAN RELAY OUTPUT
10	W7 20BR/GY	FRONT WIPER PARK SWITCH SENSE
11	F20 20PK/GY	FUSED IGNITION SWITCH OUTPUT (RUN-START)
12	F944 18PK/TN (EXCEPT SRT8)	IGNITION SWITCH OUTPUT (RUN-START)
12	F944 18PK/LG (SRT8)	IGNITION SWITCH OUTPUT (RUN-START)
13	L76 18WT/BR (TRAILER TOW)	FUSED PARK LAMP RELAY OUTPUT
14	A114 18GY/RD (EXPORT EXCEPT SRT8)	FUSED B(+)
15	Z387 18BK	GROUND
16	L614 18WT/DB	TRAILER TOW TURN SIGNAL
17	L778 20WT/DB	FUSED PARK LAMP RELAY OUTPUT
18	C918 20BK/LB	FCM SENSOR RETURN
19	L777 20WT/BR	FUSED PARK LAMP RELAY OUTPUT
20	-	-
21	-	-
22	-	-
23	L62 18WT/OR	RIGHT REAR TURN SIGNAL CONTROL
24	K361 20BR/WT (DIESEL)	PTC NO. 2 RELAY CONTROL
24	K617 20BR/PK (GAS EXCEPT SRT8)	PTC NO. 2 RELAY CONTROL
25	N24 10DG/DB (3.7L/4.7L/SRT8)	LOW SPEED RADIATOR FAN RELAY OUTPUT
26	F100 20PK/VT	FUSED RUN RELAY OUTPUT
27	F923 14PK/YL	RUN RELAY OUTPUT
28	Z131 18BK/DG	GROUND
29	W10 20BR (DIESEL)	FRONT WASHER PUMP MOTOR CONTROL
29	W10 18BR (GAS)	FRONT WASHER PUMP MOTOR CONTROL
30	K360 20GY/BR (DIESEL)	PTC NO. 1 RELAY CONTROL
31	W20 20BR/YL (DIESEL)	REAR WASHER PUMP MOTOR CONTROL
31	W20 18BR/YL (GAS)	REAR WASHER PUMP MOTOR CONTROL
32	A15 16RD/TN	FUSED ASD RELAY OUTPUT
33	A109 16OR/RD (DIESEL/SRT8)	FUEL PUMP RELAY OUTPUT
33	A109 16TN/RD (GAS EXCEPT SRT8)	FUEL PUMP RELAY OUTPUT
34	A109 16OR/RD	FUEL PUMP RELAY OUTPUT
35	-	-
36	F1 20PK/WT (DIESEL)	FUSED IGNITION SWITCH OUTPUT (RUN-START)
36	F1 18PK/WT (GAS)	FUSED IGNITION SWITCH OUTPUT (RUN-START)
37	-	-
38	-	-
39	Z387 18BK	GROUND
40	A114 18GY/RD	FUSED B(+)
