Circuit Breaker 2 Connector End View

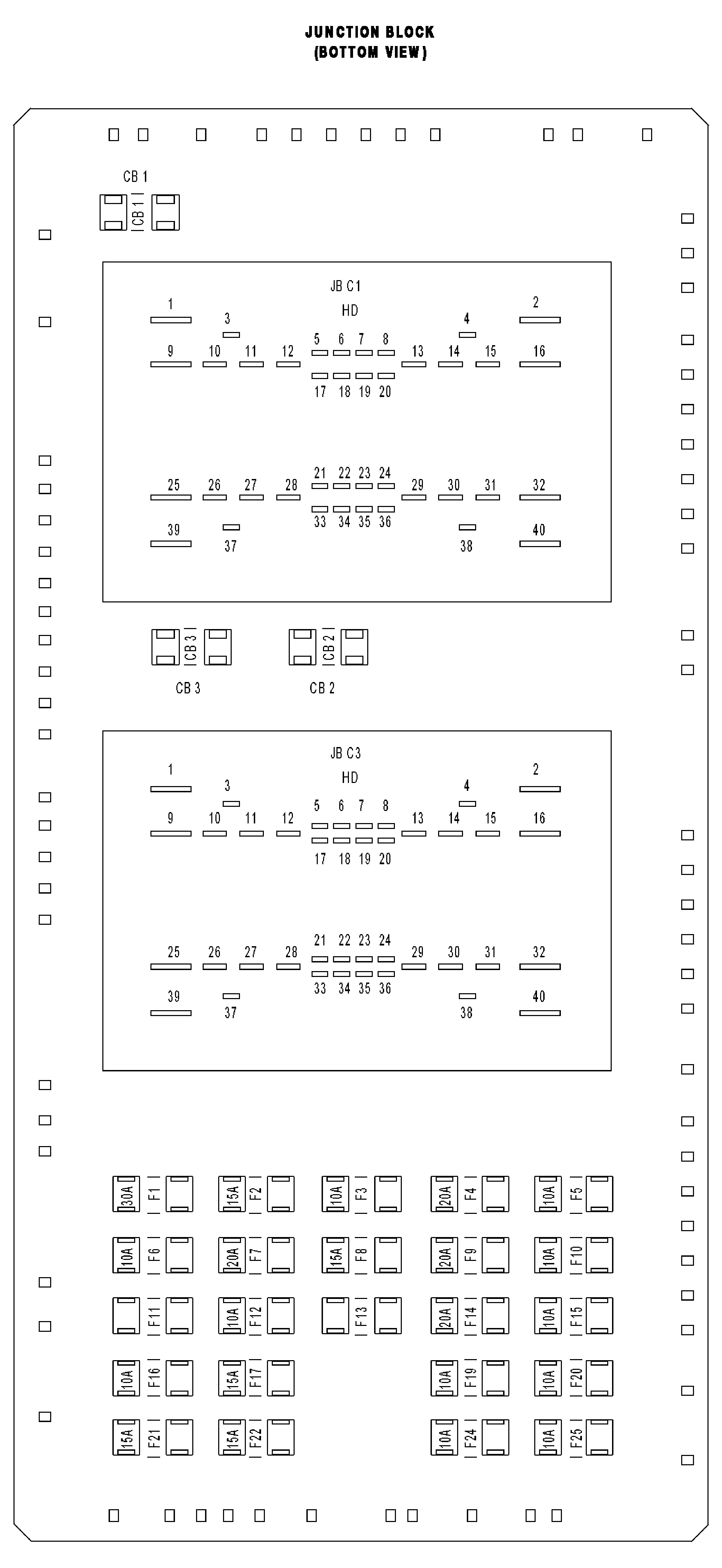

CIRCUIT BREAKER NO. 2 - 2 WAY

GCXH680094Courtesy of DAIMLERCHRYSLER CORP.
CB NO. AMPS FUSED CIRCUIT FUNCTION
1 20A A906 FUSED B(+)
2 20A A33 FUSED B(+)
