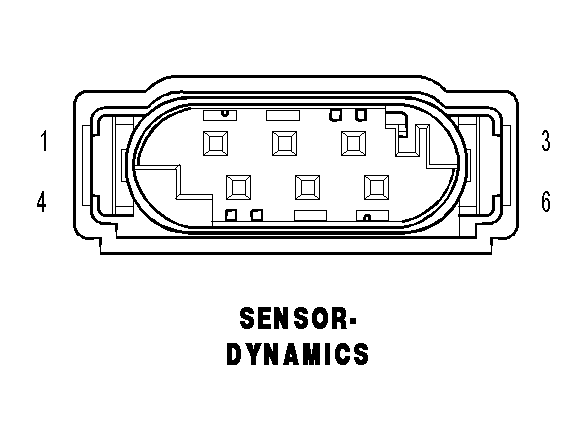

Dynamics Sensor Connector End View

SENSOR-DYNAMICS - 6 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	D51 20WT/BR	DYNAMICS SENSOR LOW DATA LINK
2	D52 20WT/LB	DYNAMICS SENSOR HIGH DATA LINK
3	G4 20VT/LB	DYNAMICS SENSOR SUPPLY
4	-	-
5	G94 20VT/DB	DYNAMICS SENSOR GROUND
6	-	-
