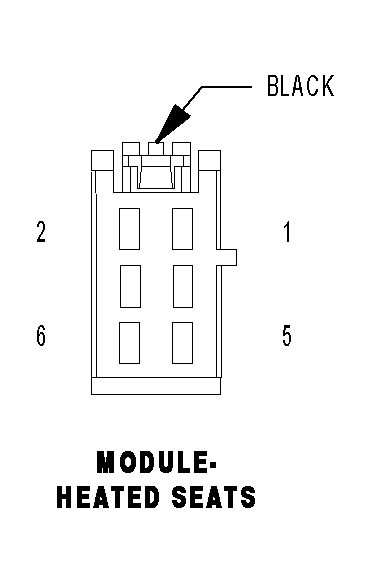

Heated Seats Module Connector End View
MODULE-HEATED SEATS - BLACK 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Z917 14BK | GROUND |
| 2 | A33 16BK/RD (LHD) | FUSED B(+) |
| 2 | A33 16RD/YL (RHD) | FUSED B(+) |
| 3 | P187 16LG/BR (LHD) | LEFT SEAT HEATER B(+) DRIVER |
| 3 | P188 16LG/VT (RHD) | RIGHT SEAT HEATER B(+) DRIVER |
| 4 | P188 16LG/VT (LHD) | RIGHT SEAT HEATER B(+) DRIVER |
| 4 | P187 16LG/BR (RHD) | LEFT SEAT HEATER B(+) DRIVER |
| 5 | D54 20WT | CAN B BUS (-) |
| 6 | D55 20WT/OR | CAN B BUS (+) |
